IRS2092 Stereo Class D Amp Board IRAUDAMP7S L15DX2 150W-500W High-end
IRS2092 Stereo Class D Amp Board IRAUDAMP7S L15DX2 150W-500W High-end
Regular price
$144.00
Regular price
$174.00
Sale price
$144.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

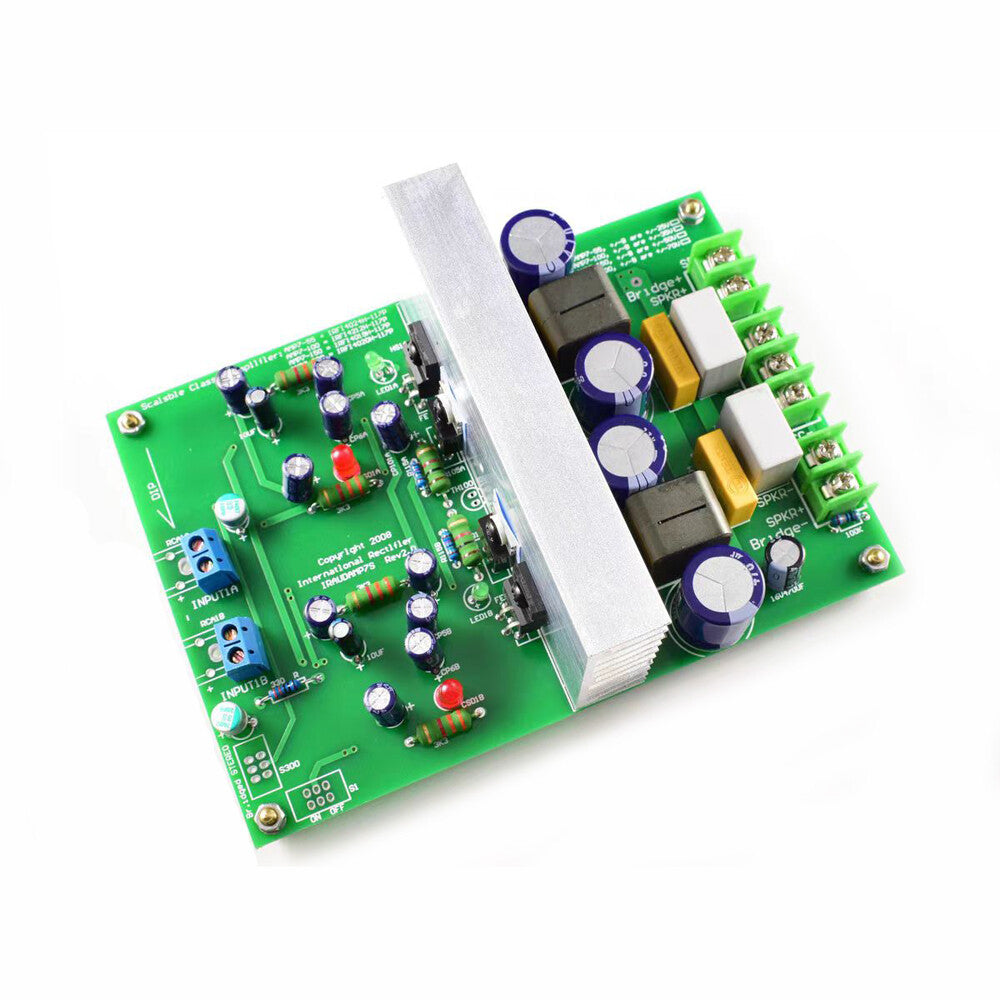

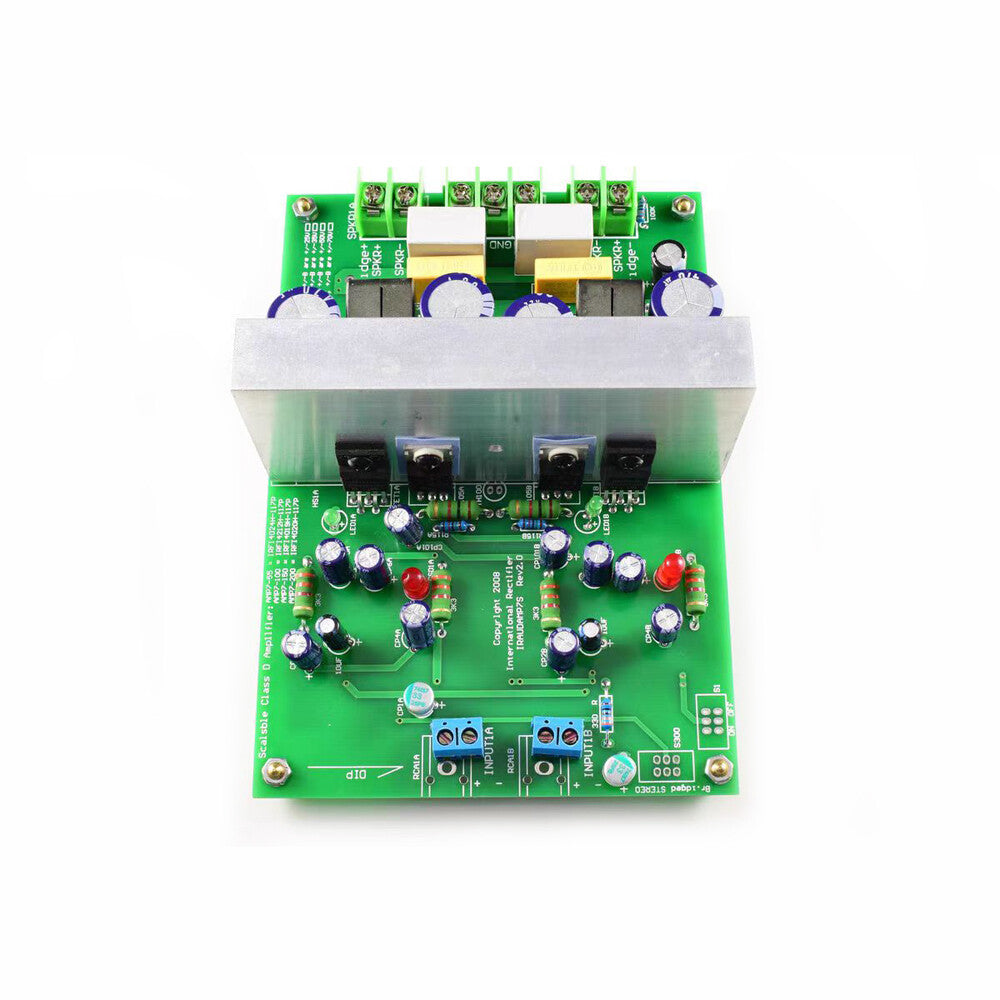

IRS2092 IRAUDAMP7S L15DX2 150W-500W High-end Class D Stereo Amplifier
Specification:
This is a completed board,i need 4 days to solder it.
Mono test (power supply +-50V, load-8R)
THD <0.007% Power 100W
THD <0.009% Power 200W
THD <0.02% Power 500W
Two-channel power - Distortion test:
THD <0.02% Power = 250W two-channel test (power supply +-50V, load-4R)
THD <0.007% Power = 50W dual channel testing (power supply +-50V, load-4R)

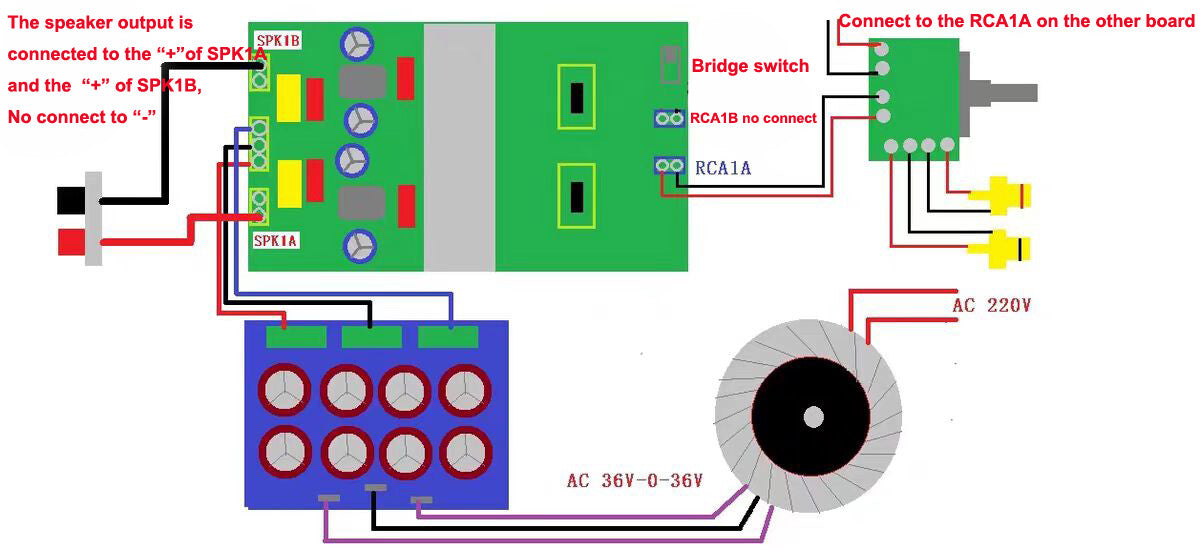

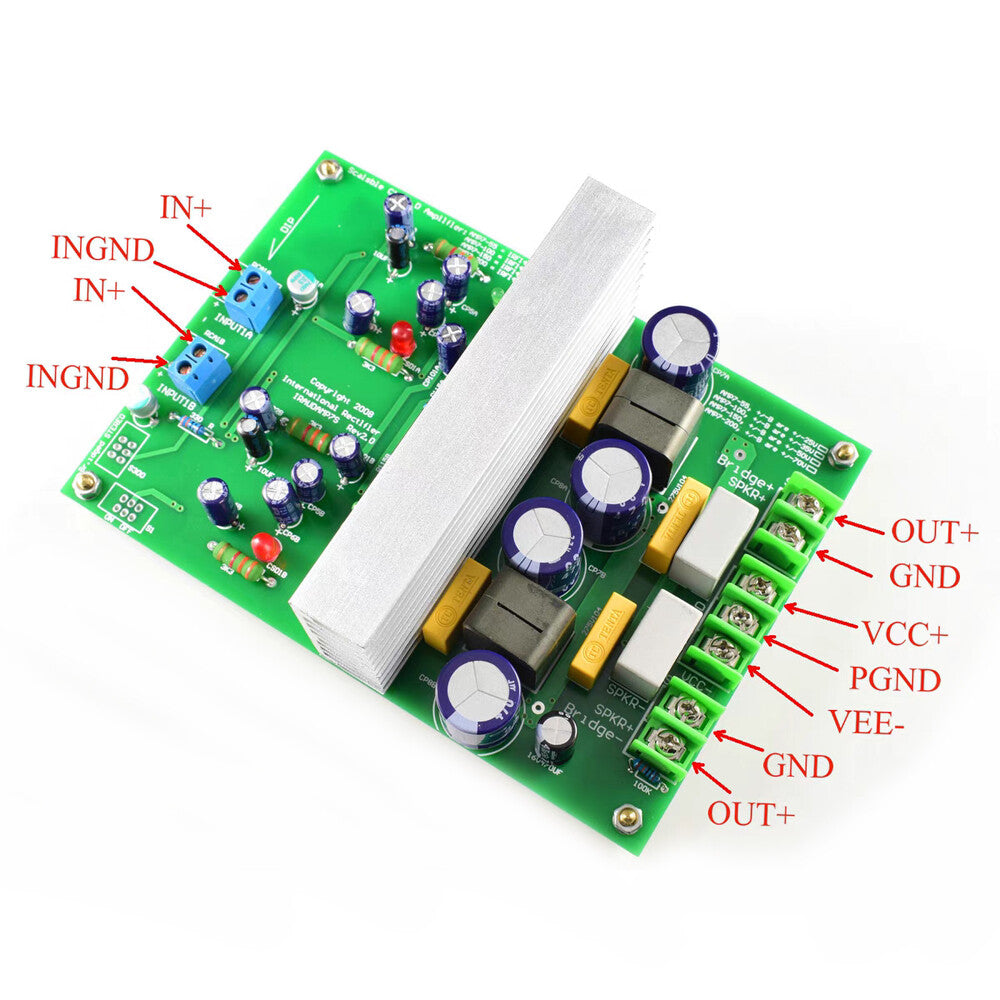

Installation:
Voltage DC +-55V (+-50V to +-60V between)
+-55V OUTPUT Power = 150W 8R RMS. two-channel
300W 4R RMS stereo.
Recommended Dual 40V AC power transformer above 400W .
Bridge +-50V OUTPUT power = 500W 8R mono.

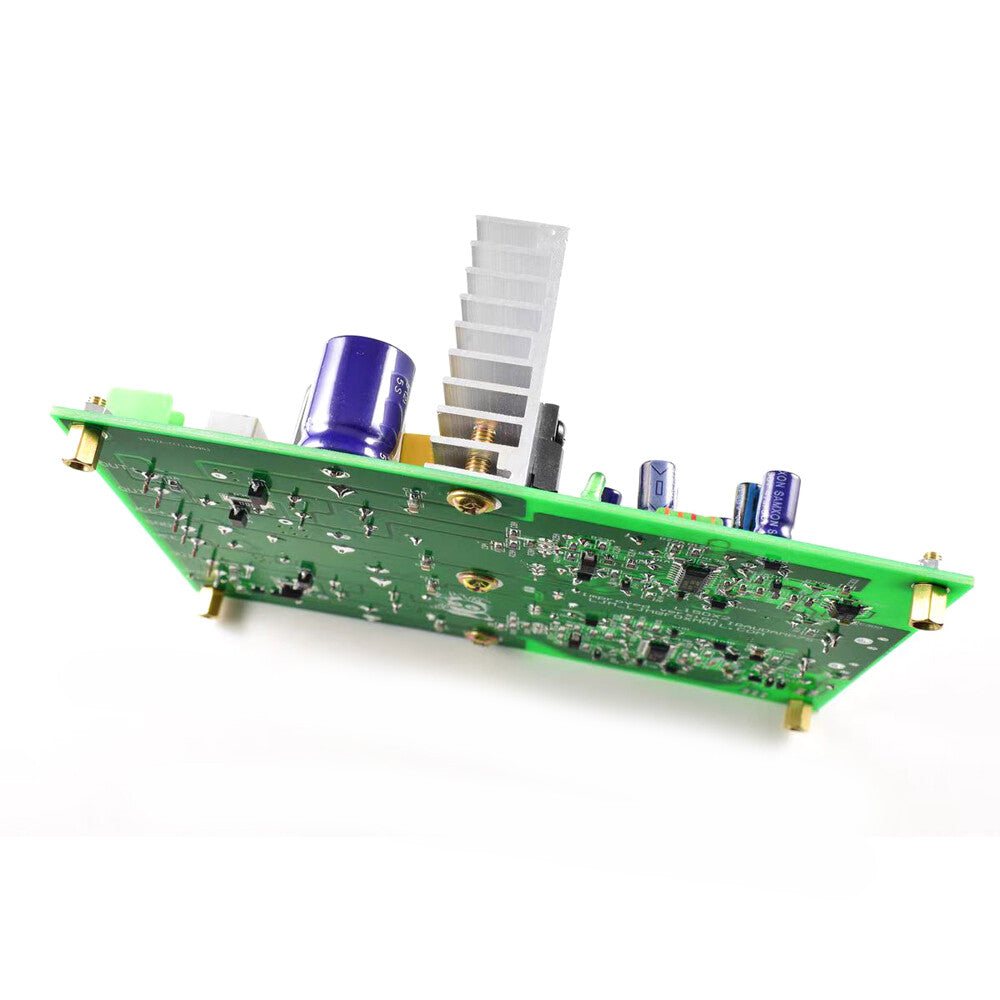

PCB size: 101 * 145 MM
Mono test (power supply +-50V, load-8R)
THD <0.007% Power 100W
THD <0.009% Power 200W
THD <0.02% Power 500W
Two-channel power - Distortion test:
THD <0.02% Power = 250W two-channel test (power supply +-50V, load-4R)
THD <0.007% Power = 50W dual channel testing (power supply +-50V, load-4R)
Installation:
Voltage DC +-55V (+-50V to +-60V between)
+-55V OUTPUT Power = 150W 8R RMS. two-channel
300W 4R RMS stereo.
Recommended Dual 40V AC power transformer above 400W .
Bridge +-50V OUTPUT power = 500W 8R mono.
PCB size: 101 * 145 MM
Feature:
Output Power: Scalable output power from 25W- 500W (see Table 1)
Residual Noise: 200 V, IHF-A weighted, AES-17 filter
Distortion: 0.007 % THD+N @ 60W, 4 R
Multiple Protection Features: Over-current protection (OCP), high side and low side MOSFET
Over-voltage protection (OVP),
Under-voltage protection (UVP), high side and low side MOSFET
DC-protection (DCP),
Over-temperature protection (OTP)
PWM topology: Self-oscillating PWM, half-bridge or full-bridge topologies selectable
Output power: from 25 watts, 500 watts (see Table 1), the output power can be extended
Residual noise: 200V of, IHF type, a weighted filter AES -17
Distortion: 0.007% THD + N @ 60W's, 4R
Multiple protection function: over-current protection (OCP), the high side and low side MOSFET
Over Voltage Protection (OVP)
Undervoltage protection (UVP), high-side and low side MOSFET
DC Protection (DCP), and
Over temperature protection (OTP)
PWM topology: Since the oscillation pulse width modulation, half-or full-bridge topology selection
Residual Noise: 200 V, IHF-A weighted, AES-17 filter
Distortion: 0.007 % THD+N @ 60W, 4 R
Multiple Protection Features: Over-current protection (OCP), high side and low side MOSFET
Over-voltage protection (OVP),
Under-voltage protection (UVP), high side and low side MOSFET
DC-protection (DCP),
Over-temperature protection (OTP)
PWM topology: Self-oscillating PWM, half-bridge or full-bridge topologies selectable
Output power: from 25 watts, 500 watts (see Table 1), the output power can be extended
Residual noise: 200V of, IHF type, a weighted filter AES -17
Distortion: 0.007% THD + N @ 60W's, 4R
Multiple protection function: over-current protection (OCP), the high side and low side MOSFET
Over Voltage Protection (OVP)
Undervoltage protection (UVP), high-side and low side MOSFET
DC Protection (DCP), and
Over temperature protection (OTP)
PWM topology: Since the oscillation pulse width modulation, half-or full-bridge topology selection
Package:
1x IRS2092 IRAUDAMP7S L15DX2 150W-500W High-end Class D Stereo Amplifier
