Lilly Electronics
KITS CS8416+CS4398 DAC board (USB+Optical Fiber 192K/24BIT Board )AC15V-0-AC15V
KITS CS8416+CS4398 DAC board (USB+Optical Fiber 192K/24BIT Board )AC15V-0-AC15V
Regular price
$50.00
Regular price
$57.00
Sale price
$50.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
KIT CS8416+CS4398 DAC Board (USB+Optical Fiber 192K/24BIT Board )AC15V-0-AC15V

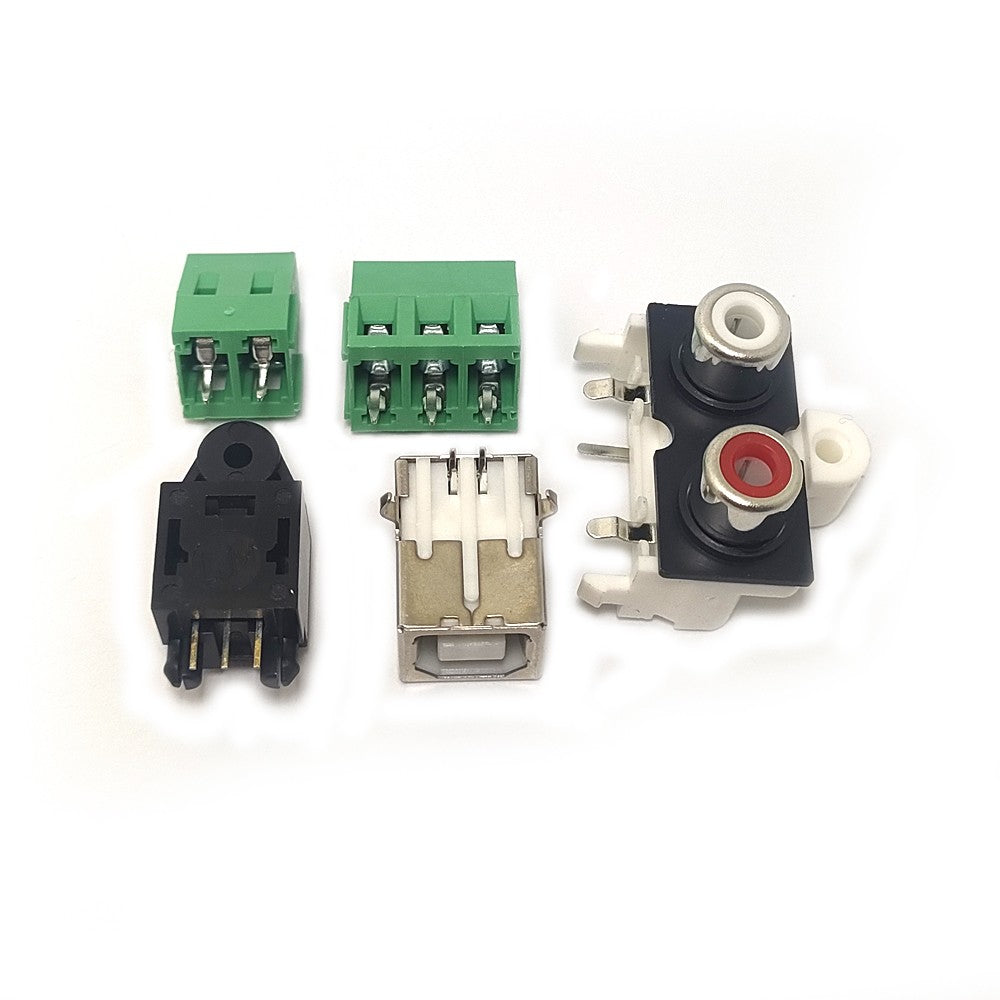

Input port
Digital input: COA (coaxial) USB each set.
Support sampling frequency: 32K -192K/24BIT (where USB input only supports 16bit/44.1K and 48K)
Power LED.
Signal lock indicator (locked) LED
COAX coaxial input channel is selected
USB USB output channel is selected
Core chip
Digital Receive: The CS8416IC supports up to 192K/24BIT SPI&I2S signal output. USB supports 16BIT/48K signals.
Digital reception: CM102 This machine uses SPDIF signal output.
D/A converter (decoding chip): CS4398 120dB dynamic range Supports 24bit/192K sampling

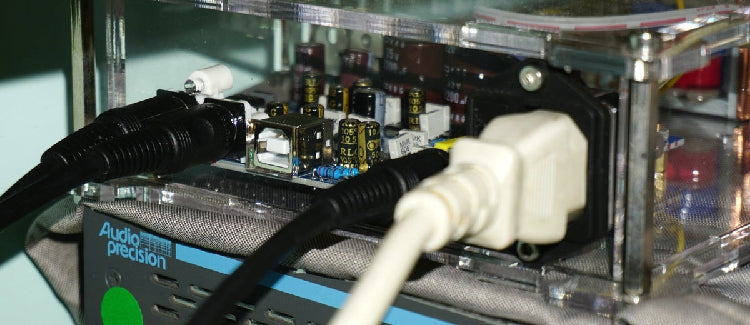

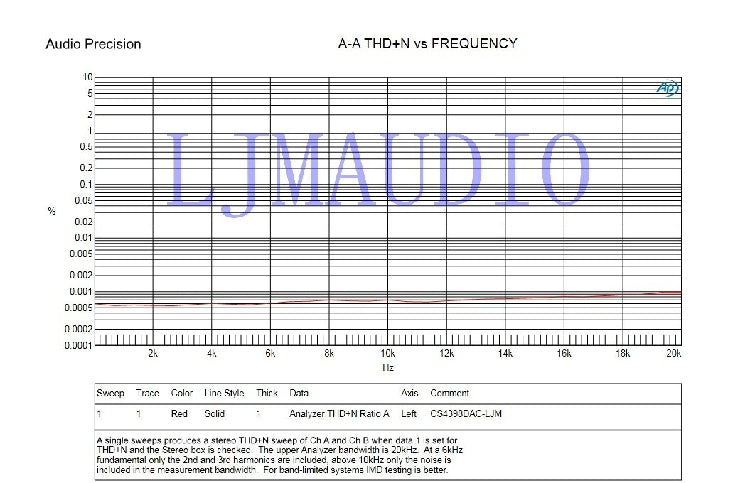

Test chart
Test environment: coaxial input
Test Equipment: AP SYS 2
Introduction to ap 2 series audio test equipment:
main feature
• Unparalleled performance, recognized audio test standards
• Dedicated analog circuitry that detects minimal residual noise and total harmonic distortion plus noise (THD+N)
The typical residual THD+N of the Audio Precision2 family is less than or equal to 115 dB at 2.0 Vrms. Even though Audio Precision has conservatively specified its total harmonic distortion plus noise (THD+N) of –112 dB, the 2700 Series is still the industry's undisputed leader in performance.
Extremely high simulation performance
The Audio Precision analog circuit has high performance and no digital converters of its class can exceed it. The 2700 Series has a low noise floor and is comparable to any other analyzer in its class (even with analog components).
AP 2 Actual Test The USBDAC uses 48K and 96K coaxial signal inputs.
THD+N <0.001%, 20HZ-20KHZ
THD+N<0.0006% 2 0HZ-6K HZ
Details:
If you do not have an antistatic soldering iron, please purchase a finished board. Soldering stations of all grades above 936 must be used to weld all parts. Avoid static electricity Damage to the chip.
Introduction to DAC: Digital reception uses CS's latest 8416 digital receiver chip to support the highest 192KHZ output. The DAC decoder chip uses the best CS4398, the chip is delicate and soft, and the resolution is very high. Many CD brands such as British chord and MARANTZ and Spock CD high-end series use sub-chips. It can be seen that the excellent performance of CS4398 is not comparable to the general chip. In terms of parameters, all parameters of CS4398 exceed the WM8740 DAC of the same price. Built-in USB receiver and 24-bit independent DAC decoding, the DAC function is equivalent to a high-end external sound card when connected to a computer using USB. USB input and coaxial input are automatically selected.
You can also use the OTG to USB B-type printer data cable to connect to an Android phone, which is used as a digital signal to analog signal decoder for mobile phones.
Since the digital signal is not distorted, the CS4398 USBDAC can make a normal mobile phone achieve the same sound quality as a traditional desktop CD player.
parameter:

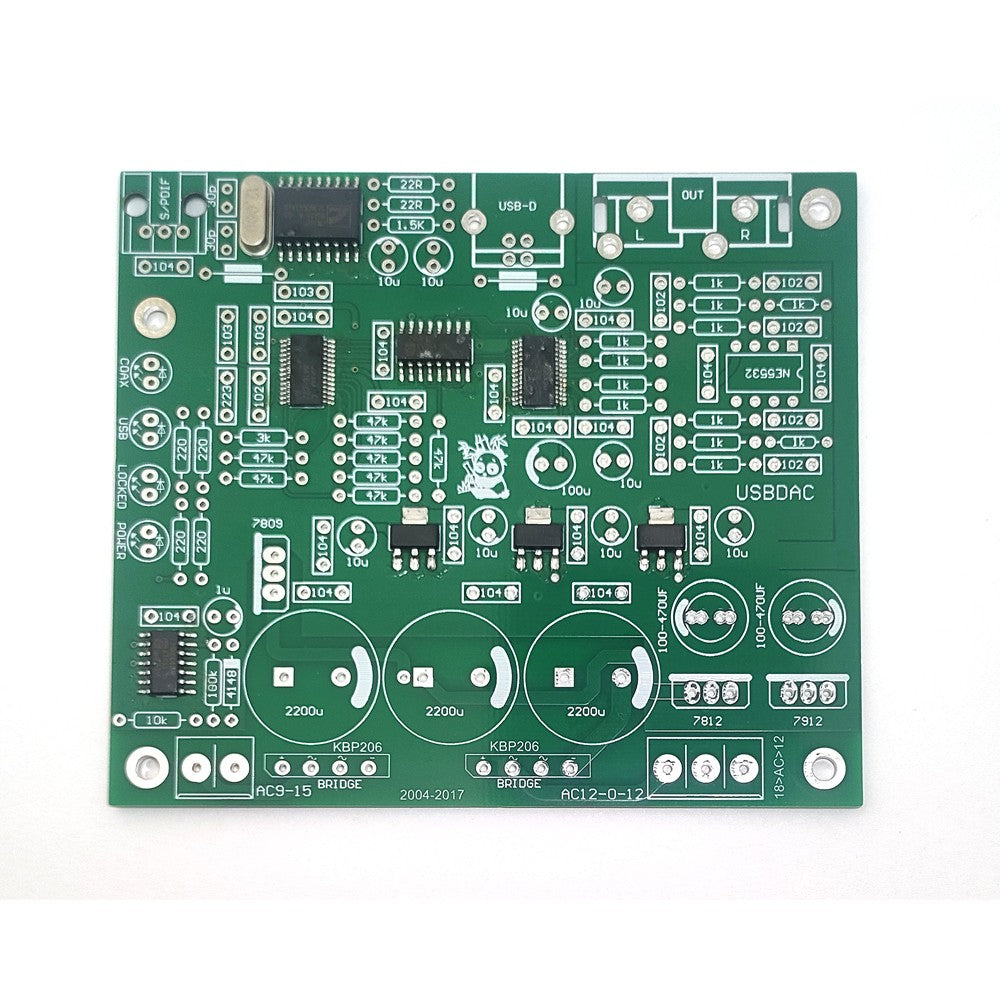

Area size: 86*100MM
Introduction to DAC: Digital reception uses CS's latest 8416 digital receiver chip to support the highest 192KHZ output. The DAC decoder chip uses the best CS4398, the chip is delicate and soft, and the resolution is very high. Many CD brands such as British chord and MARANTZ and Spock CD high-end series use sub-chips. It can be seen that the excellent performance of CS4398 is not comparable to the general chip. In terms of parameters, all parameters of CS4398 exceed the WM8740 DAC of the same price. Built-in USB receiver and 24-bit independent DAC decoding, the DAC function is equivalent to a high-end external sound card when connected to a computer using USB. USB input and coaxial input are automatically selected.
You can also use the OTG to USB B-type printer data cable to connect to an Android phone, which is used as a digital signal to analog signal decoder for mobile phones.
Since the digital signal is not distorted, the CS4398 USBDAC can make a normal mobile phone achieve the same sound quality as a traditional desktop CD player.
parameter:
Area size: 86*100MM
Input voltage: 1. AC12-0-12 AC dual 12V. The maximum voltage that can be used is AC18-0-18V.
2. AC single voltage of 9-0V. It can be used between AC18-0V.
2. AC single voltage of 9-0V. It can be used between AC18-0V.
Input port
Digital input: COA (coaxial) USB each set.
Support sampling frequency: 32K -192K/24BIT (where USB input only supports 16bit/44.1K and 48K)
Power LED.
Signal lock indicator (locked) LED
COAX coaxial input channel is selected
USB USB output channel is selected
Core chip
Digital Receive: The CS8416IC supports up to 192K/24BIT SPI&I2S signal output. USB supports 16BIT/48K signals.
Digital reception: CM102 This machine uses SPDIF signal output.
D/A converter (decoding chip): CS4398 120dB dynamic range Supports 24bit/192K sampling
Test chart
Test environment: coaxial input
Test Equipment: AP SYS 2
Introduction to ap 2 series audio test equipment:
main feature
• Unparalleled performance, recognized audio test standards
• Dedicated analog circuitry that detects minimal residual noise and total harmonic distortion plus noise (THD+N)
The typical residual THD+N of the Audio Precision2 family is less than or equal to 115 dB at 2.0 Vrms. Even though Audio Precision has conservatively specified its total harmonic distortion plus noise (THD+N) of –112 dB, the 2700 Series is still the industry's undisputed leader in performance.
Extremely high simulation performance
The Audio Precision analog circuit has high performance and no digital converters of its class can exceed it. The 2700 Series has a low noise floor and is comparable to any other analyzer in its class (even with analog components).
AP 2 Actual Test The USBDAC uses 48K and 96K coaxial signal inputs.
THD+N <0.001%, 20HZ-20KHZ
THD+N<0.0006% 2 0HZ-6K HZ

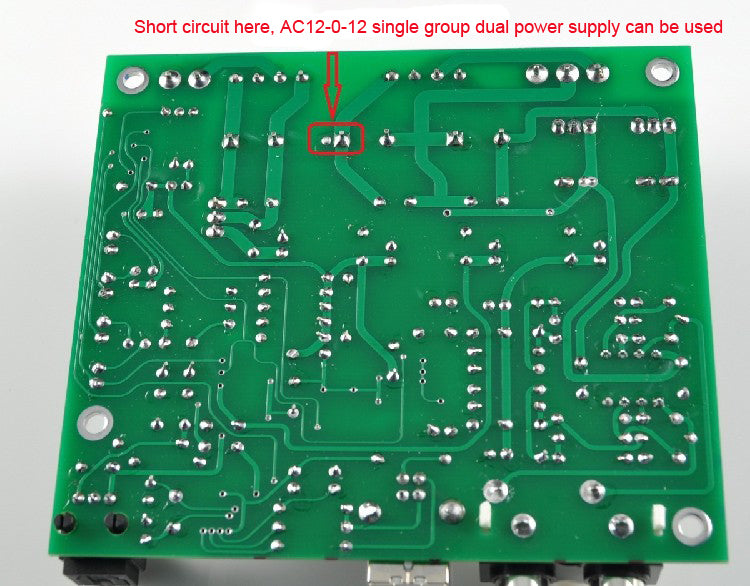

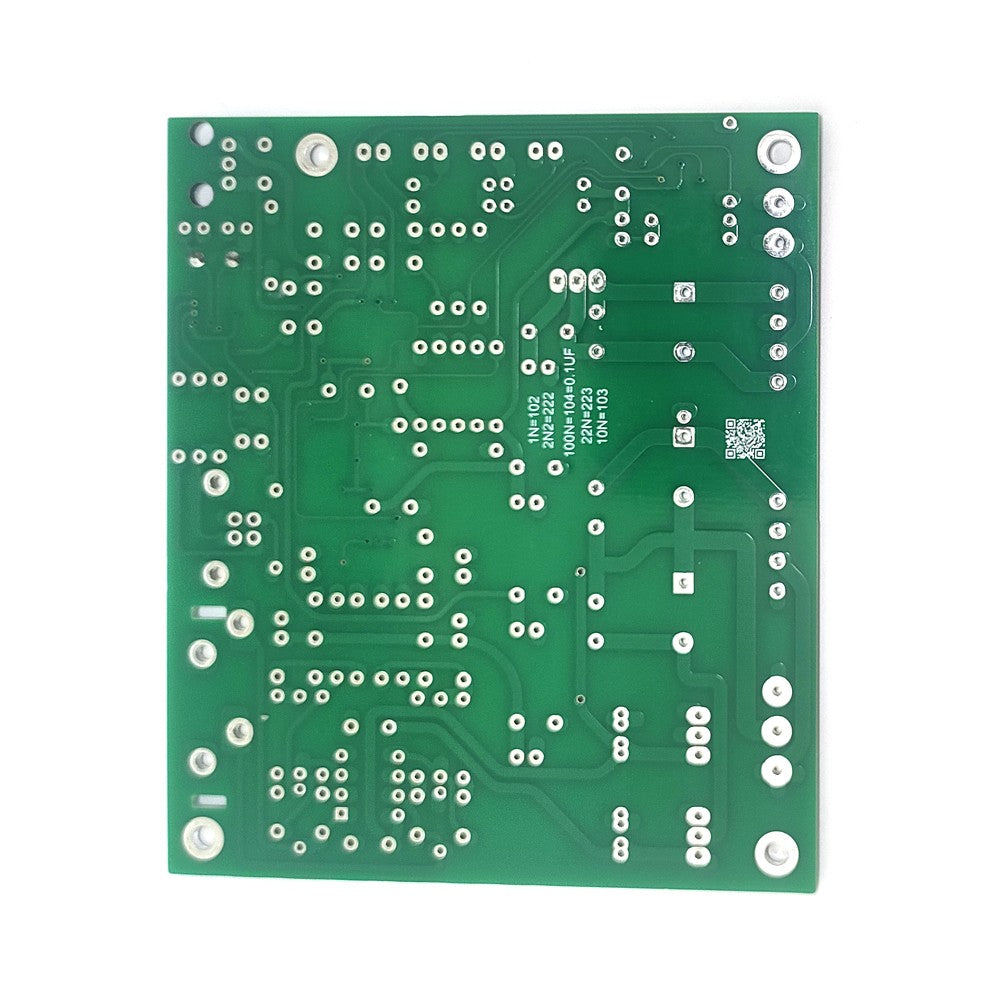

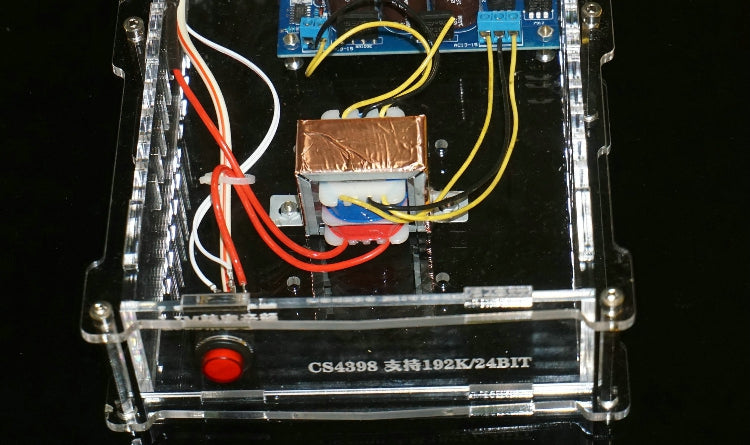

If there is only an AC 12-0-12 V transformer. There is no separate AC9-0V.
You can only connect to the AC 12-0-12 three pin socket, and then short-circuit the two points on the back near the rectifier bridge stack
Installation note:
Please use an anti-static soldering iron to avoid IC damage.
In addition, the chip has been completely soldered, and the test is OK. Please do not solder the IC pin with a soldering iron.

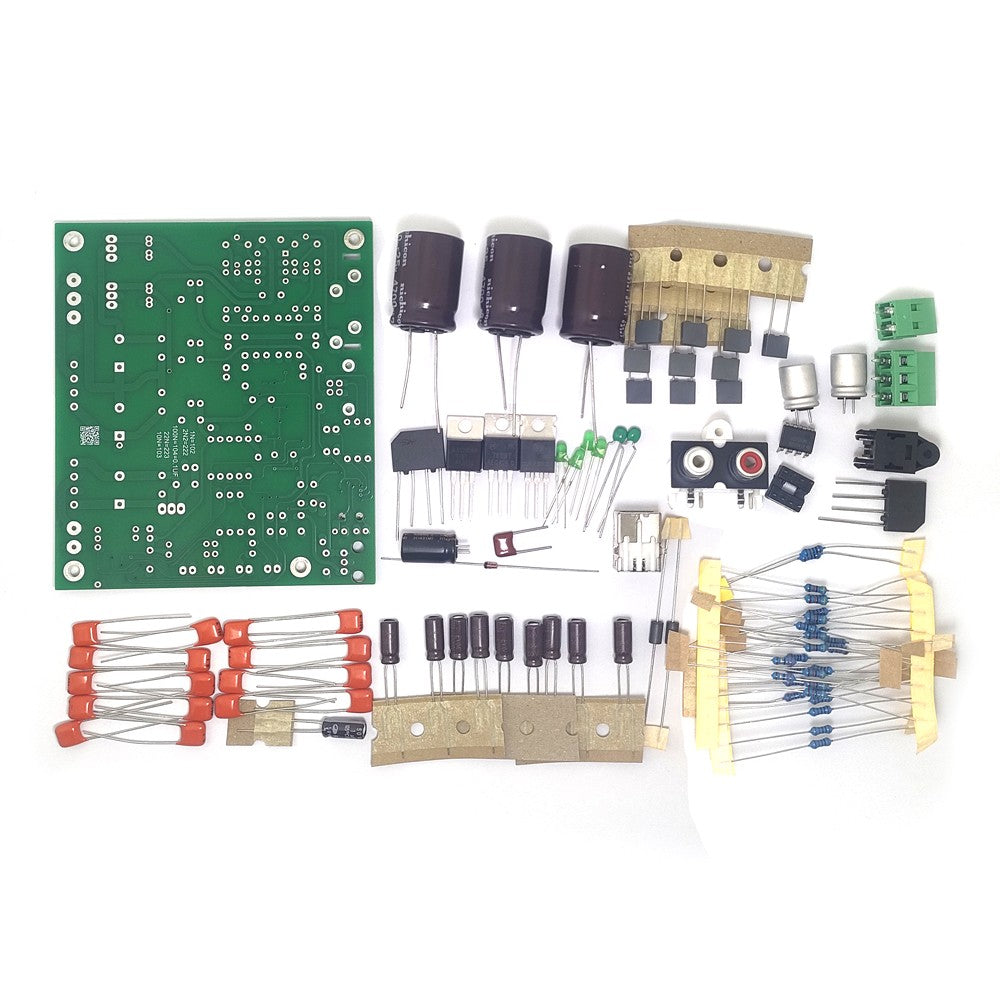

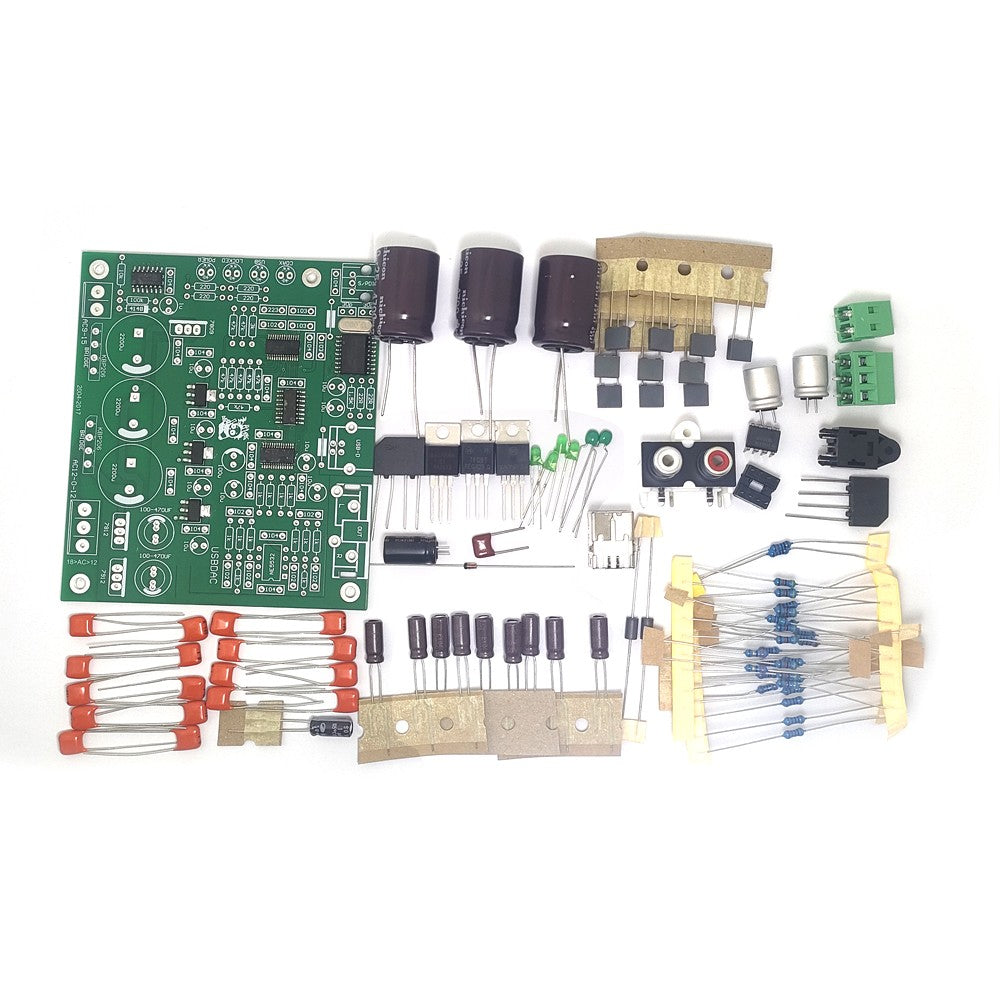

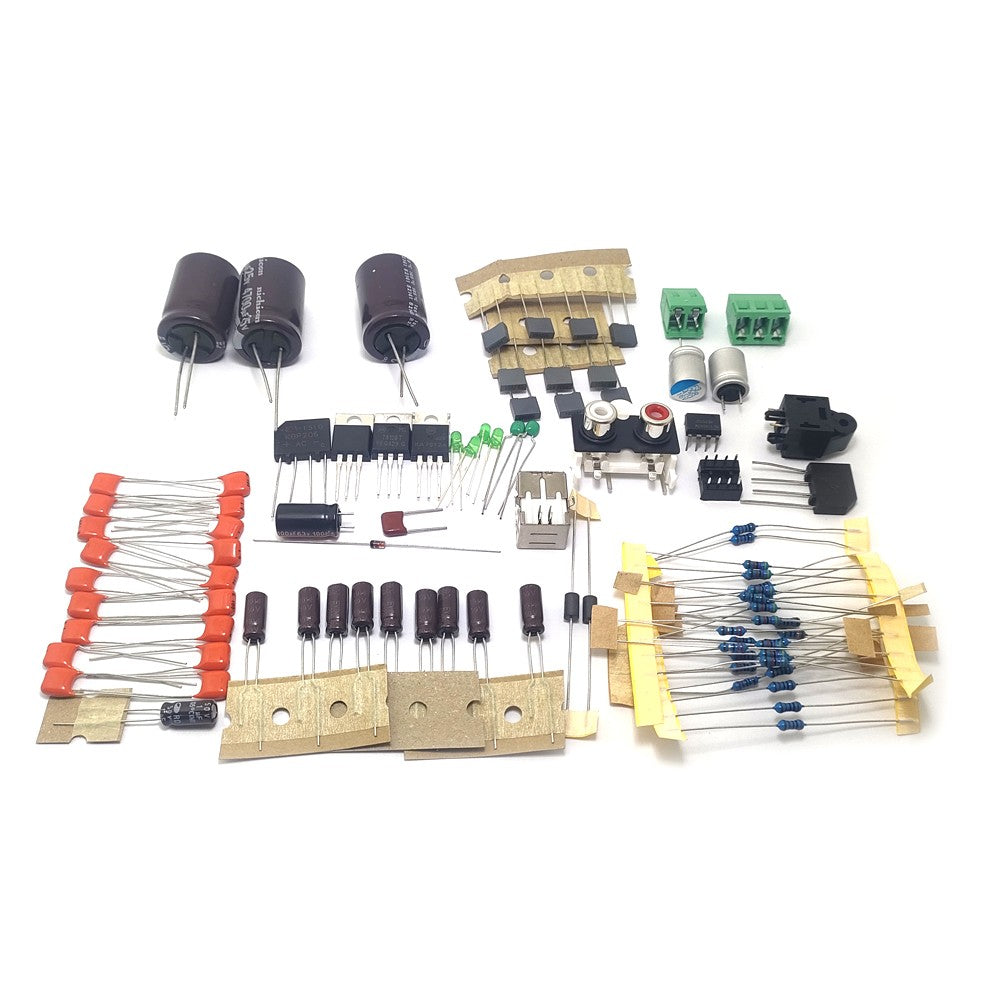

Package:
1 x KIT CS8416+CS4398 DAC board (USB+Optical Fiber 192K/24BIT Board) AC15V-0-AC15V
