M4070 LCR Bridge Tester Automatic Range Capacitance Inductance Meter

M4070 LCR Bridge Tester Automatic Range Capacitance Inductance Meter with Measurement Frequencies up to 500kHz

Specification:

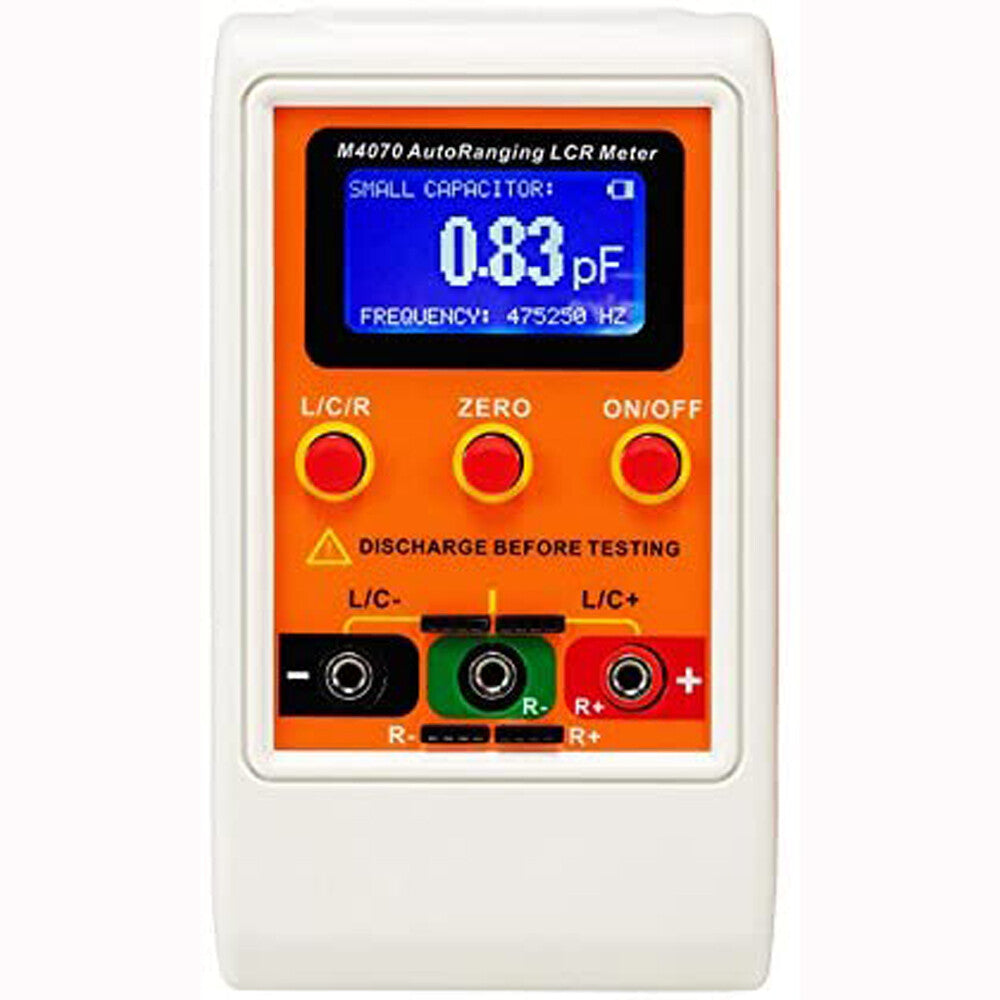

The M4070 LCR Tester is an automatic range component tester with measurement frequencies up to 500kHz，
for small capacitance and inductance measurements. It provides very stable and high resolution measurements, showing 5 numbers resolution.
Tester can measure 1.00pF to 10.000mΩ resistance. The meter uses two technical measurements, LC oscillation and RC oscillation.

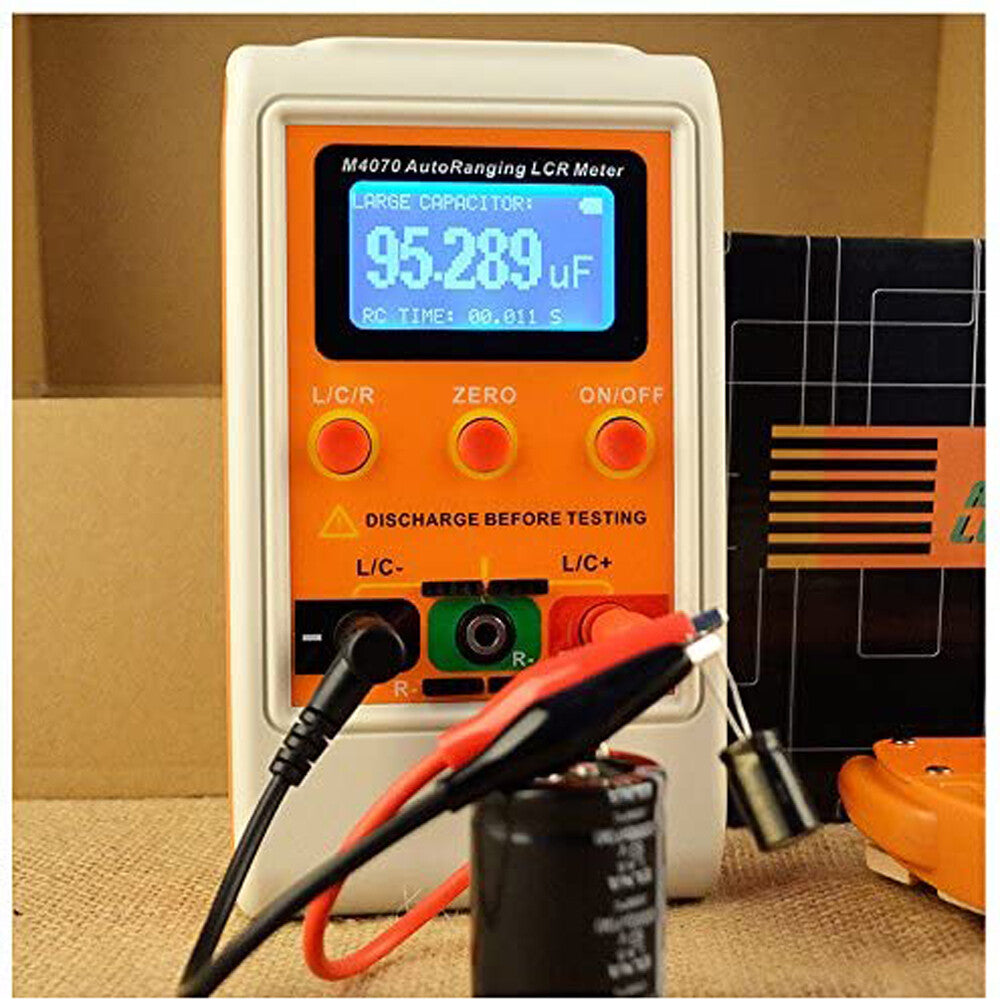

LC is more suitable for small capacitance and inductance measurements, RC for large capacitance measurements.

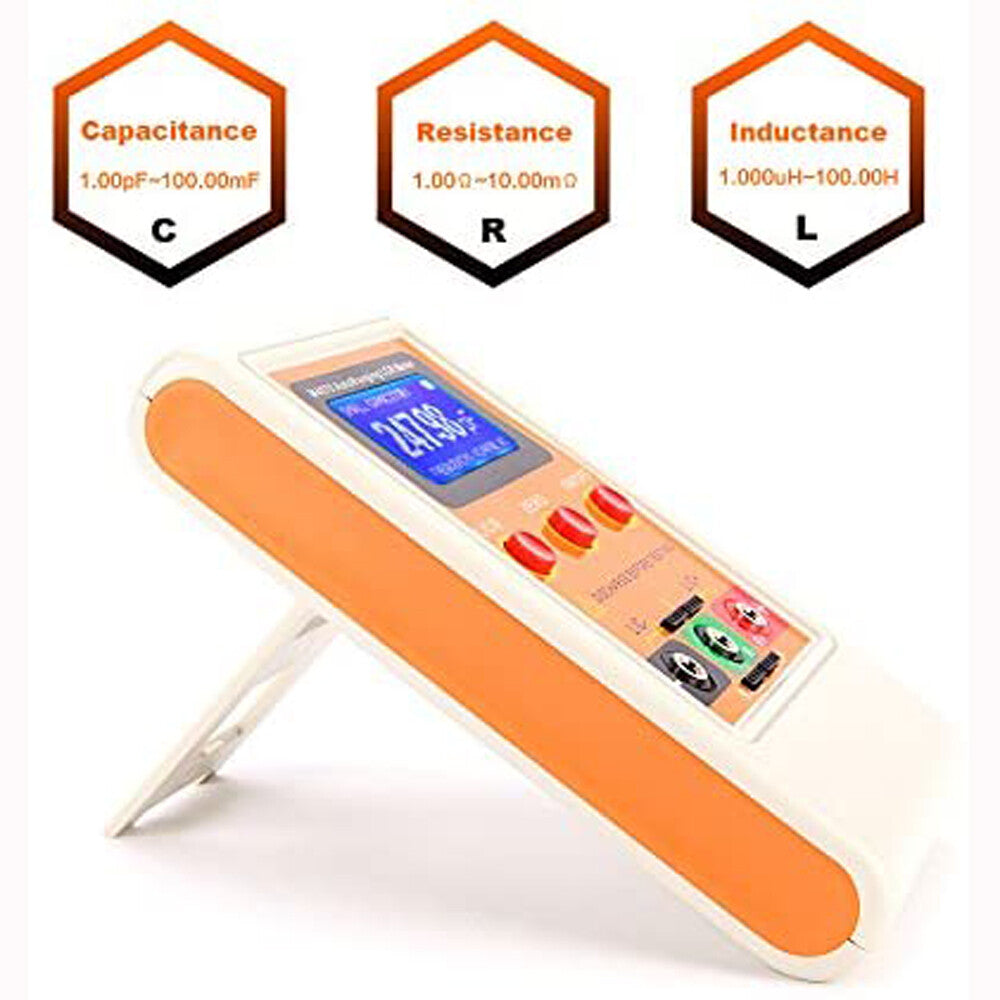

Automatic range 0.00pF to 10.00mF capacitance， 0.000uH to 100.00H Inductance， 0.00Ω to 10.000mΩ Resistance， Ultra-wide range test, suitable for professionals and DIY users.

Test Frequency: C: 10 to 500Khz; L: 10 to 360Khz

Test Method: Auto LC and RC vibration.

Calibration: Power on automatically calibrates the internal capacitance

Test Level Range: ~1.5Vrms

The best accuracy: L: 1% +1 words; C: 1% +1 words; R: 0.5% +1 words

Measurement speed/test time: <3 times/second, 100mF (large capacitance <30 seconds)

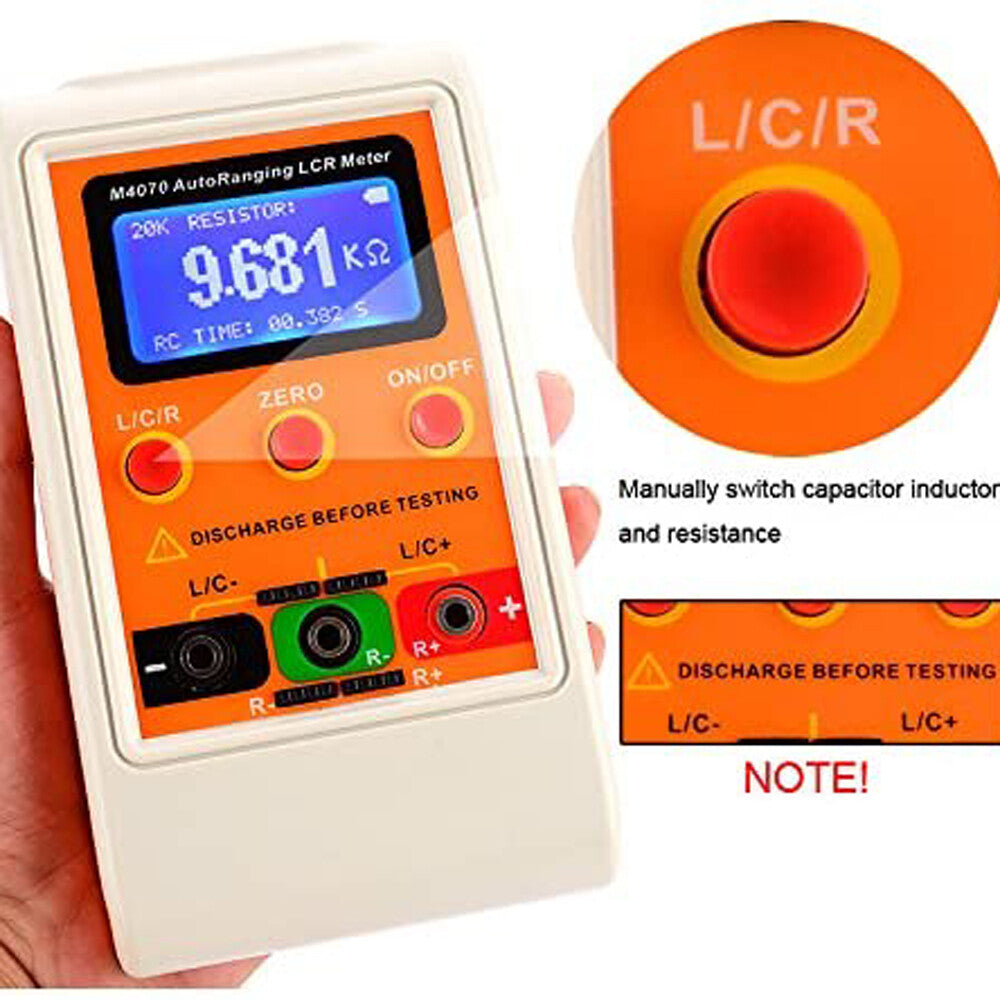

Range mode: Automatic

Clear function: open/short sweep clear

Charging Interface: Mini-USB (500mA)

Display range:

C: 0.00pF ~ 100.000mF

L: 0.000uF ~ 100.00H

Hz (LC test frequency): 0 ~ 900000Hz

S (RC test time): 0.000 ~ 99.999

R: 0.00Ω~10.000MΩ

Note:

1. The minimum test inductance is 1UH level, Can't test NH level!

2: The resistance can only measure pure resistance, inductive resistance can not be measured!

Package:

1* M4070 capacitor meter capacitance tester with accessories.
