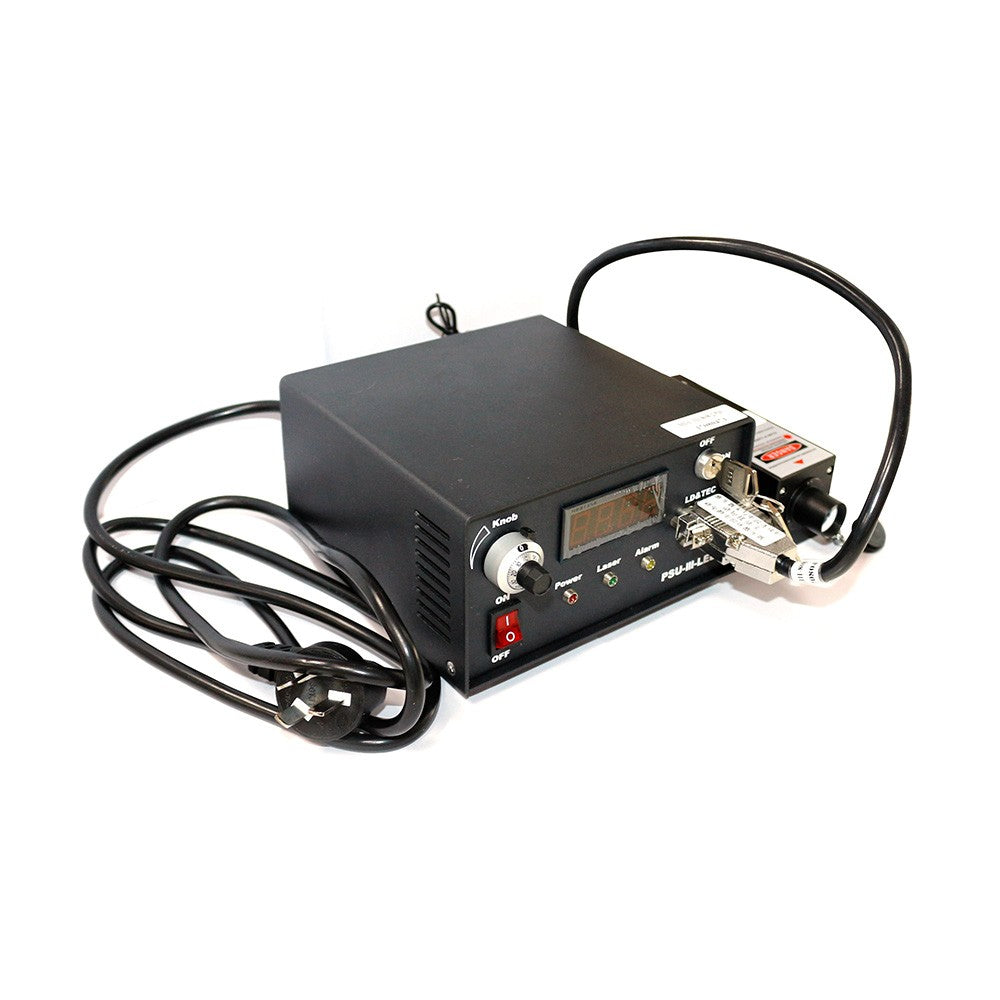

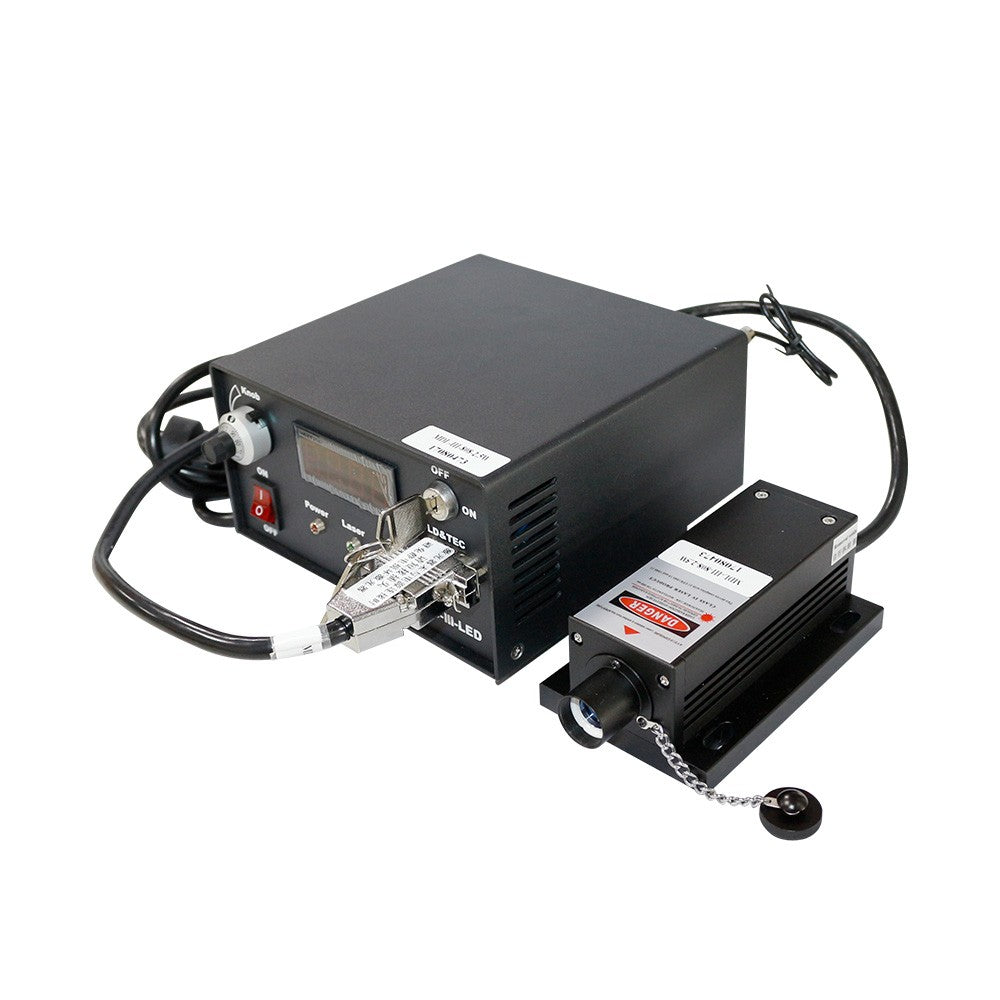

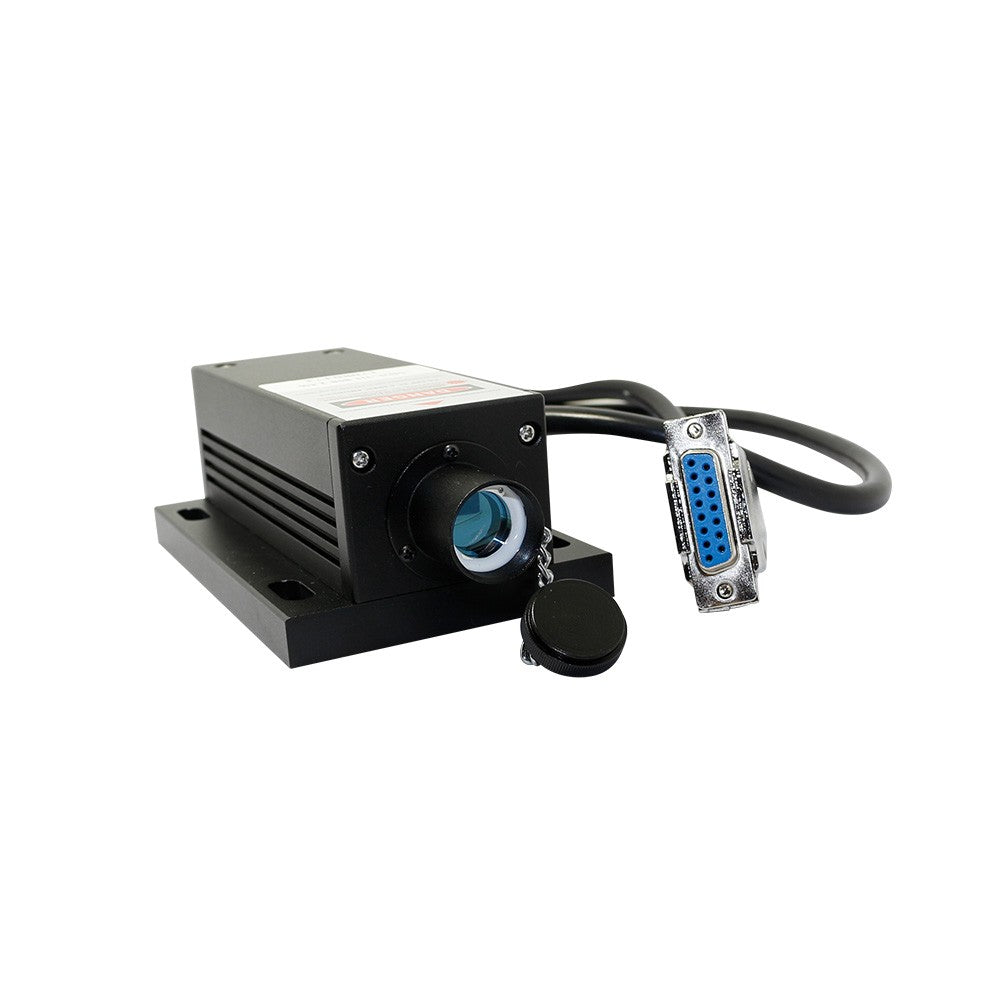

MDL-H-980nm 5W Infrared Semiconductor Laser Module ( PSU-H-LED Power Supply,0.5% Power stability )
Specifications:
Central wavelength (nm) ：980±10
Operating mode：CW
Output power (mW) ：>3000,3100,3200,....5000
Power stability (rms, over 4 hours) ：<1%,<2%, <3% (<0.5%, optional)
Transverse mode：Multimode
Dimensions of beam at the aperture (mm)：-5x8
Beam divergence, full angle (mrad)：<3.0
Warm-up time (minutes) ：<5
Beam height from base plate (mm)：29
Operating temperature(℃)：10-35

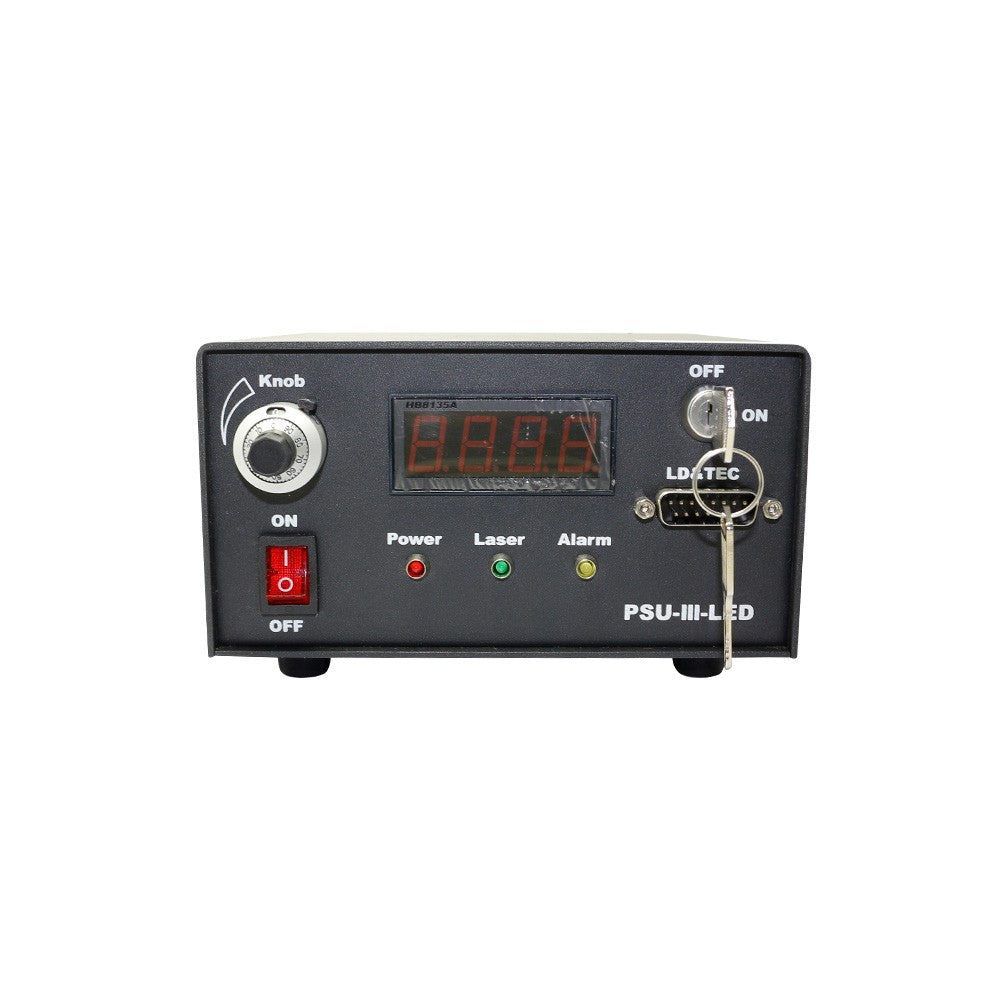

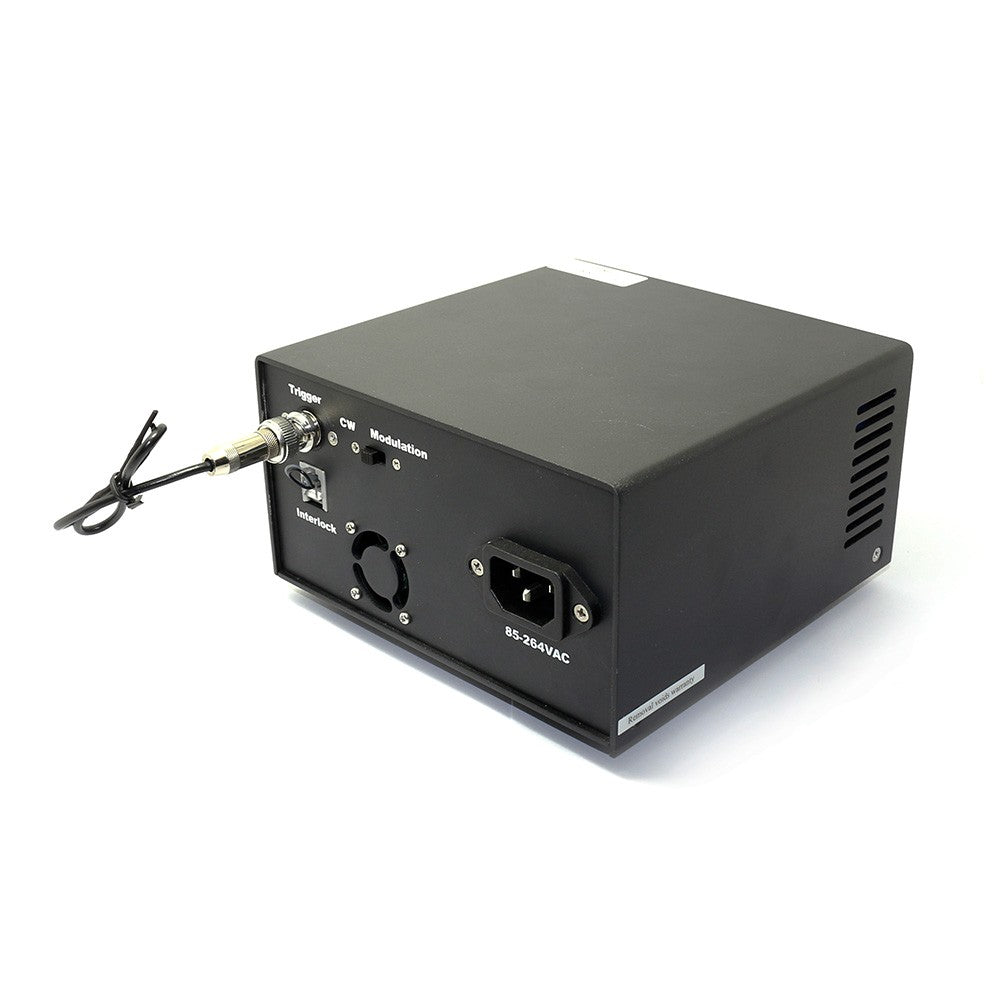

Power supply：100-240VAC PSU-H-LED
TTL / Analog modulation：TTL or Analog with 1Hz-1KHz 1KHz-10KHz,10KHz-30KHz optional
Expected lifetime (hours)：10000
