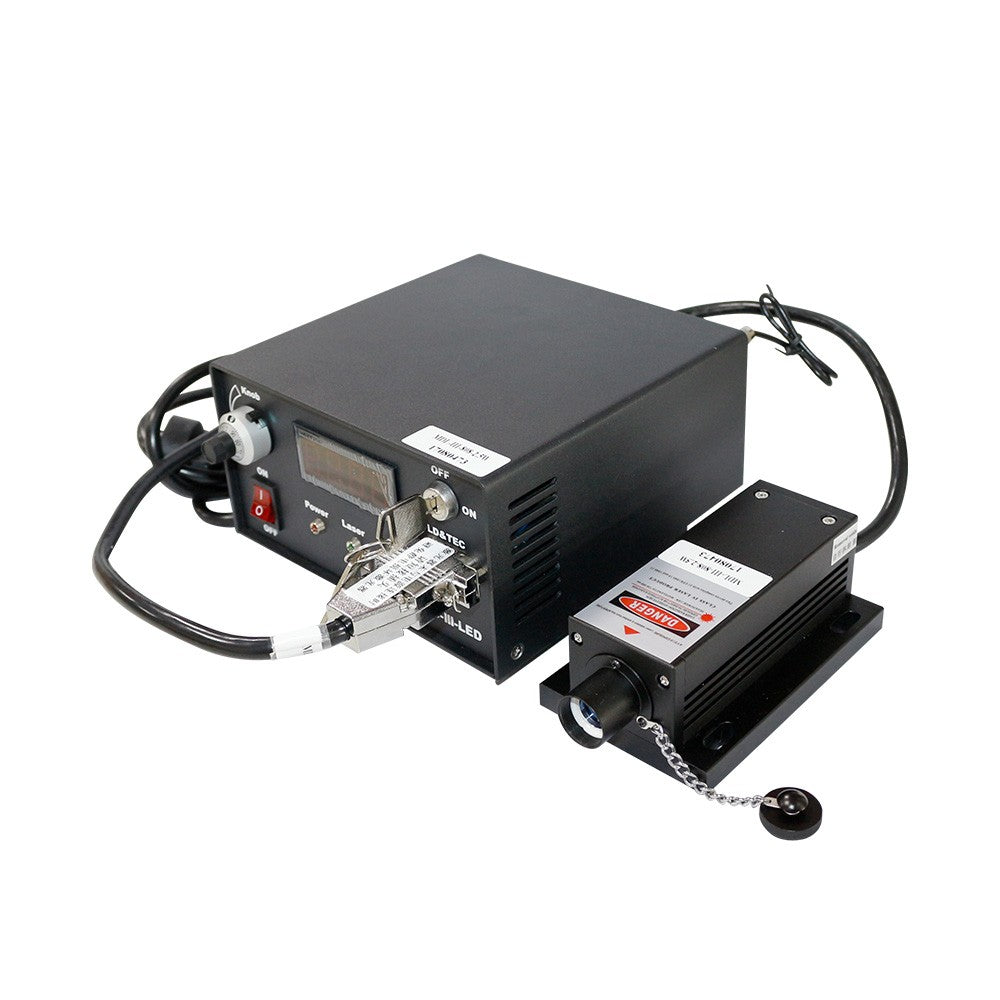

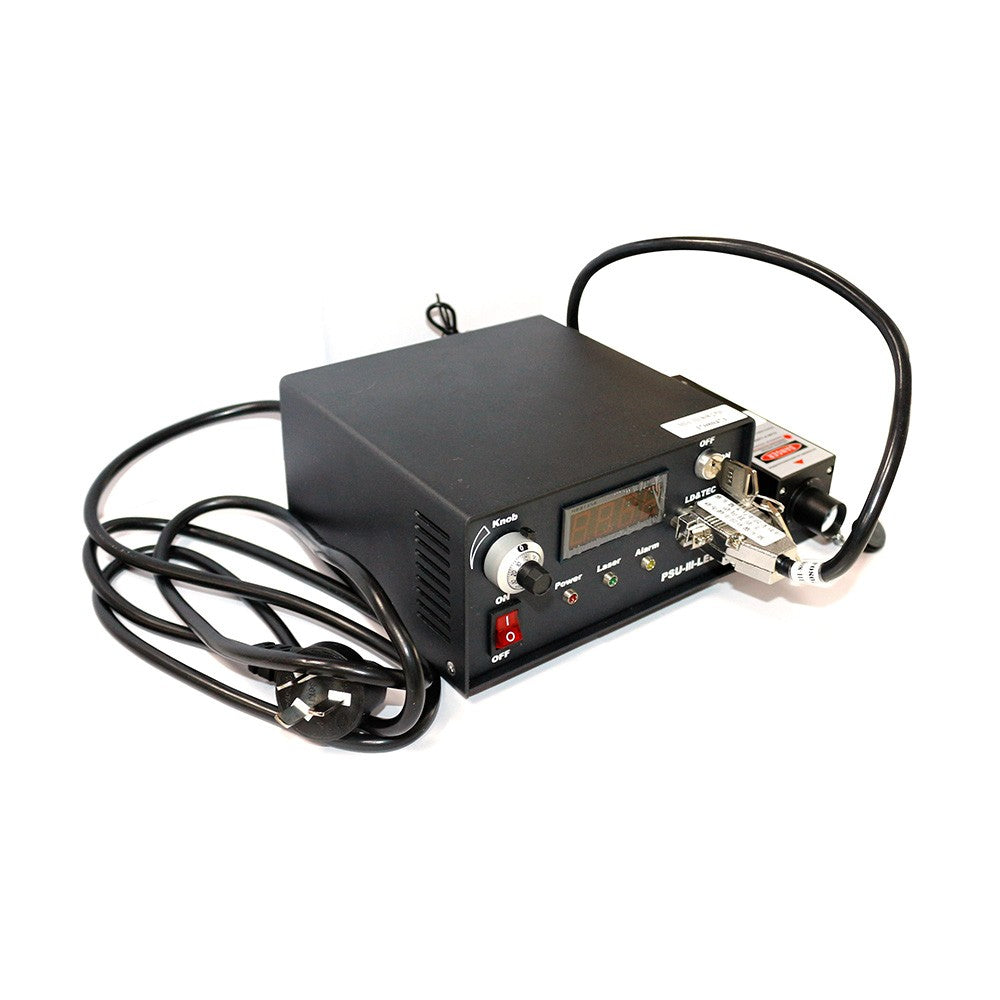

MDL-III-980nm 2500mW Infrared Semiconductor Laser Module ( PSU-III-LED Power Supply,0.5% Power stability )
Specifications: Central wavelength (nm) ：980±10 Operating mode：CW Output power (mW) ：>1, 100, 200, 300, …, 2500 Power stability (rms, over 4 hours) ：<3%, <2%, <1%, (<0.5%, optional) Transverse mode：Multimode Dimensions of beam at the aperture (mm)：-5x8 Beam divergence, full angle (mrad)：<3.0 Warm-up time (minutes) ：<5 Beam height from base plate (mm)：24.8 Operating temperature(℃)：10-35 Power supply：85-264VAC PSU-III-LED A (Frequency for 1Hz-30kHz) TTL / Analog modulation：TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz; and Analog modulation optional Expected lifetime (hours)：10000
