MHS5200A Dual Channel Function Generator DDS Arbitrary Waveform Signal Generator

$113.00

~~$128.00~~ $113.00

Sale Sold out

Shipping calculated at checkout.

Options 6MHZ 12MHZ 20MHZ 25MHZ

Quantity

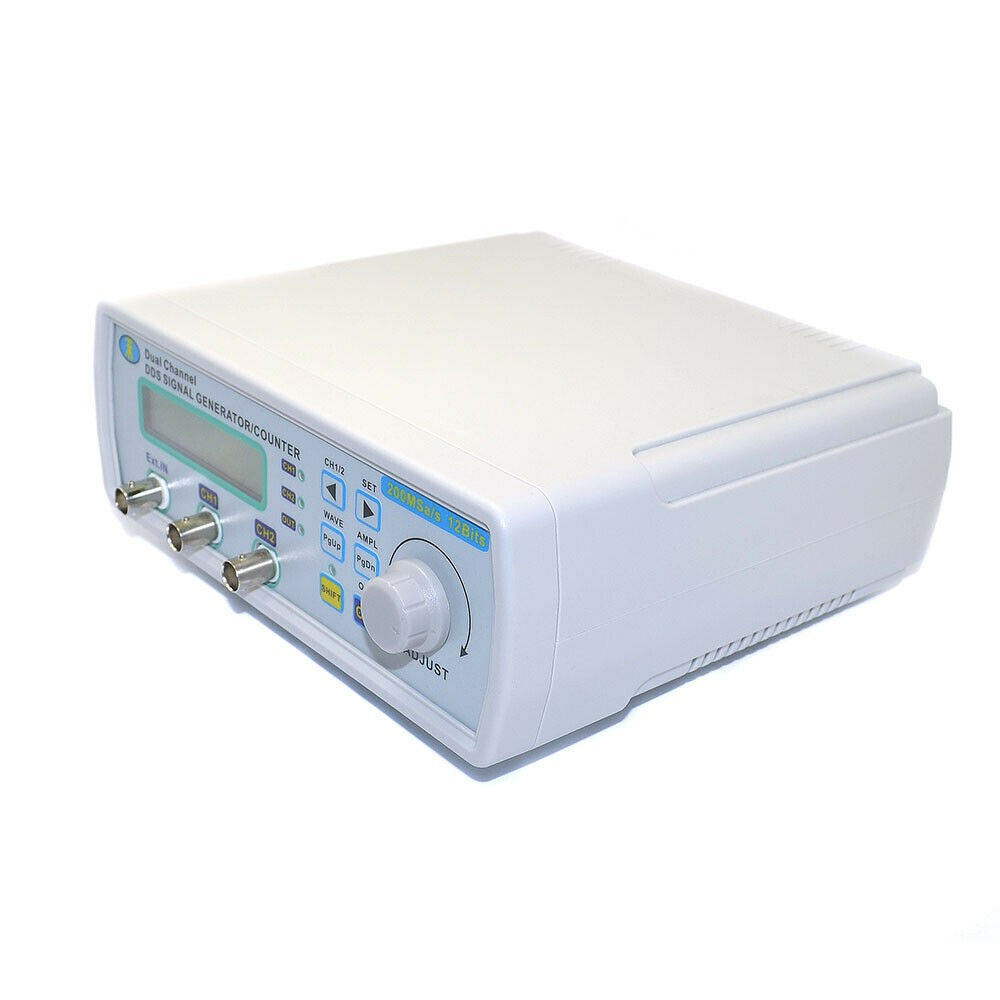

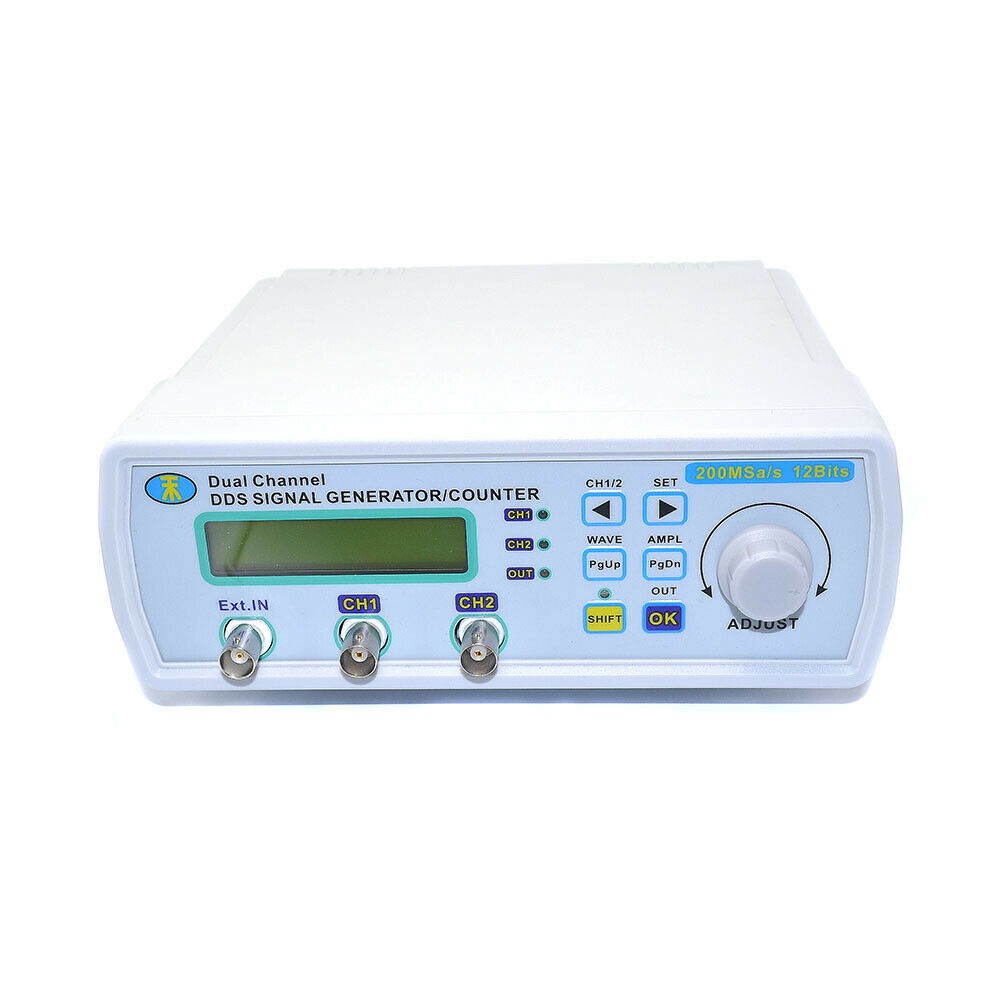

MHS5200A Dual Channel DDS Function Signal Generator

The MHS5200A is a high-performance dual channel DDS Function Signal Generator combining multiple laboratory instruments into one compact desktop unit. It provides precise waveform generation, frequency measurement, pulse generation and arbitrary waveform output for engineers, technicians, educators and hobbyists.

Main Features

Dual Channel DDS Signal Generator
Arbitrary Waveform Generator
Pulse Signal Generator
Noise Generator
Frequency Counter
Counter Function
Frequency Sweep Generator

Available Models

Model	Maximum Output Frequency
MHS5200A-6M	6 MHz
MHS5200A-12M	12 MHz
MHS5200A-20M	20 MHz
MHS5200A-25M	25 MHz

Waveform Types

Sine Wave
Square Wave
Triangle Wave
Sawtooth Wave
Pulse Wave
CMOS Output
TTL Output
DC Output
Arbitrary Waveforms
60+ Built-in Waveforms

Technical Specifications

Technology	DDS (Direct Digital Synthesis)
Channels	2 Independent Outputs
Frequency Options	6MHz / 12MHz / 20MHz / 25MHz
Sampling Rate	200MSa/s
Vertical Resolution	12-bit
Arbitrary Wave Memory	2048 Points
Minimum Frequency Resolution	10mHz
Frequency Accuracy	±5 × 10⁻⁶
Frequency Stability	±1 × 10⁻⁶ / 5 Hours
Output Amplitude	5mVpp – 20Vpp
Amplitude Resolution	1mV (≤20dB), 10mV (>20dB)
Output Impedance	50Ω ±10%
Phase Range	0° – 359°
Phase Resolution	1°
Frequency Counter	0.1Hz – 60MHz
TTL Output	>3Vpp
CMOS Output	1V – 10V

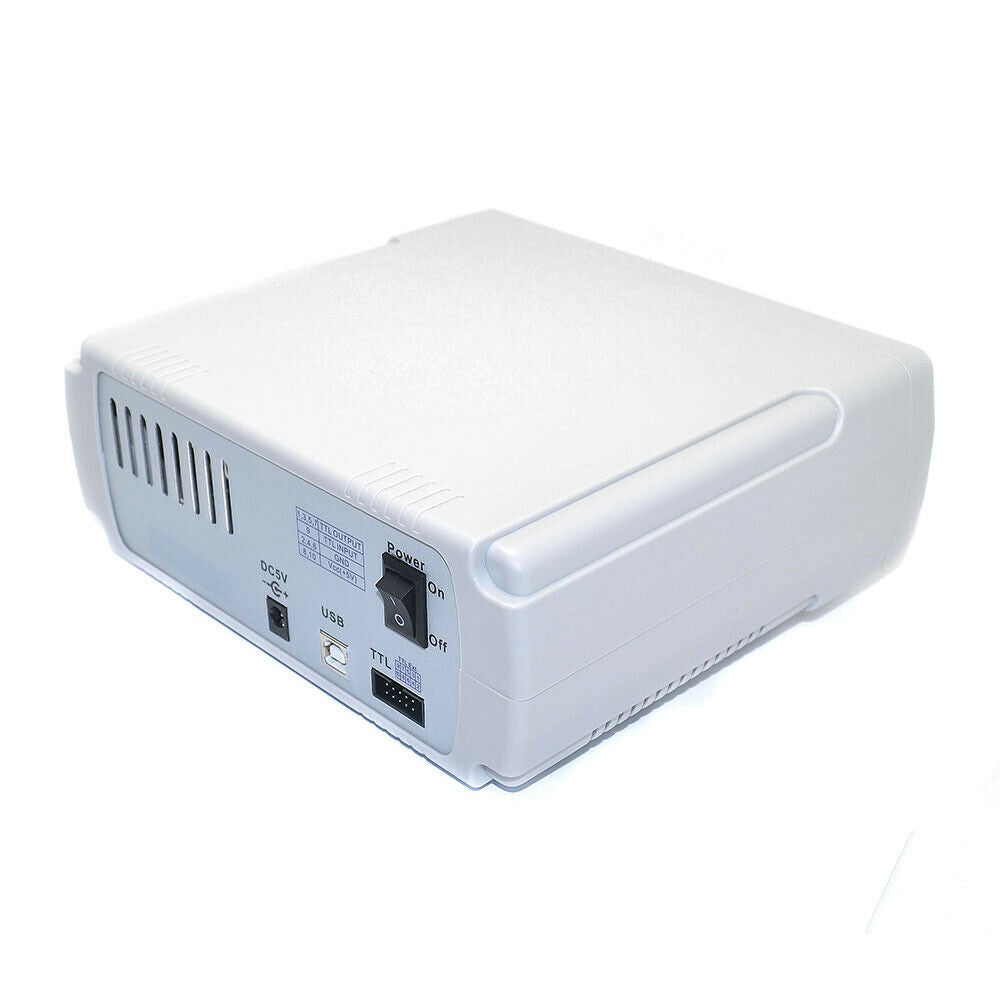

USB Interface	Supported
Communication	57600bps
Power Supply	DC 5V ±0.5V
Dimensions	180 × 190 × 72 mm
Net Weight	550 g

Applications

Electronic circuit testing
Product development
Microcontroller development
Audio testing
Communication equipment testing
Educational laboratories
Industrial maintenance
Research laboratories

Package Includes

1 × MHS5200A Signal Generator

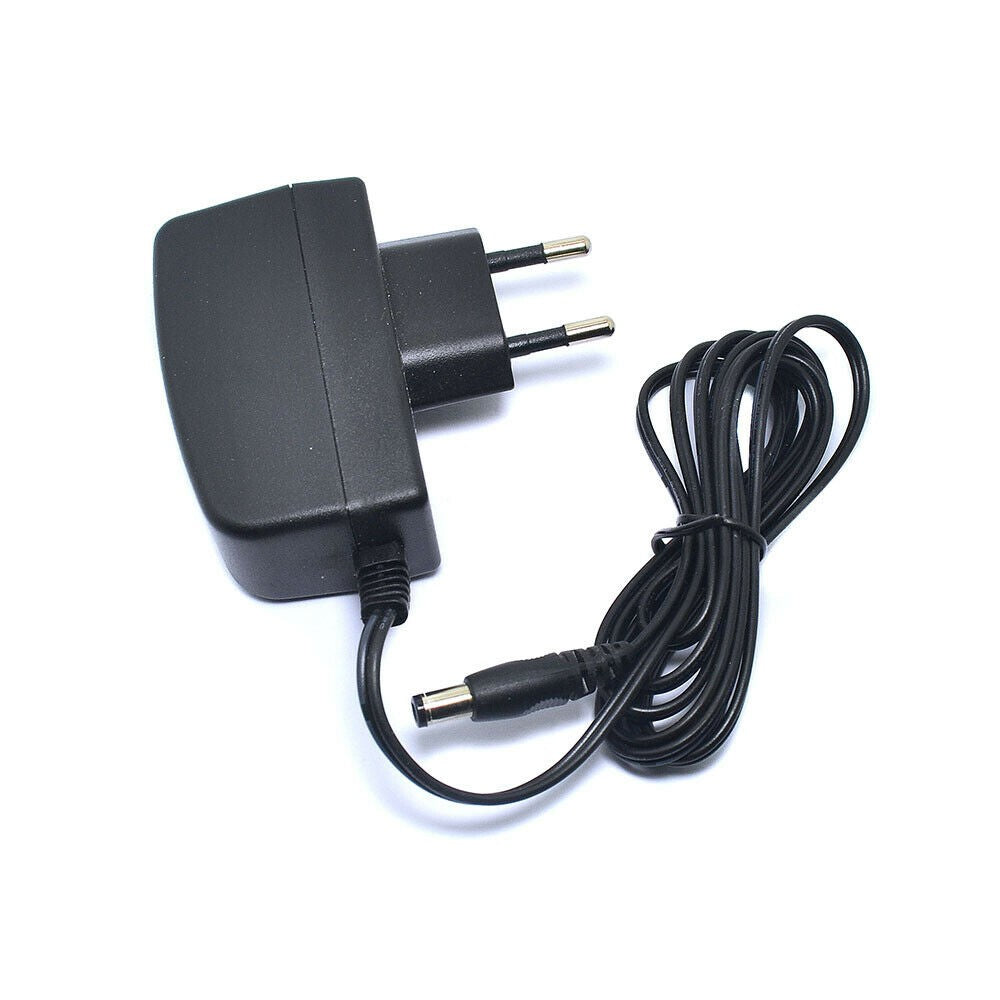

1 × DC Power Adapter
1 × TTL Expansion Board

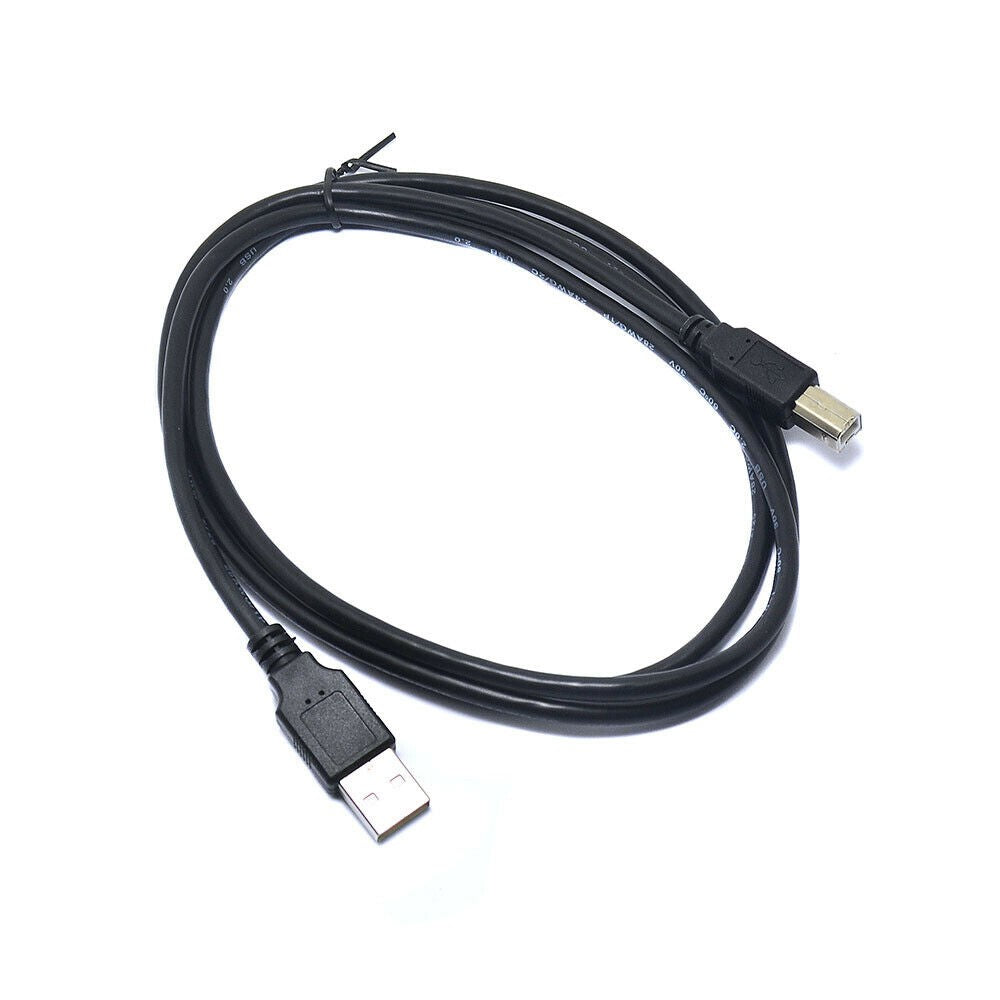

1 × USB Communication Cable

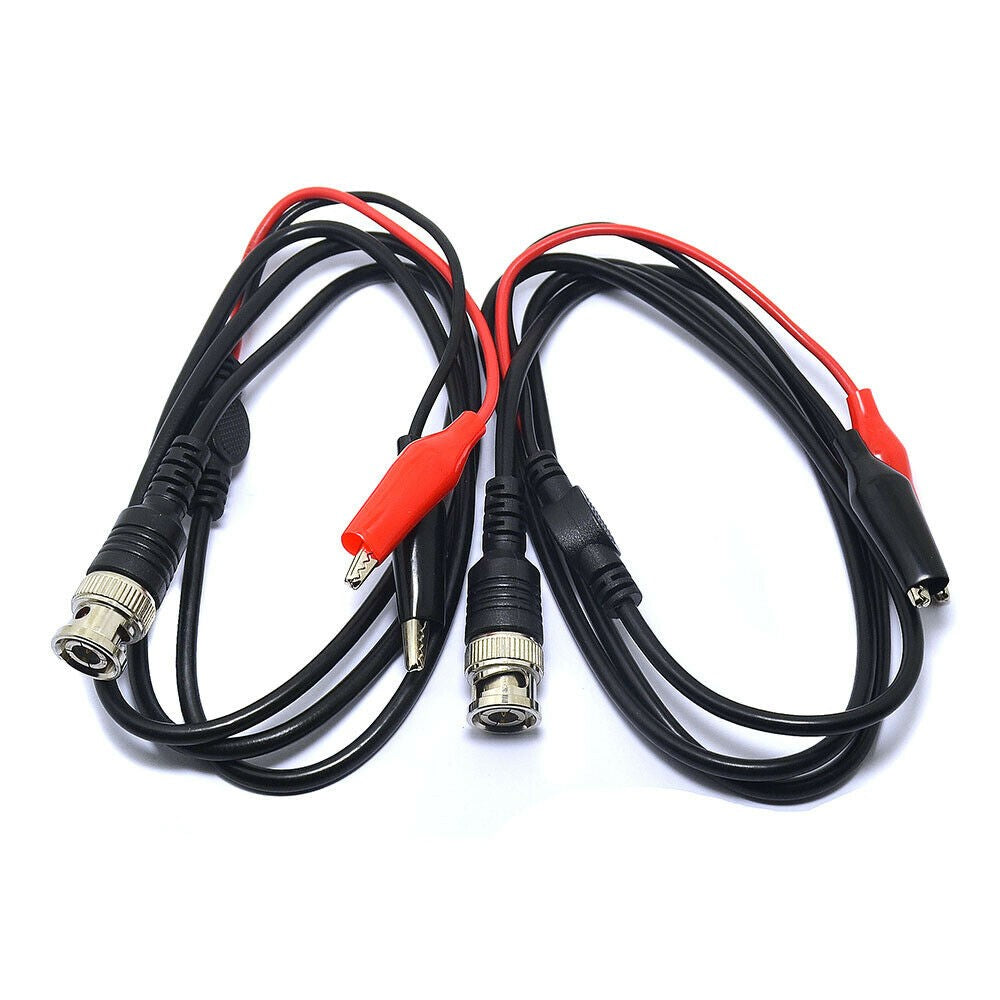

1 × Test Lead Set
1 × User Manual / Warranty Card

Why Choose Lilly Electronics MHS5200A?

The MHS5200A combines a function generator, arbitrary waveform generator, frequency counter, pulse generator and sweep generator into one compact instrument. Its high sampling rate, 12-bit resolution, USB programmability and dual independent outputs make it an excellent solution for engineers, laboratories, universities, production lines and electronics enthusiasts.
