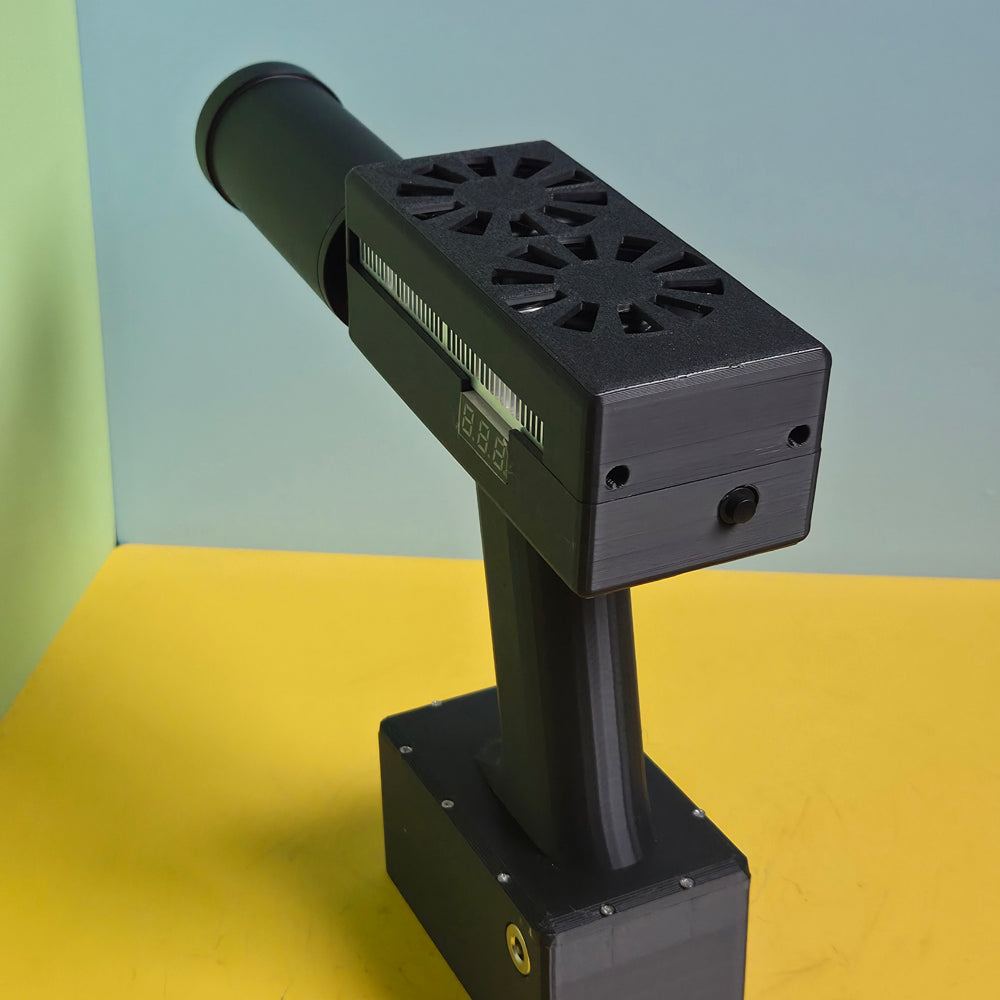

130W Mini Handheld Laser Igniter,High Power Laser Pump Source

130W High Power Laser Pump Source | 3D Printed Handheld Laser Igniter with Coaxial Red Aiming & Smart Temperature Protection

Upgrade to professional-grade laser performance with this 130W high-power handheld laser igniter. Featured with upgraded laser pump source and precision 3D printed body structure, this unit delivers stable, high-output laser energy with ultra-long single working time. Equipped with coaxial red aiming light and intelligent 45°C overheat protection, paired with a high-capacity 4-cell battery supporting 256W max discharge power. Complete with full accessories, it is the ultimate portable laser ignition tool for professional experimental and outdoor use.

Key Product Features

• 130W High Optical Power Output: Adopts premium laser pump source with steady 130W optical power, providing strong and concentrated laser output for efficient ignition performance.

• Professional 3D Printed Version: Precision 3D molded body ensures perfect structural fit, stable assembly and excellent heat dissipation for long-term service.

• Max 256W Discharge Power Battery: Built-in 4-cell battery pack, fully charged at 16.8V voltage with maximum 256W discharge power, offering explosive and stable power support.

• Ultra-Long Single Working Time: Supports 80±5 seconds continuous single working time at room temperature with chiller started, far longer than ordinary laser igniters.

• Coaxial Red Aiming Light: Built-in accurate coaxial red auxiliary light, intuitive spot positioning, easy to adjust focus and aim precisely.

• Smart Overheat Protection: Automatic power-off protection triggers once the operating temperature reaches 45°C, effectively preventing overheating damage and ensuring safe operation.

• Direct Light Output Mode: Pure direct light output design, concentrated energy, low loss and higher working efficiency.

Full Specifications

• Optical Power: 130W

• Product Version: 3D Printed Version

• Output Mode: Direct Light Output

• Battery Configuration: 4 Cells

• Fully Charged Voltage: 16.8V

• Maximum Discharge Power: 256W

• Single Working Time: 80±5s (room temperature with chiller on)

• Auxiliary Light: Coaxial Red Aiming Light

• Safety Protection: 45°C Overheat Automatic Shutdown

Professional Usage & Focus Adjustment Guide

1. Lens Installation Check: Before use, confirm the lens surface is clean and free of dust or foreign objects, then install the lens correctly.

2. Battery Status Confirmation: Ensure the battery is fully charged above 16V to guarantee stable maximum power output.

3. Short-Range Focus Adjustment (1M): Install the lens slightly shallow. Fix the lens with the black retaining ring. The focus will reach about 1 meter. Adjust until the red aiming spot is the thinnest and smallest for the best ignition effect.

4. Long-Range Ignition: Push the lens all the way to the bottom. Place the device steadily without shaking, aim at distant targets such as cardboard boxes, and hold the switch for 3 seconds to test the long-distance effect.

5. Spot Fine-Tuning: Use a mobile phone camera to clearly observe the light spot shape and size, and fine-tune the lens position to obtain the ideal focus effect.

Package List

• 1 x Laser Igniter Host

• 1 x Lens

• 1 x Charger

• 1 x Adapter

Safety & Purchase Notes

• This is a high-power professional laser device. Strictly avoid direct irradiation to eyes, skin and reflective surfaces.

• Keep the device away from children and strictly prohibit any dangerous or illegal use.

• All risks caused by improper operation or abuse shall be borne by the user.

• Operate in accordance with the recommended working time to avoid equipment failure caused by overheating.
