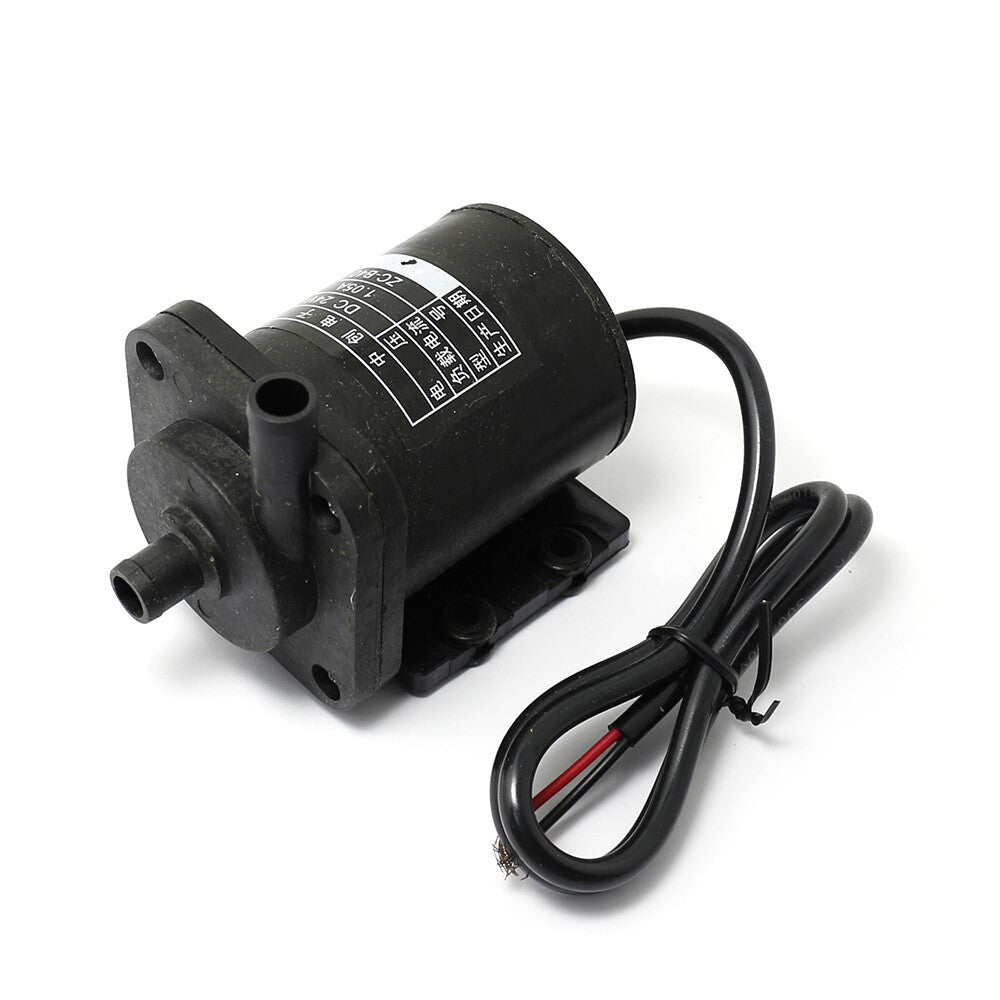

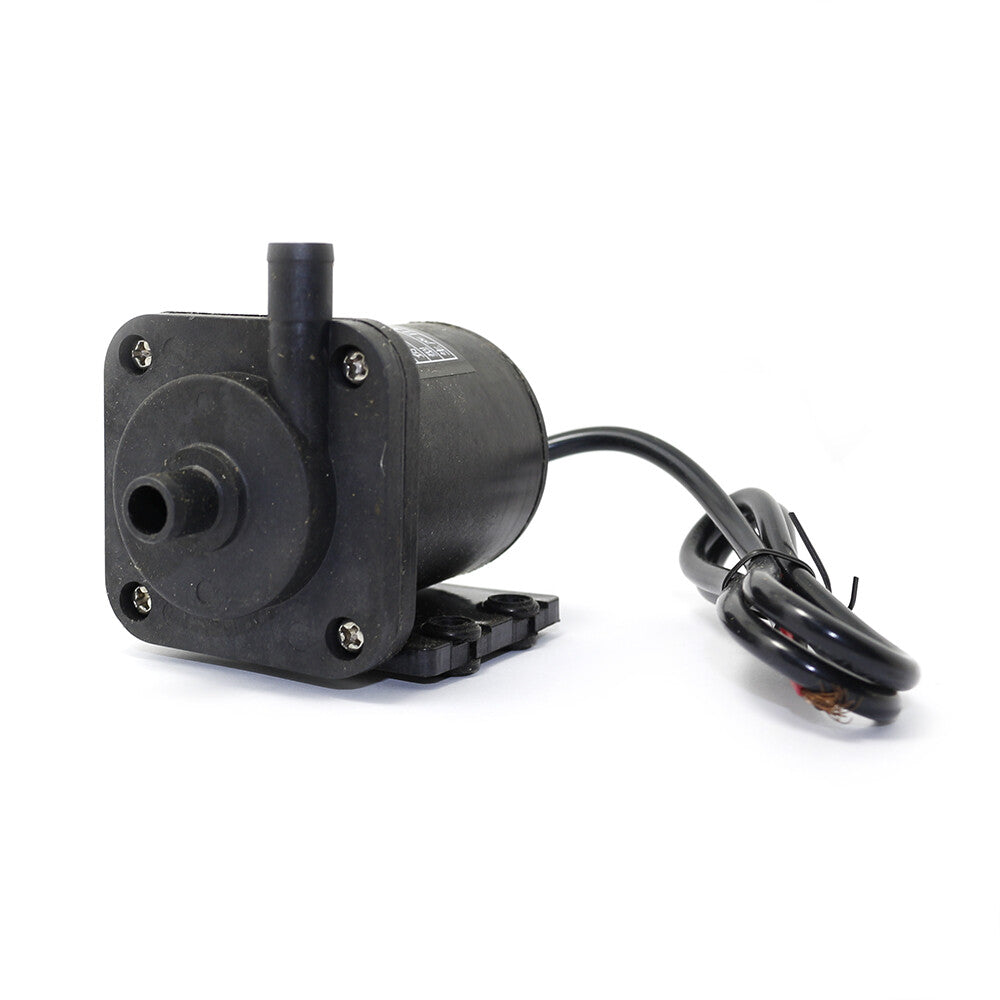

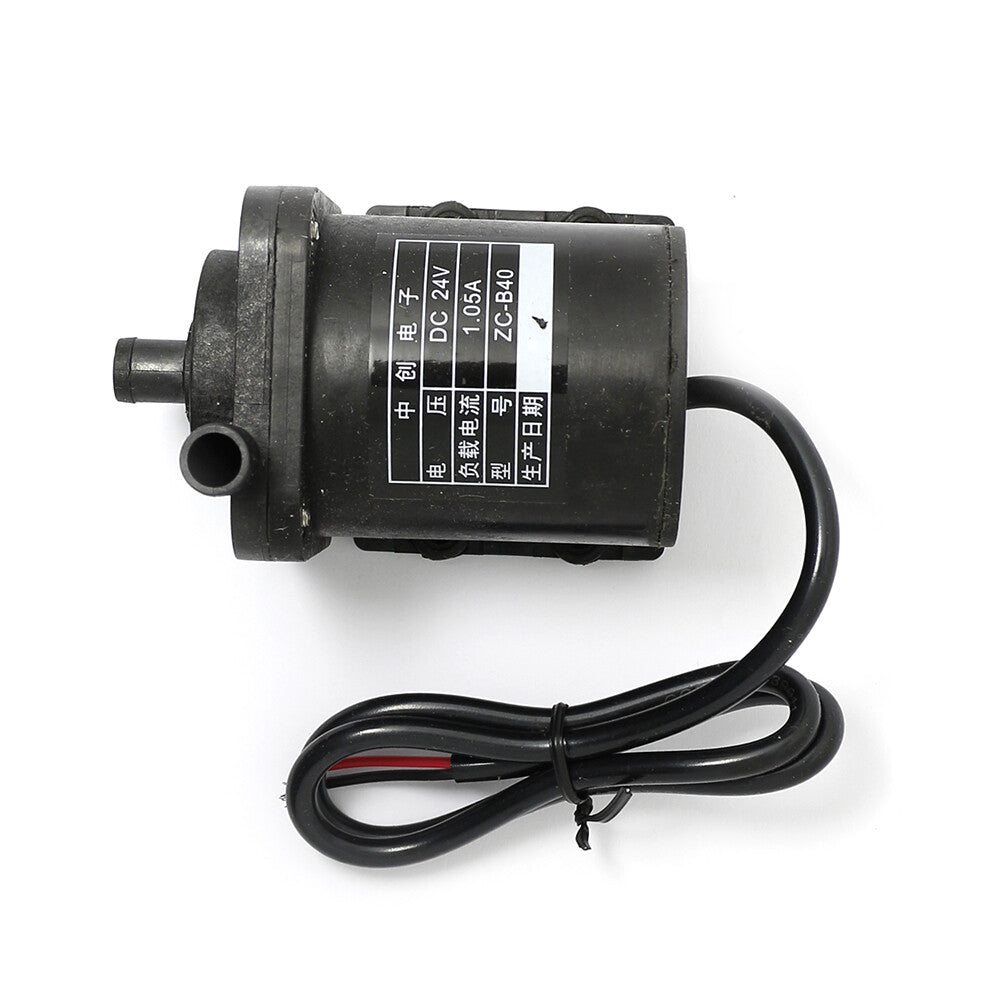

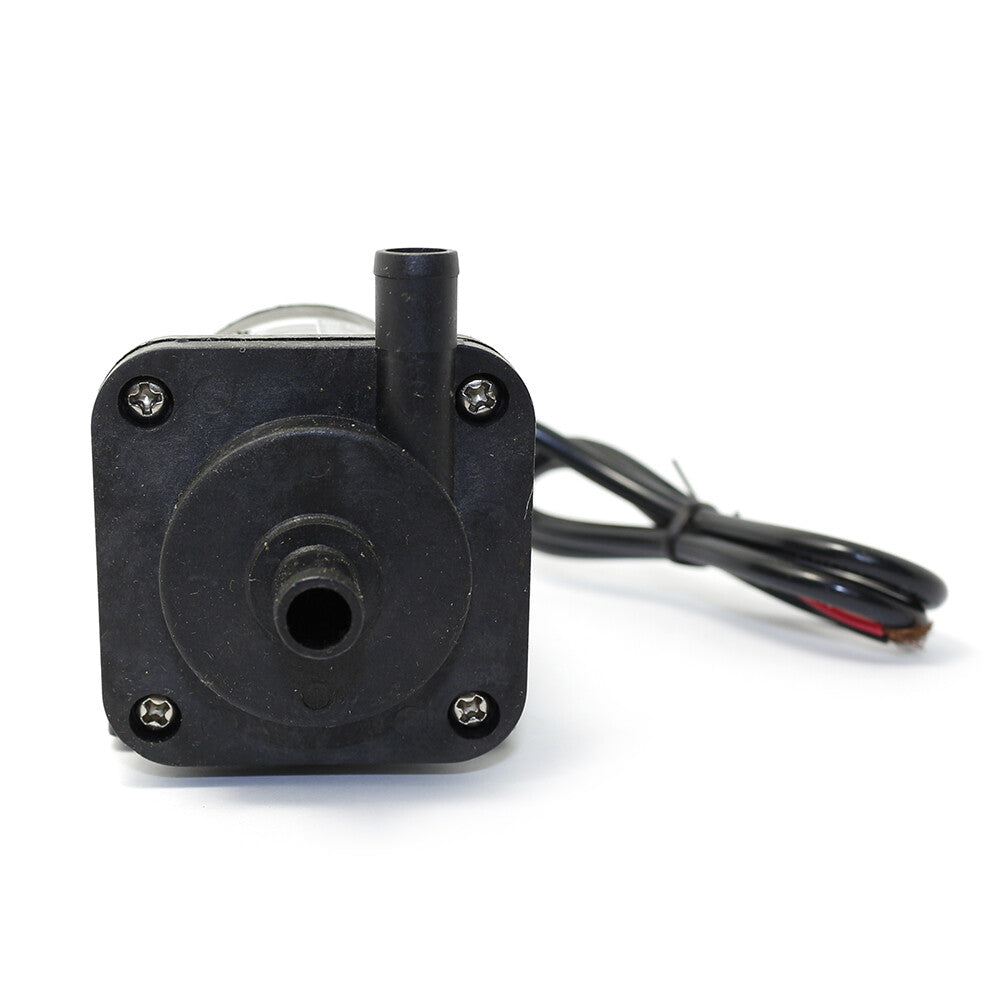

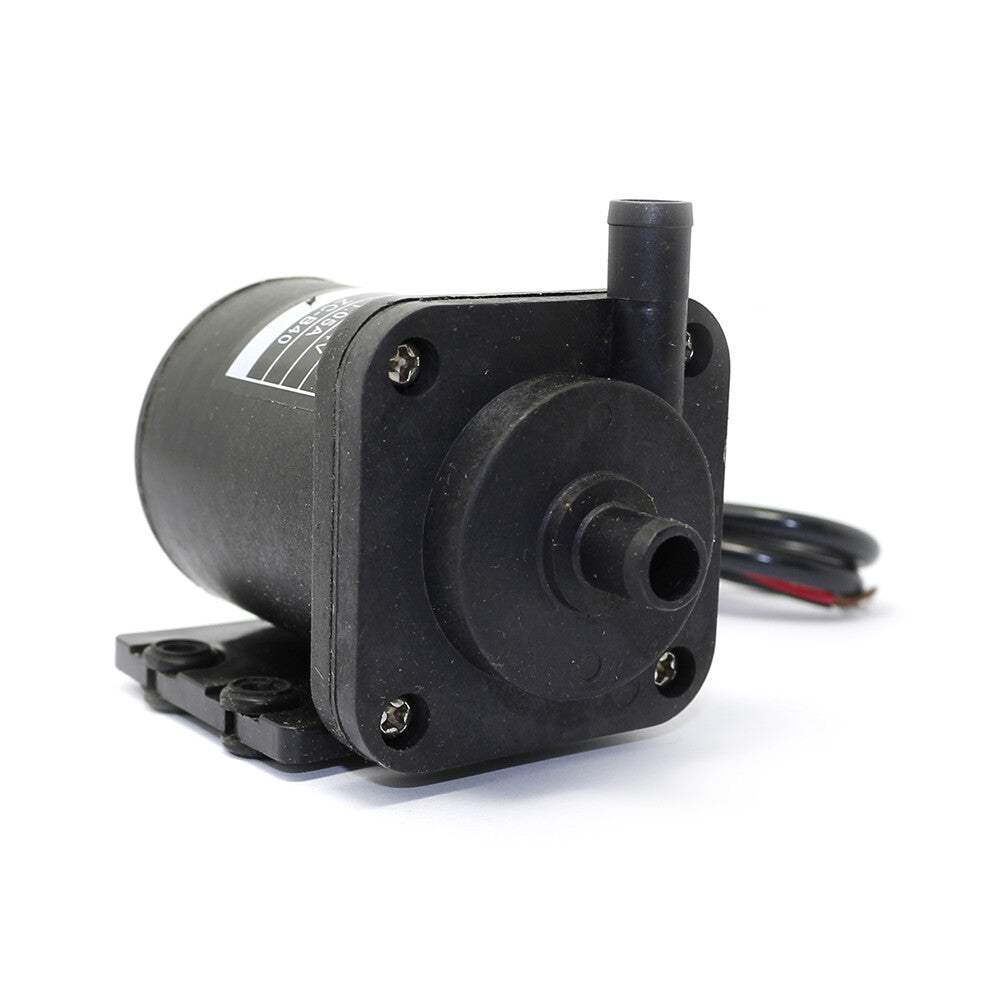

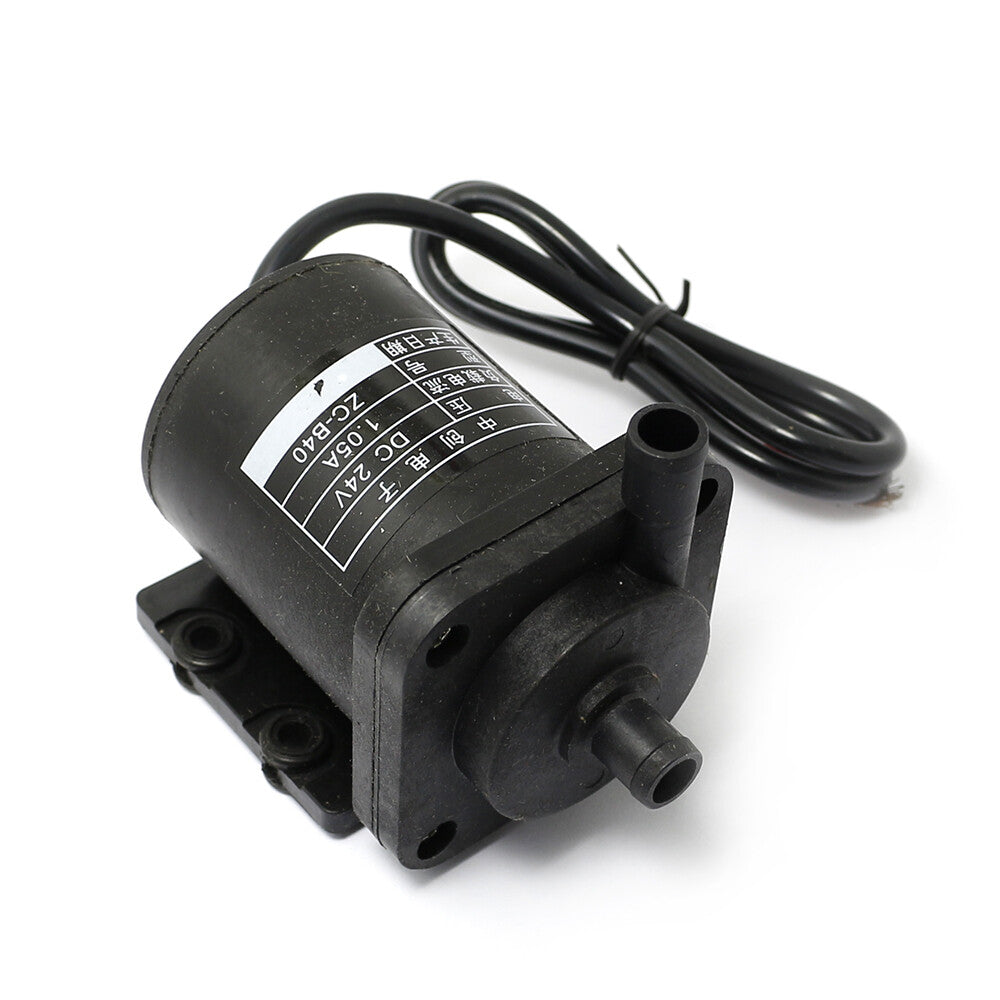

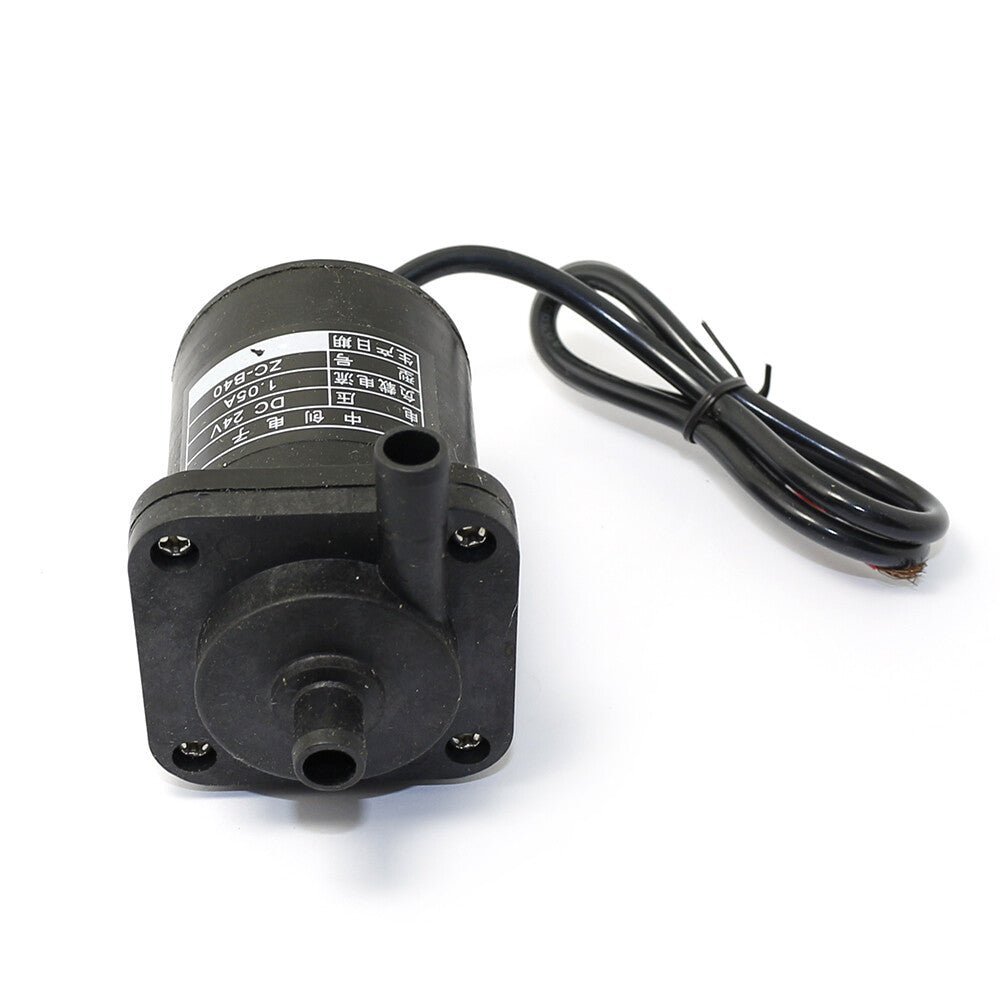

Mini Hot Water Pump Brushless Magnetic 0-100℃ -No Thread-ZC-B40 24V DC
Mini Hot Water Pump Brushless Magnetic 0-100℃ -No Thread-ZC-B40 24V DC
Regular price
$52.00
Regular price
$59.00
Sale price
$52.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Mini Hot Water Pump Brushless Magnetic 0-100℃ -No Thread-ZC-B40 24V DC
Description:
1. Rated voltage: DC24V
Inlet: 9.5mm; Outlet: 9.5mm
2. Voltage: DC12V ~ DC24V
3. Working Current: 1050Ma
4. Head: 7.0m
5. Flow: 500L/H
6. Noise: 45dB 0.5M or less
7. Fluid Temperature: 0 degrees C to 100 degrees C
8. Pump motor use DC brushless motor, no spark;
9. Small starting-up current, high efficiency, stable and reliable Operation, low power consumption, energy saving, environmental protection
10. Pump motor shaft uses highly wear-resistant ceramic shaft, continuous service life of 20,000 hours or more
11. The pump can work above or under water. Waterproof grade: IP68;
12. Pump head, flow, can be customized according to customer requirements;
13 Weight 220 grams
Notes:
1. Pump has no self-priming capability, so the installation location should be below the horizontal level.
2. Pmps can work under water at room temperature but can not do so at high temperature
3. Pumps cannot continuously work at high temperature
4. It is suggested to install preferably install filter at the pump pipe inlet
5. Head means the vertical distance from inlet surface to the outlet.
Package:
1 x 24V DC Mini Hot Water Pump Brushless Magnetic (0-100℃) -No Thread-ZC-B40
Description:
1. Rated voltage: DC24V
Inlet: 9.5mm; Outlet: 9.5mm
2. Voltage: DC12V ~ DC24V
3. Working Current: 1050Ma
4. Head: 7.0m
5. Flow: 500L/H
6. Noise: 45dB 0.5M or less
7. Fluid Temperature: 0 degrees C to 100 degrees C
8. Pump motor use DC brushless motor, no spark;
9. Small starting-up current, high efficiency, stable and reliable Operation, low power consumption, energy saving, environmental protection
10. Pump motor shaft uses highly wear-resistant ceramic shaft, continuous service life of 20,000 hours or more
11. The pump can work above or under water. Waterproof grade: IP68;
12. Pump head, flow, can be customized according to customer requirements;
13 Weight 220 grams
Notes:
1. Pump has no self-priming capability, so the installation location should be below the horizontal level.
2. Pmps can work under water at room temperature but can not do so at high temperature
3. Pumps cannot continuously work at high temperature
4. It is suggested to install preferably install filter at the pump pipe inlet
5. Head means the vertical distance from inlet surface to the outlet.
Package:
1 x 24V DC Mini Hot Water Pump Brushless Magnetic (0-100℃) -No Thread-ZC-B40
