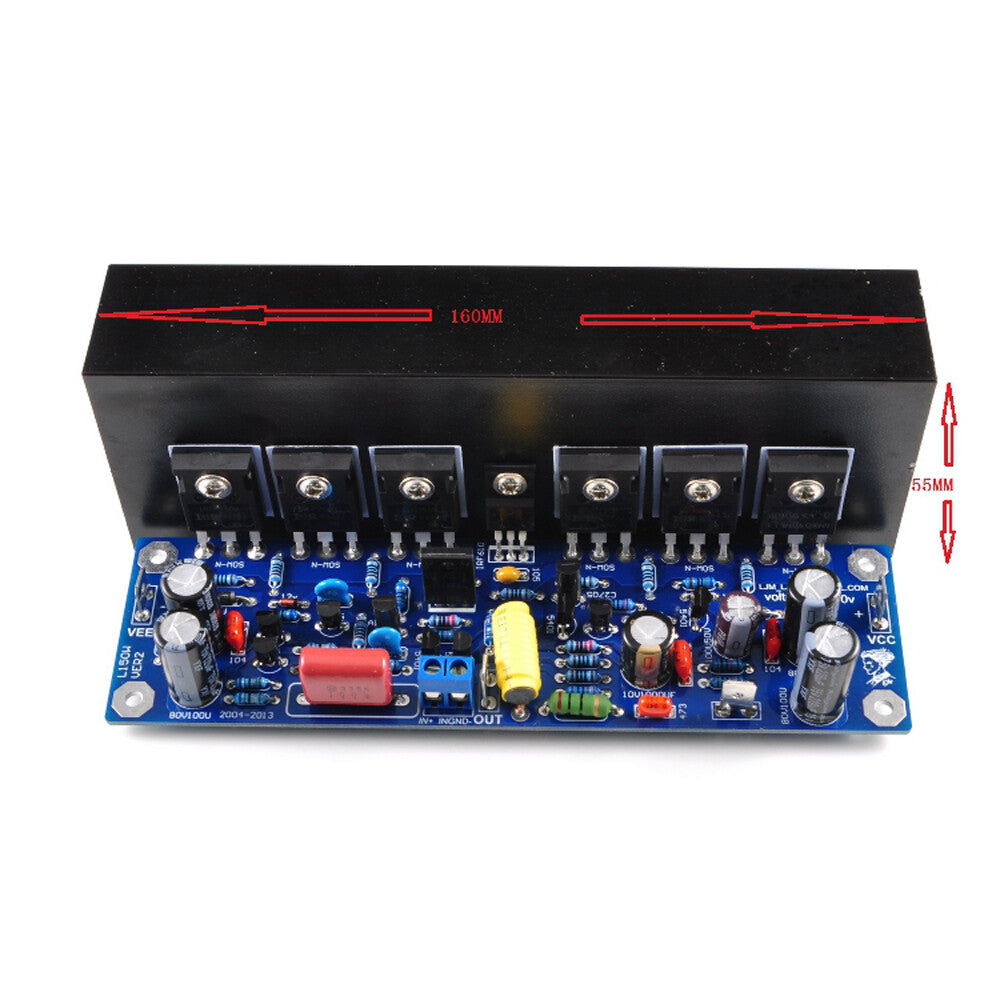

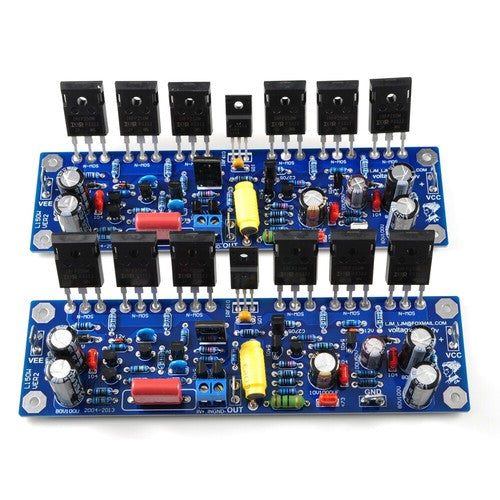

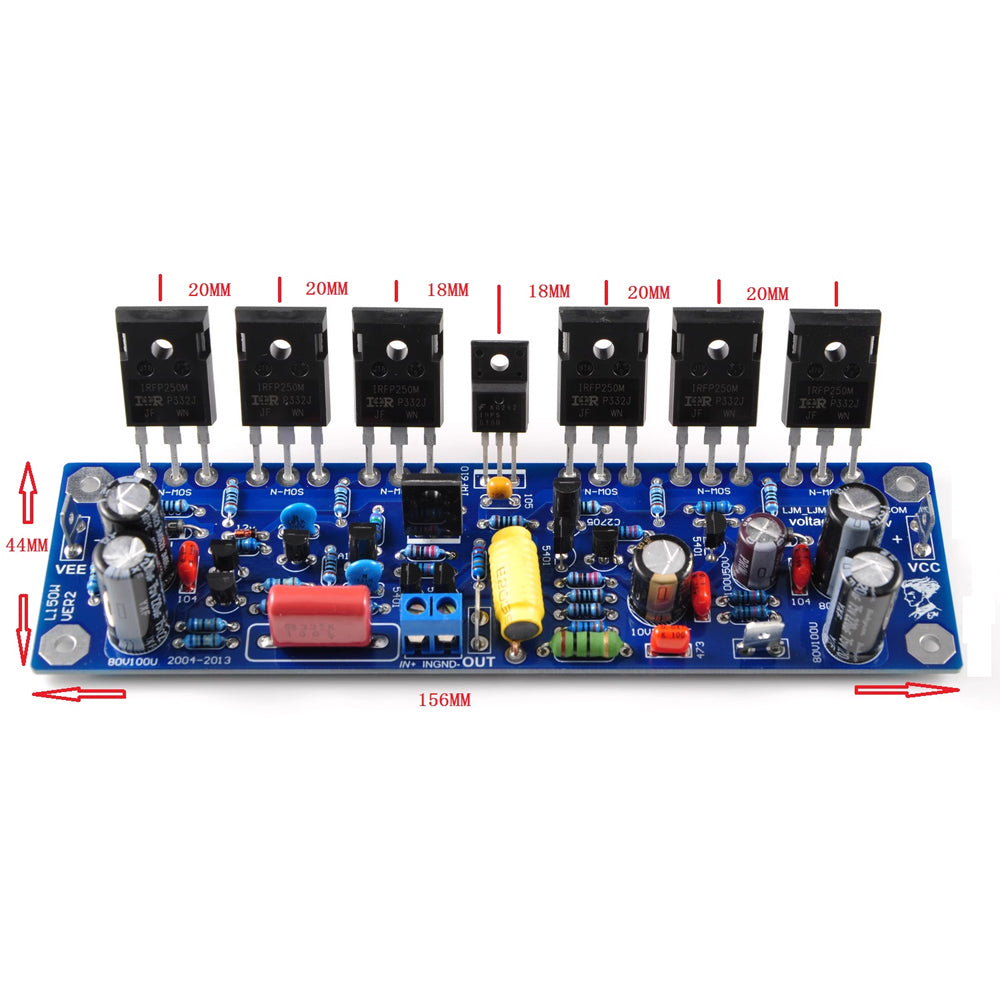

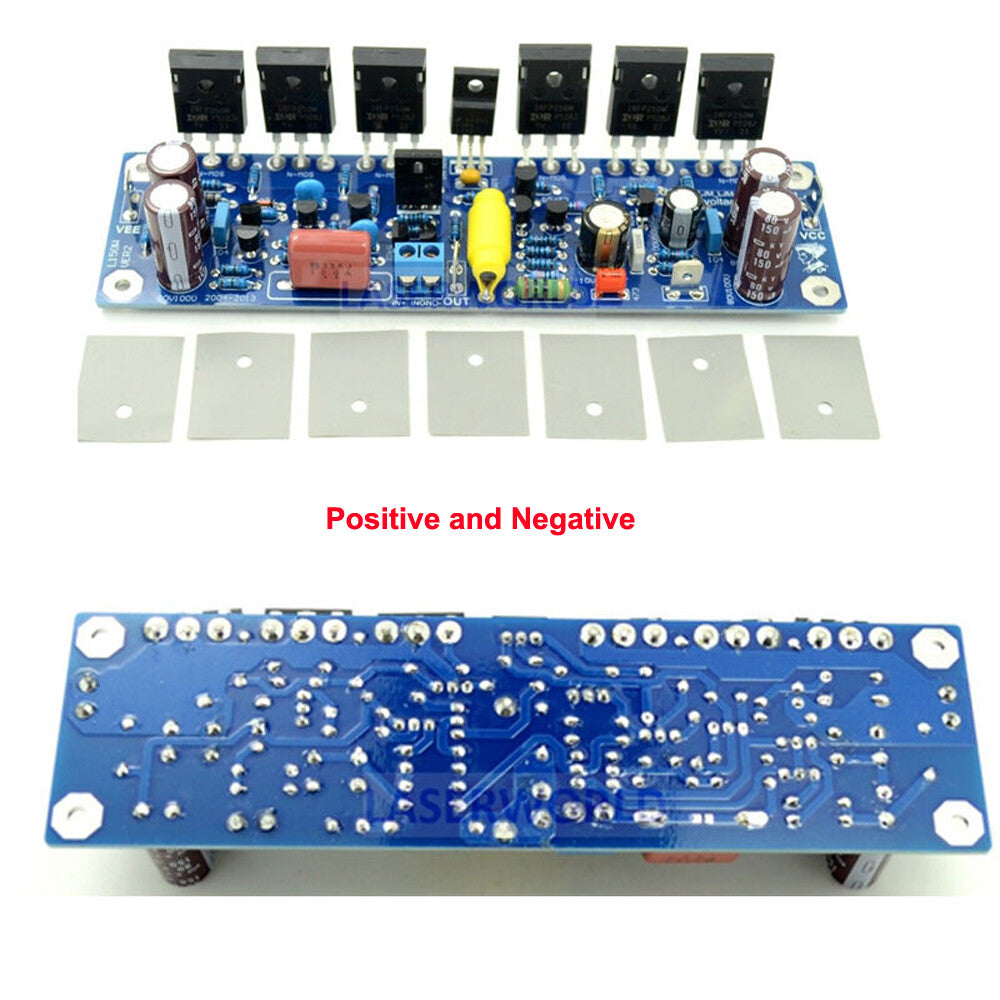

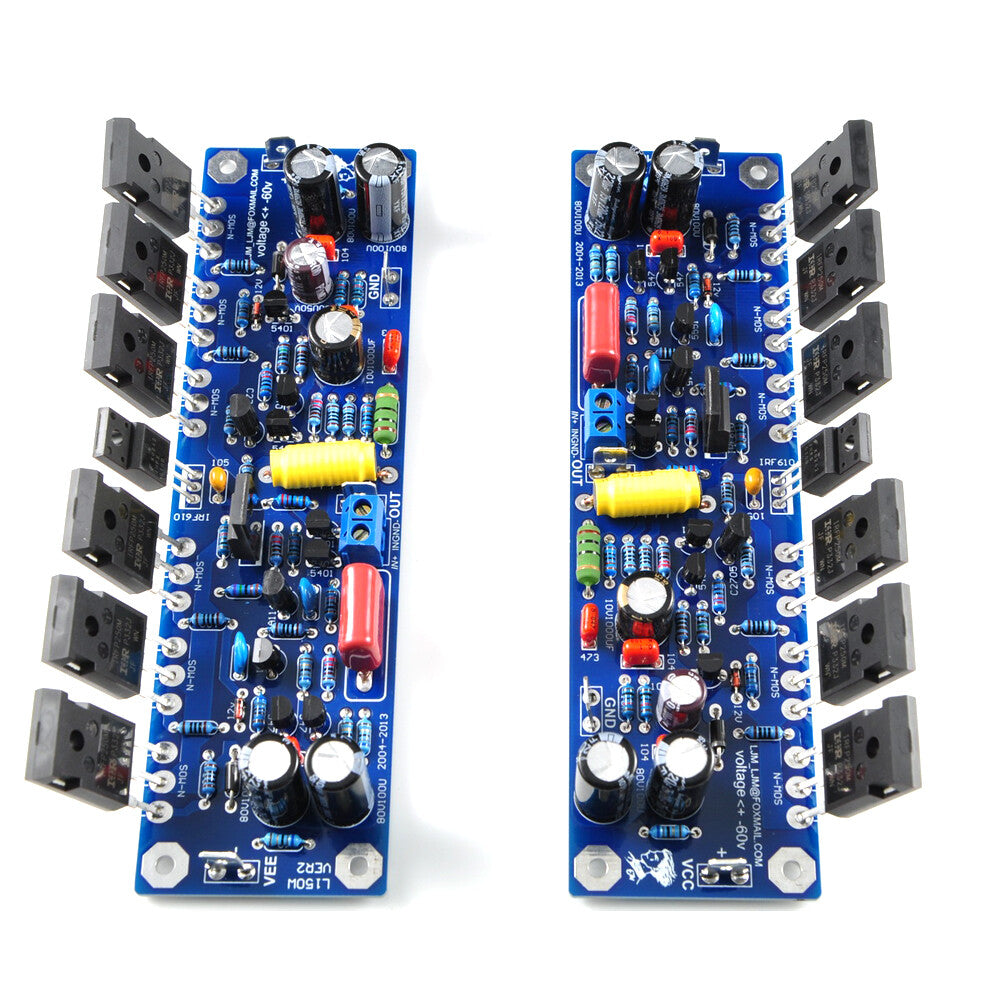

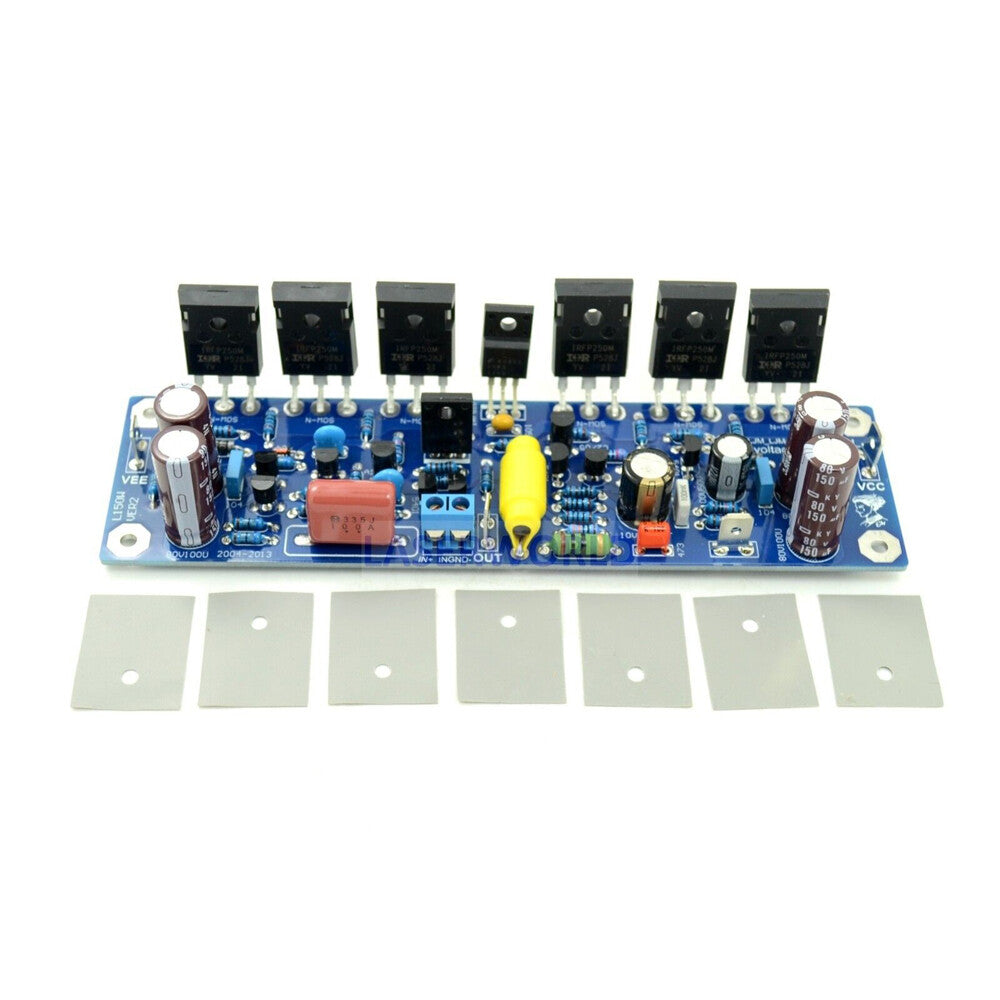

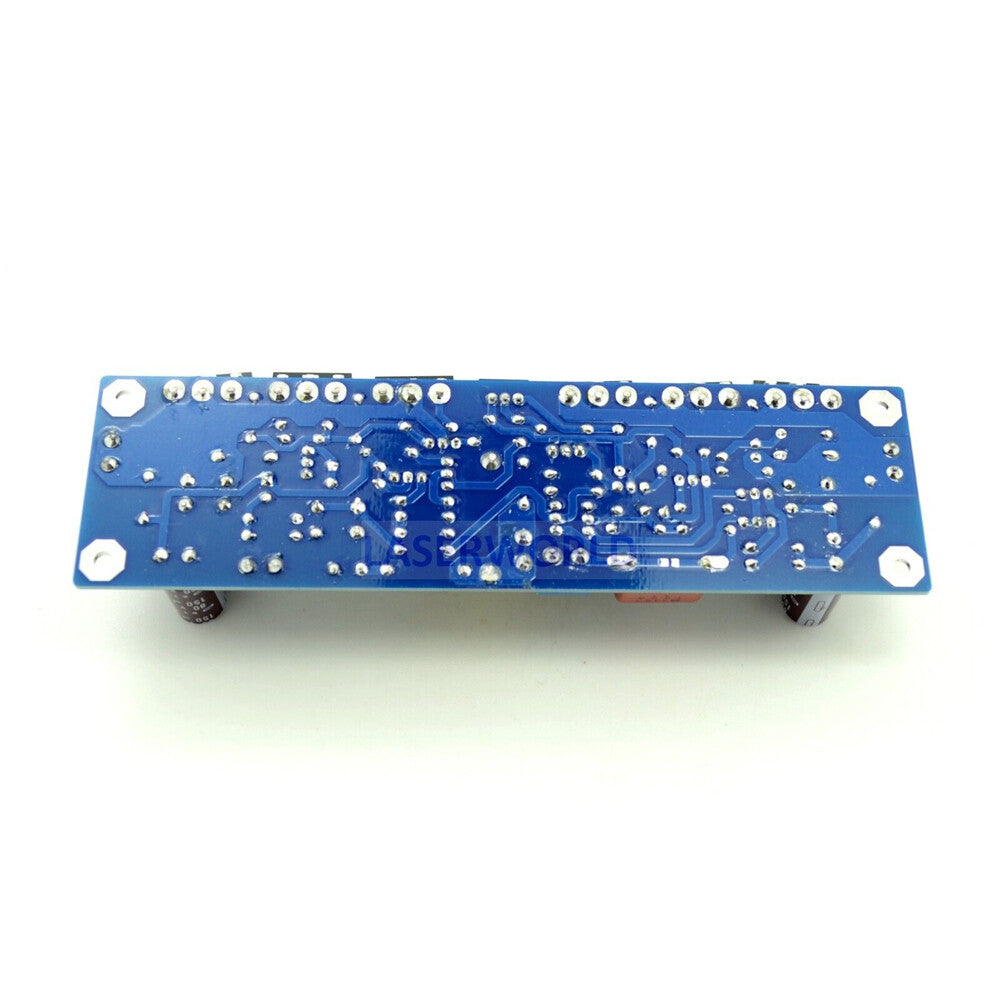

Mono Channel Amplifier Amp Board 10000 UF2 150W FET Power Amp with IRFP2506

$54.00

Sale Sold out

Shipping calculated at checkout.

Options Mono Board Without Heatsink Mono Board With Heatsink Dual Channel With Heatsink

Quantity

Mono Dual Channel Amplifier Amp Board 10000 UF*2 200W FET Power Amp With IRFP250*6

Specification:

1.50-200 watts output power + -40V 80W 8R 160W 4R

2.Low distortion: 0.015%, 1 kHz, 20 W

3.Quiescent current : 50MA per channel

4.Wide supply range : + -25V - + - 60V

5.Recommended voltage for power supply,

+ -50V 8R

+ - 40V 4R

+- 25V 2R

6.IRFP250 parameters:200V 33A , 180 watts per unit

7.Noise can not be heard outside 10cm

8.With 6pcs of IRFP250

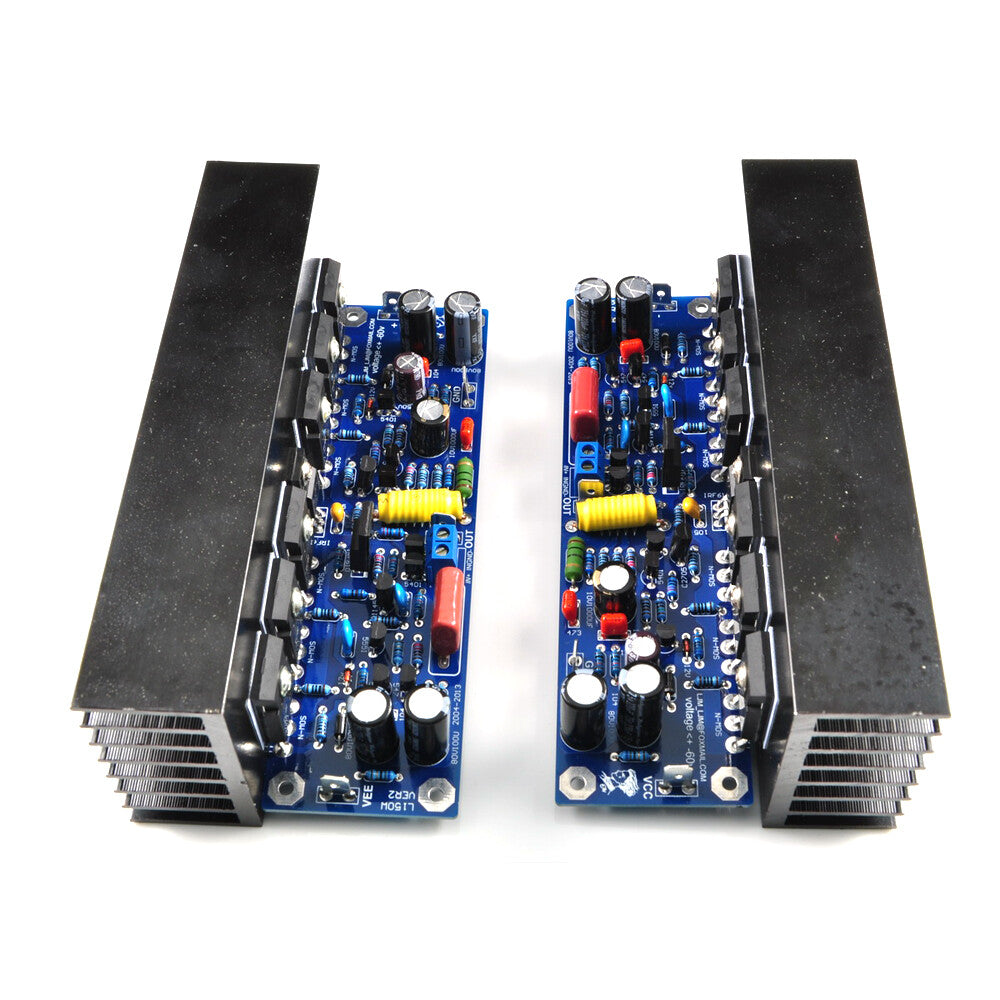

9.The recommended weight for the radiator is over 200 grams per channel.

10. Default is CLASS AB

Package:

1* Amplifier Board
