MV04 Remote Control & Input Potentiometer 9-12V AC Quadruple ALPS Motorized

MV04 Remote Control & Input Potentiometer 9-12V AC Quadruple ALPS Motorized

Feature:

This package uses the CPU control the input signal selection and control of motor rotation potential to control the volume. Using the original ALPS metal shell sealed potentiometer, reliability and excellent quality performance.

The MV04 quadruple potential, a set of balanced inputs and 3 single-ended input.

Comes with a dedicated remote control, remote control or manual operation, very complete.

Operating voltage: 9-12V AC power supply.

Contents:

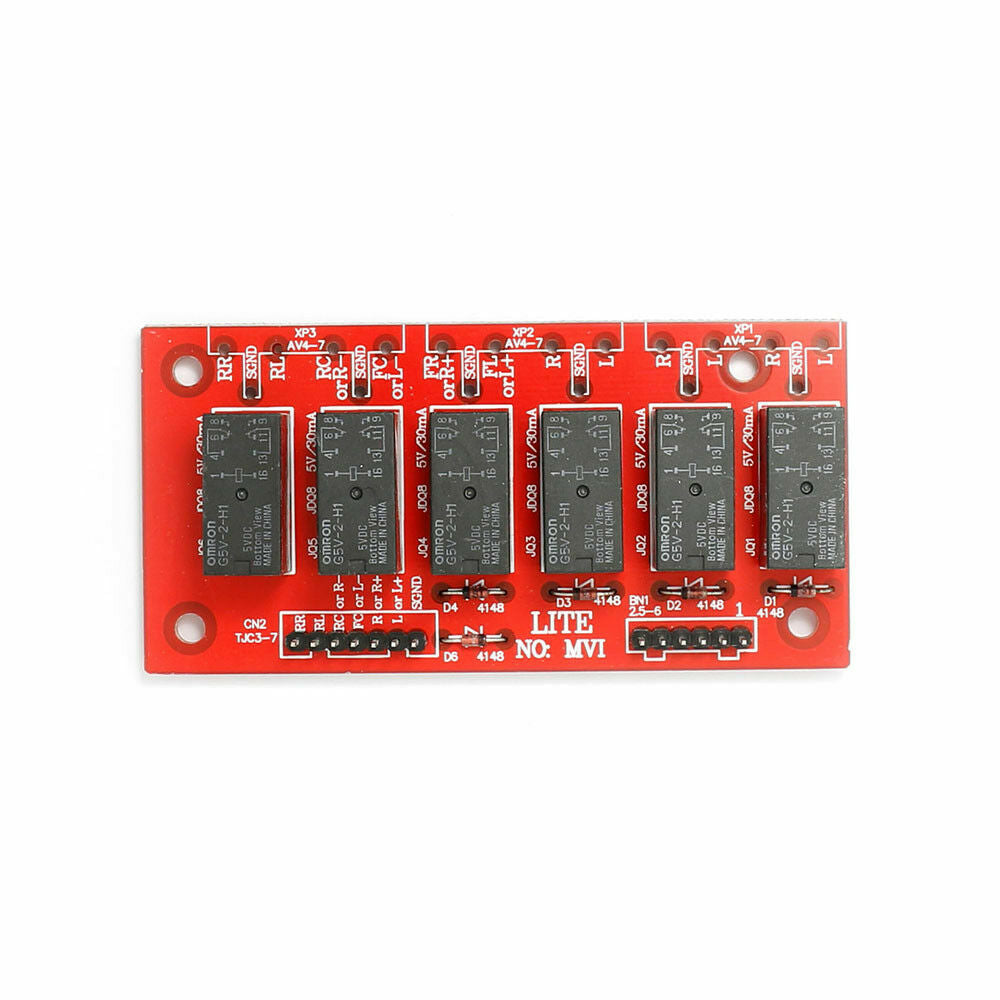

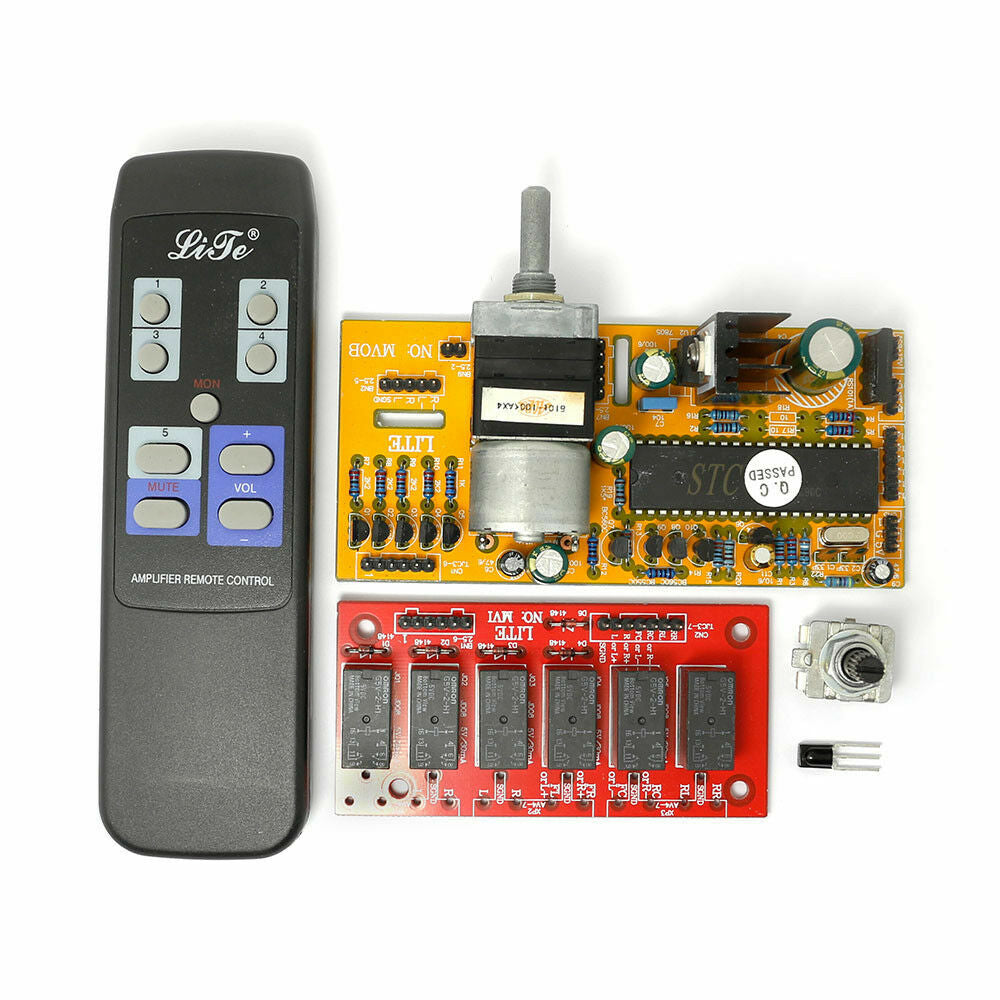

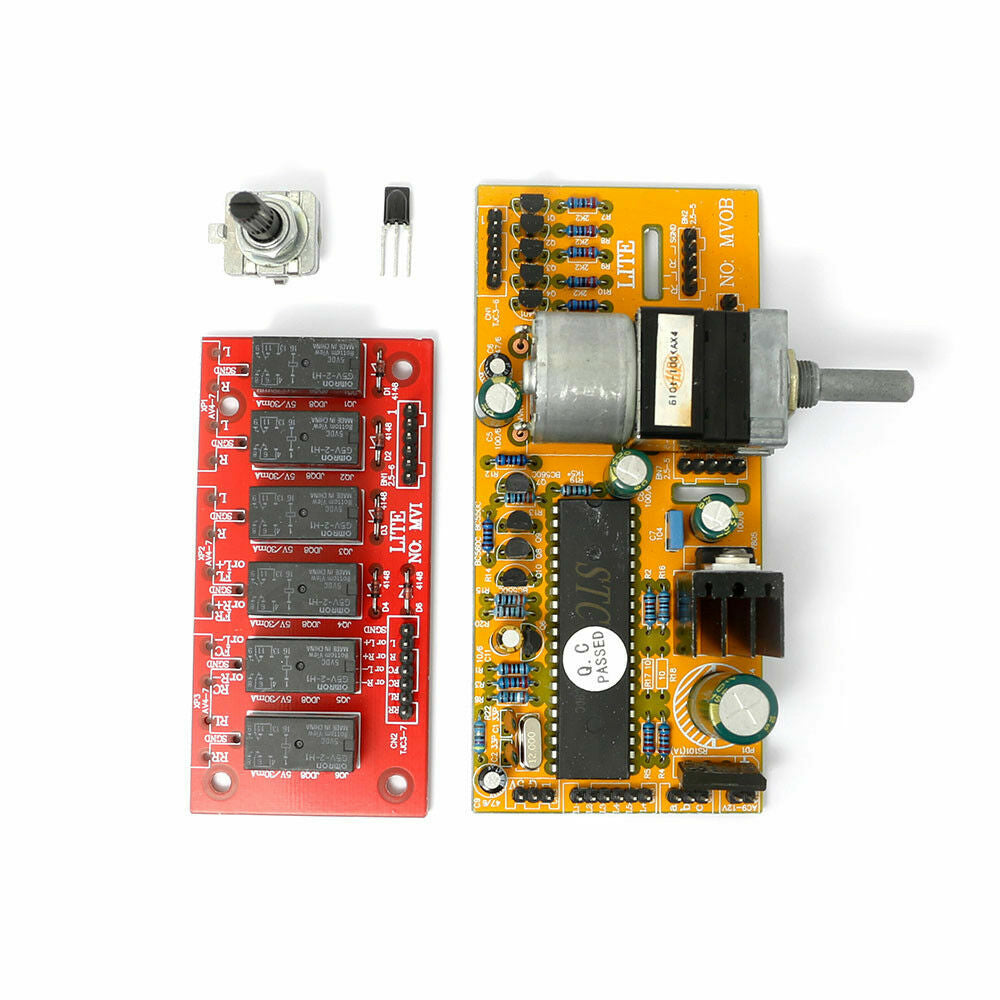

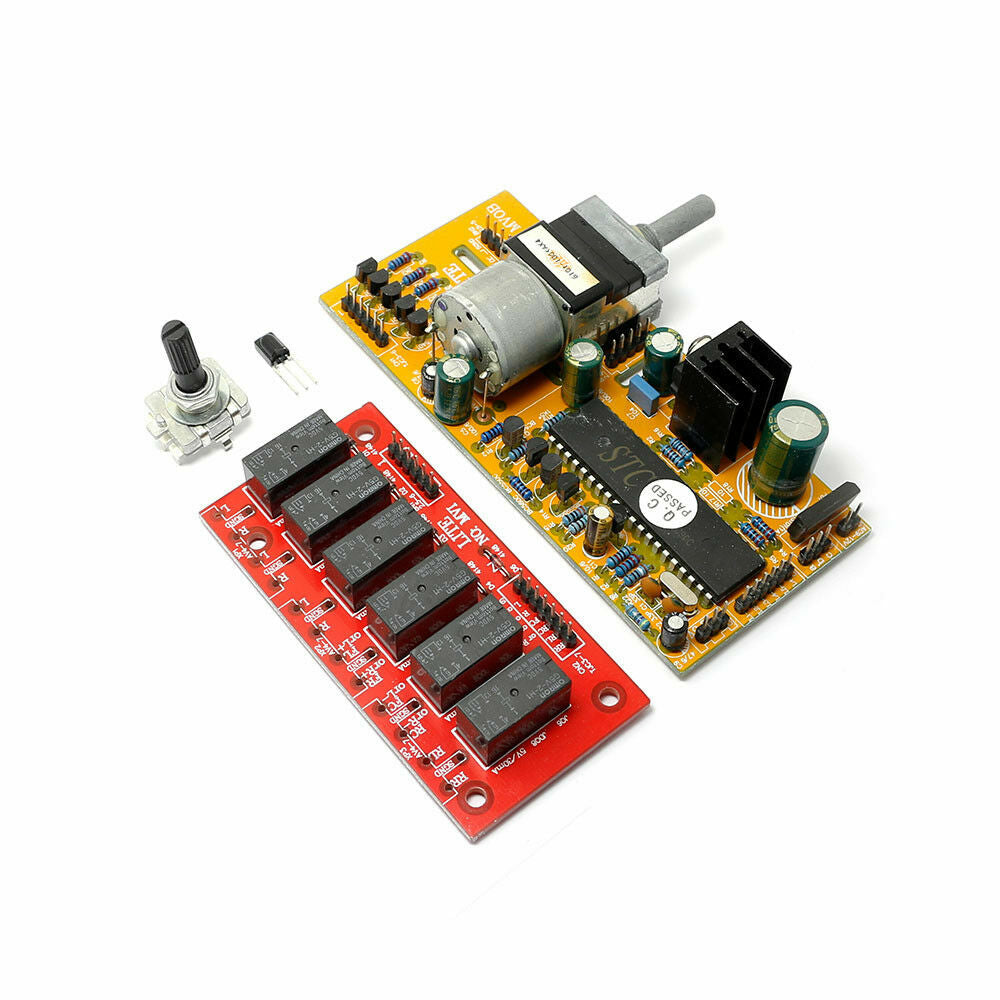

Board * 1. Signal input switch board * 1. IR receiver * 1. Signal select pulse switch * 1. Remote control * 1. Drawings * 1

Size :: signal input switch board 130mm * 50mm.

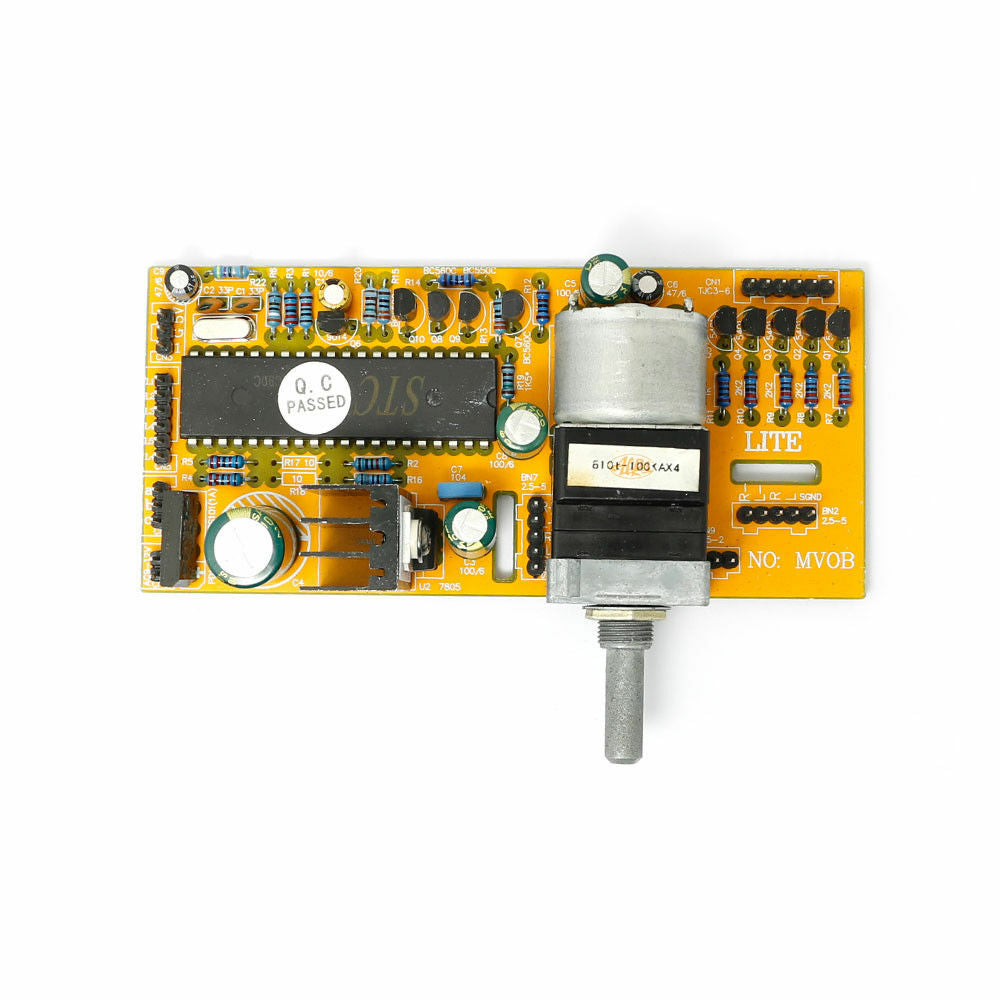

CPU: 120mm * 55mm.

RCA single ended input x 3 + XLR input x 1

Single ended RCA output x 1 or XLR output

Manual input selector and potentiometer is also available

Onboard power regulator circuit

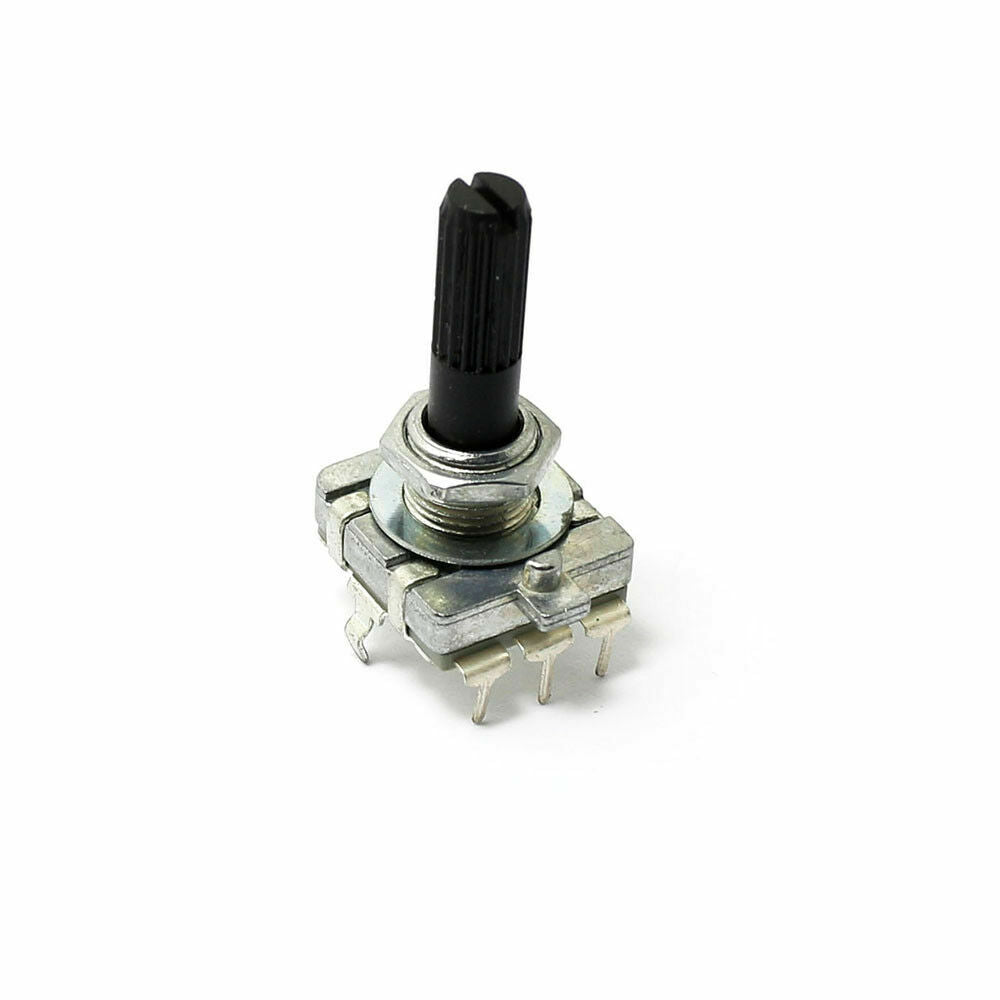

Uses 100K ALPS JAPAN motorized potentiometer

We have the manual and scematic,please leave a message to get it.

CN3 - BN3 CN3-- infrared receiver!
CN4 - BN4 BN4-- pulse selection switch!
CN5 --- install signal lights
BN7 is the preamplifier output
