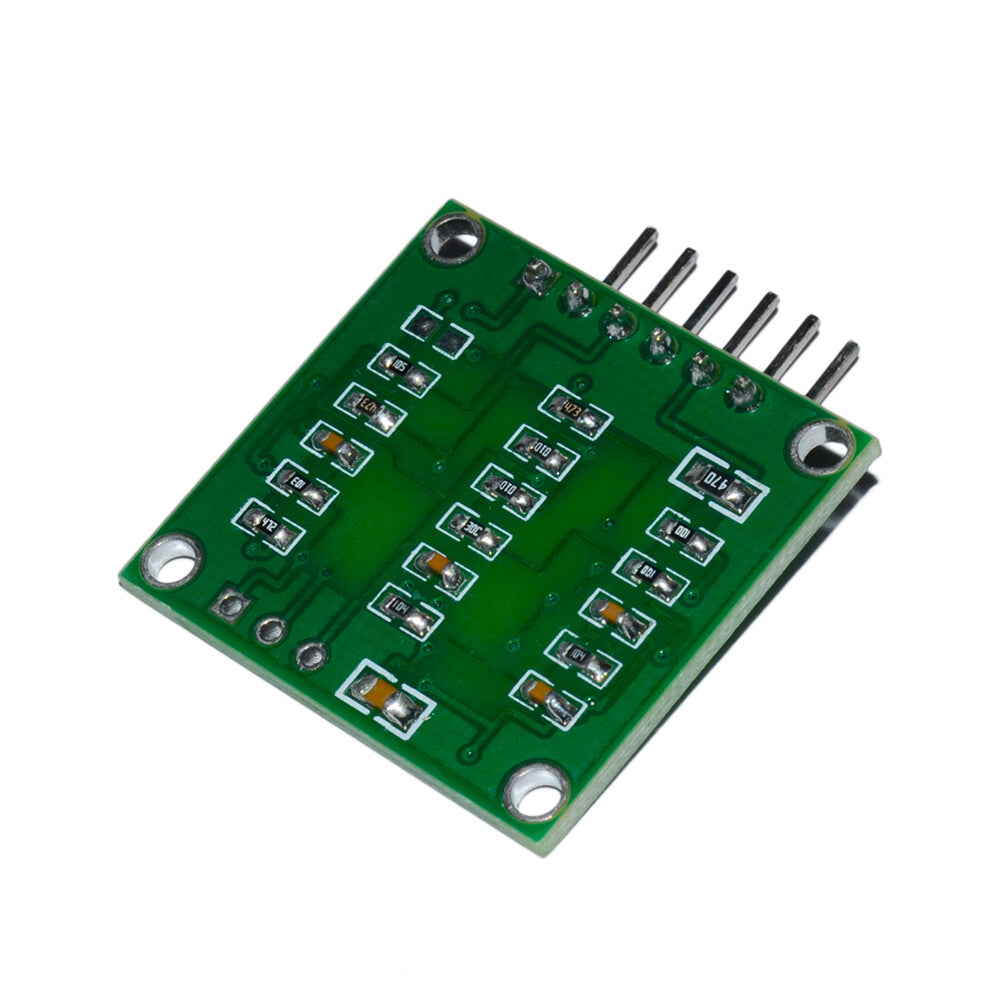

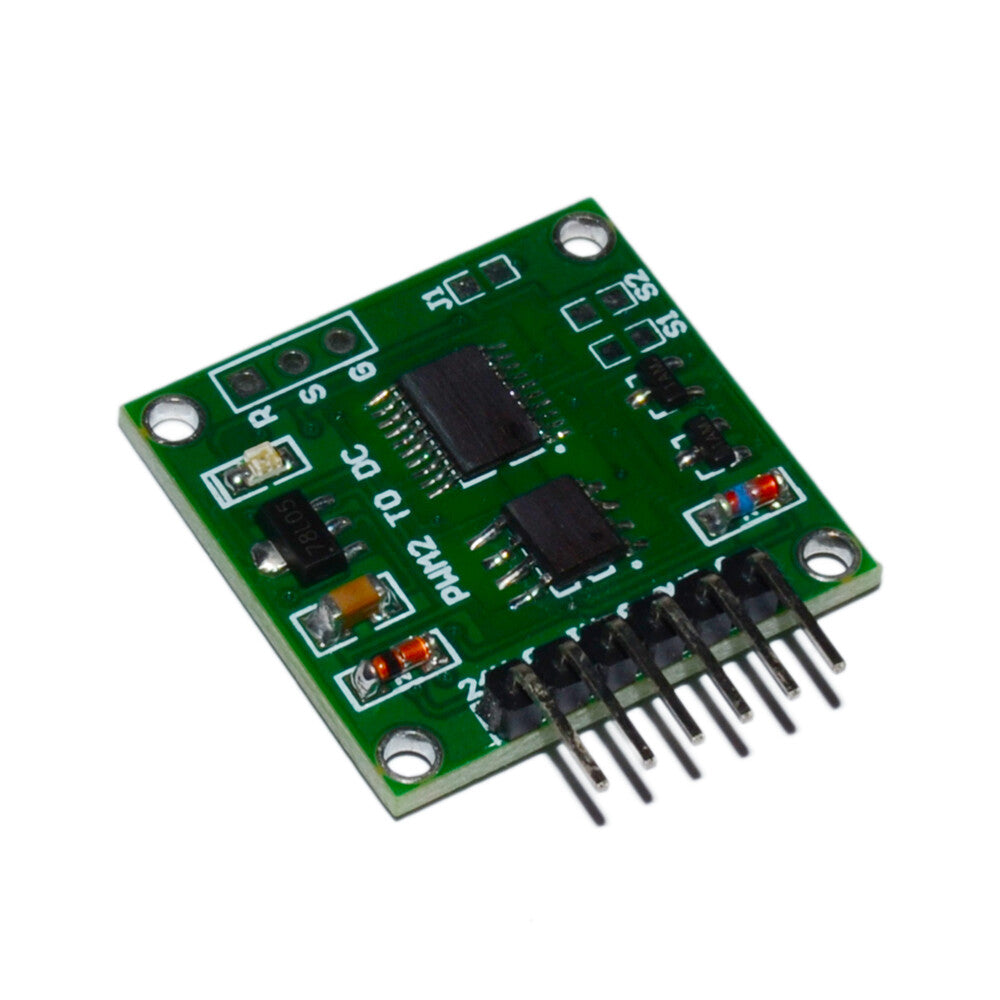

New PWM to Voltage 0-100% to 0-5V 0-10V Linear Conversion Transmitter Module

PWM to Voltage 0-100% to 0-5V 0-10V Linear Conversion Transmitter Module

Supply voltage: 9V to 24V Signal input voltage range: 4 ～ 24V

Signal input frequency range: 50Hz~10KHz Signal input duty cycle range: 0~100%

Output voltage: 0.00V~5.00V / 0.00V~10.00V Input method: S1 pad on the circuit board: open by default, it has not been used yet.

Output method: S2 pad on the circuit board: open circuit (output 0.00V ~5.00V); short circuit (output 0.00V ~10.00V), default is open circuit.

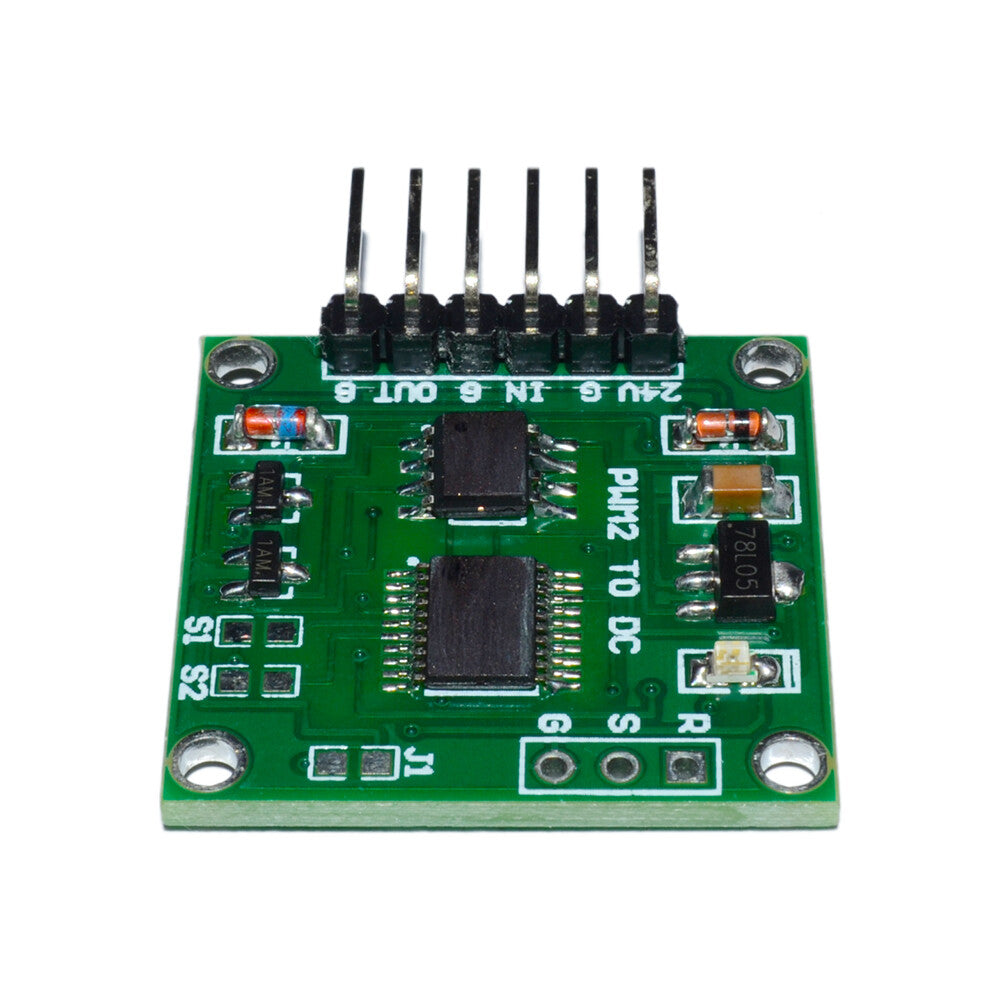

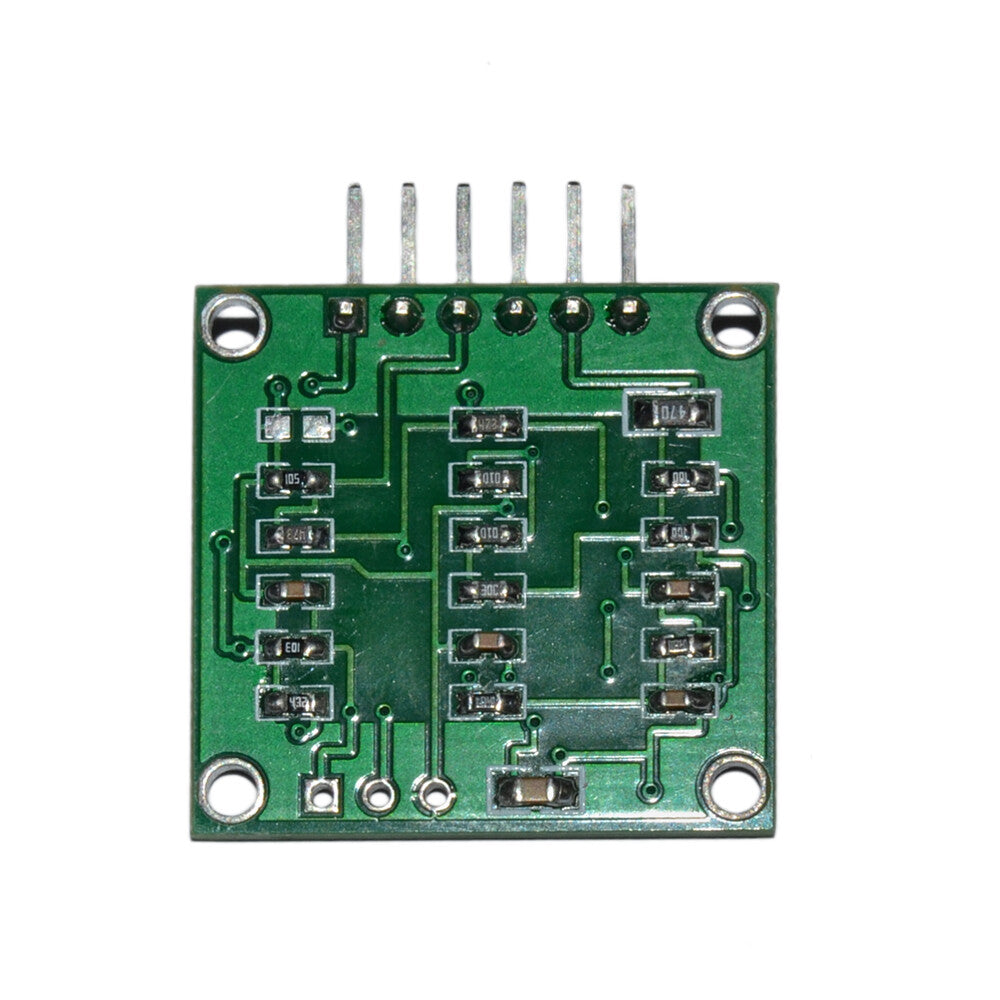

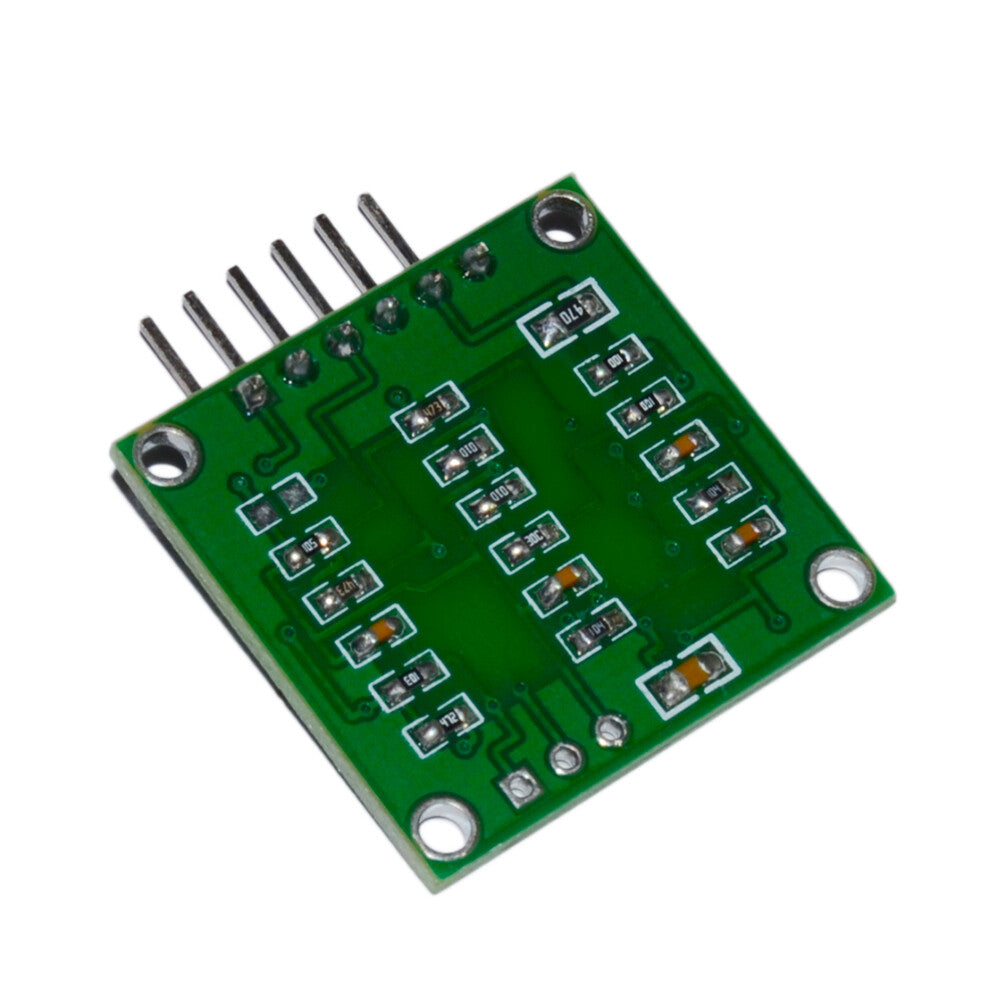

Application: remote data acquisition and control equipment: 24V: positive power connector (9V to 24V).

G: Power ground interface.

IN: Signal input positive connector.

G: Signal input negative connector.

OUT: Signal output interface (0.00V to 5.00V / 0.00V to 10.00V).

G: Power ground interface.

Note:

When outputting 0.00V to 10.00V, the power supply voltage must be 15V.

Output (0.00V ~5.00V) Resolution: 0.050V / D (V / per duty)

Output (0.00V~10.00V) Resolution: 0.100V / D (V / per duty)

Calculate the measured duty cycle formula: (output voltage (V) / resolution) = duty cycle (%).

Example: Output (0.00V ~5.00V) Output is 2.5V

(2.5 (V) /0.05) = 50 (%).

Package:

1*PWM to voltage module
