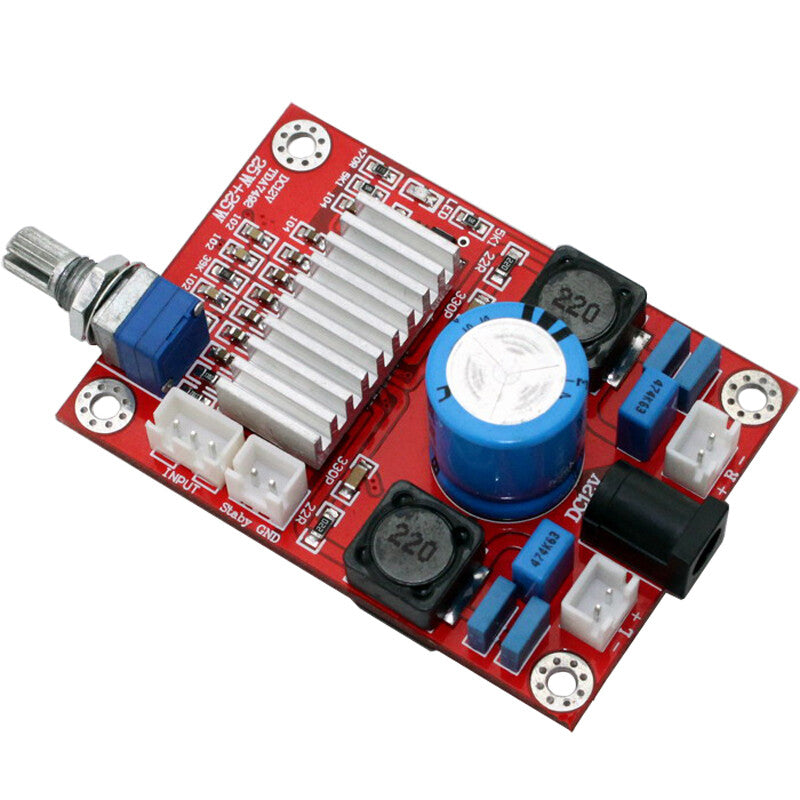

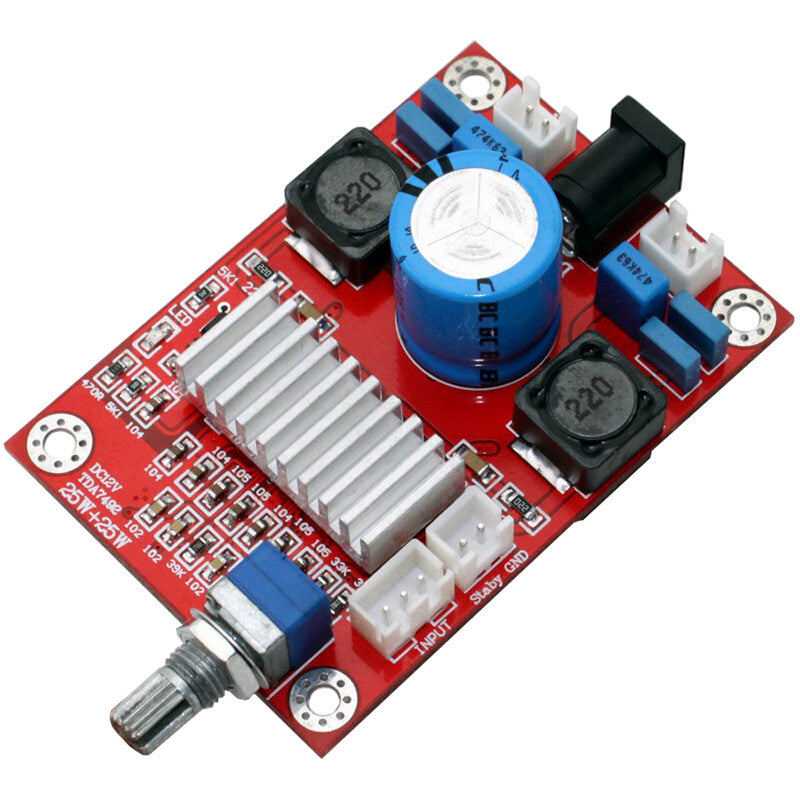

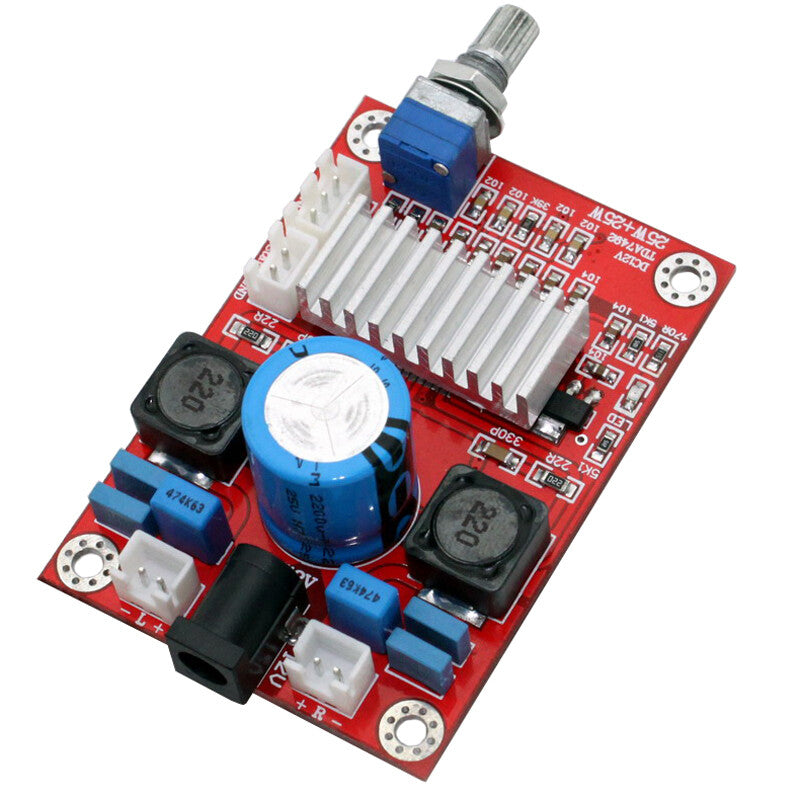

New TDA7492 12V Power Amplifier Board 25W+25W

TDA7492 12V Power Amplifier Board 25W+25W

Specification:

1. Using the original TDA7492

2. The electrolytic capacitor adopts imported BC2200UF/25V electrolysis, ensuring strong and continuous power support.

3. The 1206 0805 high-precision SMT resistor is selected to ensure a good signal-to-noise ratio of the entire machine.

4. The PCB is made of 1.6mm thick double-sided sheet metal, with a thickness of 2.0 amperes of copper and a full process of tin spraying to ensure good current passing performance. First rate PCB quality.

5. It adopts a fully enclosed dust-proof potentiometer, which has more stable performance and is more durable than ordinary potentiometers.

6. Small size, high power, and no noise.

7. Equipped with standby function.

Product Details:

1. Working mode: Class D

2. Static current: 20mA

3. Work efficiency: 90%

4. Rated output power: 2 * 25W

5. Frequency response: 20Hz to 20KHz

6. Working voltage: DC12V to DC19V

7. Recommended power supply voltage: DC12-19V

8. Maximum output current: 1.5A

9. PCB size: 72 * 50MM

Package:

TDA7492 12V Power Amplifier Board 25W+25W
