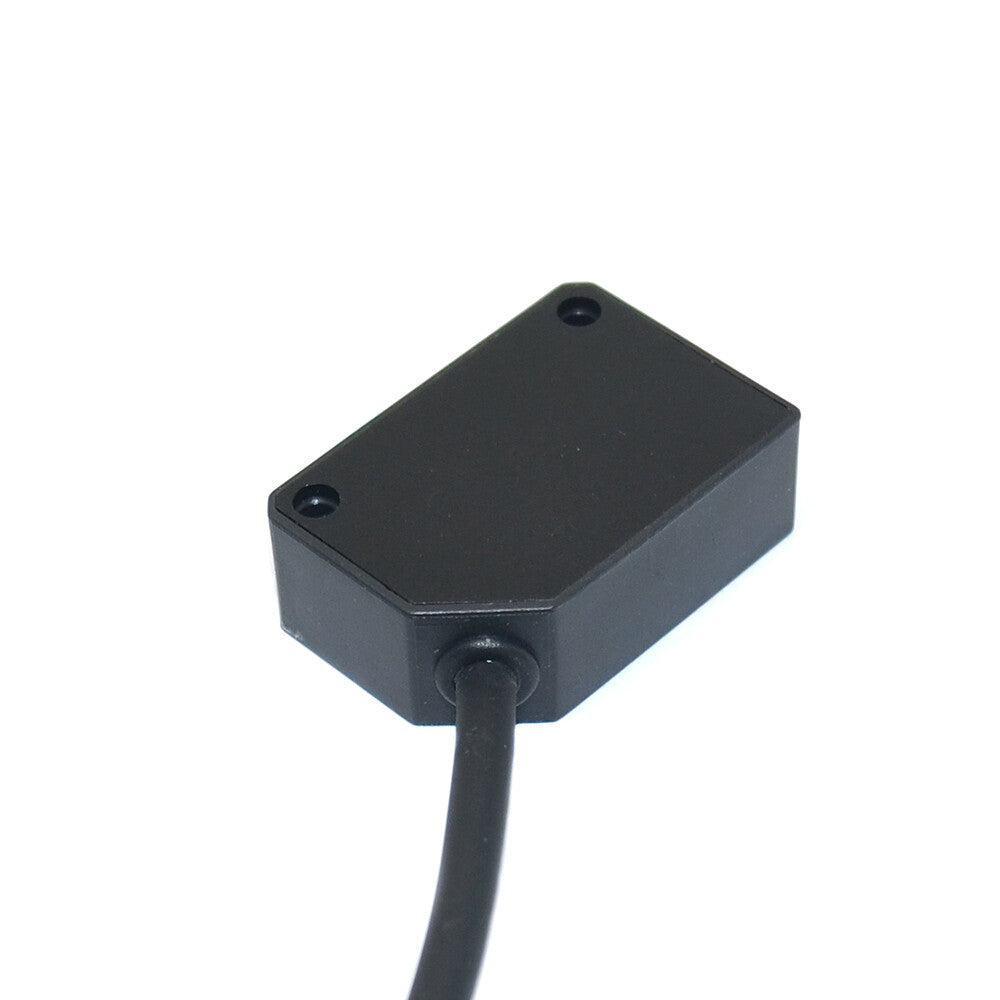

Photoelectric Switch Sensor Diffuse Reflection Infrared Laser Sensor DC24V DIY

$36.00

~~$39.00~~ $36.00

Sale Sold out

Shipping calculated at checkout.

Output Type NPN OPEN PNP OPEN

Sensor Distance 200mm 300mm

Quantity

Photoelectric Switch Sensor Diffuse Reflection Infrared Laser Sensor DC24V DIY

Specifications:

Dimensions:31mm X 21mm X 11mm

Detection Method:Inductive 200mA

Detection Distance: 200 - 300 (mm)

Working Voltage:10-30VDC

No-load Current:9mA

Output Current:150mA

Switching Frequency:120HZ

Wire Length:2 Meters

Features:

The square laser photoelectric switch sensor can see red light spot diameter of 3mm, short circuit protection, long service life, stable performance, high sensitivity and adjustable sensing distance.Detecting Objects: It can detect fast moving objects with a response time of 2ms.

1. Emission laser, linear beam, visible spot, can detect 0.8mm ultra-fine objects

2. Reliable detection of small objects and narrow gaps with small spots

3. The smallest object can be detected through a small hole with a diameter of 5mm.

4. Laser level 1 (JIS and IEC)

Package:

1*Laser Sensor

1*Screwdriver
