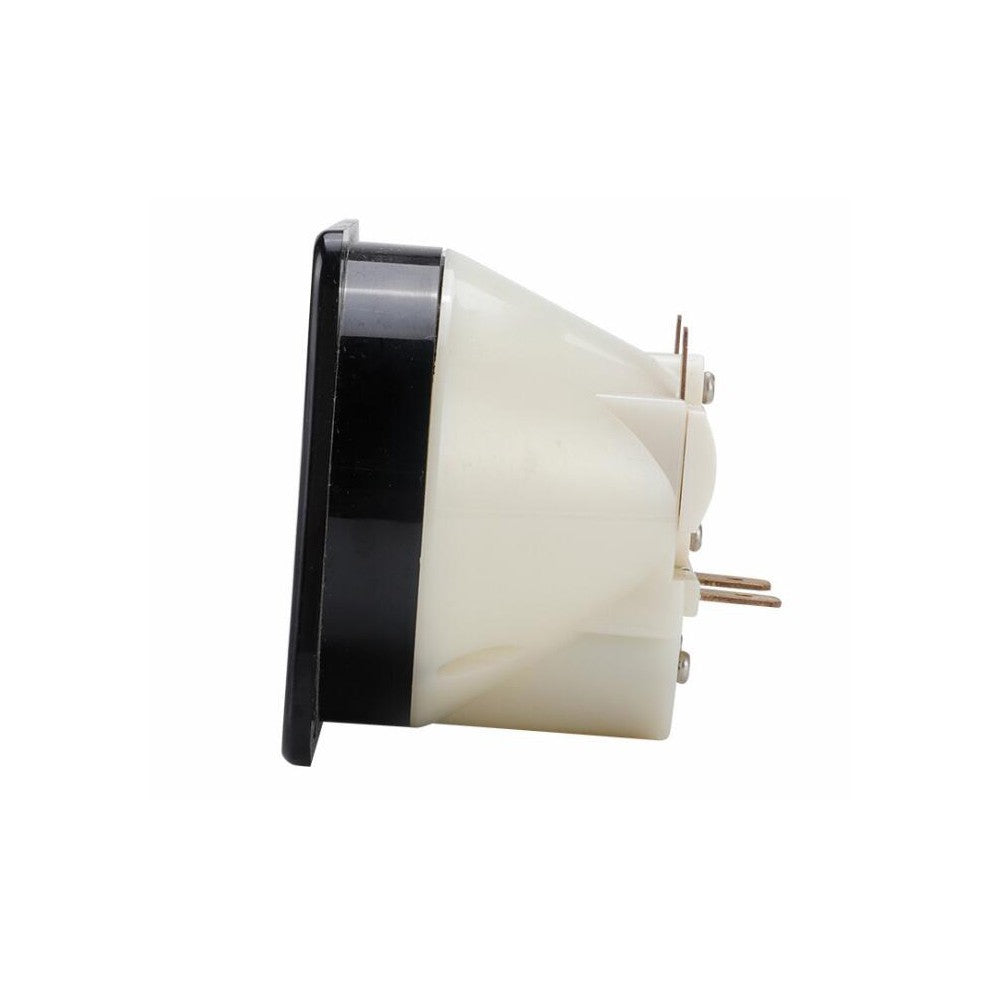

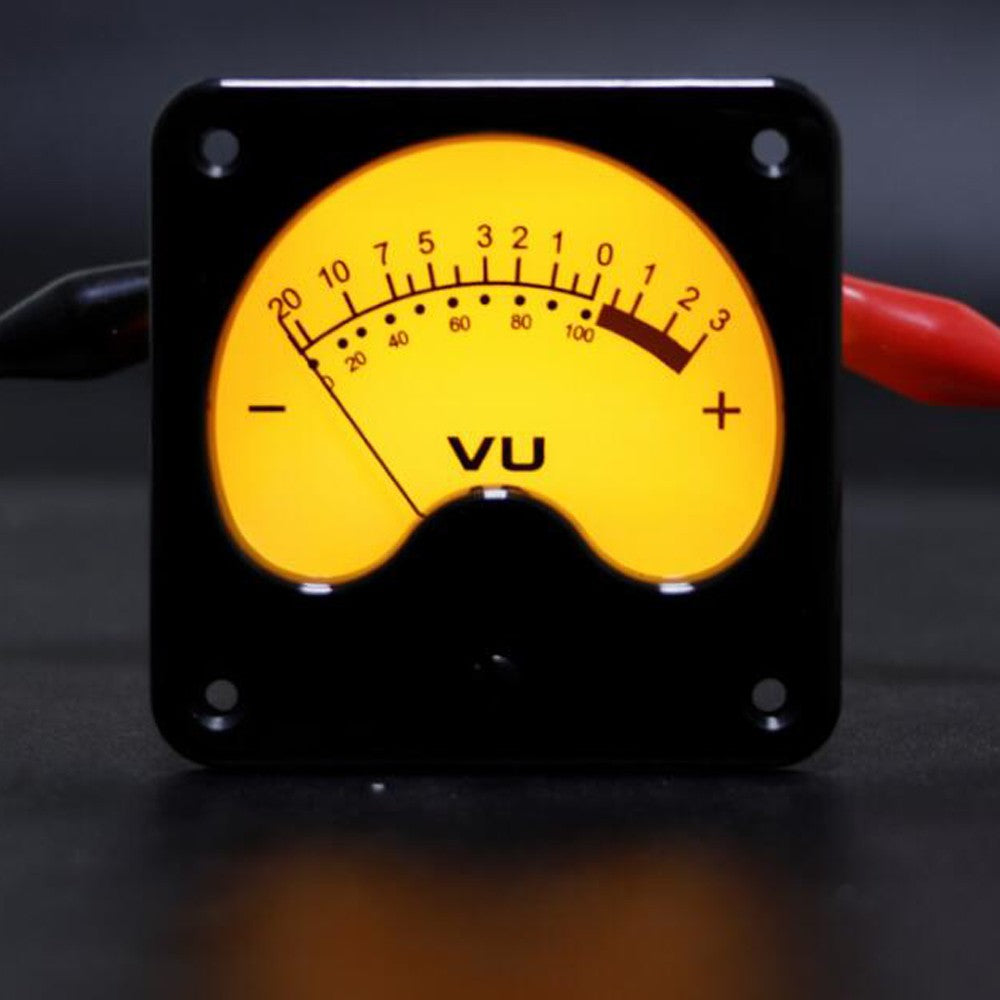

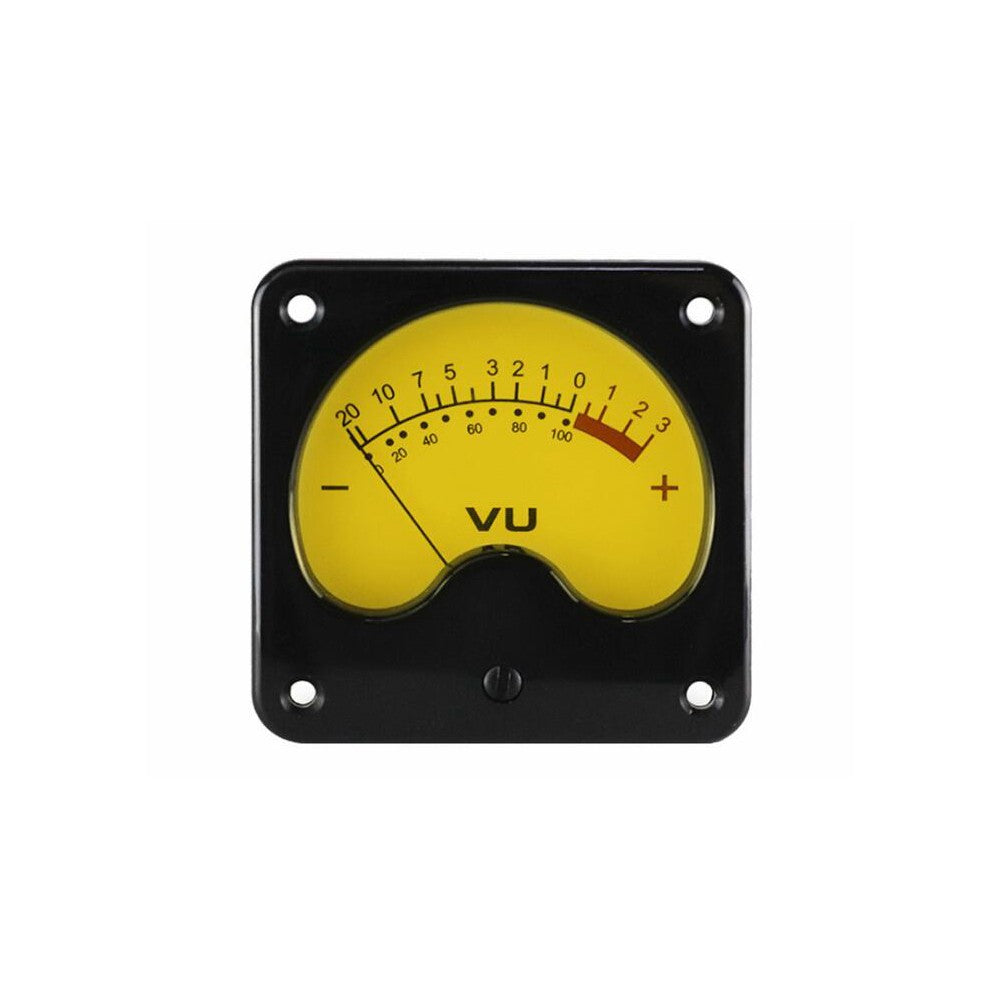

Pointer Type VU Meter Head With Backlight Ammeter Level Meter Audio Meter

Pointer Type VU Meter Head With Backlight Ammeter Level Meter Audio Meter

Specification:

Movable part: Movable coil type

Pointer material: Zinc-nickel alloy

Pointer color:Black

Pointer length: 30 (±1mm)

Pointer width: 0.45 (±0.05mm)

Pointer deflection direction: Deflection clockwise from left to right.

Cover material: PMMA (transparent)

Lower cover material: ABS

Frame material: SPCC

Electric meter use position:Vertical use

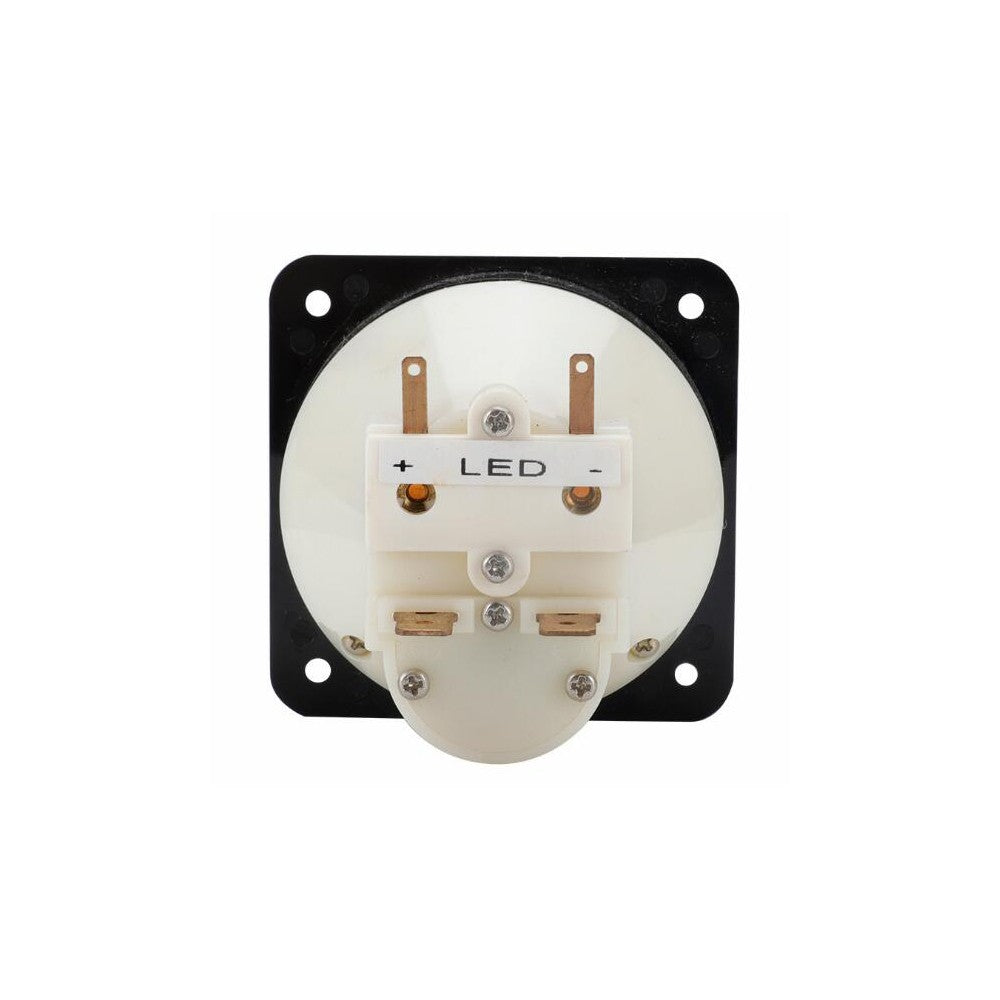

Bulb: Yellow LED 3.6V-5.2V 20mA

Internal DC impedance: 3.9KΩ±10%

Friction error: ±1mm

Balance error: ±1mm

Insulation strength: above 50MΩ

Package:
1*TR-57 level meter audio meter
