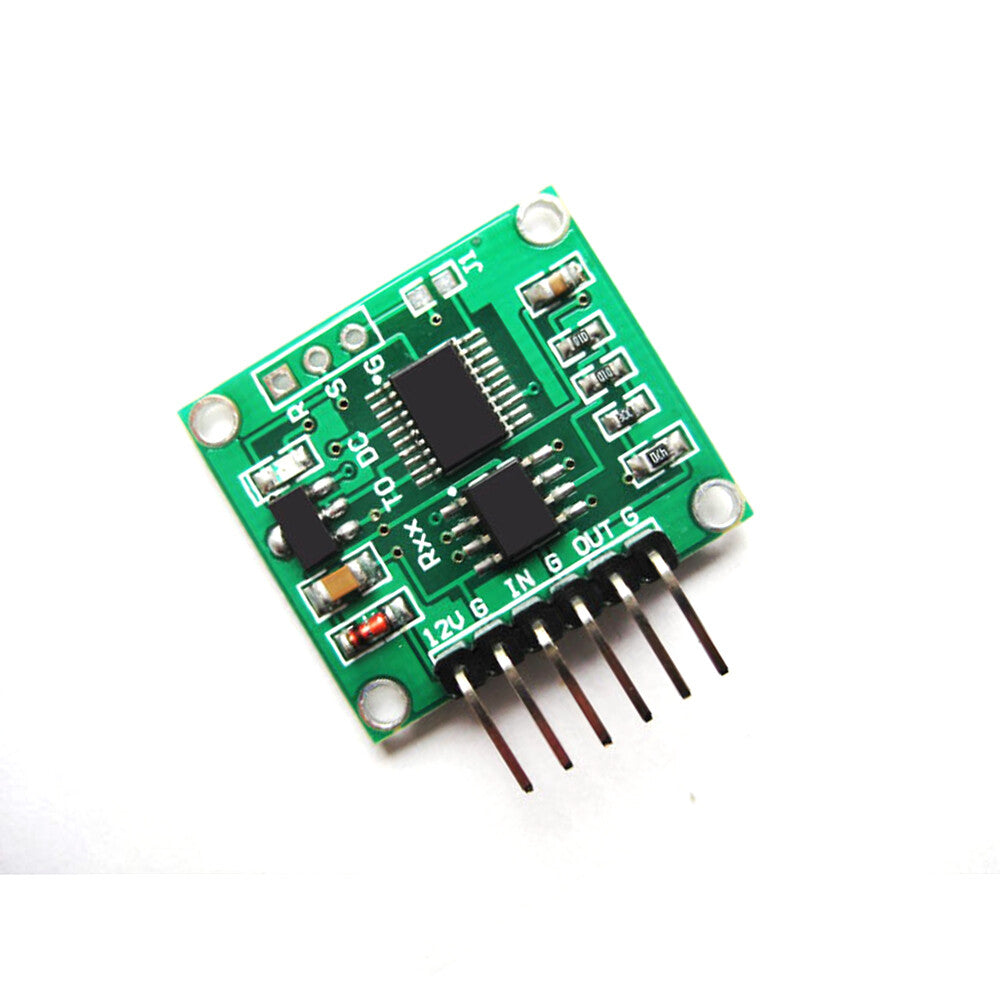

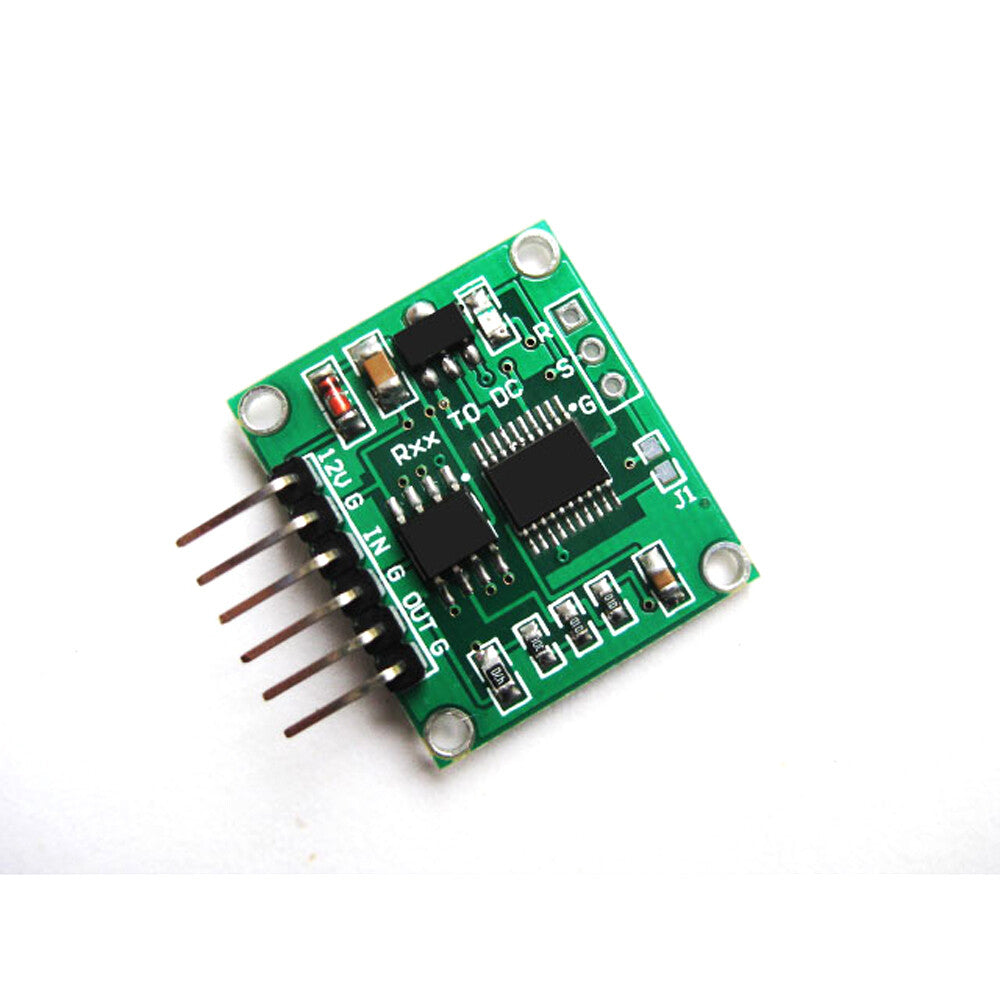

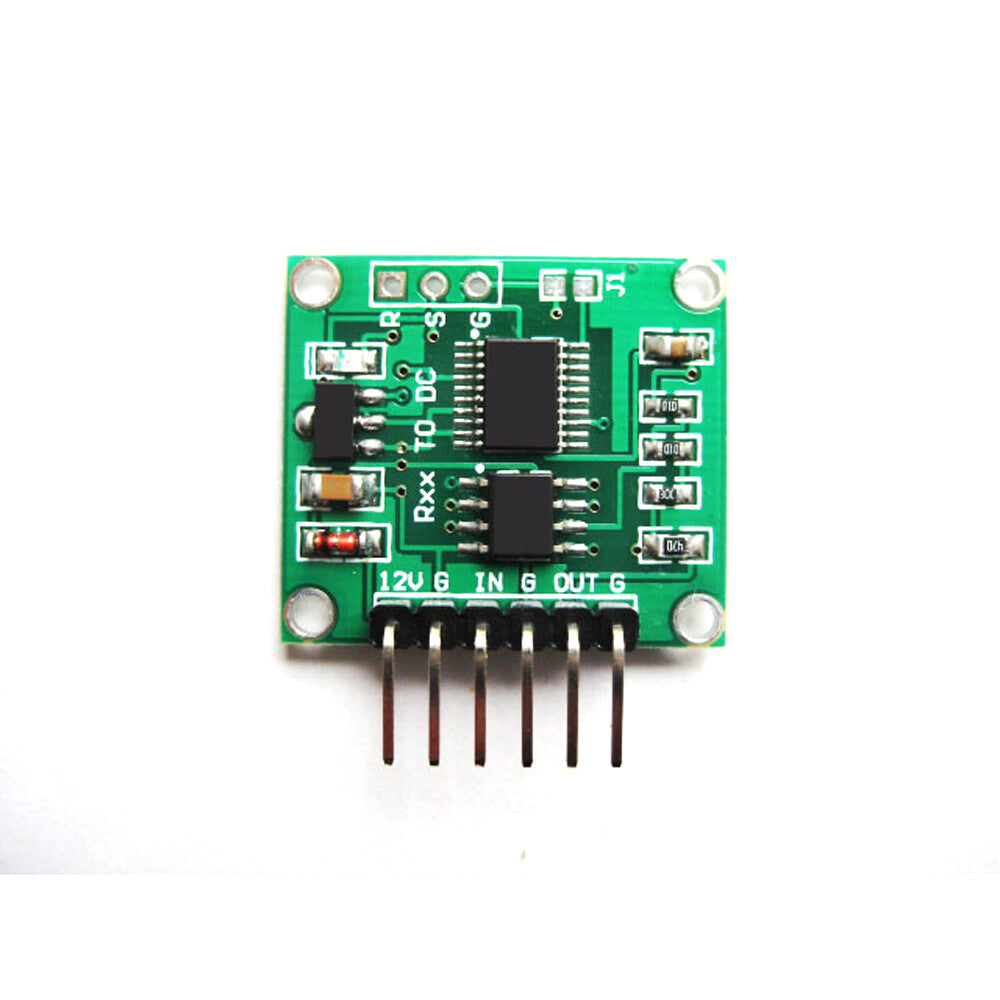

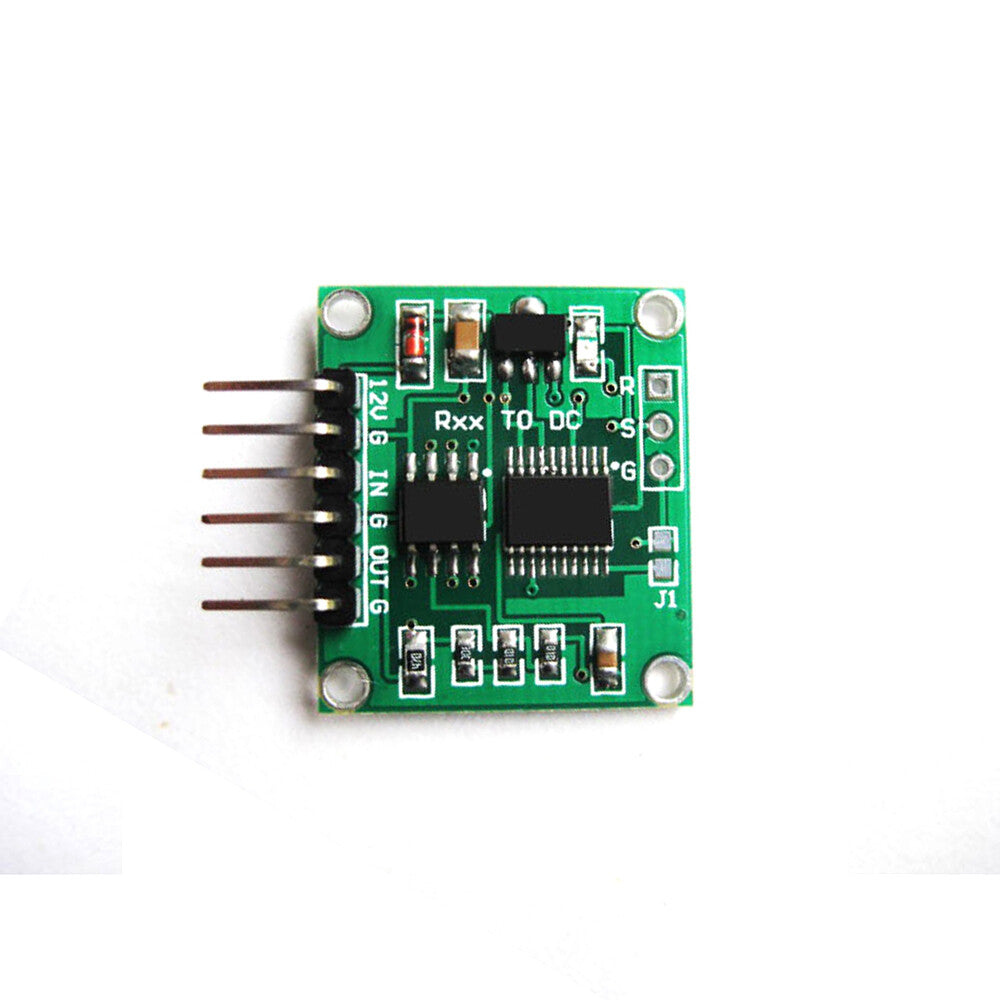

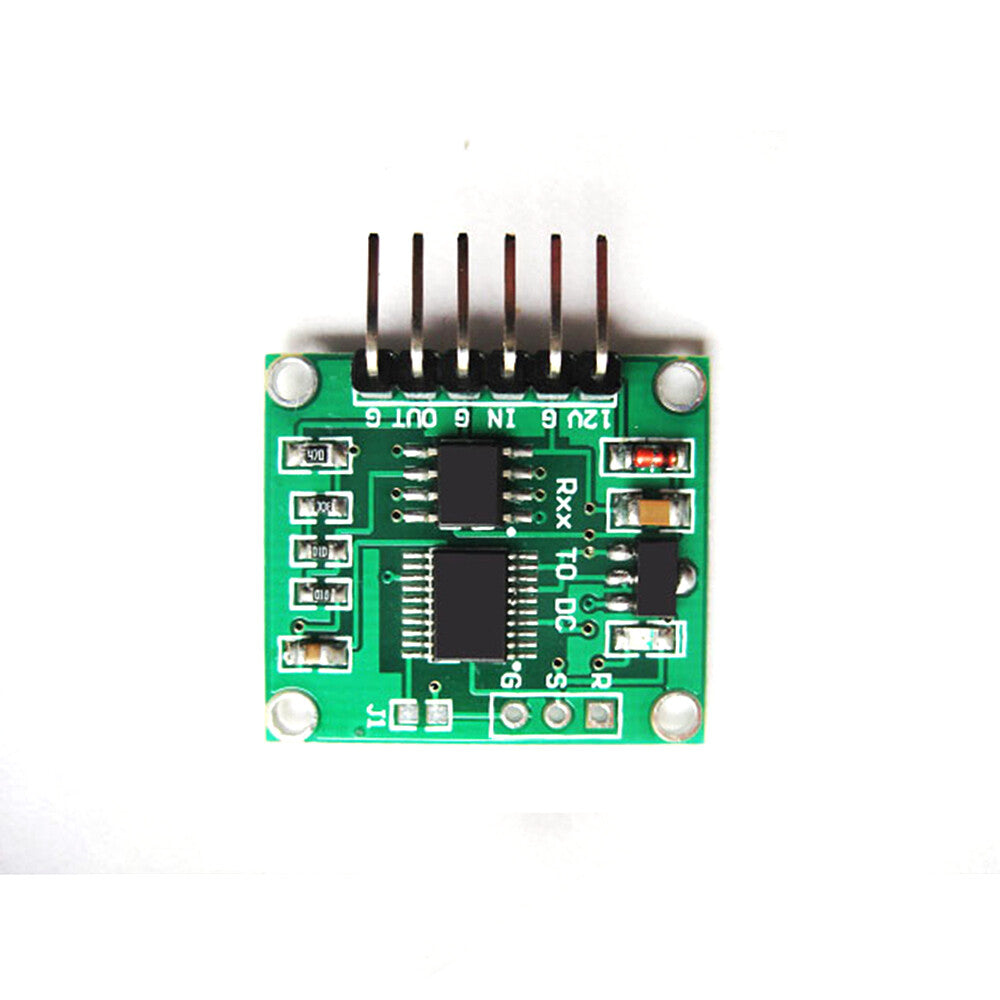

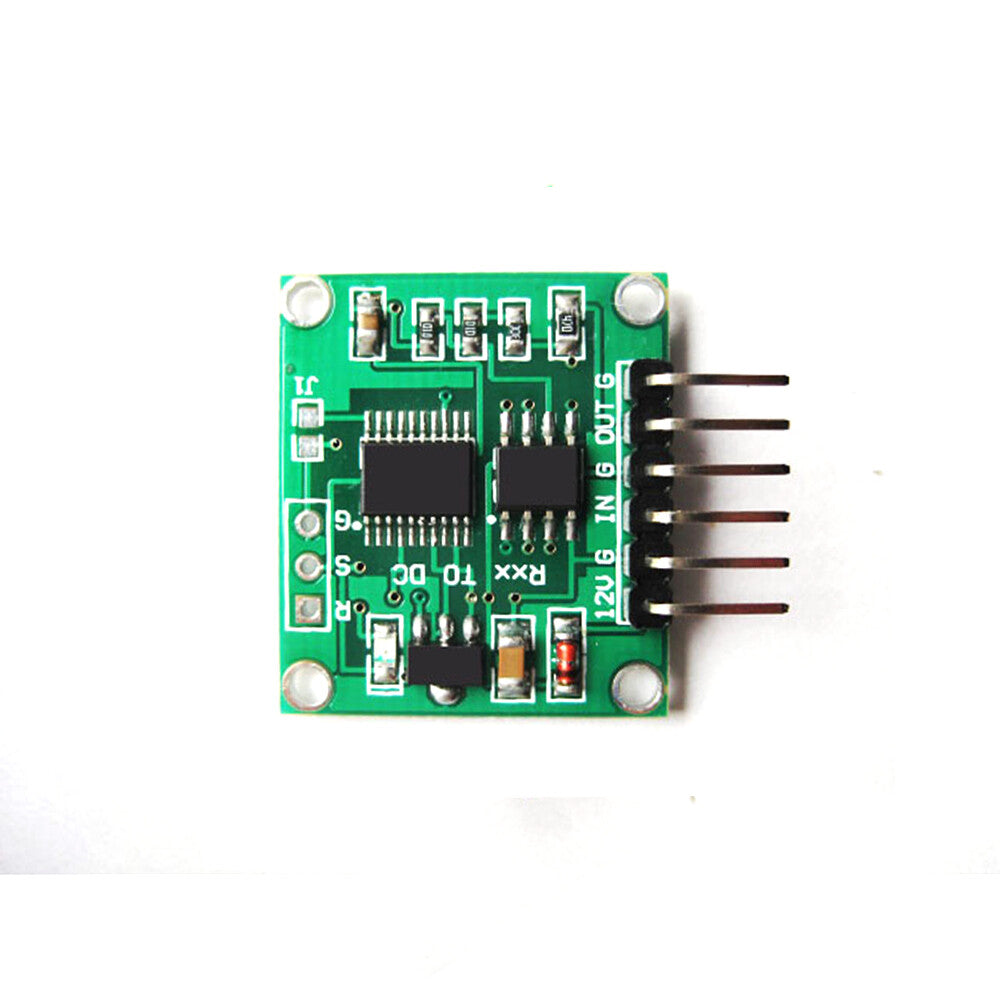

Potentiometer Resistance To Voltage 0-500Ohm To 0-5V 0-10V Linear Conversion Transmitter Module
Specifications:
Working voltage: 9V ~ 17V
Input resistance: 0-500 ohms
Output voltage: 0.00V ~ 5.00V/0.00V ~ 10.00V
Output mode: J1 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.
Drive mode: No need to drive.
Dimensions: (length) 26mm * (width) 23mm * (height) 10mm
Application range: potentiometer, resistance to voltage signal; remote data acquisition and control equipment
Interface: 12V: Power supply positive port (9V ~ 17V).
G: Power ground interface.
IN: Resistance input interface (0~500 ohms).
G: Power ground interface.
OUT: Signal output interface (0.00V ~ 5.00V /0.00V ~ 10.00V).
G: Power ground interface.
Package:
1*potentiometer resistance to voltage module
