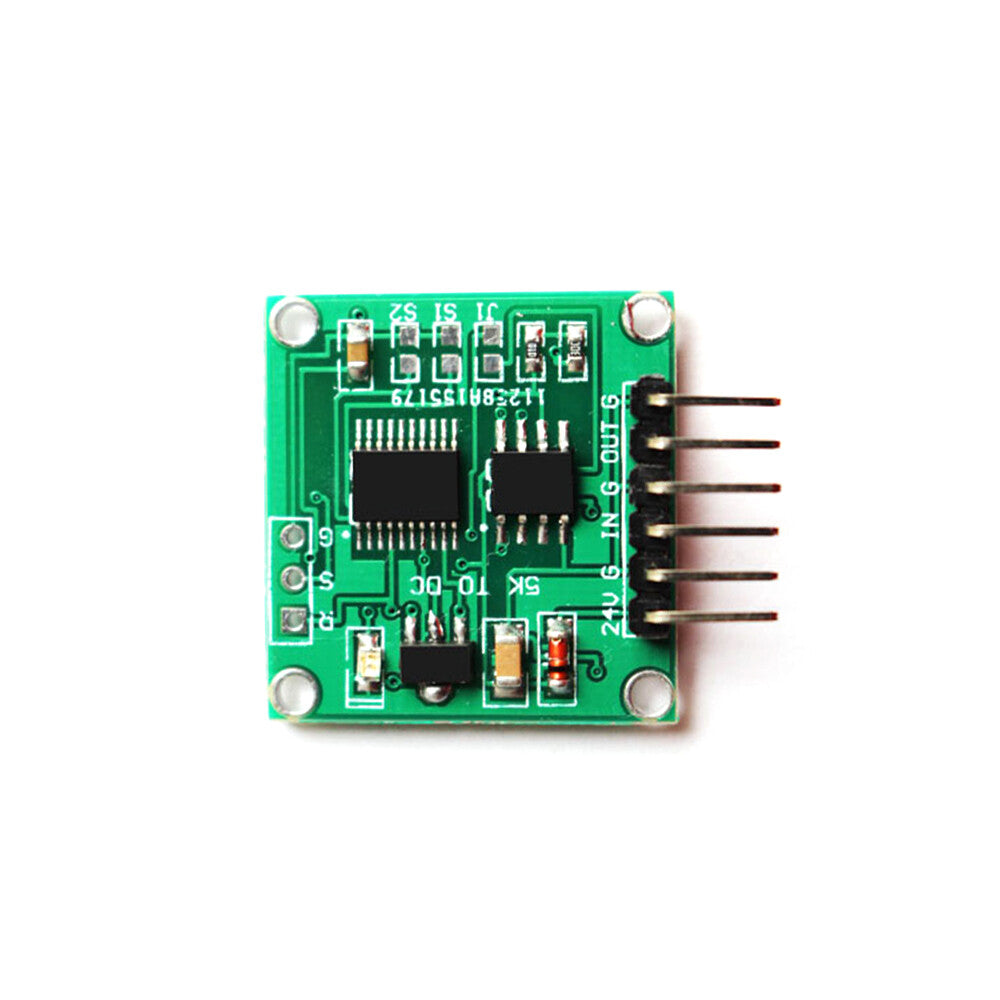

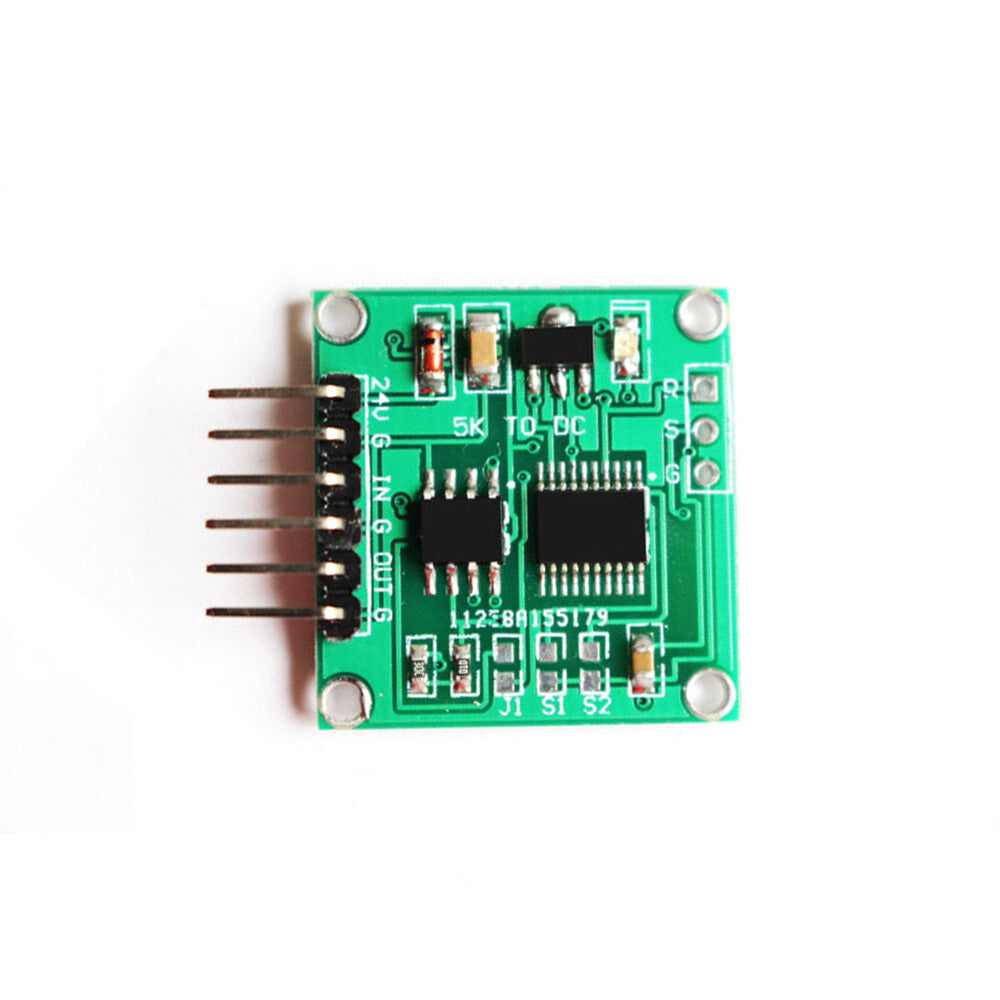

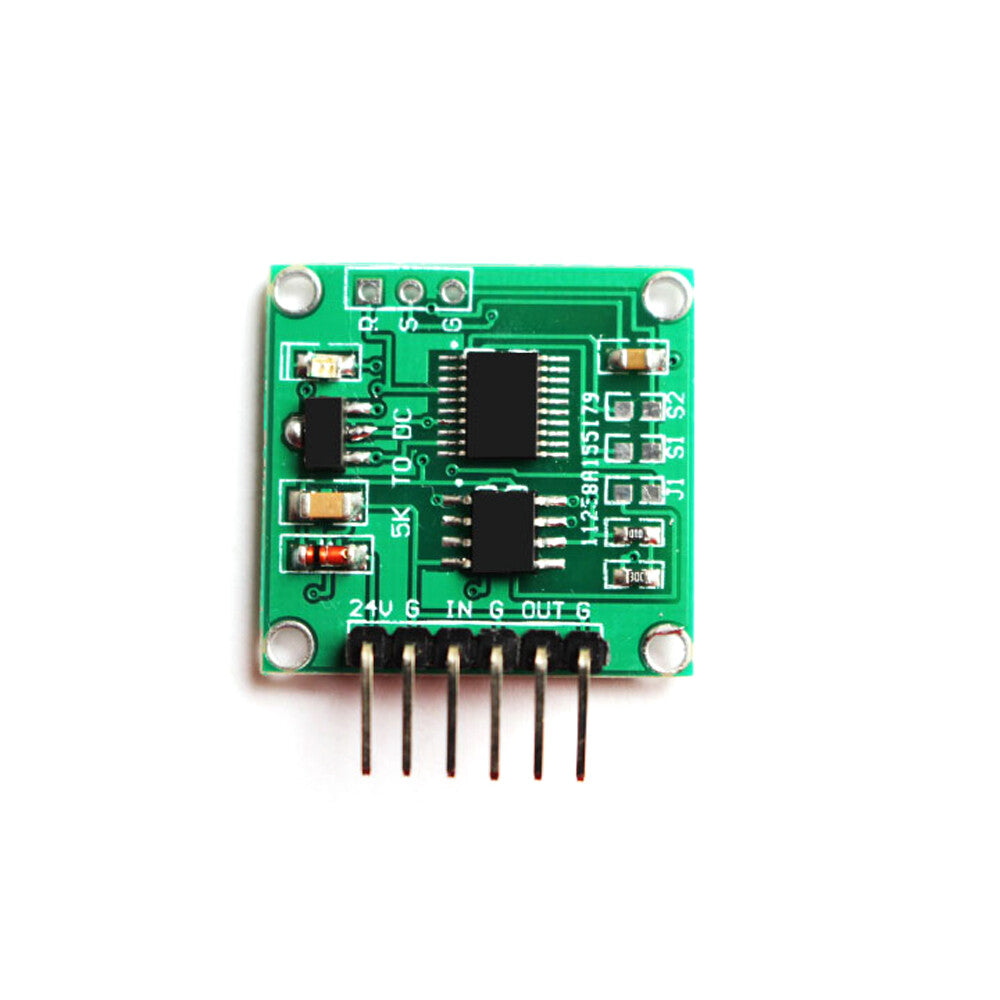

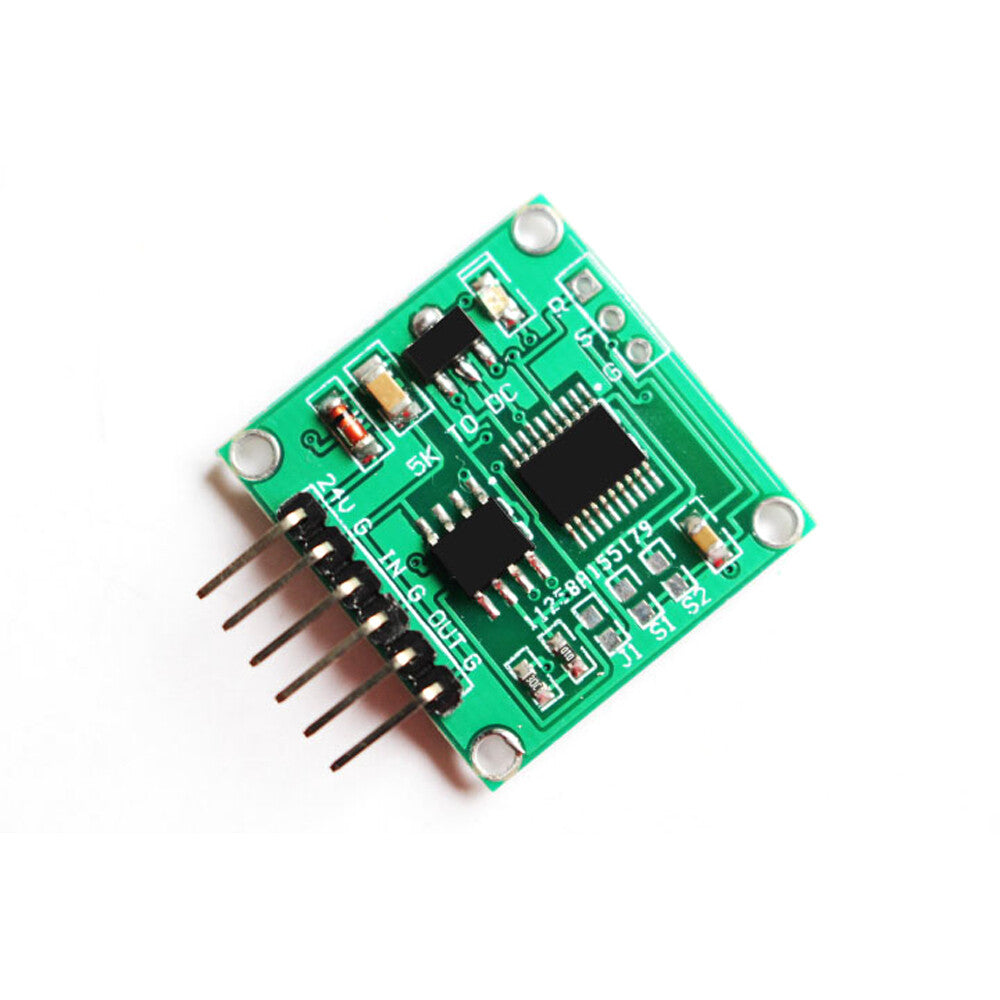

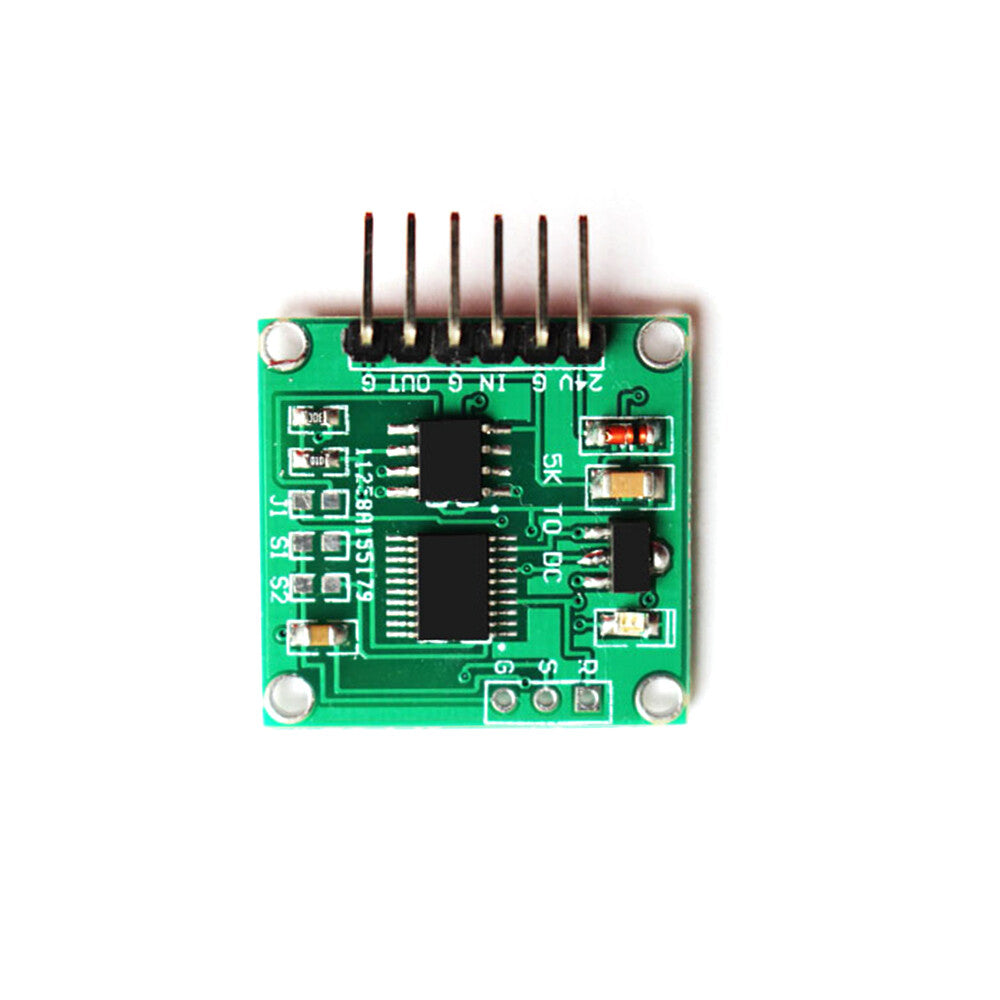

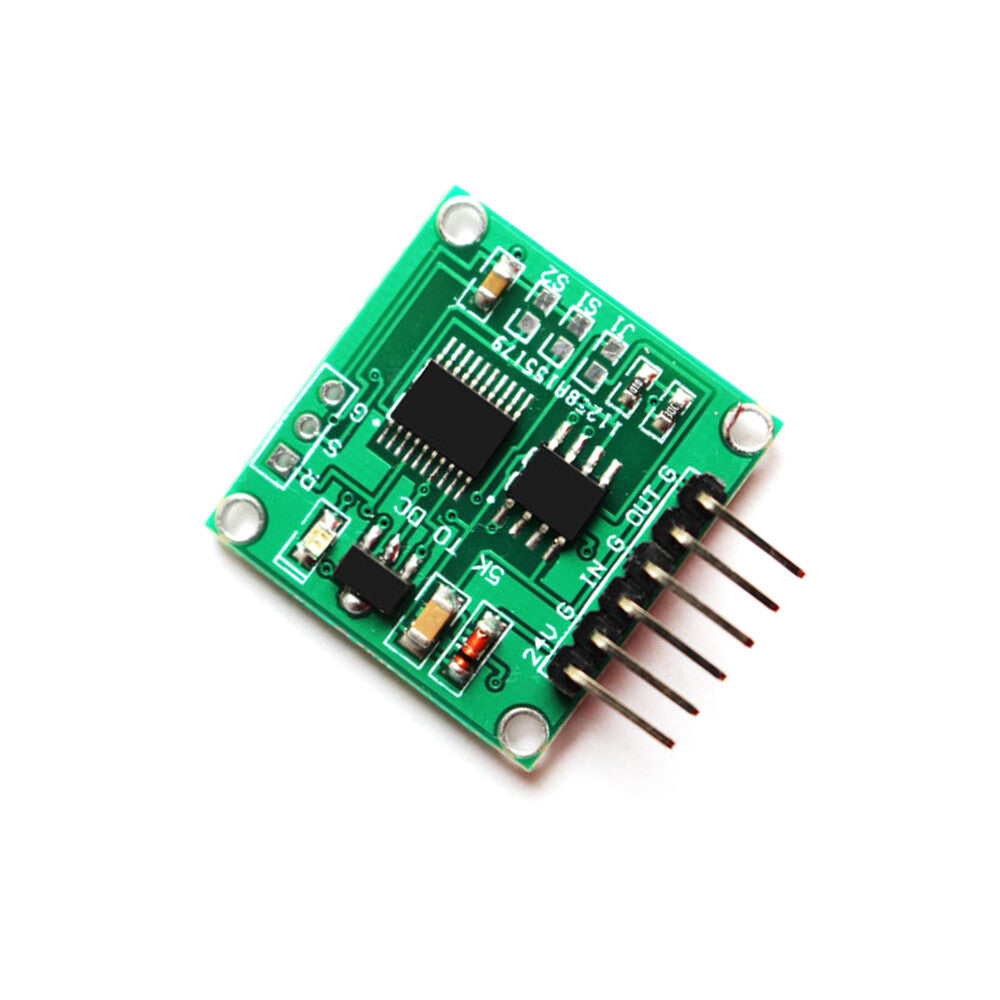

Potentiometer Resistance To Voltage 0-5K To 0-5V 0-10V Conversion Transmitter
Specifications:
Working voltage: 9V - 24V
Input resistance: 0-5000 ohms
Output voltage: 0.00V ~ 5.00V/0.00V ~ 10.00V
Output mode: S2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.
Drive mode: No need to drive.
Dimensions: (length) 26mm * (width) 23mm * (height) 10mm
Application range: potentiometer, resistance to voltage signal; remote data acquisition and control equipment
Interface: 24V: Power supply positive port (9V ~ 24V).
G: Power ground interface.
IN: Resistance input interface (0~5000 ohms).
G: Power ground interface.
OUT: Signal output interface (0.00V ~ 5.00V /0.00V ~ 10.00V).
G: Power ground interface.
Package:
1*potentiometer resistance to voltage module
