Professional 915nm 120W Laser Igniter with 50× Beam Expander (70 mm Aperture)

$563.00

~~$703.00~~ $563.00

Sale Sold out

Shipping calculated at checkout.

Color: Black

Package With Carrying Case Without Carrying Case

Quantity

Product Overview

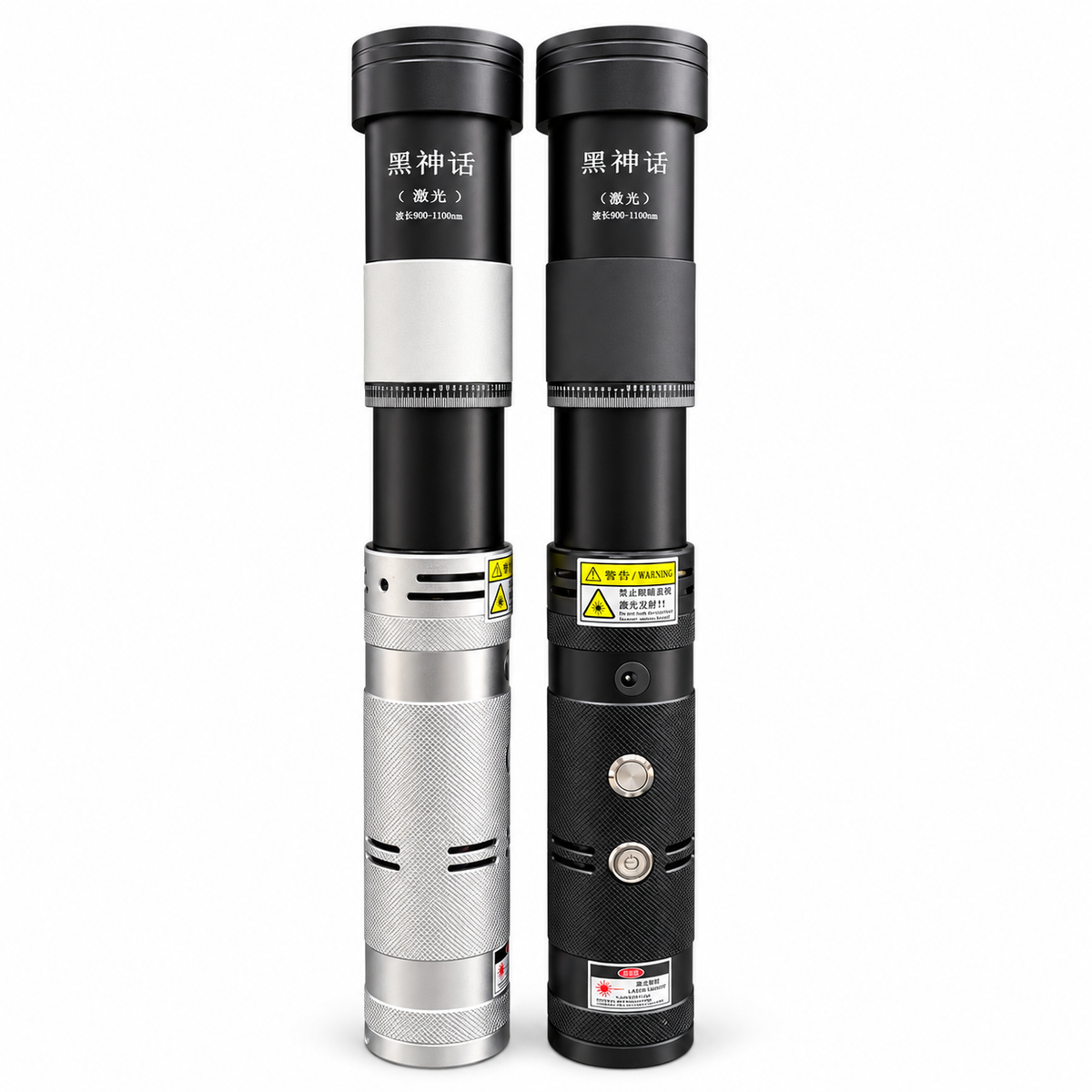

The 120W 915nm Infrared Laser Igniter combines a Raycus laser source, rechargeable lithium battery pack, aluminum-alloy housing, and removable 50× adjustable beam expander.

The coaxial red aiming light assists alignment, while the rotary focusing mechanism allows manual optical adjustment. Built-in temperature protection automatically stops output when the internal pump source reaches approximately 45°C.

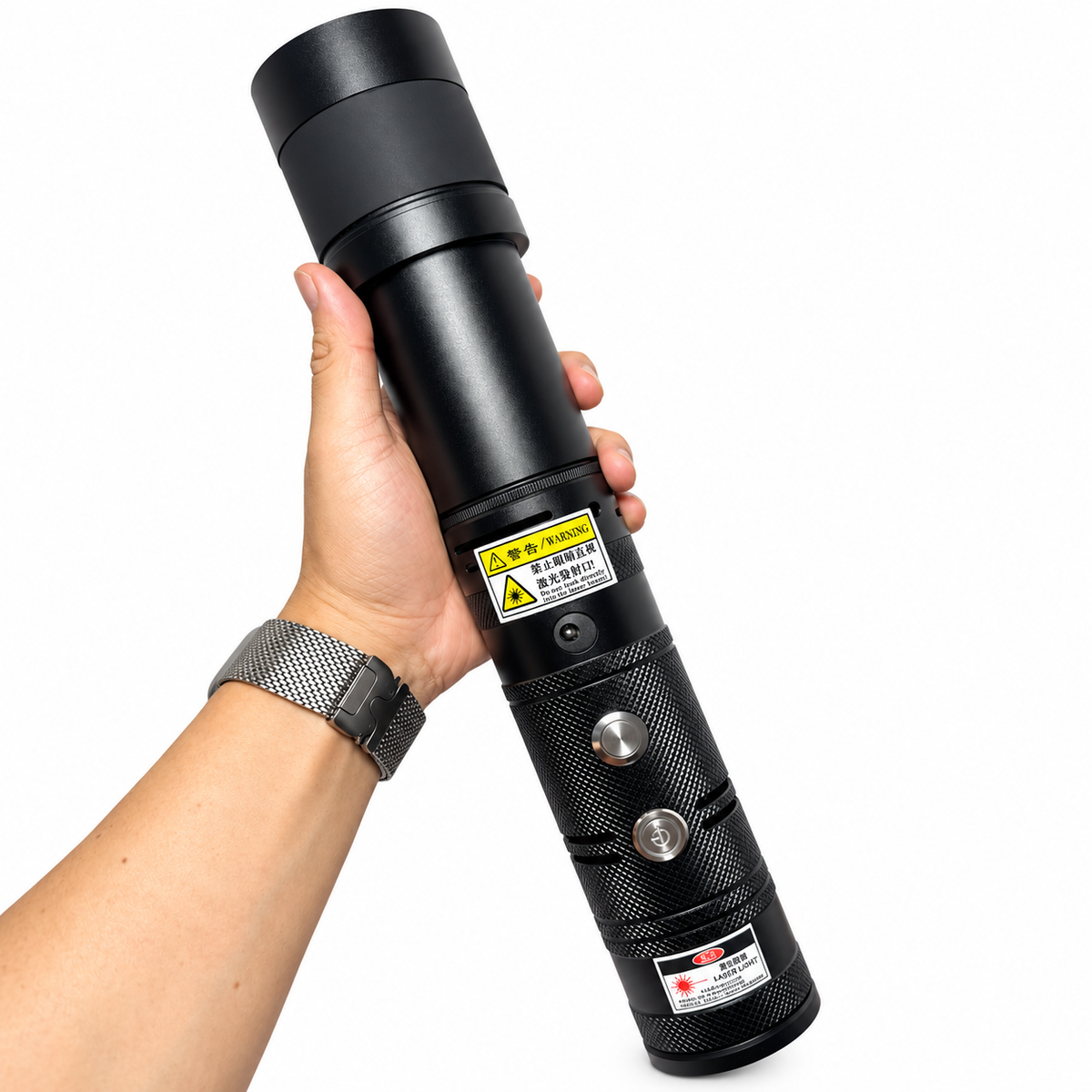

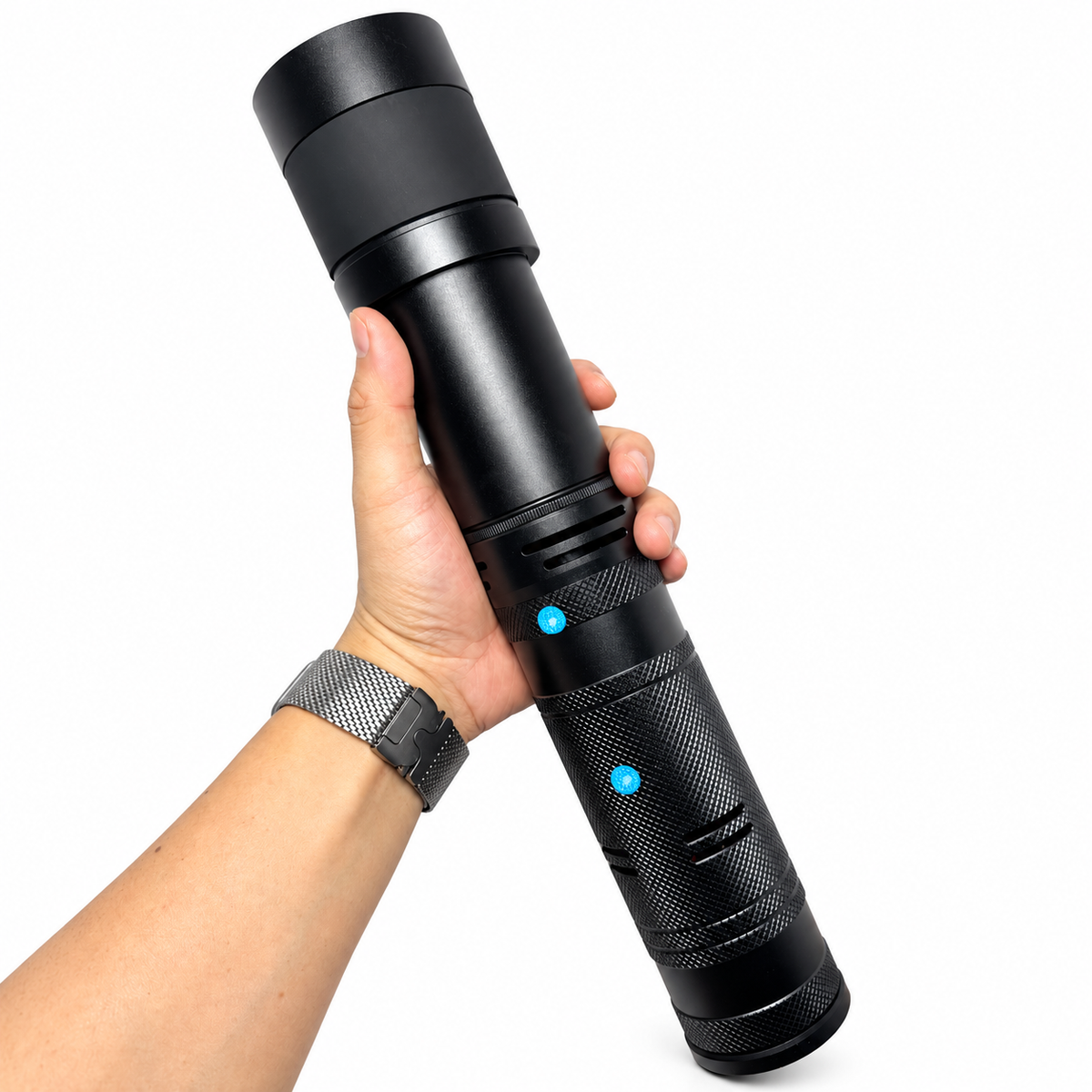

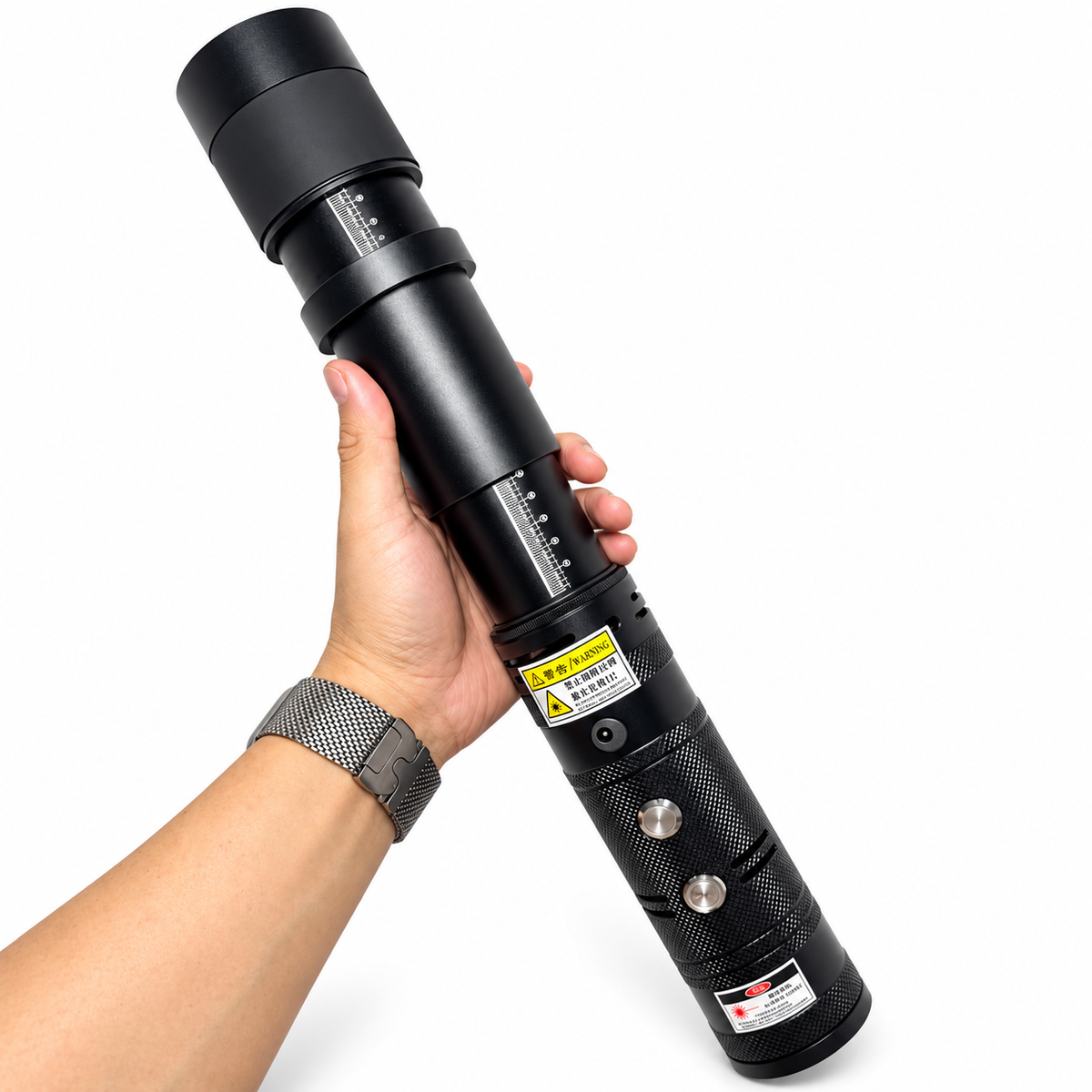

The complete assembly measures approximately 360mm long, with a 60mm main body diameter and 70mm beam expander outside diameter.

Designed for intermittent operation by trained adult users in controlled environments.

Key Features

120W rated optical output
915nm infrared wavelength
Raycus laser source
50× manually adjustable beam expander
70mm beam expander outside diameter
Coaxial red aiming light
Rechargeable four-cell 21700 lithium-ion battery pack
5000mAh nominal battery-pack capacity
Integrated battery protection board
Aluminum-alloy housing
Automatic over-temperature shutdown
Removable optical accessory
Optional protective carrying case

Technical Specifications

Specification	Details
Rated optical output	120W
Wavelength	915nm infrared
Laser source brand	Raycus
Stated electrical power	240W
Beam expander	50×, manually adjustable
Focusing mechanism	Rotary adjustment
Aiming light	Coaxial red light
Overall assembled length	Approximately 360mm
Main body diameter	Approximately 60mm
Beam expander outside diameter	Approximately 70mm
Battery configuration	Four 21700 lithium-ion cells
Nominal battery-pack capacity	5000mAh
Battery protection	Integrated protection board
Charging capability	Supports 4A charging with an approved compatible charger
Temperature protection	Automatic shutdown at approximately 45°C internal pump-source temperature
Operating mode	Intermittent operation
Housing material	Aluminum alloy
Carrying case	Optional; included only when selected

Dimensions are approximate. The 70mm measurement refers to the beam expander’s outside diameter.

Adjustable Optical System

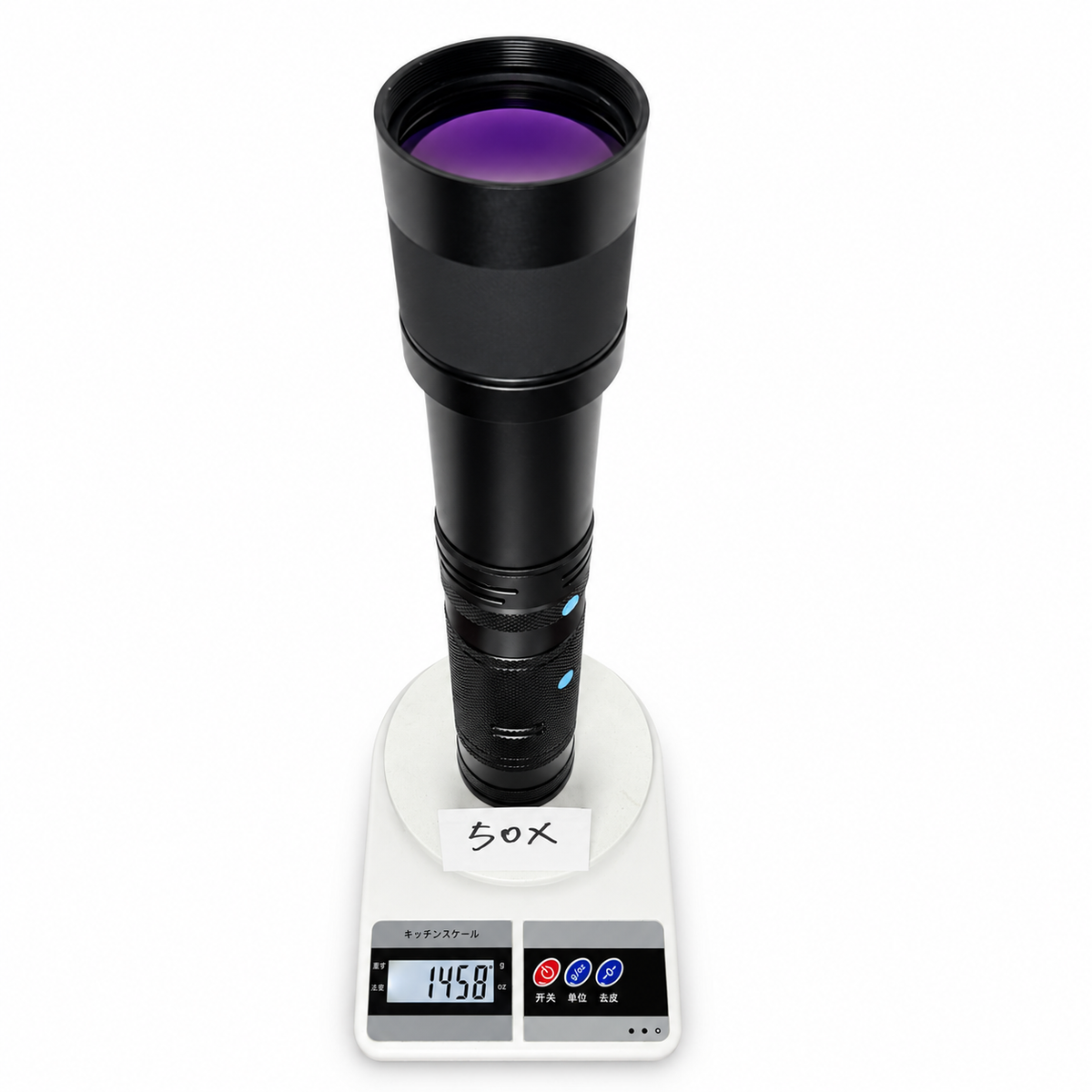

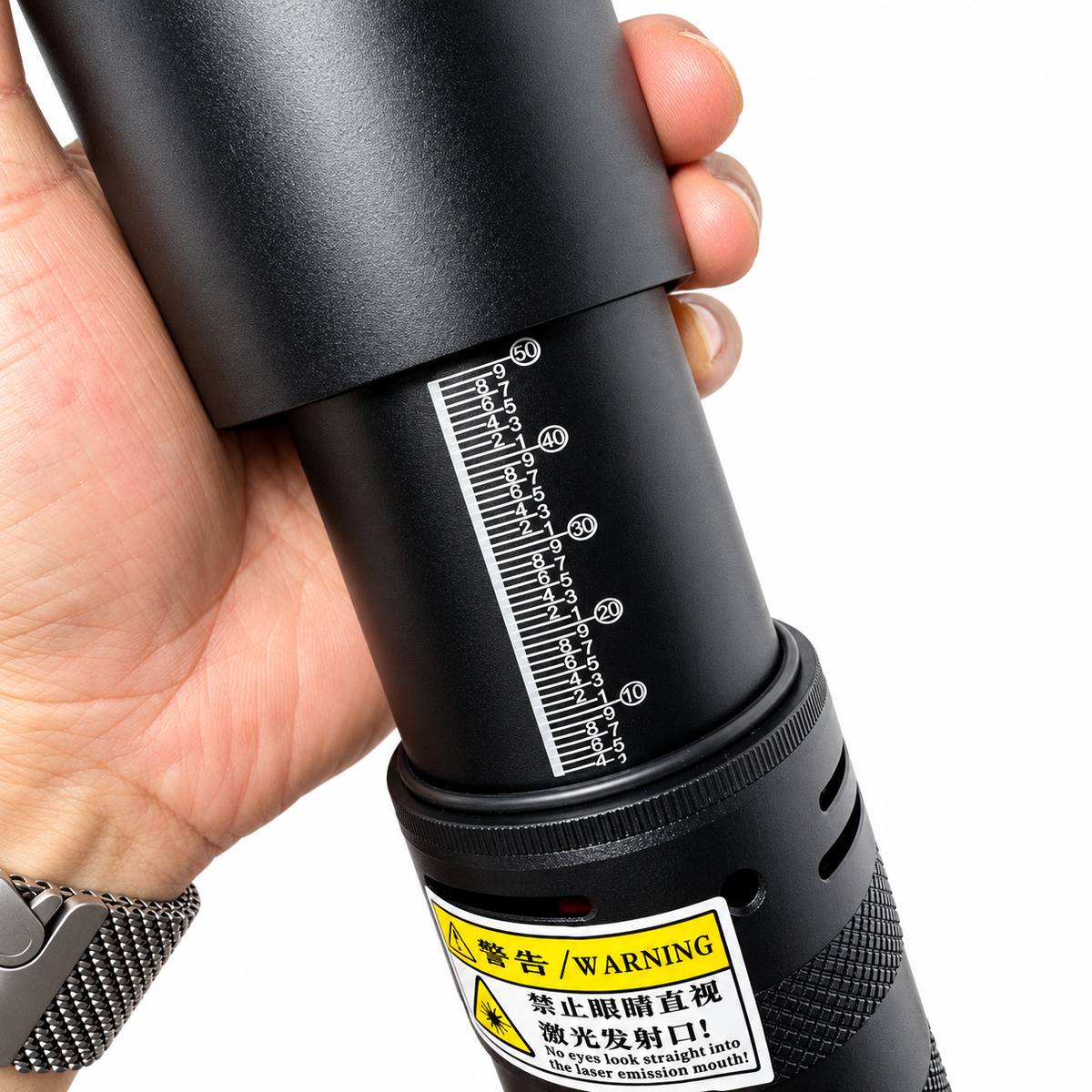

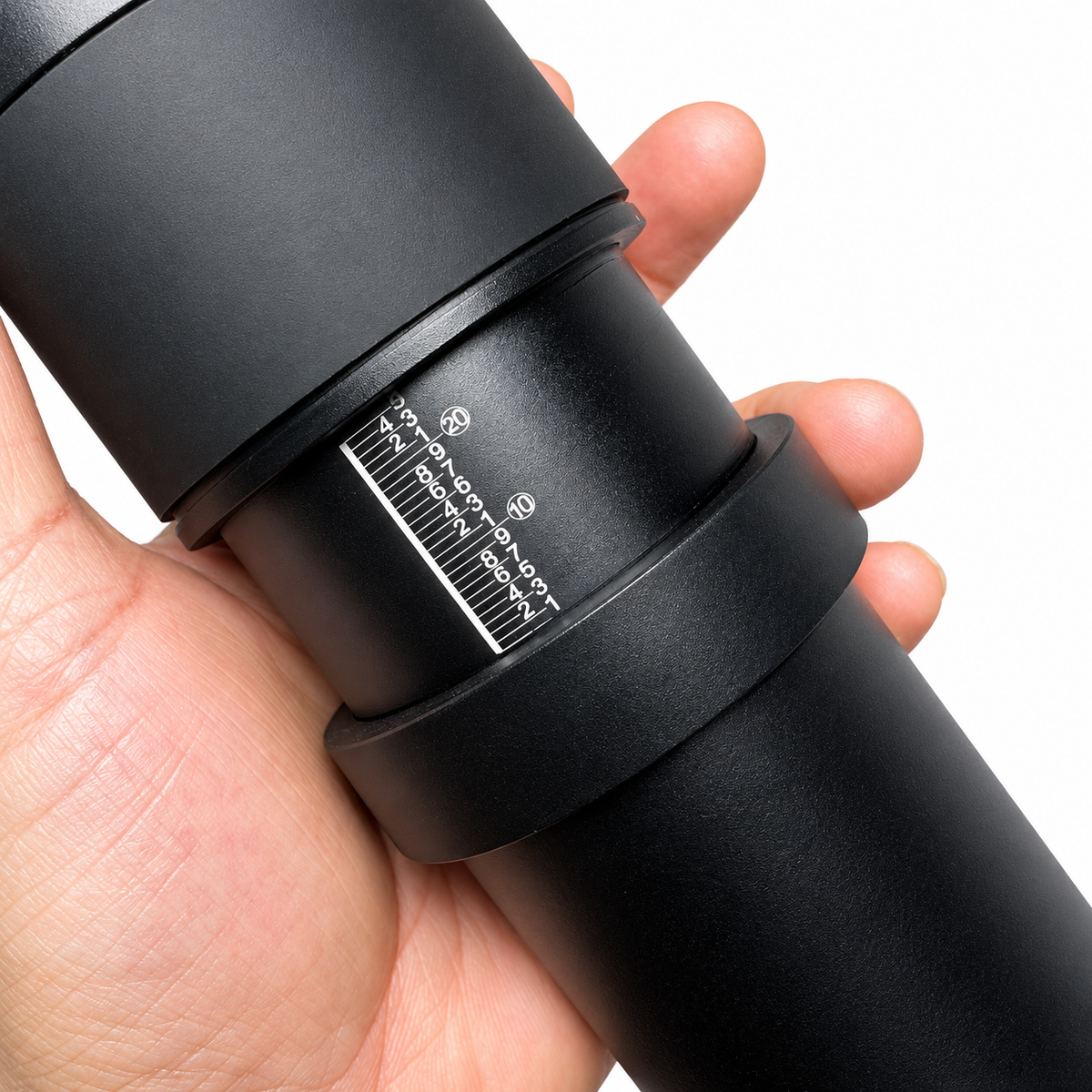

The removable 50× beam expander features a rotary adjustment mechanism for manual focusing.

A coaxial red aiming light assists alignment. The red aiming light is separate from the invisible 915nm infrared output and does not indicate whether the main beam is safe.

Optical performance varies with focus, distance, atmospheric conditions, and the characteristics of the material being tested.

Rechargeable Battery System

The unit uses a rechargeable battery pack containing four 21700 lithium-ion cells, with a nominal capacity of 5000mAh and an integrated protection board.

Rechargeable and replaceable battery pack
Battery protection circuit
Compatible charger included
Supports 4A charging with an approved compatible charger

Use only the supplied charger or an approved replacement. Charging time depends on the charger rating and remaining battery capacity.

Temperature Protection and Operating Limits

The temperature protection system automatically stops output when the internal pump source reaches approximately 45°C.

The manufacturer states approximately 30 seconds per activation. During testing at an ambient temperature of 24°C, thermal protection activated after approximately 30–40 seconds.

These figures are operating limits rather than guaranteed runtime. Allow the unit to cool between activations and keep ventilation openings unobstructed. Do not rely on thermal shutdown as the normal stopping method.

This model is intended for intermittent use. Continuous-duty operation is not supported by the supplied specifications.

Available Package Options

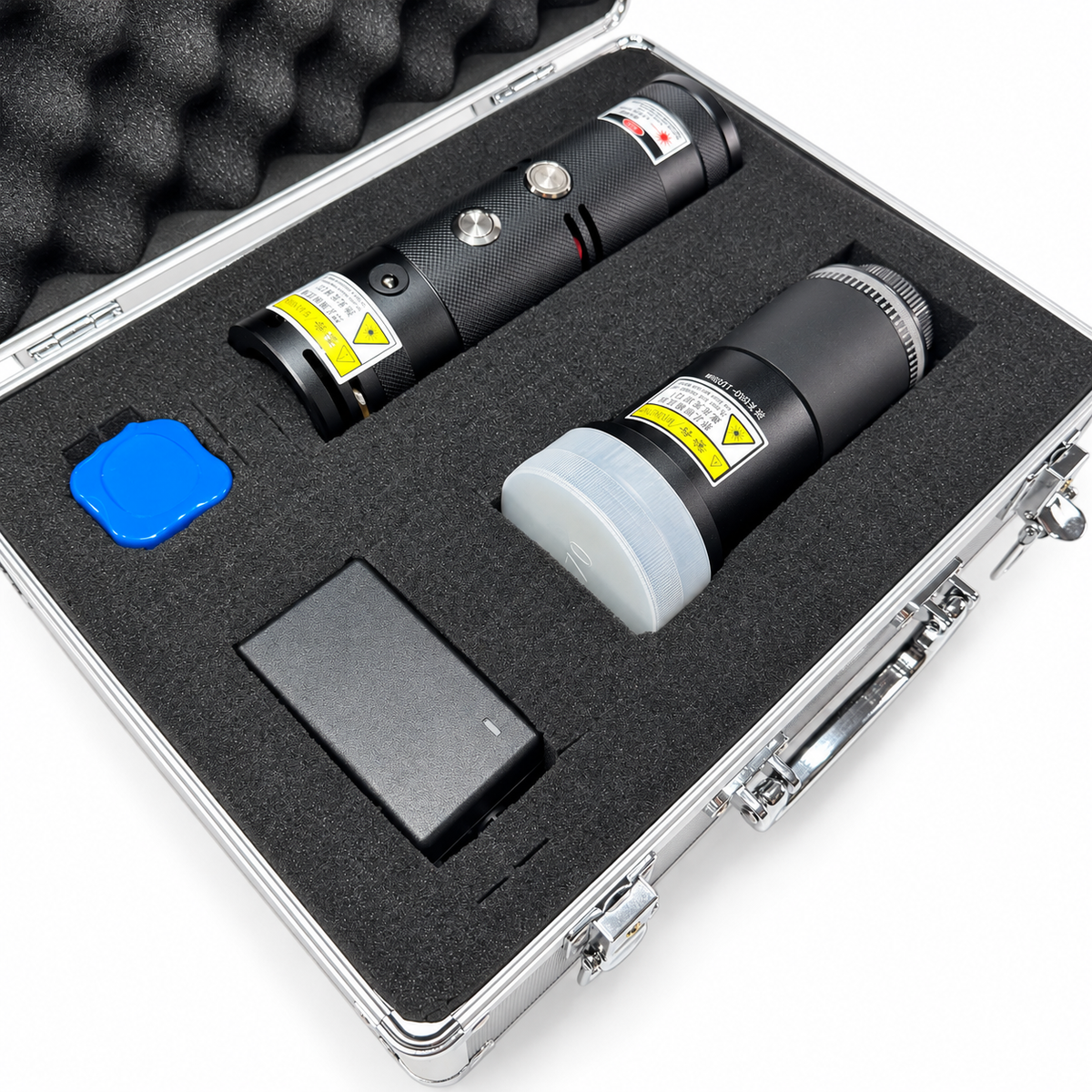

With Carrying Case

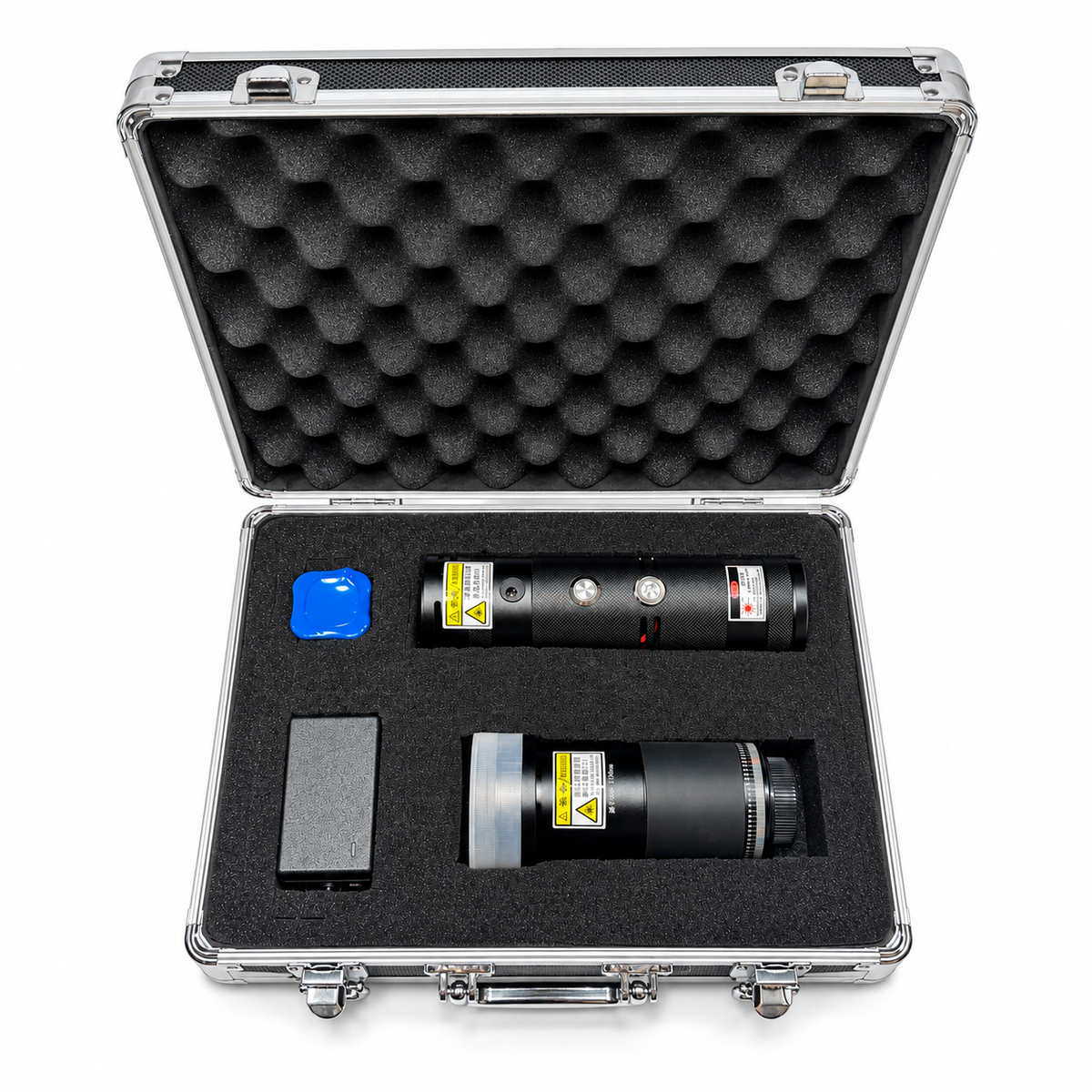

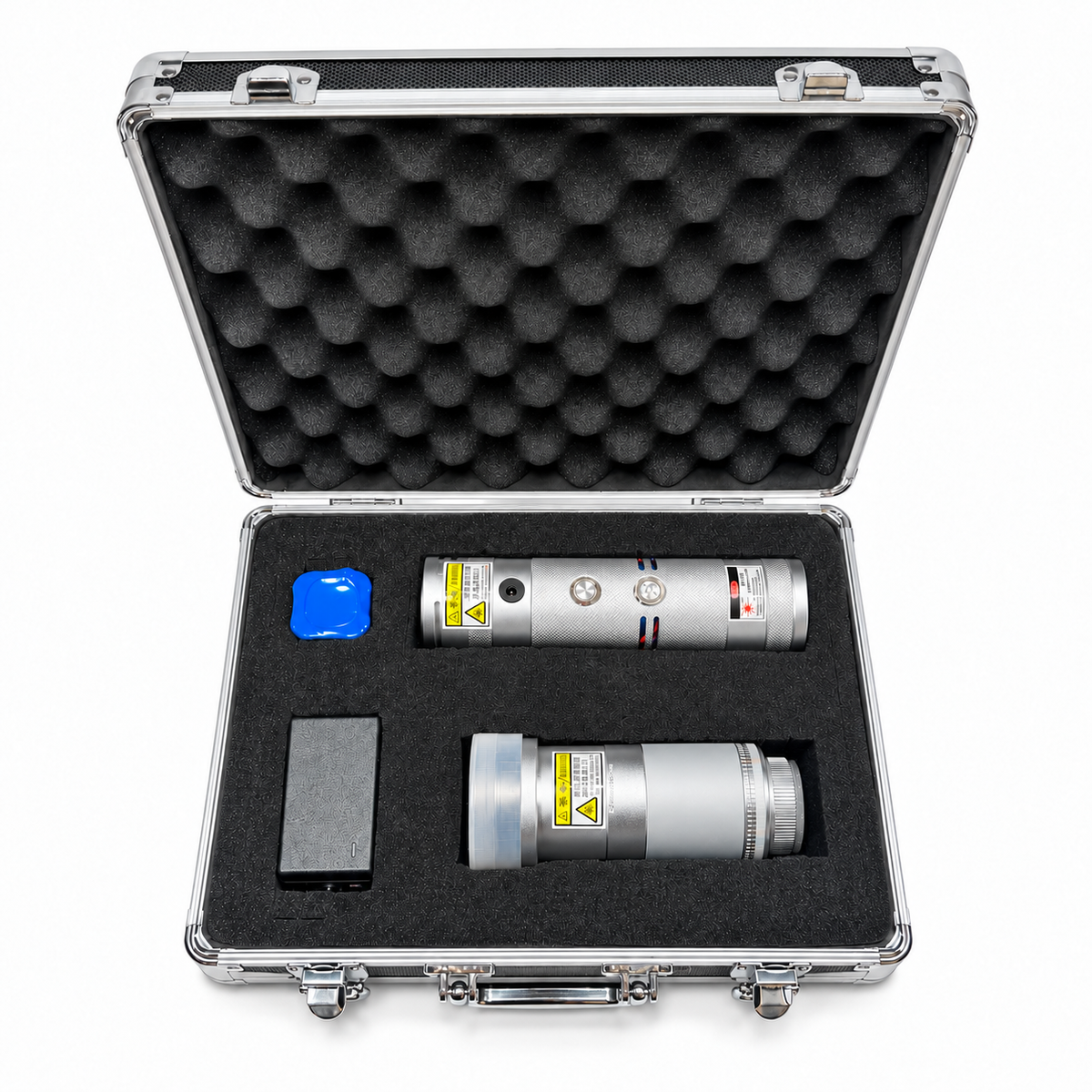

Includes the laser unit, beam expander, rechargeable battery pack, charger, and protective carrying case.

Without Carrying Case

Includes the laser unit, beam expander, rechargeable battery pack, and charger.

Package Includes

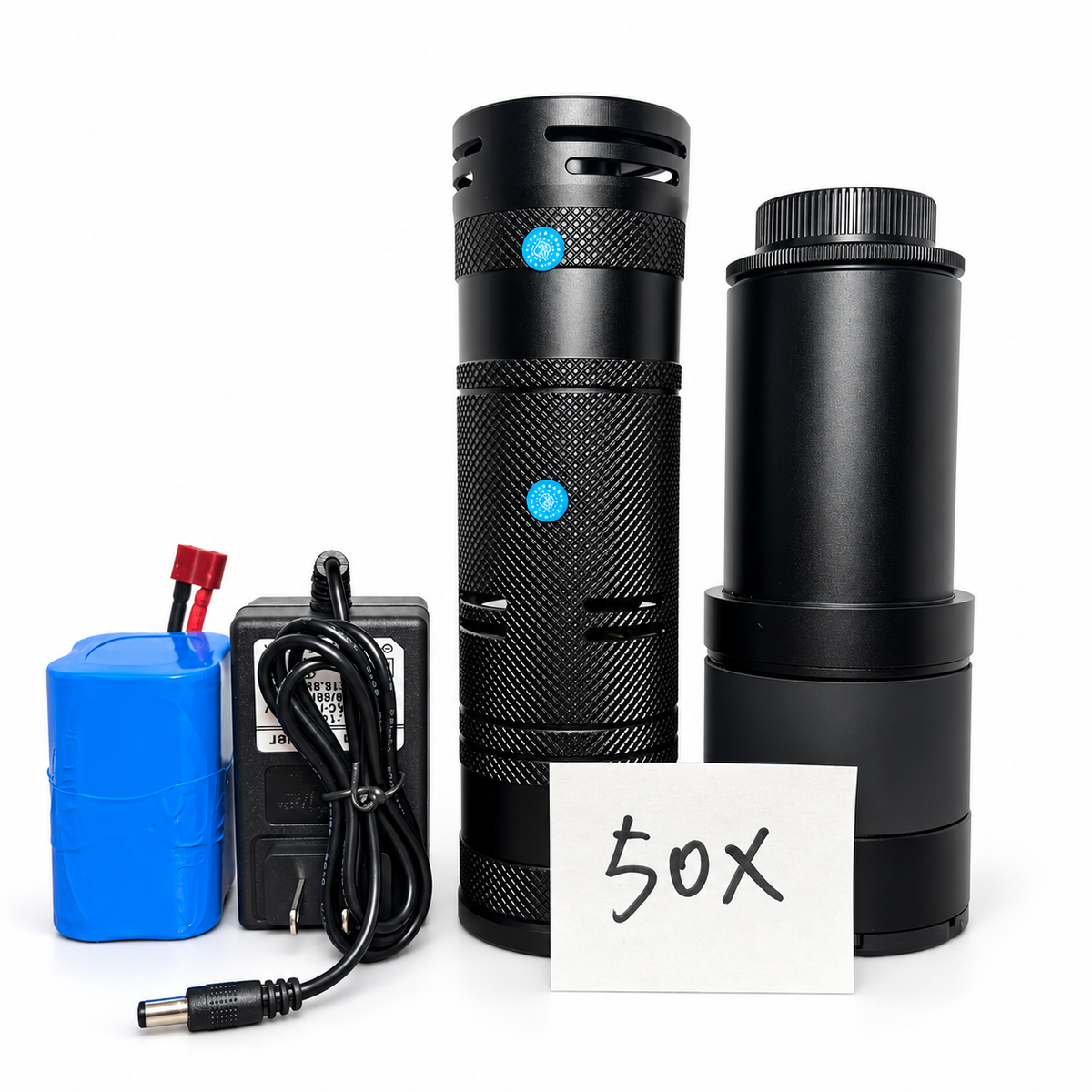

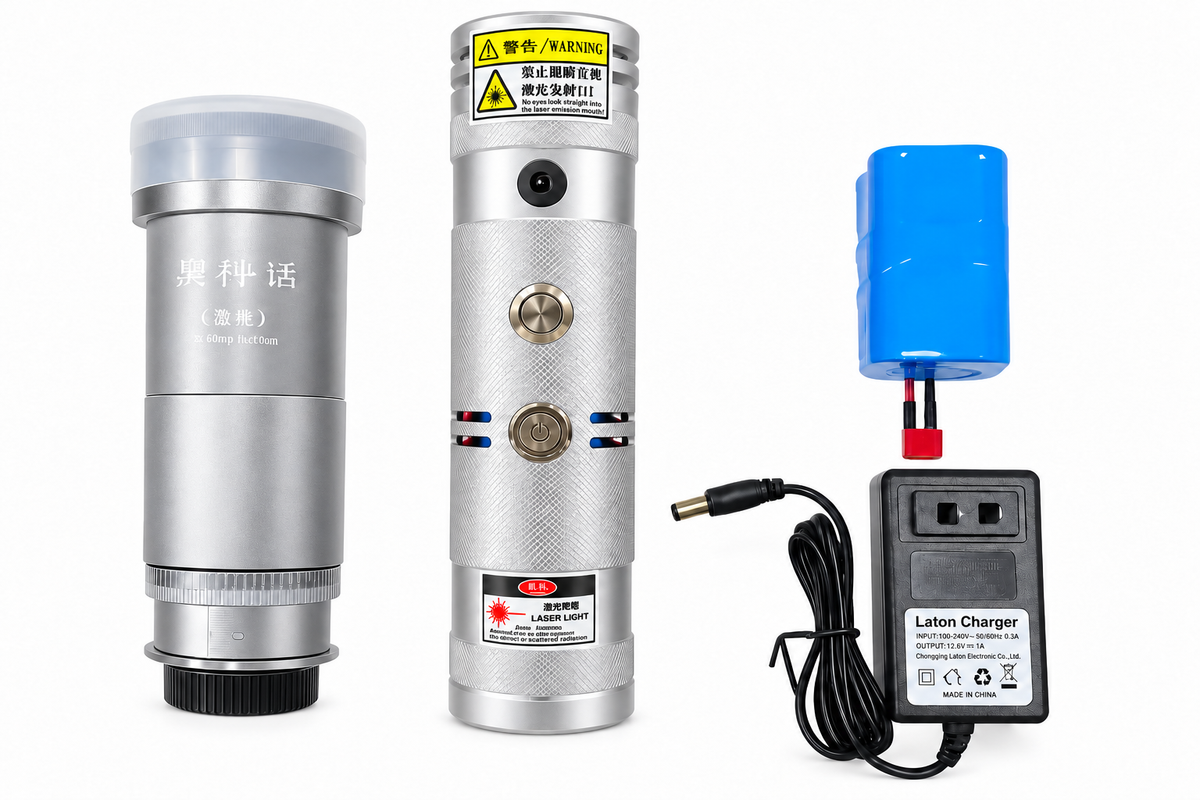

1 × 120W 915nm infrared laser igniter main unit
1 × 50× adjustable beam expander
1 × Rechargeable lithium-ion battery pack
1 × Compatible battery charger
1 × Protective carrying case only when selected

Please check your selected option before ordering. Housing labels and minor cosmetic details may vary between production batches.

Replacement & Spare Batteries

Need an additional or replacement battery?

Compatible rechargeable battery packs for this Professional 120W Laser Igniter are available separately.

→ [Purchase a Replacement Battery]

Construction Quality

Every unit is manufactured using precision CNC machining and undergoes factory inspection before shipment.

Features include:

Precision-machined aluminum housing
Durable anodized finish
Precision threaded optical mount
Stable mechanical construction
Factory quality inspection

Warranty

1-Year Limited Warranty
Factory Technical Support
Worldwide Shipping Available

Safety Information

⚠ Important Safety Notice

This product is a high-power optical device intended only for knowledgeable adult users. Improper use may result in serious eye injury, skin injury, fire hazards, or property damage.

Before operating this equipment:

Always wear laser safety eyewear appropriate for the wavelength and power level.
Never look directly into the beam or its reflections.
Never point the beam toward people, animals, vehicles, aircraft, or reflective surfaces.
Operate only in a controlled environment where unintended exposure can be prevented.
Keep away from children and unauthorized users.
Do not use near flammable or explosive materials.
Inspect the device before each use and discontinue operation if it appears damaged.
Recharge only with the supplied charger or an approved compatible charger.
Store the equipment in its protective case when not in use.
Follow all applicable local laws and regulations regarding the possession, sale, and operation of laser equipment.

Maintenance

To maintain optimum performance:

Keep the optical lens clean using approved optical cleaning materials.
Avoid touching the lens surface directly.
Keep the battery fully charged when storing for extended periods.
Store in a cool, dry environment away from moisture and direct sunlight.
Inspect threaded connections regularly to ensure secure attachment of accessories.
