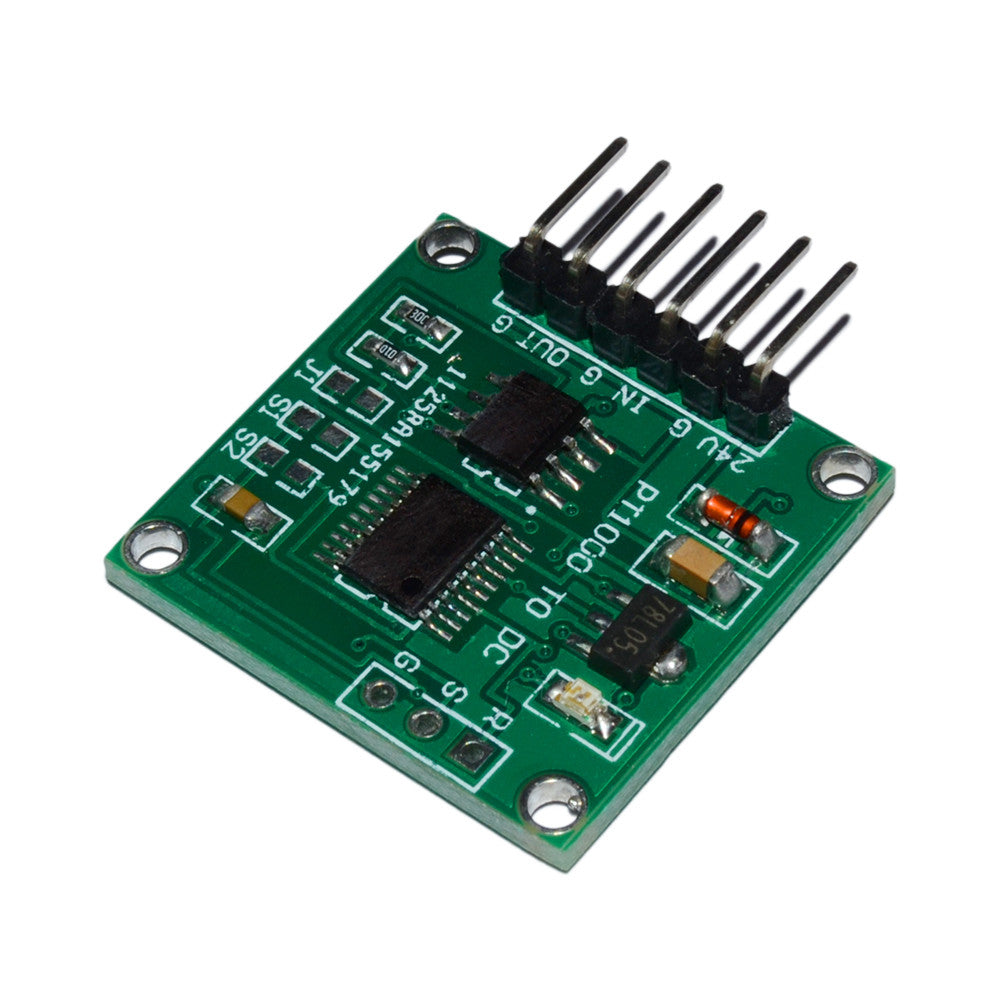

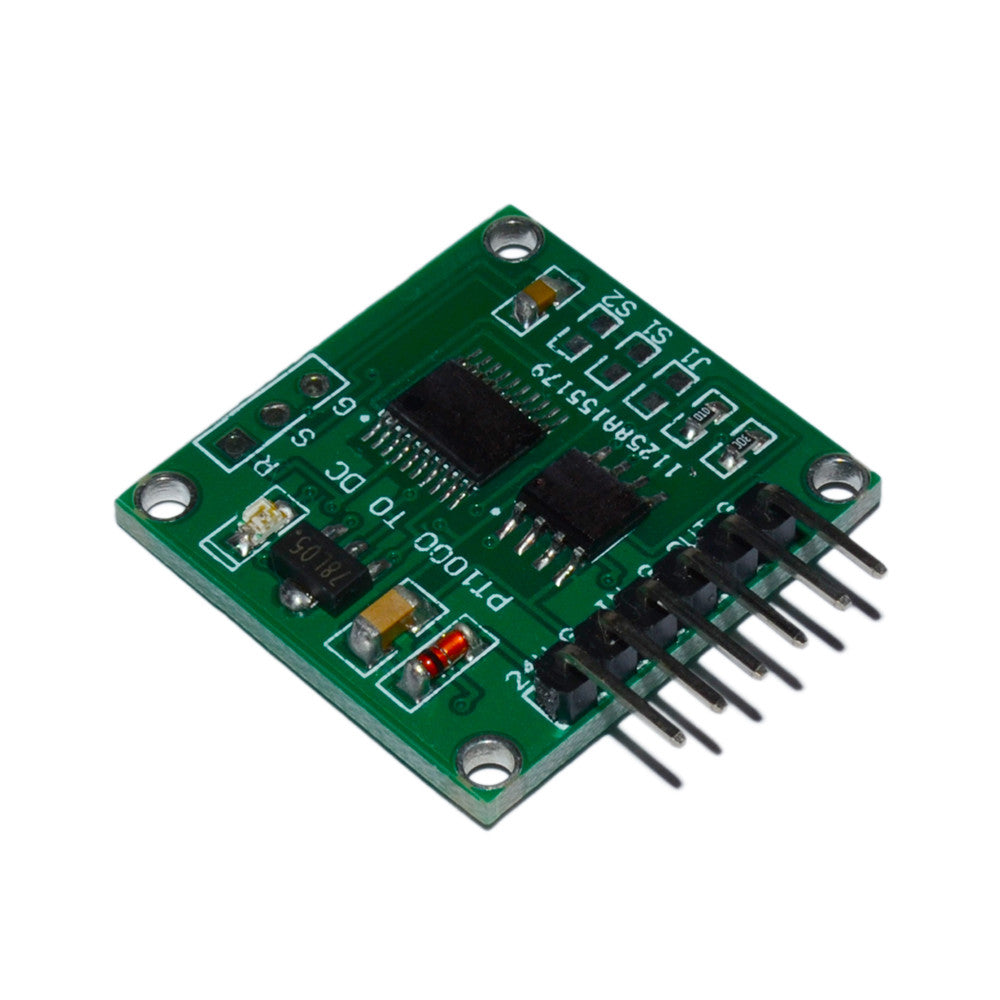

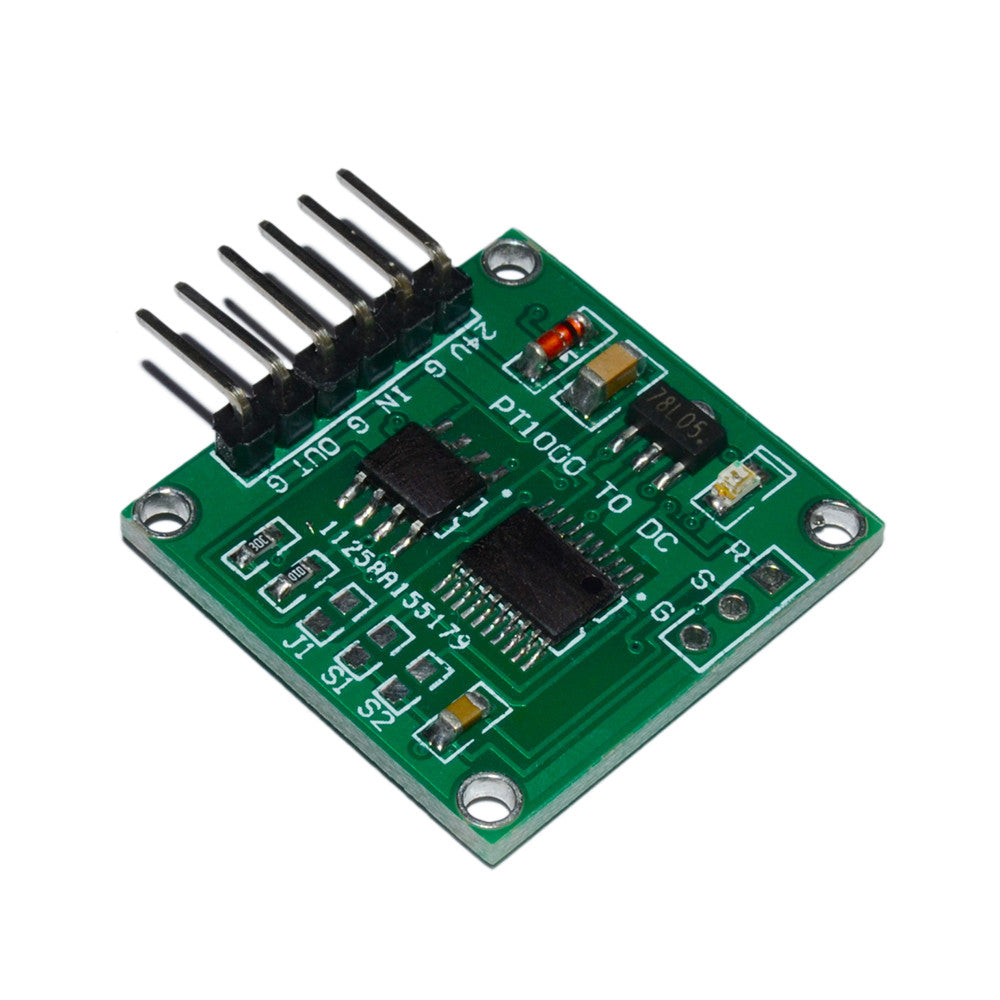

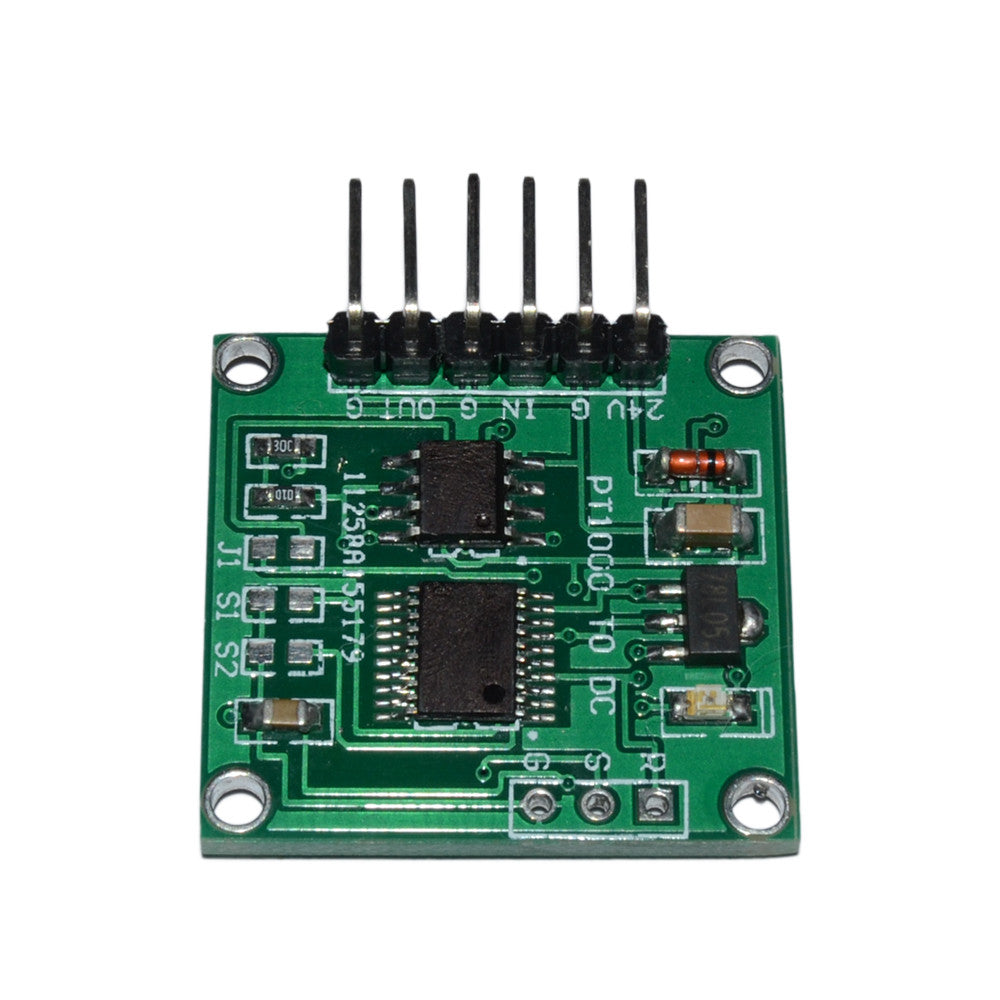

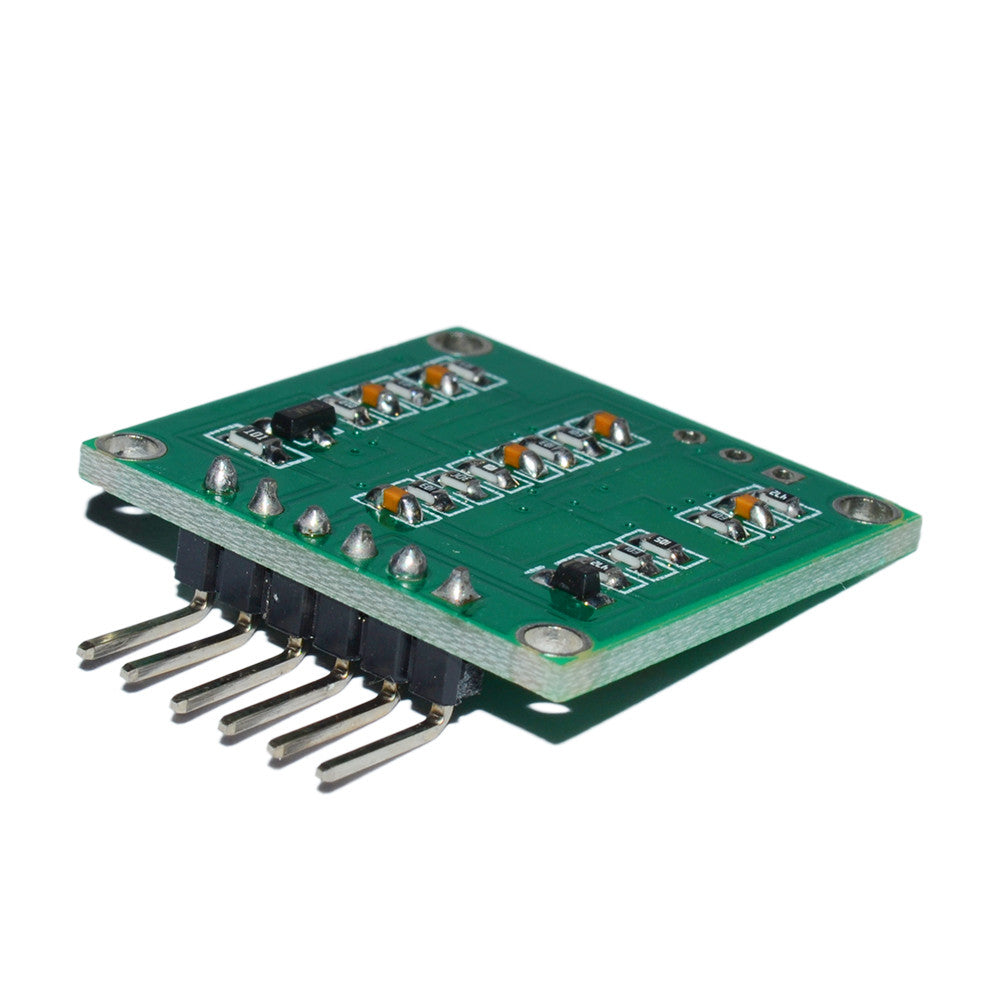

PT1000 Thermal Resistance Linear Conversion Temperature Transmitter Module









This is a linear conversion module that converts the input thermal resistance signal to a temperature (voltage signal) output via an internal chip process.



There are two output voltage range options.





Module parameters



1, working voltage: 9V ~ 24V



2, input resistance: Pt1000 thermal resistance



3, output voltage: 0.00V ~ 5.00V / 0.00V ~ 10.00V



4, temperature range: -50 ~ +300 (degrees).



5, output: the circuit board S2 pad: open (output 0.00V ~ 5.00V); shorted (output 0.00V ~ 10.00V), the



default is open.

6, application: remote data acquisition and control equipment;



7, size: (length) 26mm * (width) 23mm * (height) 10mm



8, the module interface:



24V: positive power connector (9V ~ 24V).



G: power to the Ground.



IN: Thermal resistance positive terminal.



G: RTD negative terminal.



OUT: Signal output interface (0.00V to 5.00V / 0.00V to 10.00V).















Output (0.00V ~ 5.00V) Resolution: 0.0142857V / degree Celsius (V / C)



Output (0.00V ~ 10.00V) Resolution: 0.0285714V / degree Celsius (V / C)
