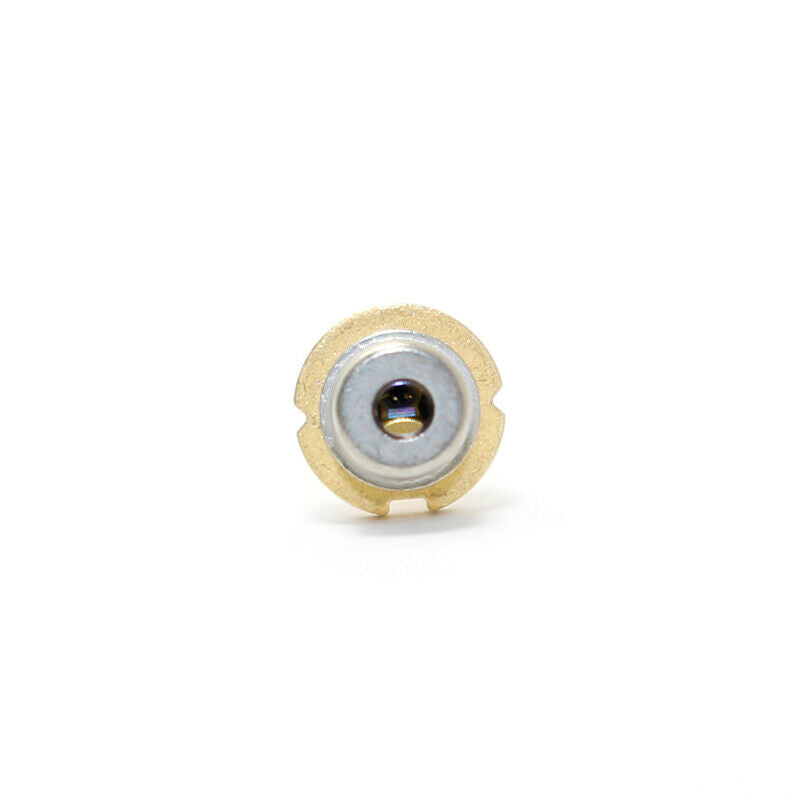

QL85D6SA 850nm 5mW Continuous Wave Infrared Laser Diode | 5.6mm TO Package Single TE Mode Laser for Industrial Optical Sensor
QL85D6SA 850nm 5mW Continuous Wave Infrared Laser Diode | 5.6mm TO Package Single TE Mode Laser for Industrial Optical Sensor
Couldn't load pickup availability
【Product Overview】
Model: QL85D6SA
This is an 850nm 5mW continuous wave infrared laser diode with standard 5.6mm metal TO package, single transverse TE mode output. Widely adopted for industrial optical sensing equipment, infrared detection modules and related optoelectronic circuit projects. The built-in monitoring photodiode supports APC automatic power control circuit design for stable laser power output.
【Core Features】
✅ Central wavelength: 850nm infrared band
✅ Rated optical output power: 5mW CW continuous laser
✅ Single TE transverse mode laser beam output

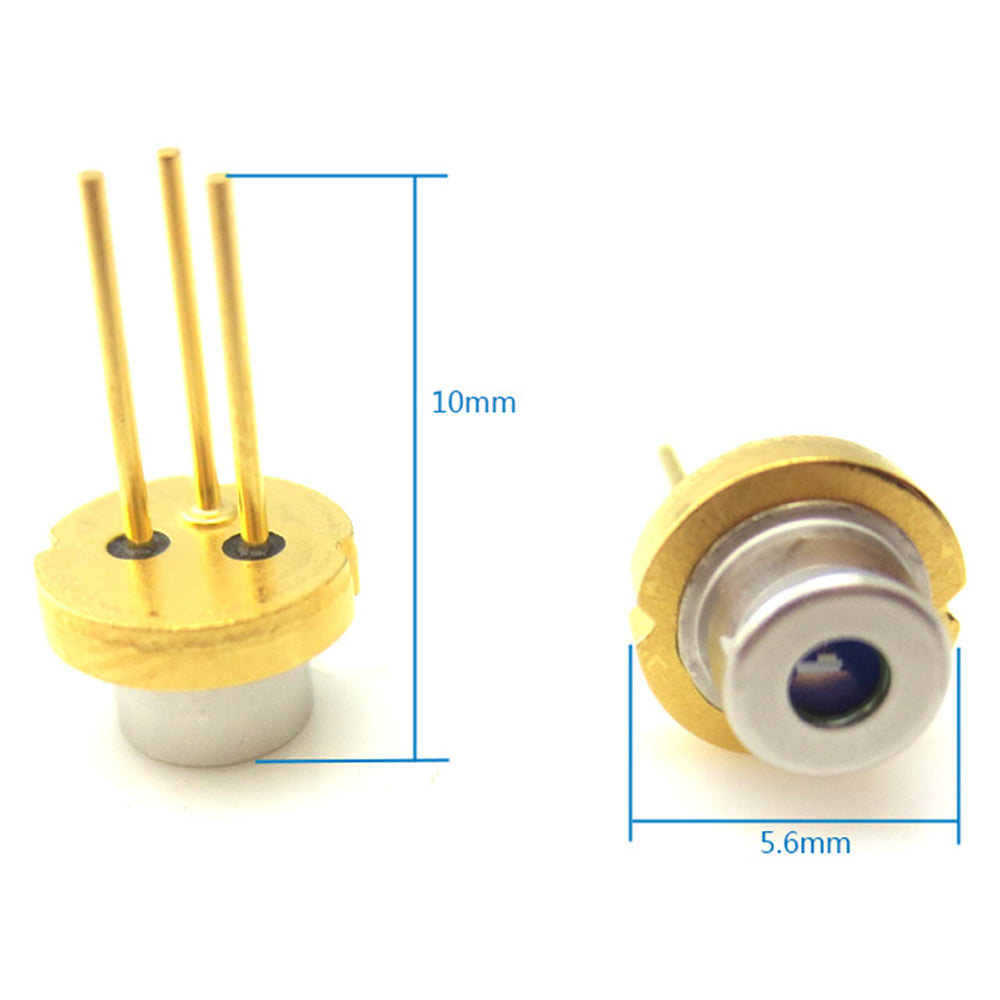

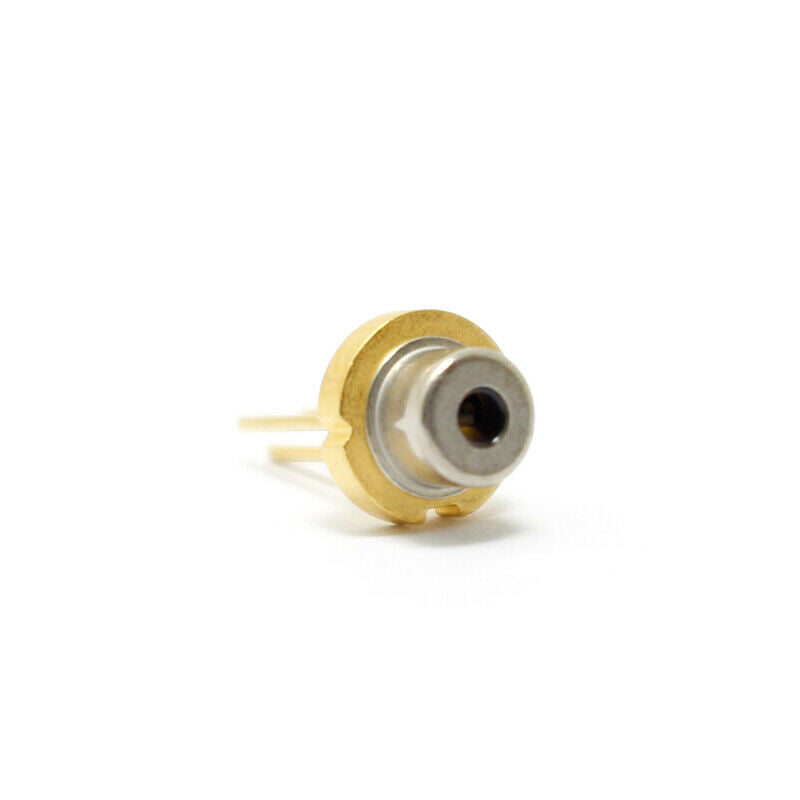

✅ Standard 5.6mm TO metal packaging, easy to install & heat dissipation
✅ Integrated monitor PD for APC constant power drive circuit
✅ Wide working temperature range: -10℃ ~ +60℃

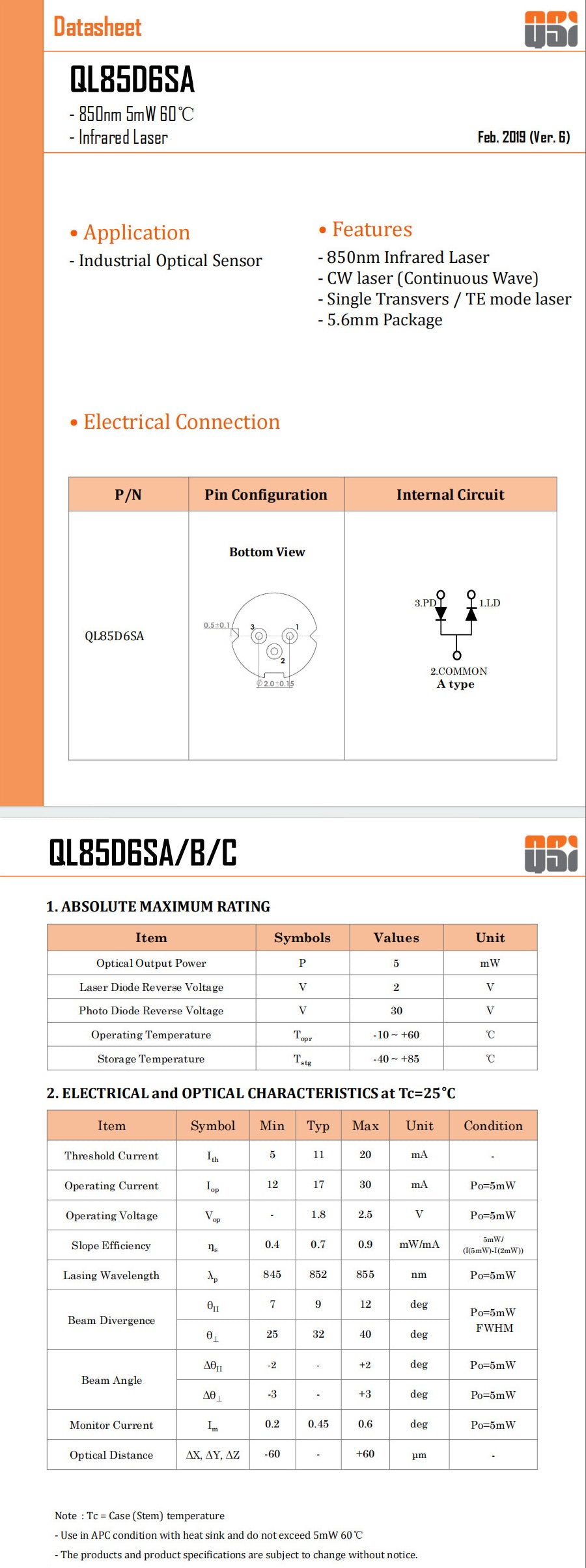

【Absolute Maximum Ratings】
| Parameter | Rating | Unit |
|---|---|---|
| Rated Optical Output Power | 5 | mW |
| Laser Diode Reverse Voltage | ≤2 | V |
| Monitor Photodiode Reverse Voltage | ≤30 | V |
| Operating Temperature Range | -10 ~ +60 | ℃ |
| Storage Temperature Range | -40 ~ +85 | ℃ |
【Electrical & Optical Characteristics (Tc=25℃, Po=5mW)】
| Item | Min | Typical | Max | Unit |
|---|---|---|---|---|
| Threshold Current (Ith) | 5 | 11 | 20 | mA |
| Operating Current (Iop) | 12 | 17 | 30 | mA |
| Operating Voltage (Vop) | — | 1.8 | 2.5 | V |
| Slope Efficiency | 0.4 | 0.7 | 0.9 | mW/mA |
| Lasing Wavelength | 845 | 852 | 855 | nm |
| Parallel Beam Divergence (FWHM) | 7 | 9 | 12 | deg |
| Vertical Beam Divergence (FWHM) | 25 | 32 | 40 | deg |
| Monitor Current (Im) | 0.2 | 0.45 | 0.6 | mA |

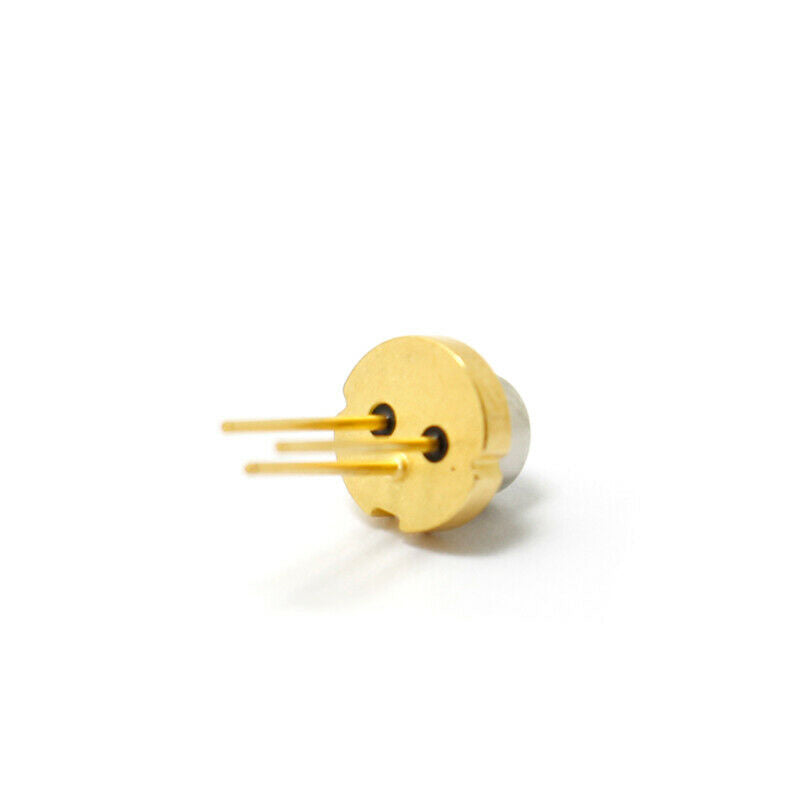

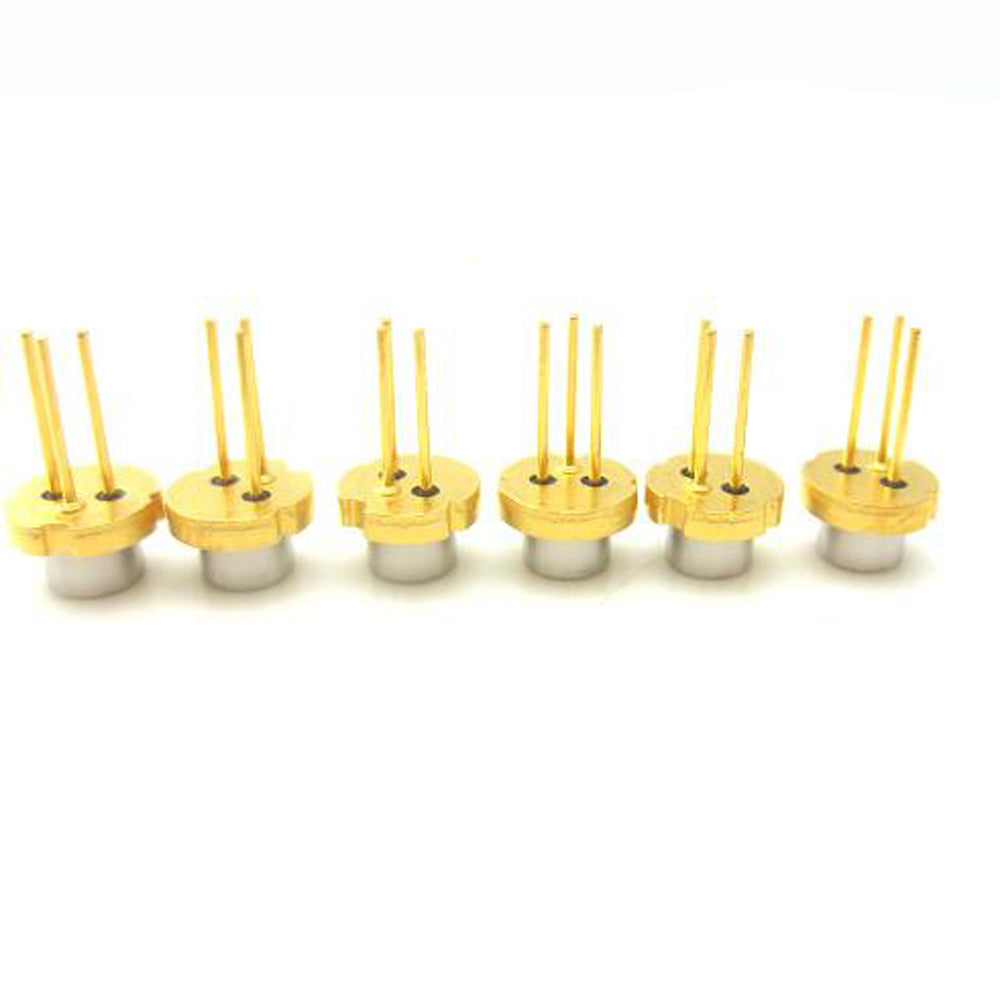

【Pin Definition (Bottom View / A-type Internal Circuit)】
LD: Laser Diode Positive Terminal
COMMON: Common Public Pin
PD: Monitor Photodiode Terminal
【Application Scenarios】
Industrial optical sensors, infrared detection devices, optical ranging modules, laser sensing detection equipment, optoelectronic experimental circuits.
