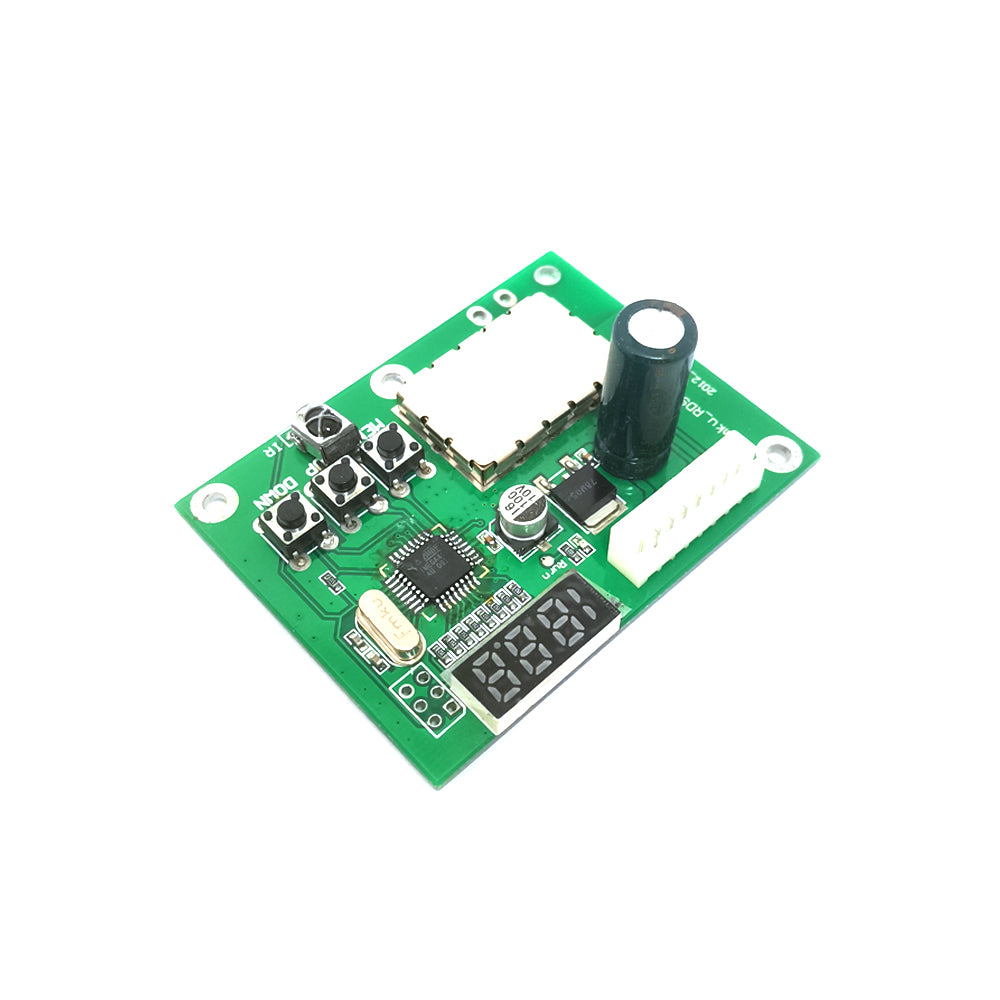

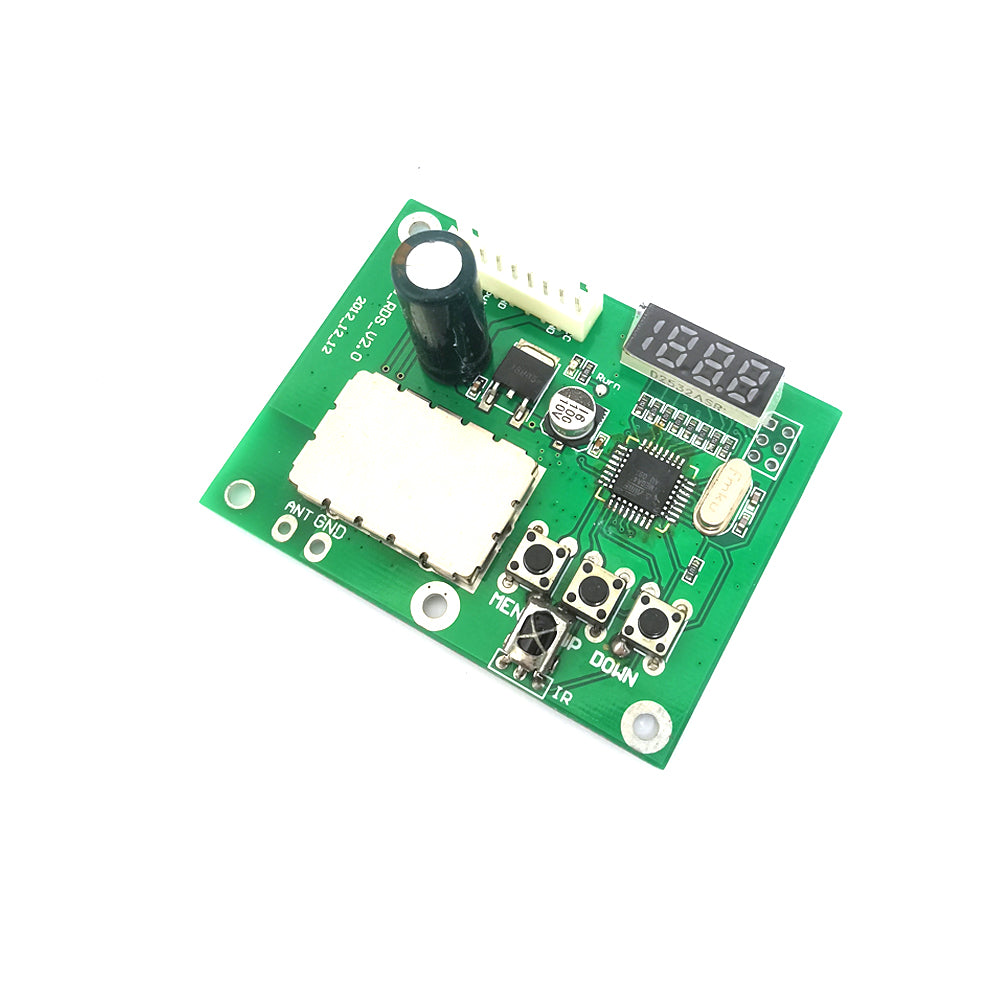

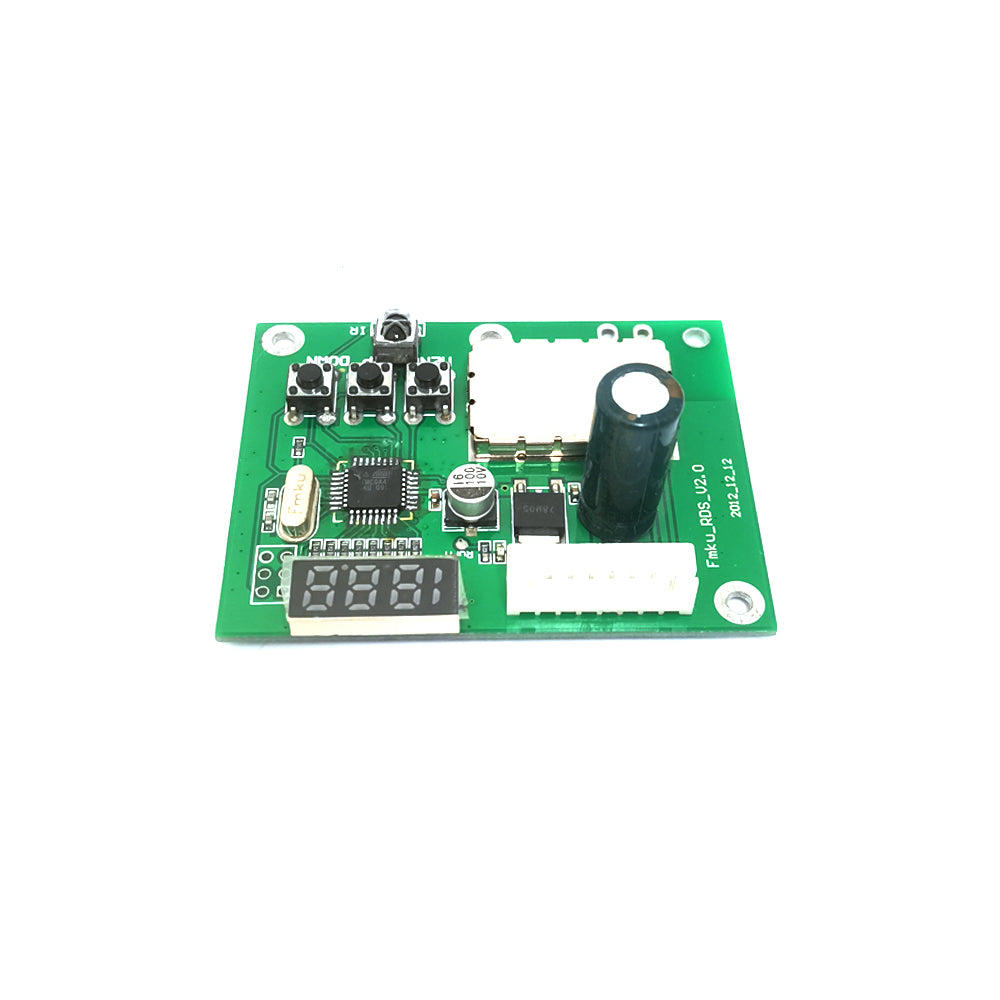

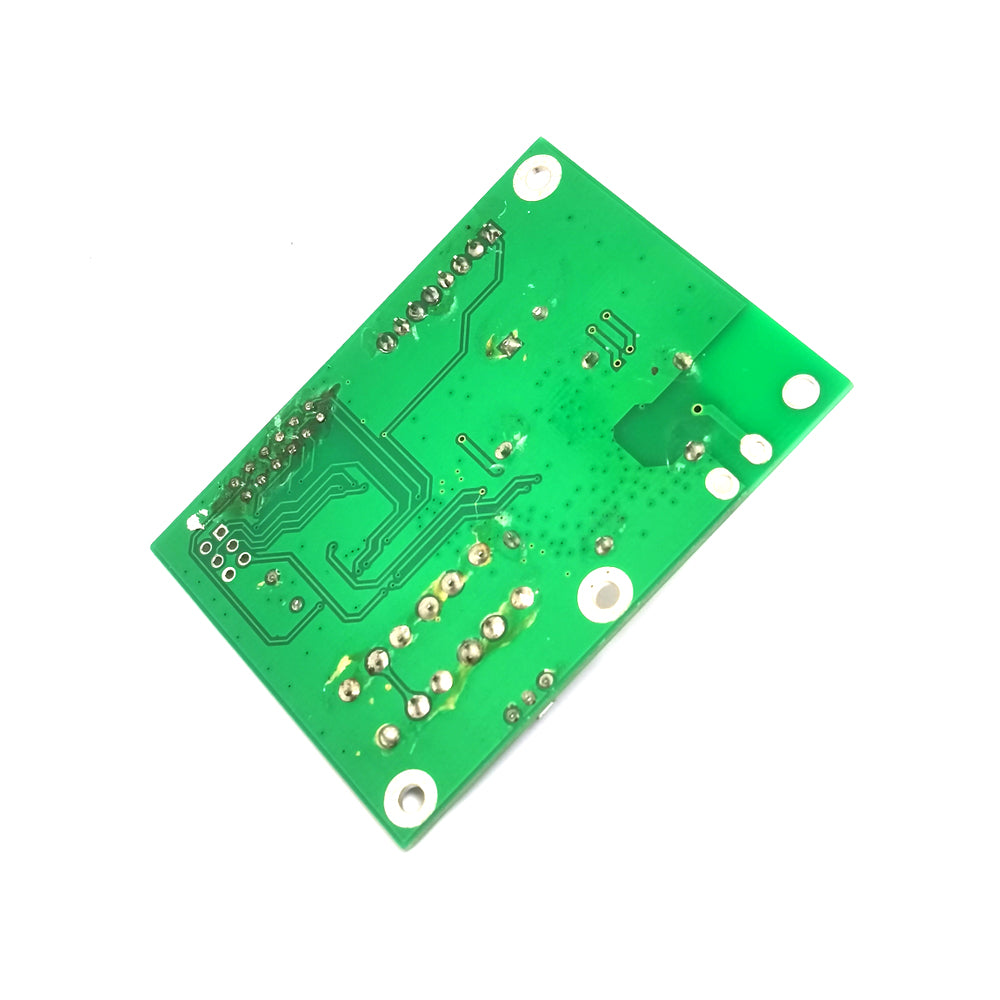

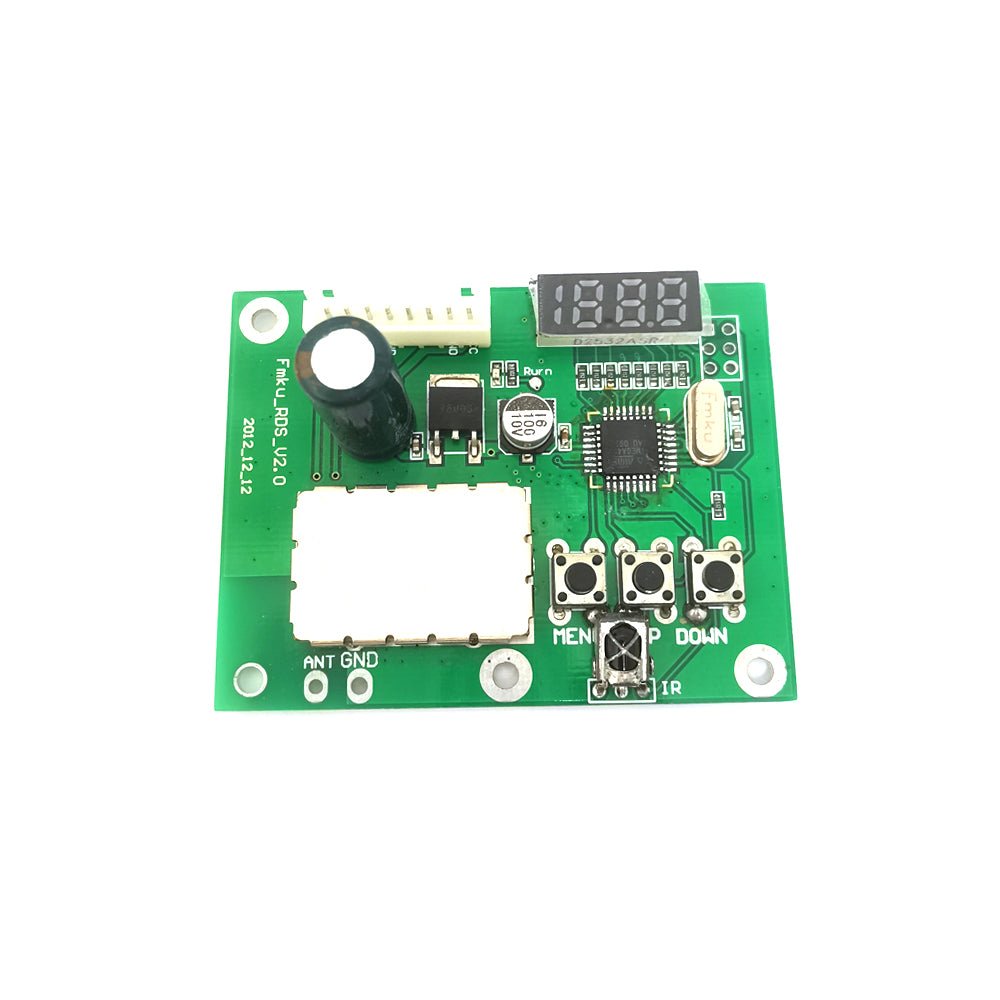

RDS Coding FM Radio Receiver Control Module
Description:
Dimensions: 52mm * 68mm * 5mm
Working voltage :9-12V
Working current: 100ma
Receiving Frequency :76-108Mhz Stepping: 0.1mhz
Sensitivity:-105DBM
Audio Output voltage: approximately 1V, can directly drive headphones
digitally encoded channels 0-99
Interface Definition: PIN1 - PIN8:
PIN1: Turn foot, high-low control pin
PIN2 \ 3: L, R audio output pin
PIN4: GND
PIN5 \ 6: NC
PIN7: GND
PIN8: VCC
Features:
MENU key to select the menu: Press the Cycle Show RSS \ RDS
RSS for the field mode, a signal output high level PIN1
RDS coding mode for the data,Frequencies and transmitters RDS encoder channel simultaneously correspond, PIN1 output high level.
RDS mode, press UP \ DOWN keys to adjust the RDS channel
Long press the MENU button for 5 seconds, for the composite function conversion.
Package:

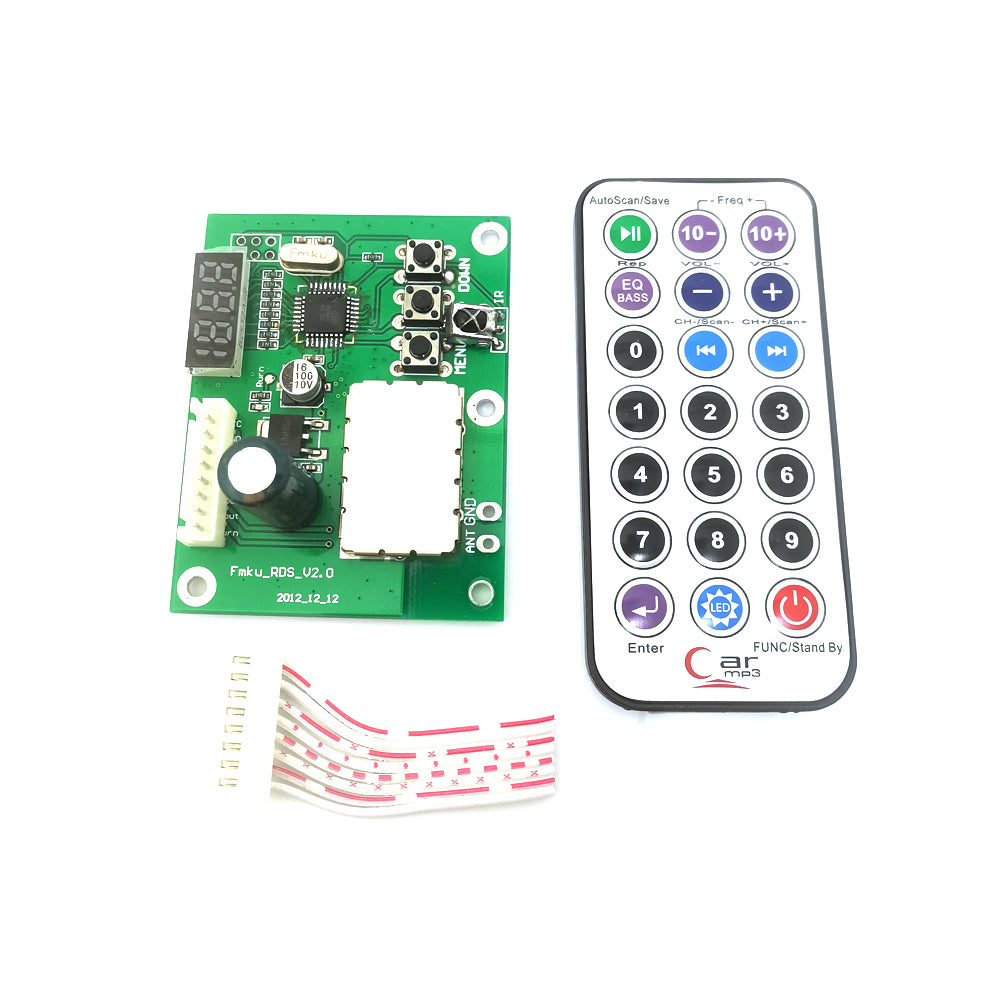

1 x RDS Coding FM Radio Receiver Control Module
