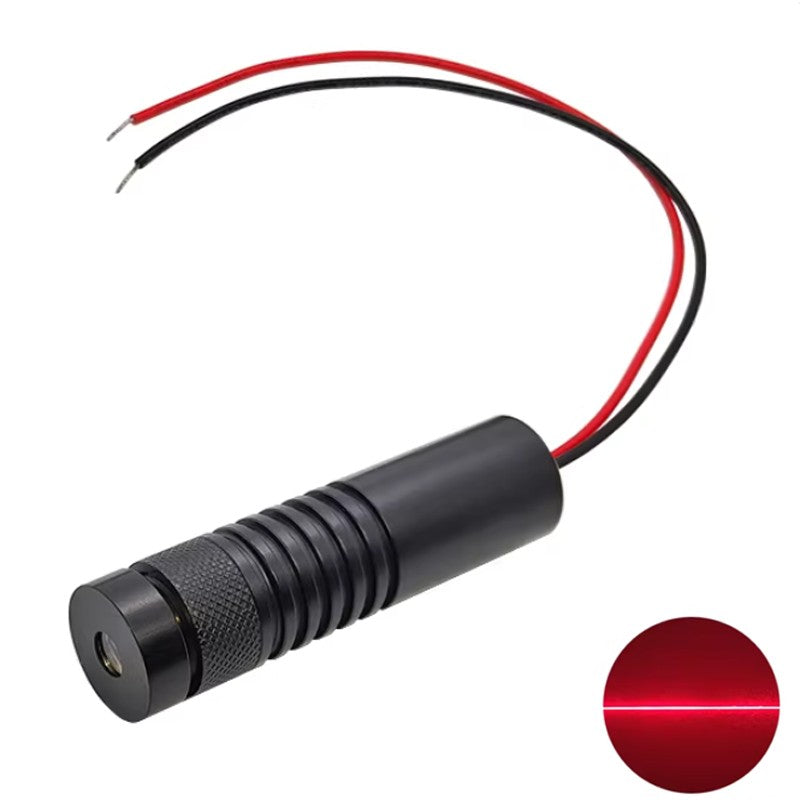

Red 650nm 10mw/20mw/30mw/50mw/80mw/100mw Line Laser Module 12V 24V 16*60mm

Red 650nm 5mW 10mW 20mW 30mW 50mW 80mW 100mW Focusable Line Laser Light Module Locator

Specifications:

Size: 16X60mm

Material: Aviation aluminum (all metal shell)

Output wavelength: 650nm ± 10nm (other wavelengths can be customized)

Exit pupil power:<20mW,<30mlW,<50mW,<80mW,<100mW

Range: <5 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)

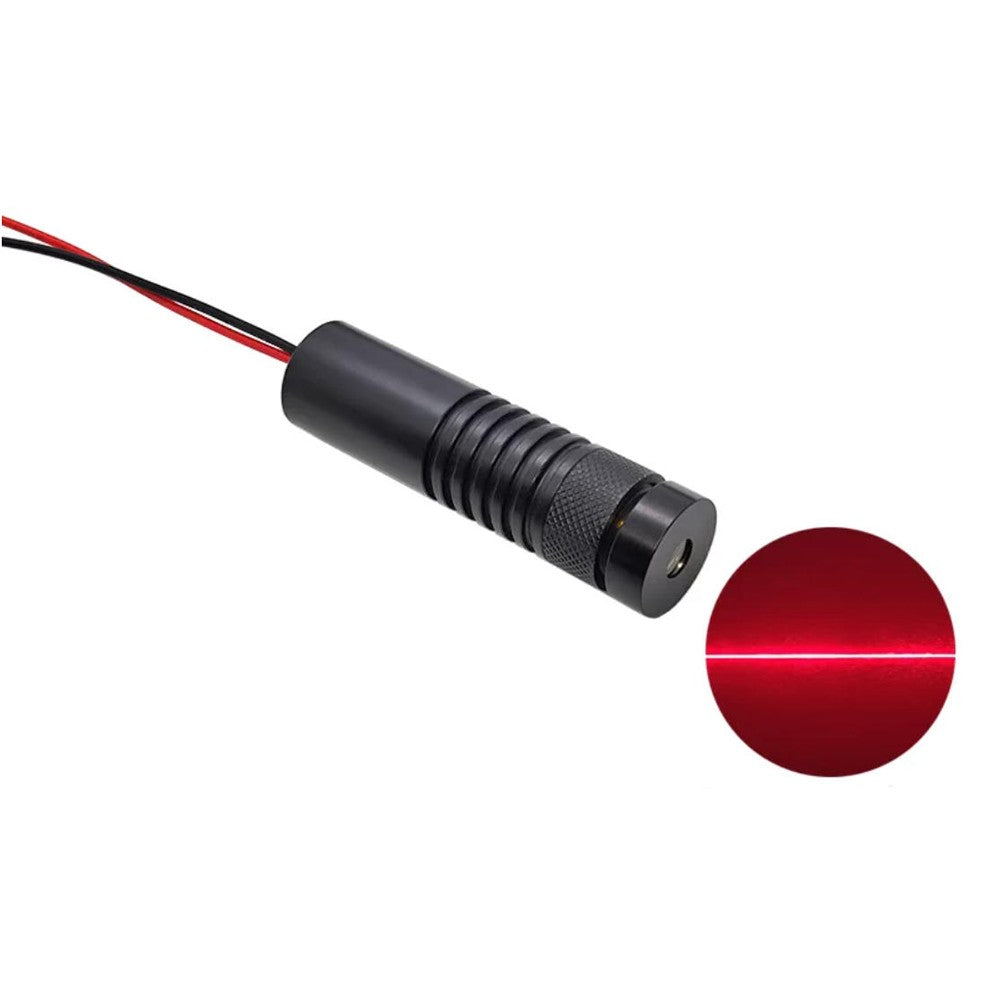

Spot shape and size: Straight line light, adjustable light thickness, line width at 2m<3mm (conventional 2m focusing)

Light diffusion angles:  default to 90 °(5 °, 15 °, 30 °, 45 °, 60 °, 90 °, 110 °, 130 ° optional)

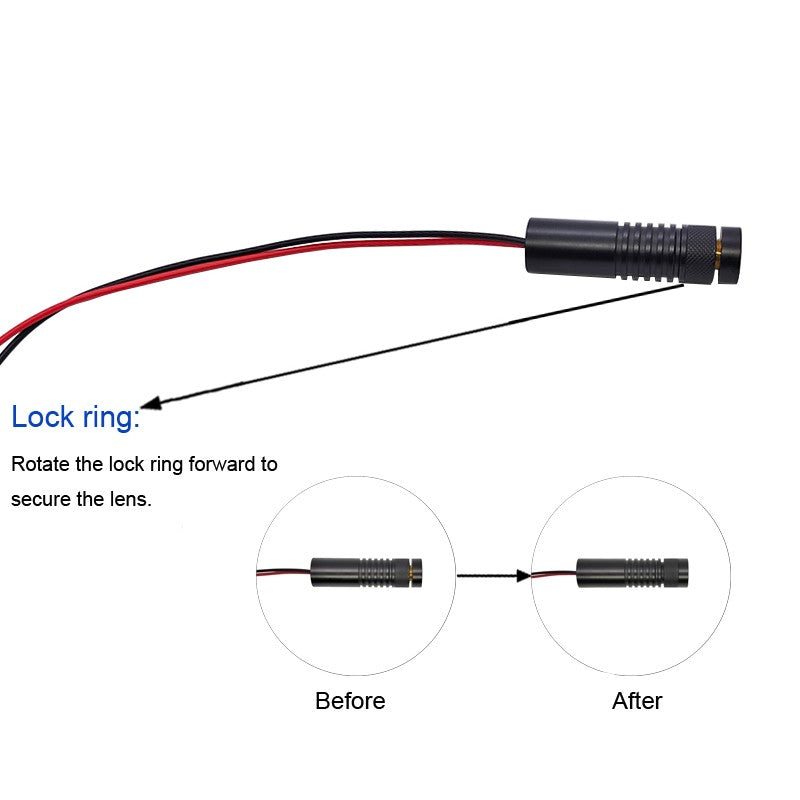

Focusing method: adjustable focus

Circuit control: ACC circuit

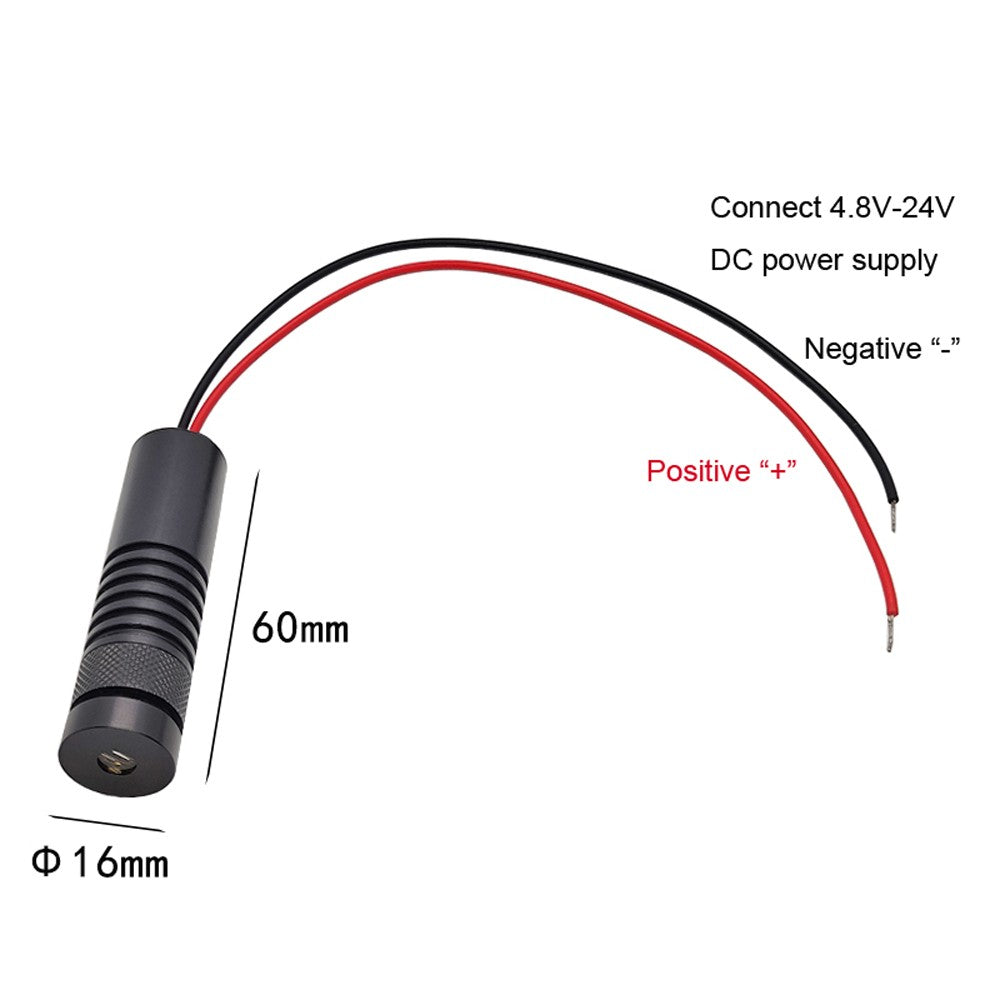

Working voltage: 4.8~25VDC

Working current: <100mA (20mW),<110mA (30mW),<130mA (50mW),<150mA (80mW),<180mA (100mW)

Working temperature: -10 ° C~+50 ° C

Storage temperature: 20 ° C~+70 ° C

Service life: Continuous output/usage>10000 hours

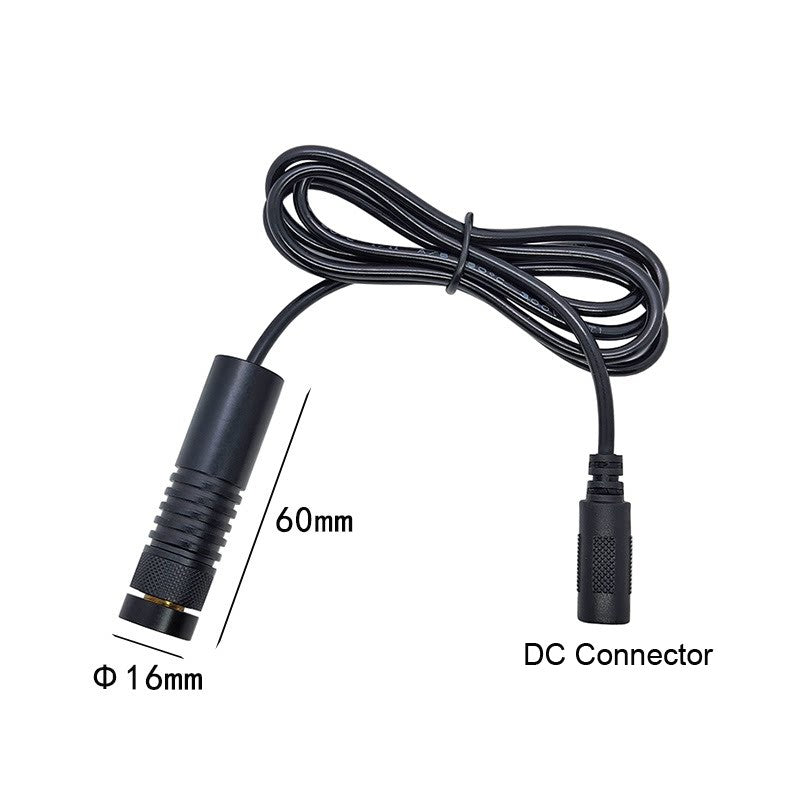

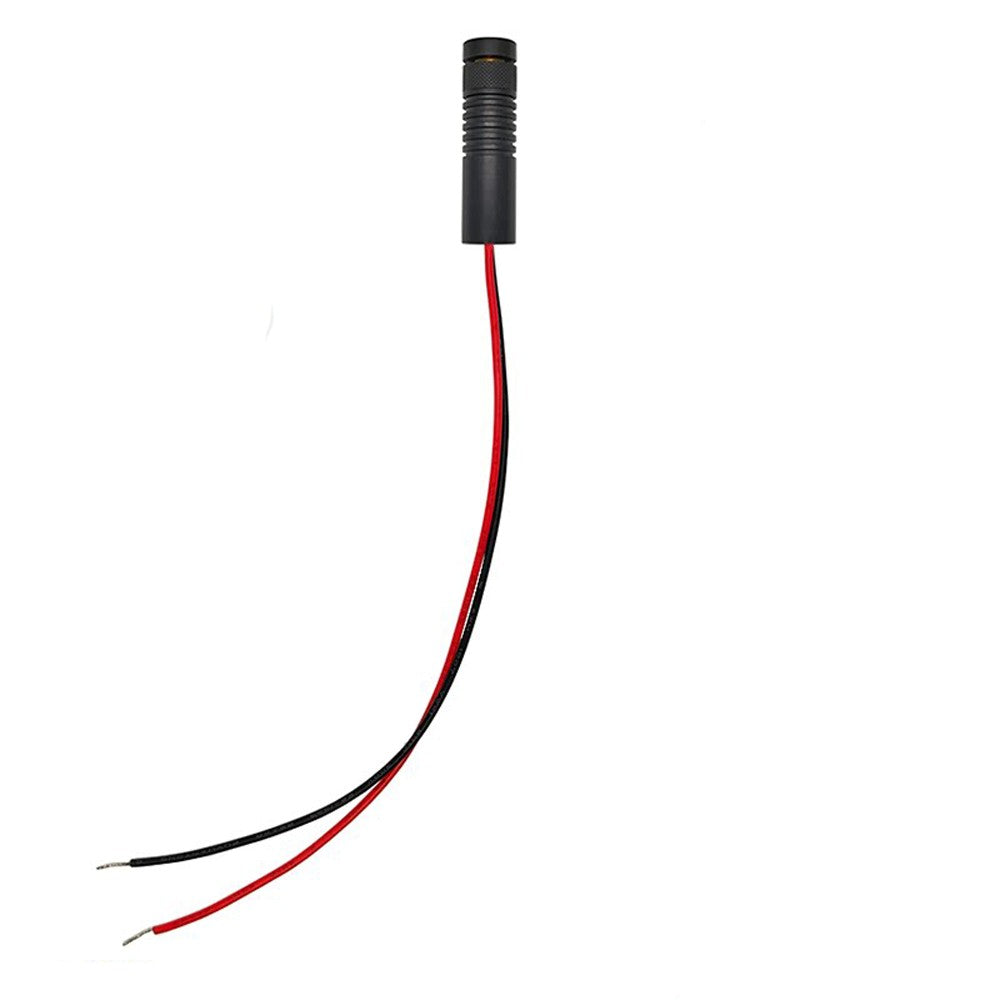

Connector: the red and black electronic wire is about 15cm long (can be customized as a DC female plug)

Security level: CLASS IIIB

Application: It can be used in industrial laser positioning, sights, laser flashlights, instrument equipment, anti-counterfeiting security, stage lighting, tools, projection teaching flip pens, temperature measuring (distance measuring) instruments, leveling instruments, marking instruments, level rulers,etc.

Package:

1x 650nm Laser Module
