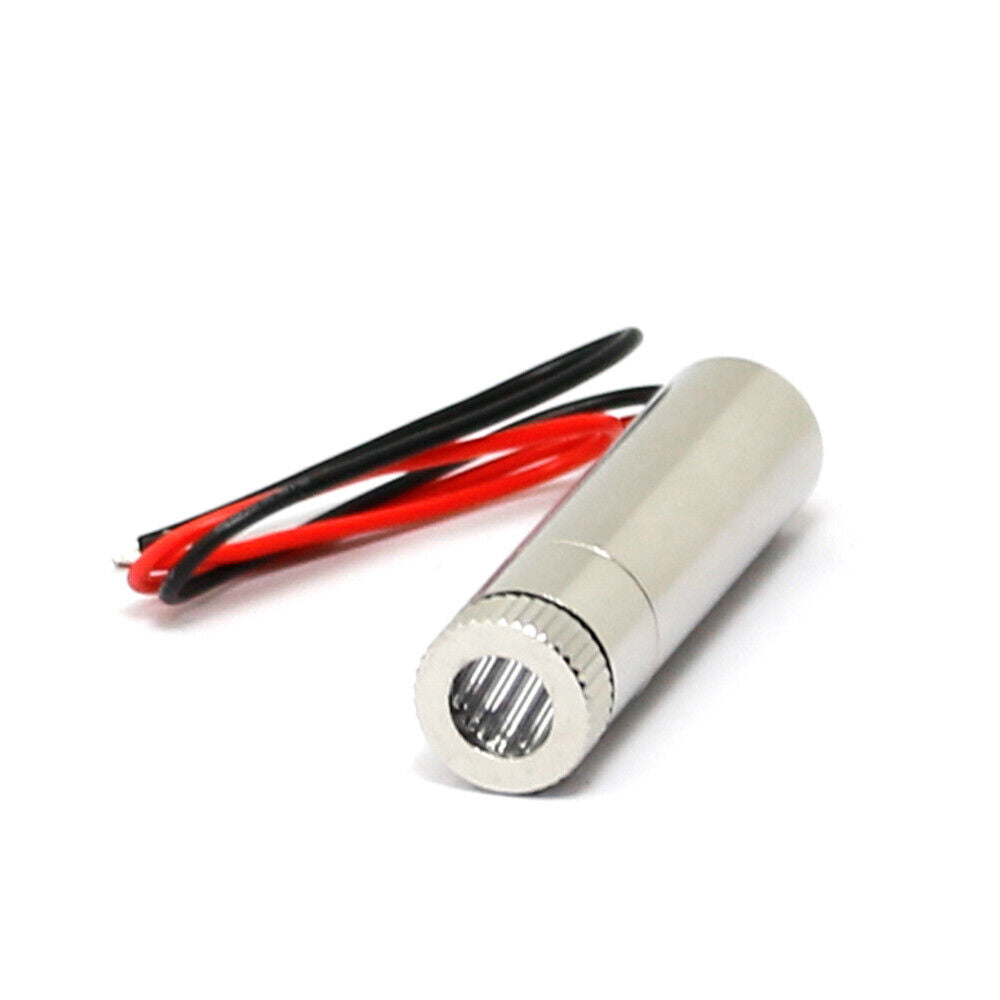

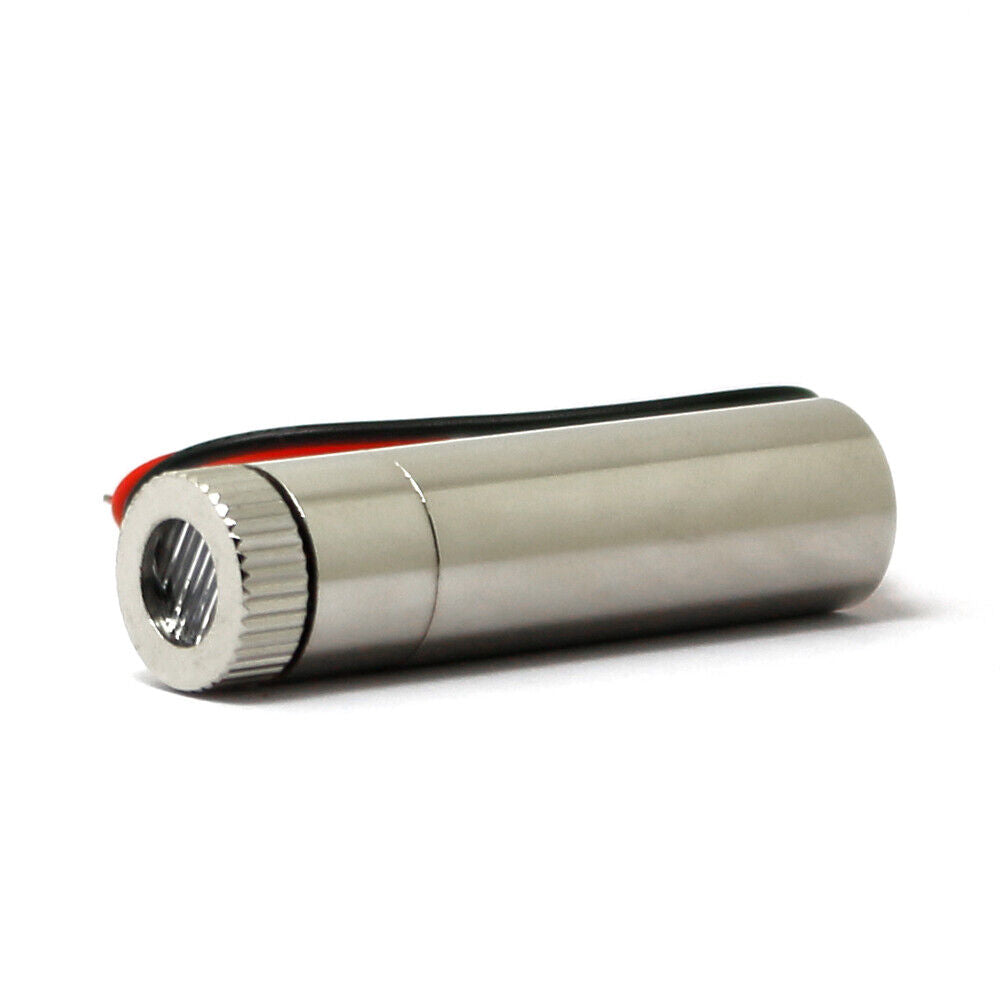

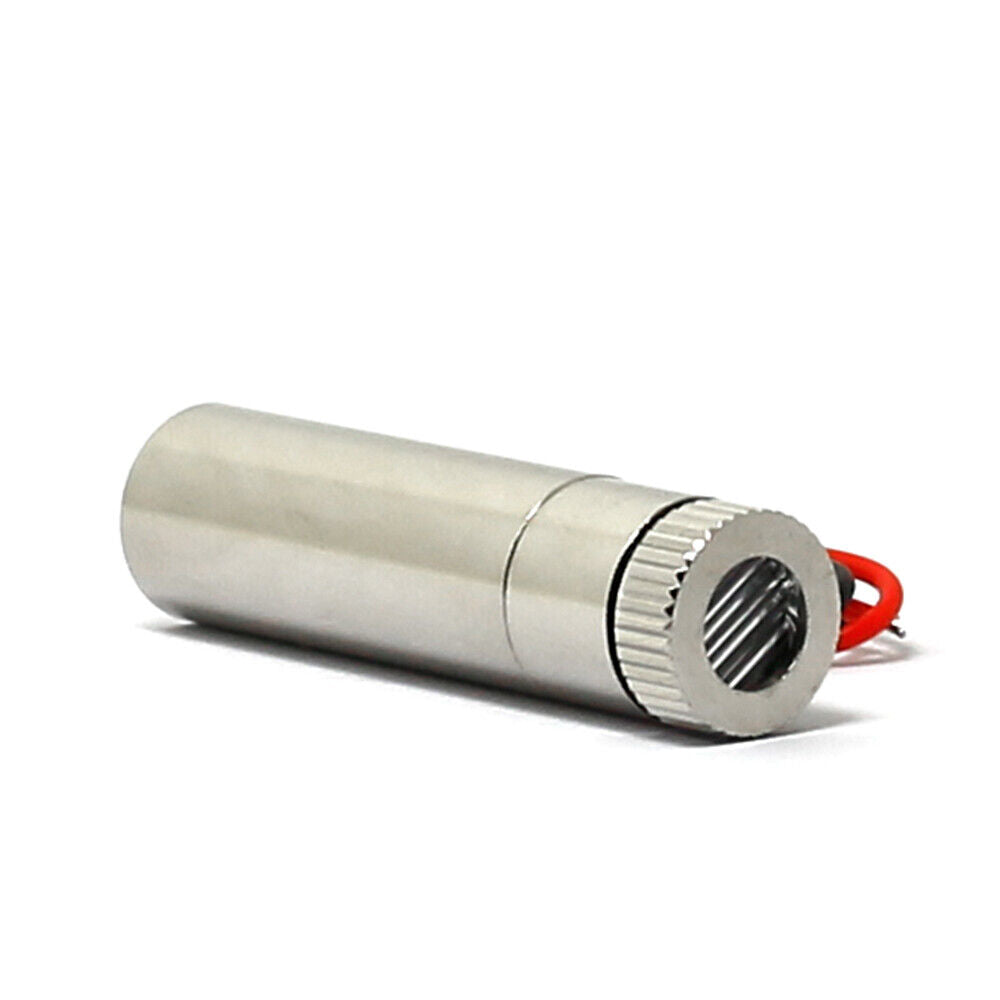

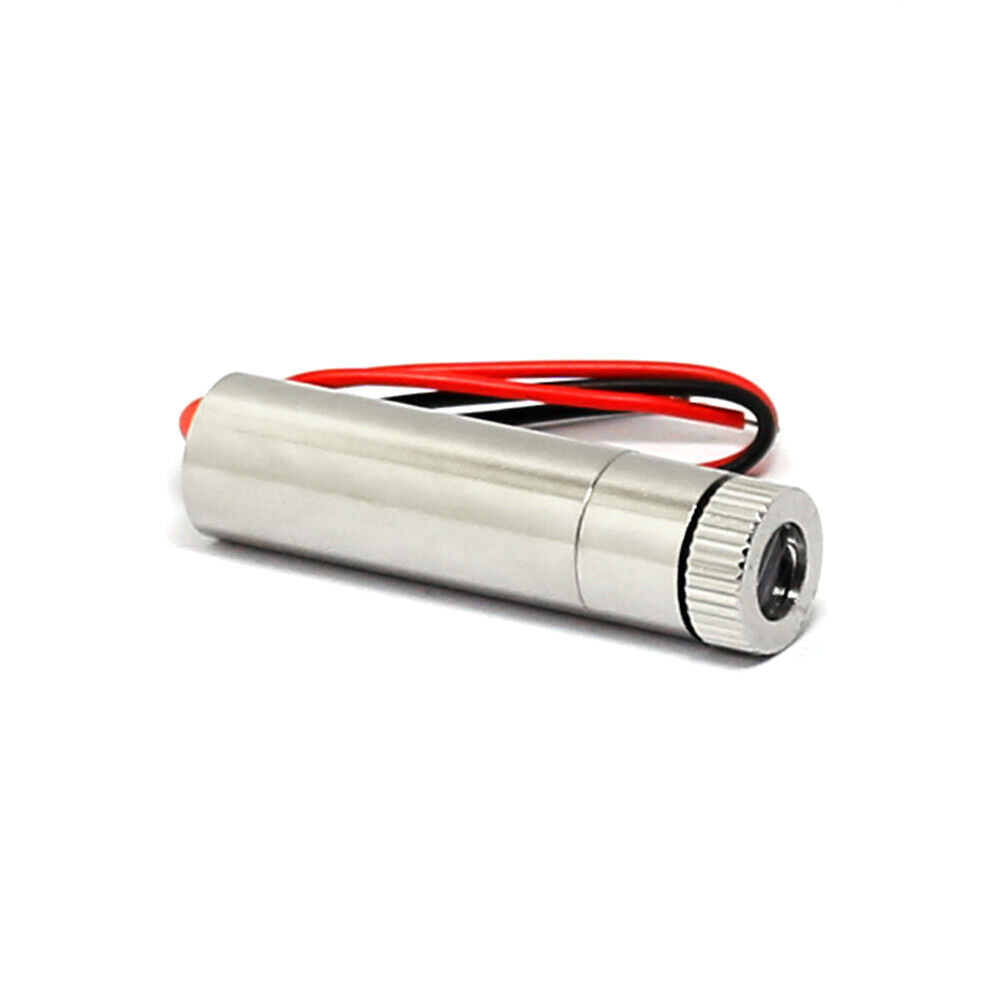

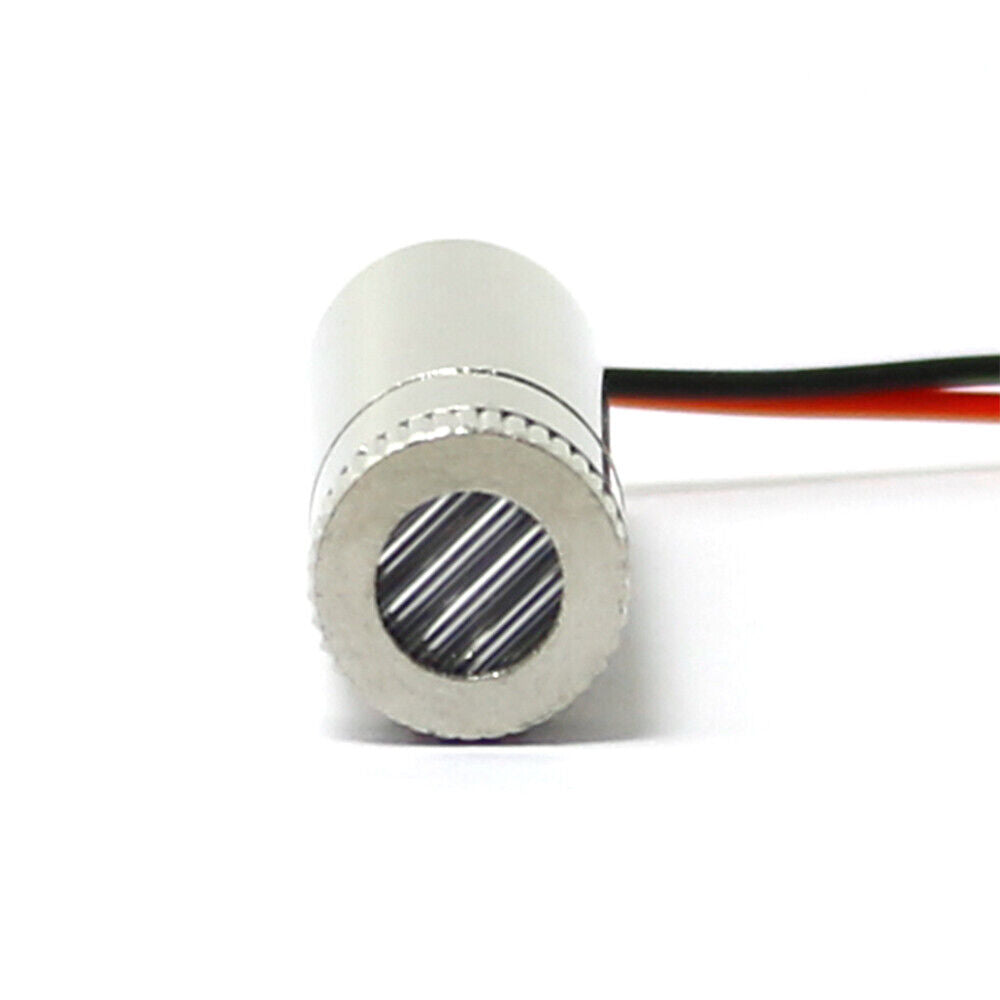

Red Laser 650nm 10mW Line Diode Module with Driver & Cable 12 x 40mm Adjusted





Output Power 10mw

Wavelength 650nm

Working Voltage 3~5V

Working Temperature +10 ℃~＋40 ℃

Laser Shape Line(the default is 120 degrees, if you need any other like 35/45/60/90 degrees, please make a note in your order, or we will send 120 degrees)

Focusable Yes

Material and Color Metal

Lens Plastic

Dimensions 12x35mm

Working Current 100mA

divergency: ≤Φ1(mm) at 1m

Start-up time: ≤0.01s

Life span: >6000h

Material: Metal

Color: Silver



Please keep the lens clean to make the laser beam clear and bright.

Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.

Be sure the operator has experience in optics DIY or testing.





1 x Red Laser 650 nm 10MW Line Diode Module w/Driver & Cable Adjusted
