Φ12X40mm 650nm 20mW 30mW 50mW 80mW 100mW Red Laser Adjustable Focus
Dot Laser Light Module Positioning Locator
Specifications:

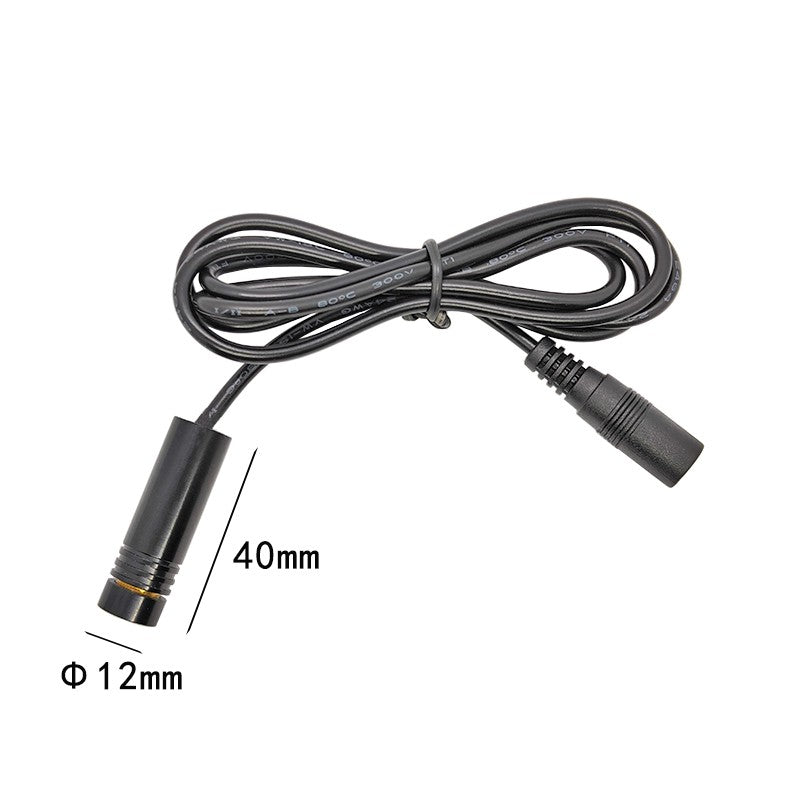

Size: Φ 12X40mm
Materia: Aviation aluminum (all metal shell)
Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment
Service life: Continuous output, continuous service life>8000 hours
Output wavelength: 650nm±10nm
Output Power: <20mW,＜30mW,＜50mW,<80mW,＜100mW
Range:<1100 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)
Spot shape/diameter: Dot, elliptical, spot size<Φ 10mm at 10m (adjustable focus)
Circuit Control: ACC Circuit
Working voltage: DC2.8~5.2V
Working current: I <100mA (20mW),< 110mA (30mW),< 130mA (50mW),< 160mA (80mW),<180mA(100mW)
Working temperature: -10 ℃ to+50 ℃
Storage temperature: -20 ℃ to+70 ℃
Packing:

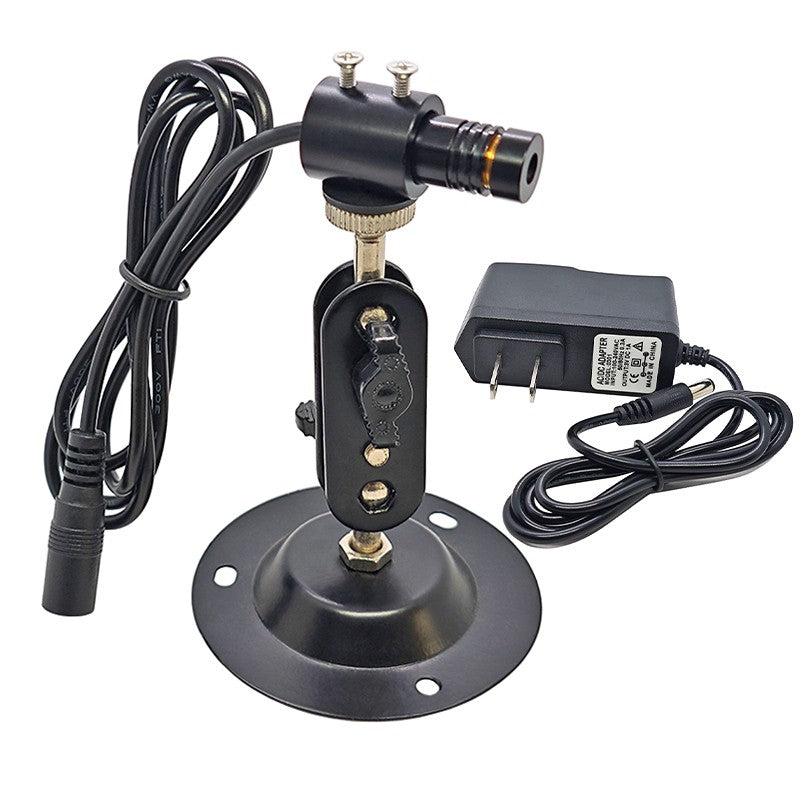

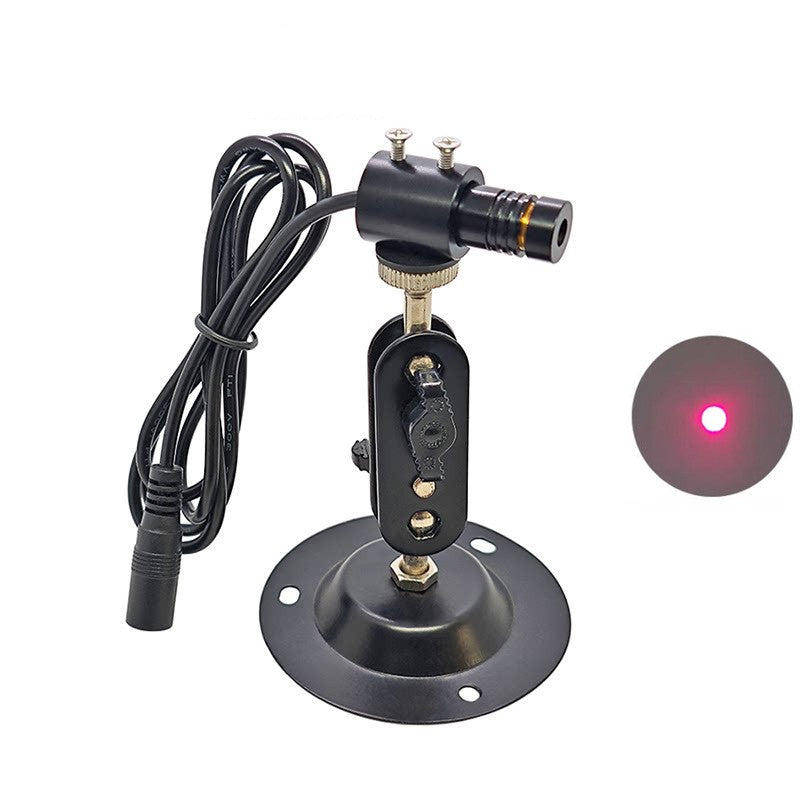

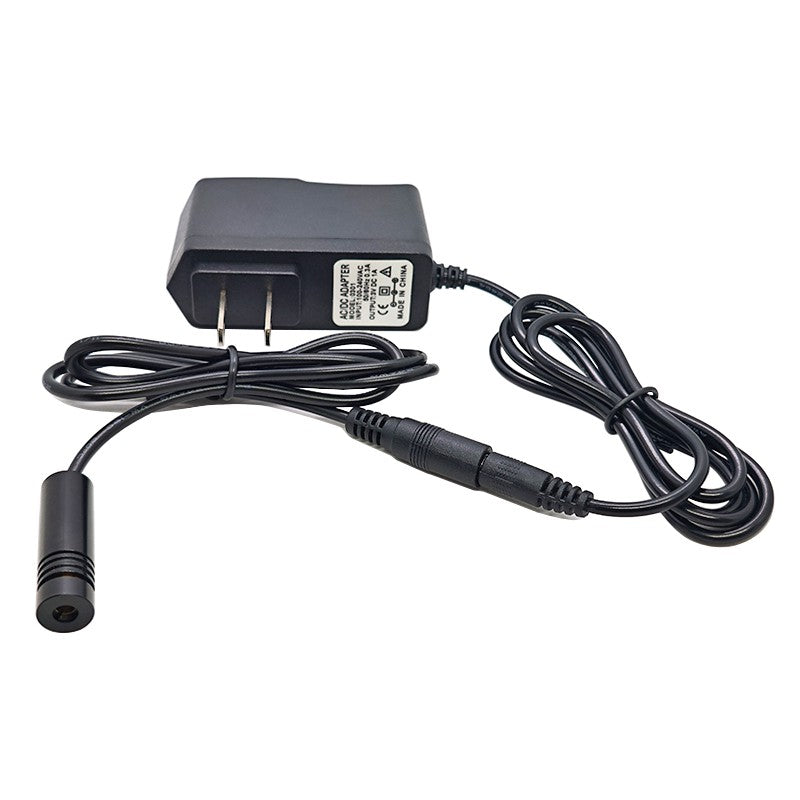

1* 650nm Red Laser Module with Holder/Power Adapter
