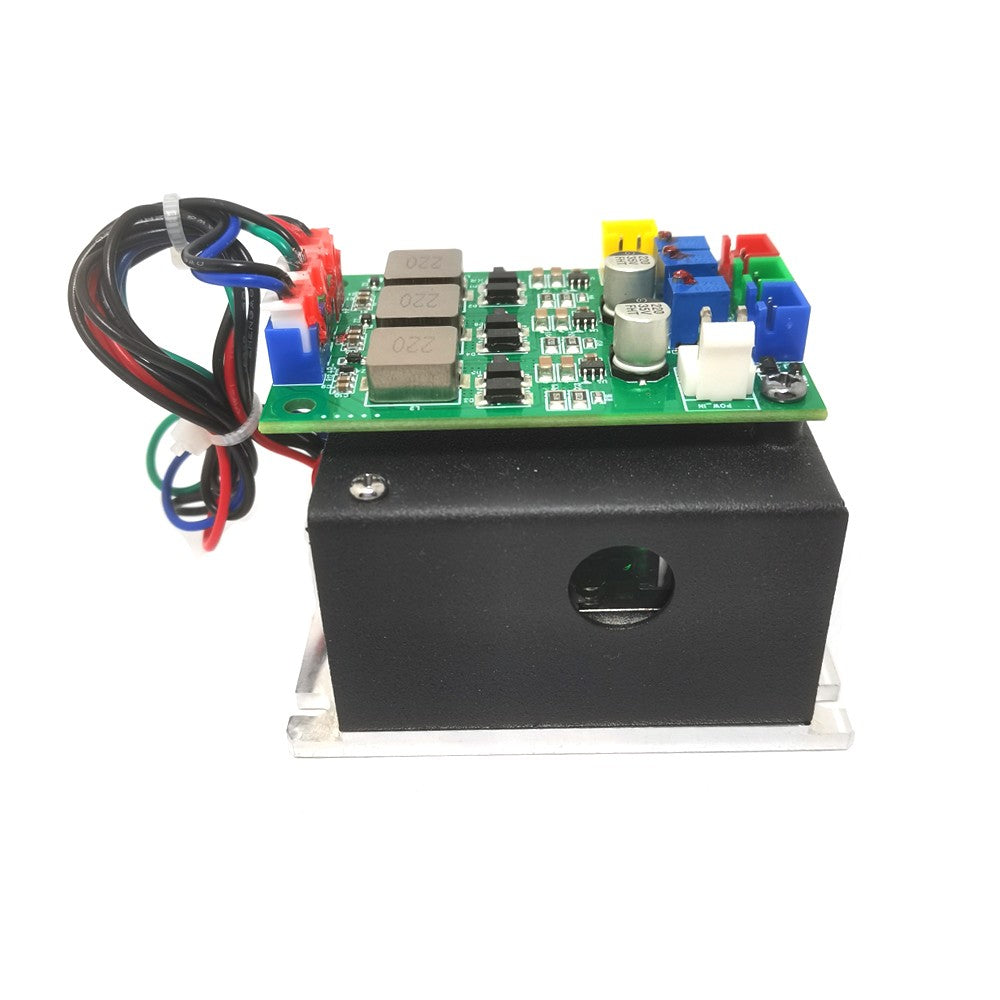

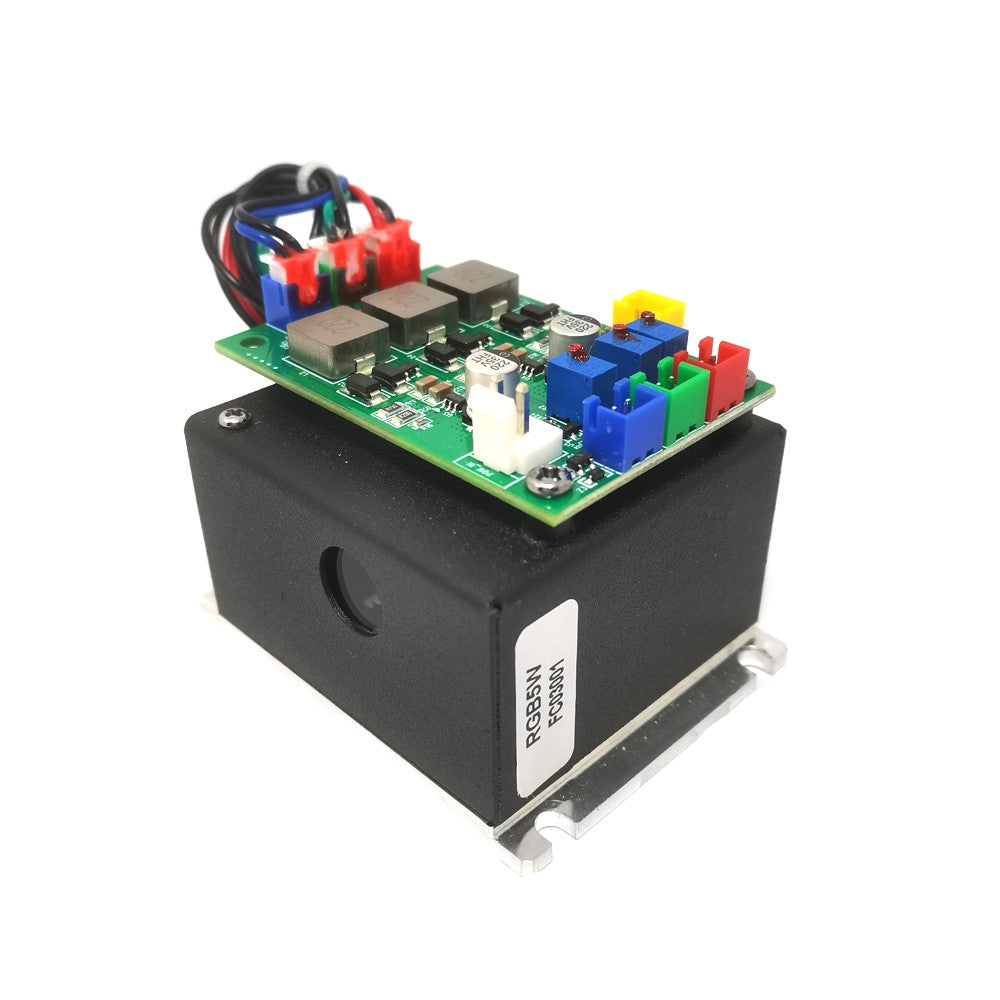

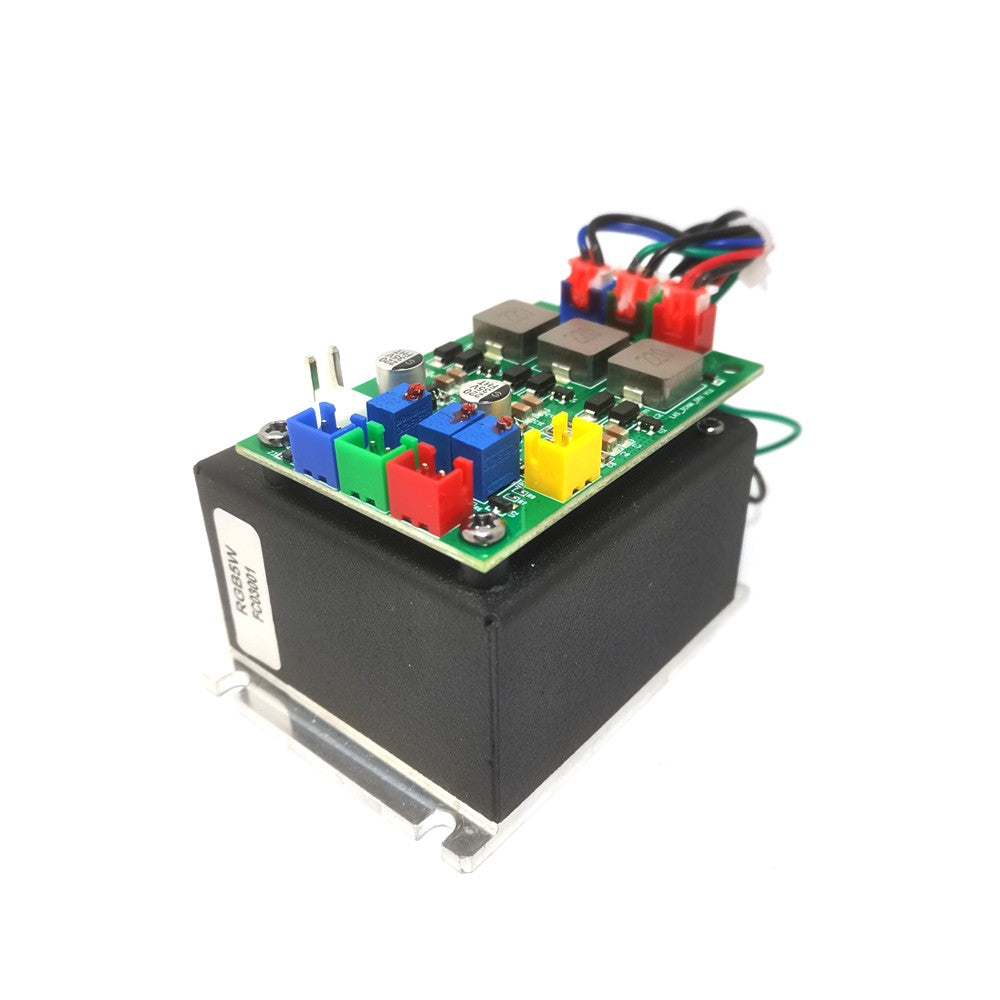

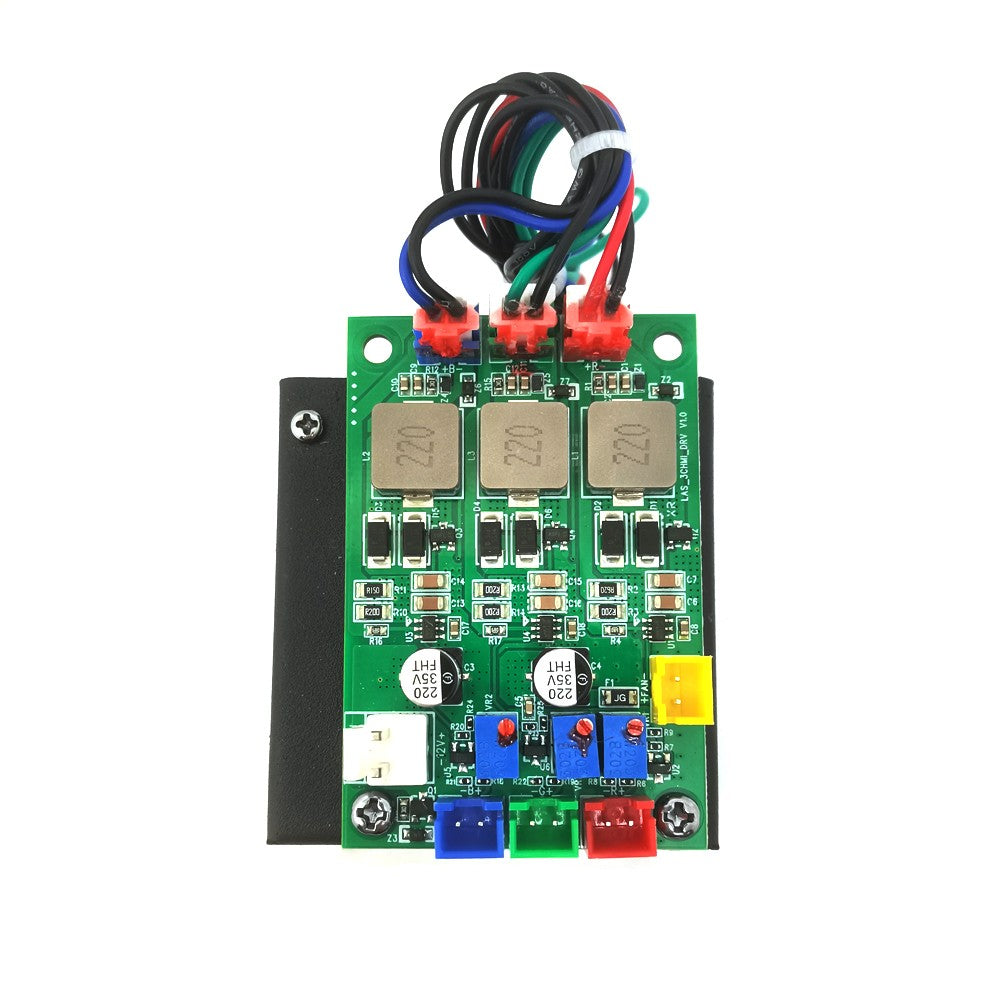

RGB Synoptic White Light Red/Green/Blue Laser Diode Module RGB 5W Stage Lighting TTL/ Analog Modulation

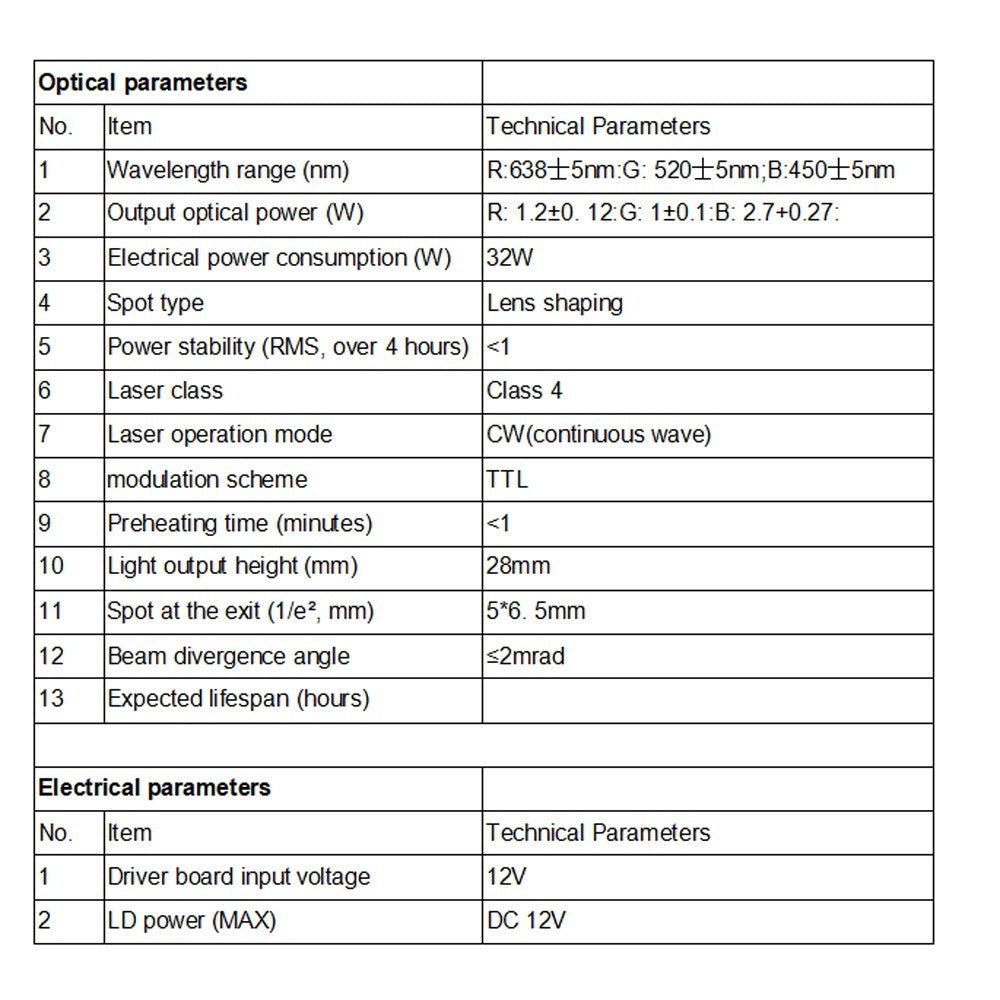

Specification:
Product name: W5000
Wavelength: R: 638±5nm G: 520±5nm B: 450±5nm
Output power: R: 1.2±0.12W G: 1±0.1W B: 2.7±0.27W
Power consumption: 32W
Spot Type: Lens Plastic
Power stability (rms, over 4 hours): <1
Laser class: Class 4
Laser working mode: CW (continuous wave)

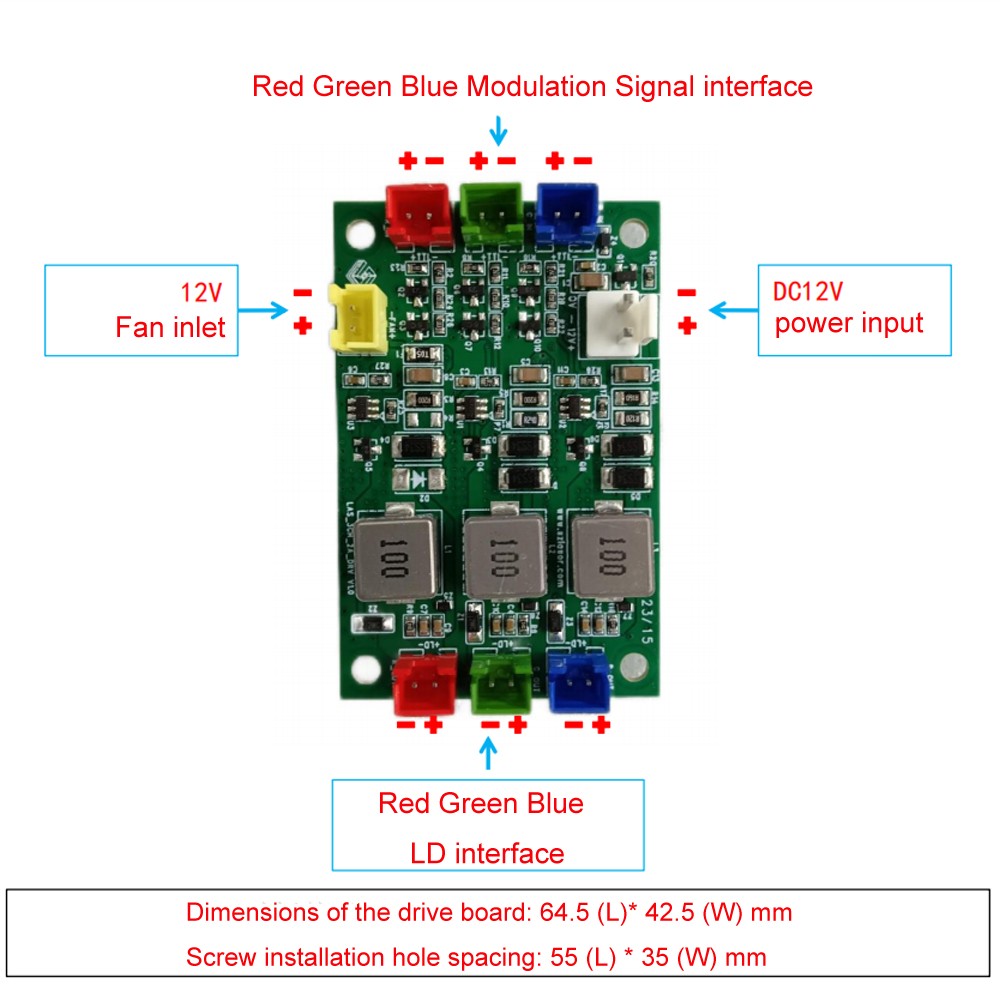

Modulation method: TTL or Analog
Preheating time (minutes): <1

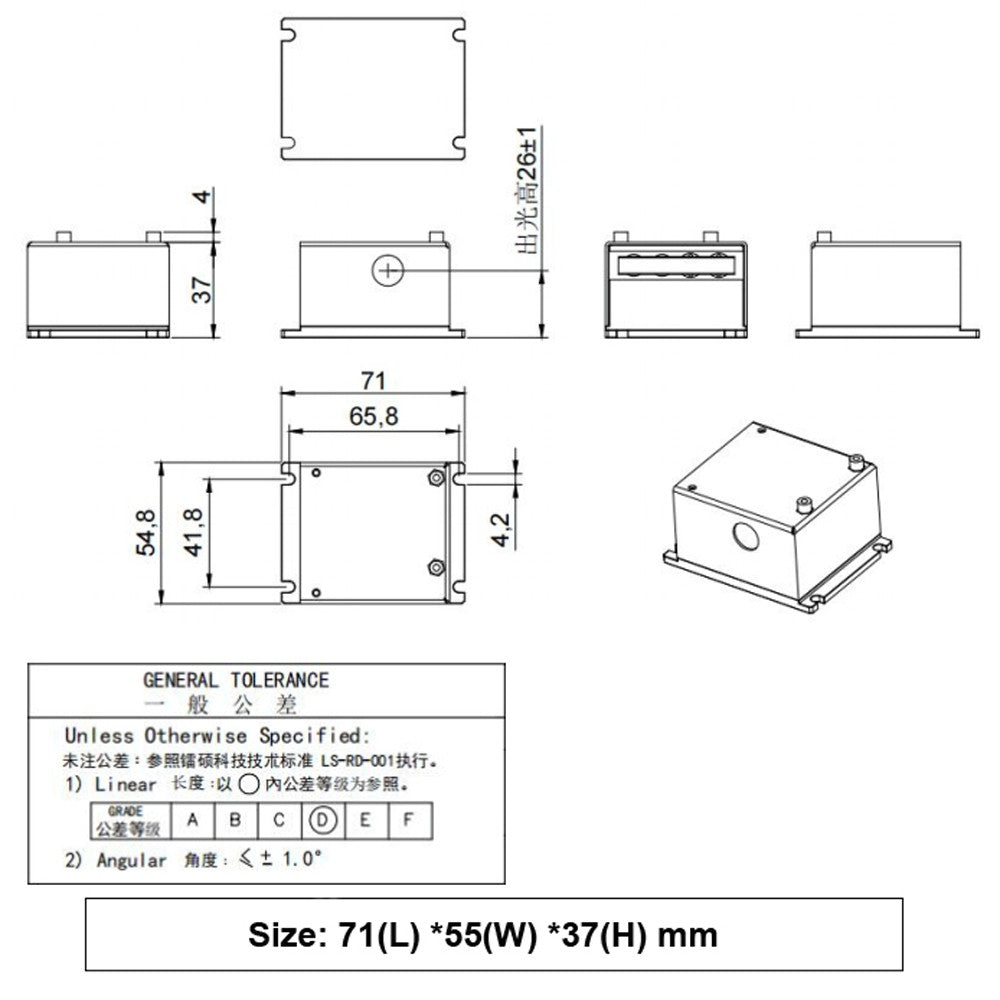

Output height (mm): 28mm
Spot at exit (1/e2, mm): 5*6. 5 mm
Beam scattering angle: ≤2mrad
Life expectancy(hours):10000
Input voltage: 12V
LD Power (MAX): DC12V
Operating temperature: -15°C~40°C
Storage temperature: 0°C~30°C
Storage humidity:
Storage interval power supply time: 60 days to power, each power supply is not less than 10 minutes
Package:

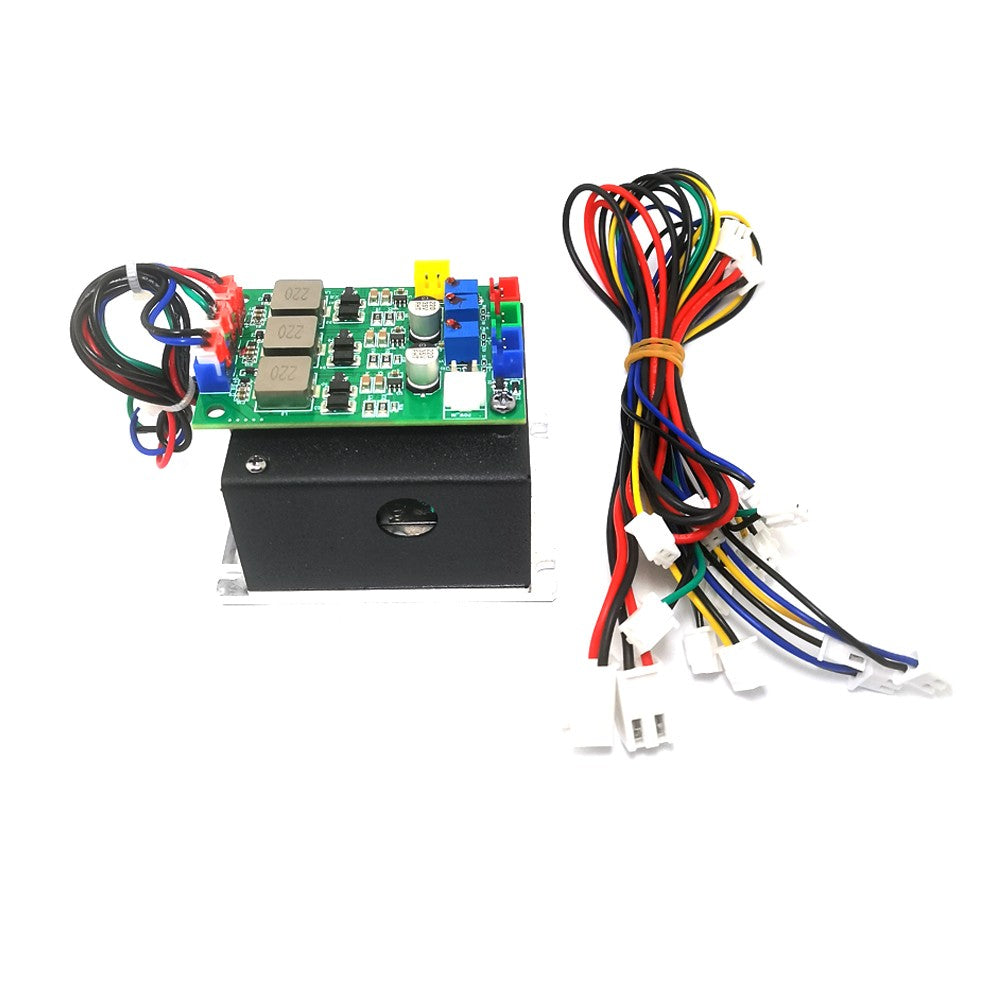

1* Laser Module
