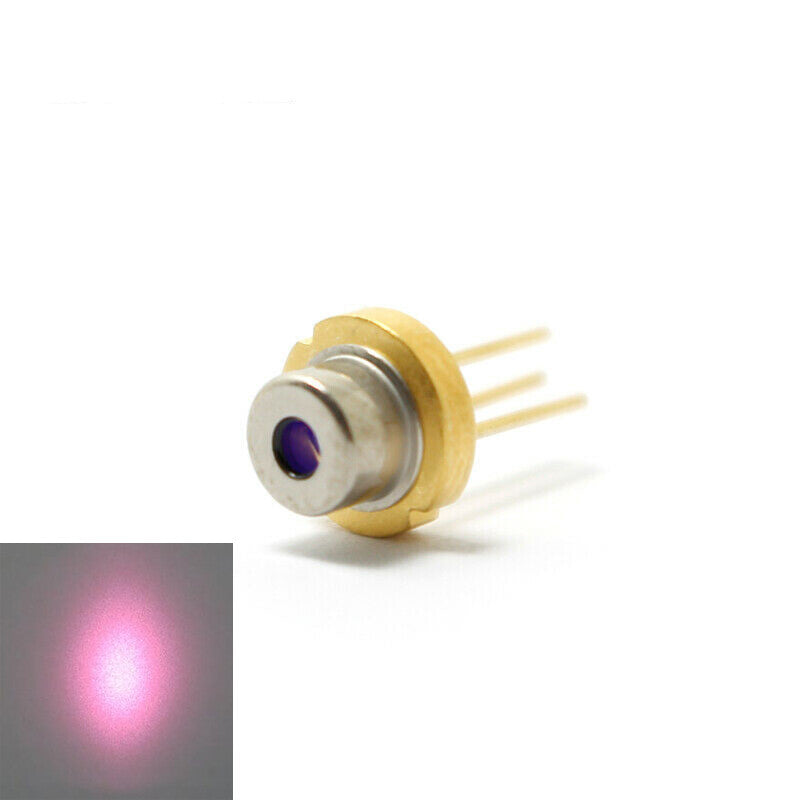

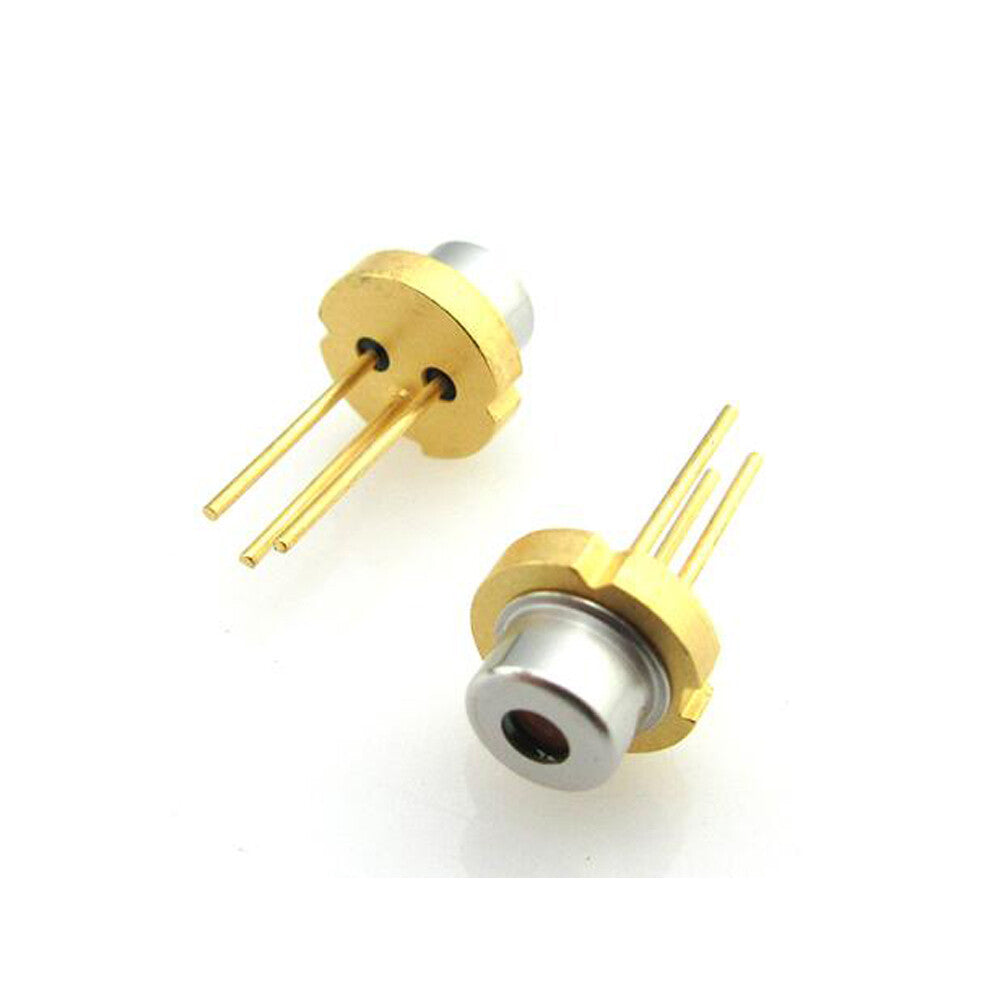

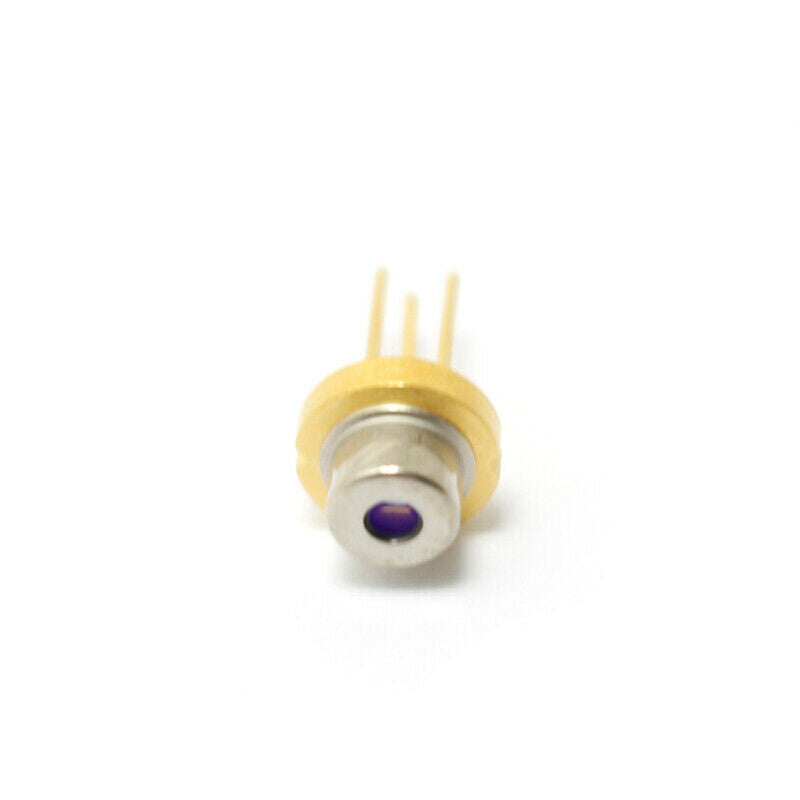

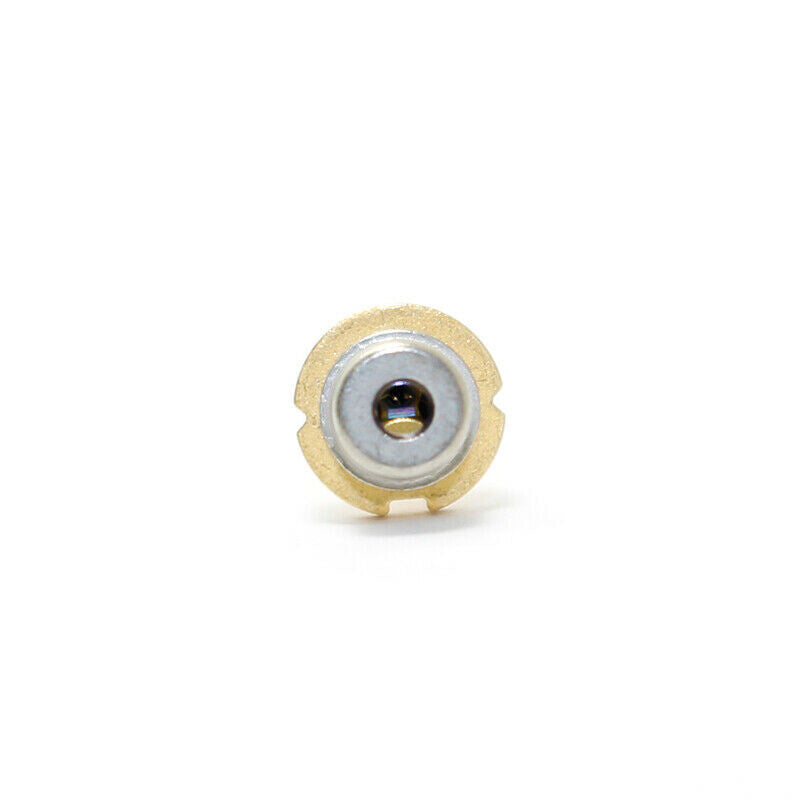

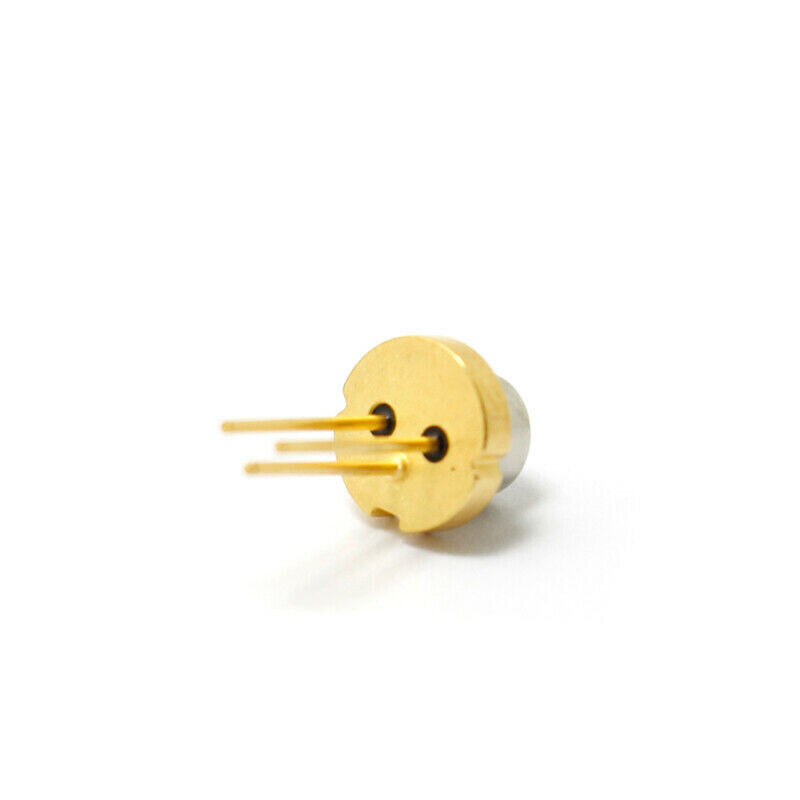

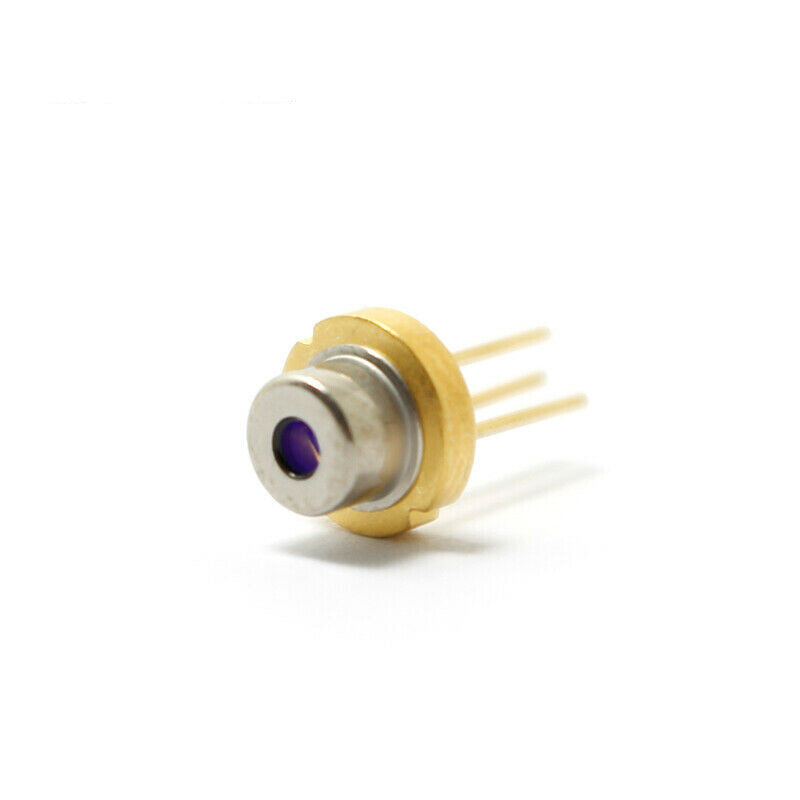

ROHM RLD78MZQ2 785nm 8.5mW 5.6mm M-type CD VCD Laser Diode DIY

ROHM RLD78MZQ2 785nm 8.5mW 5.6mm M-type CD VCD Laser Diode DIY

Specification:
Wavelength: 785nm

Power: 8.5mW

Working current: 30mA

Threshold current: 20mA

Working voltage: 2.2V

Slope efficiency: 0.6mW/mA

Peak current: 0.5mA

Working temperature: - 10 ～ 50 ℃

Storage temperature: - 20 ～ 85 ℃

Package form: To-18 (Φ 5.6 mm)

Service life: 10000( hours )

Package:
1* Laser Diode
