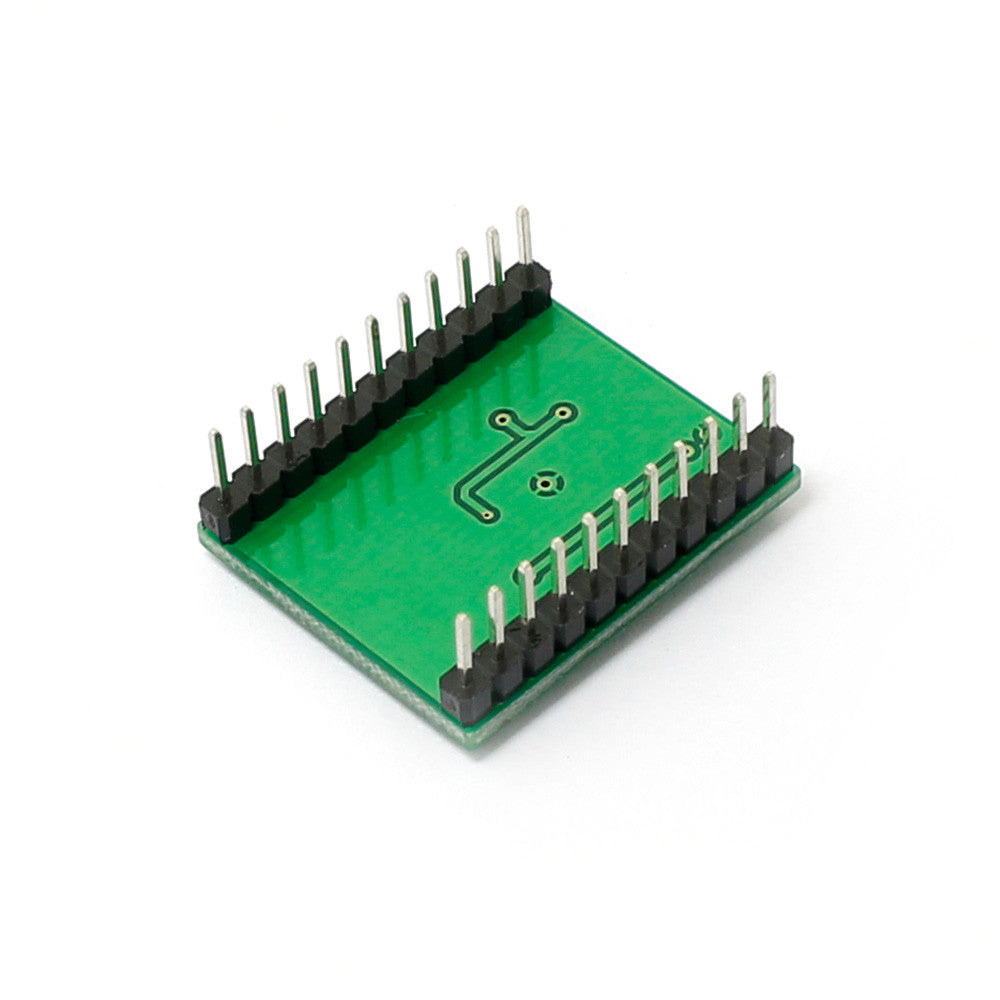

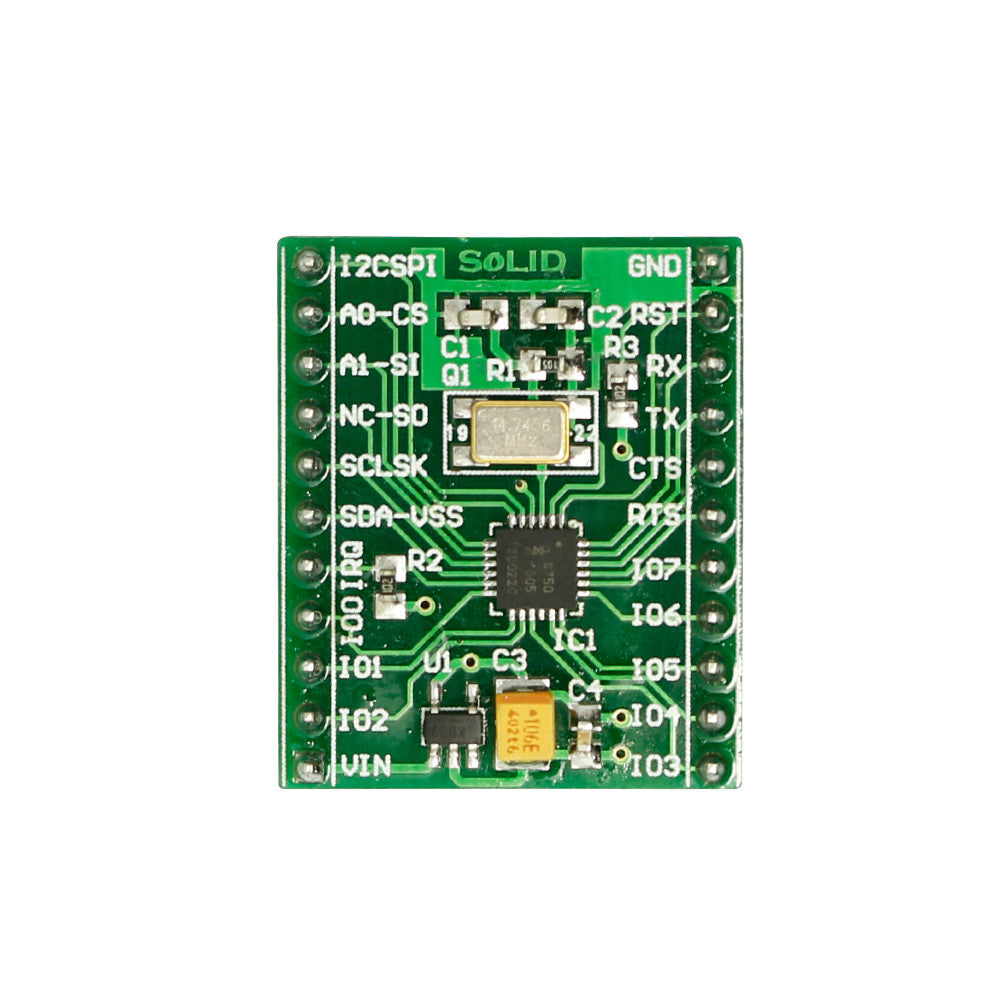

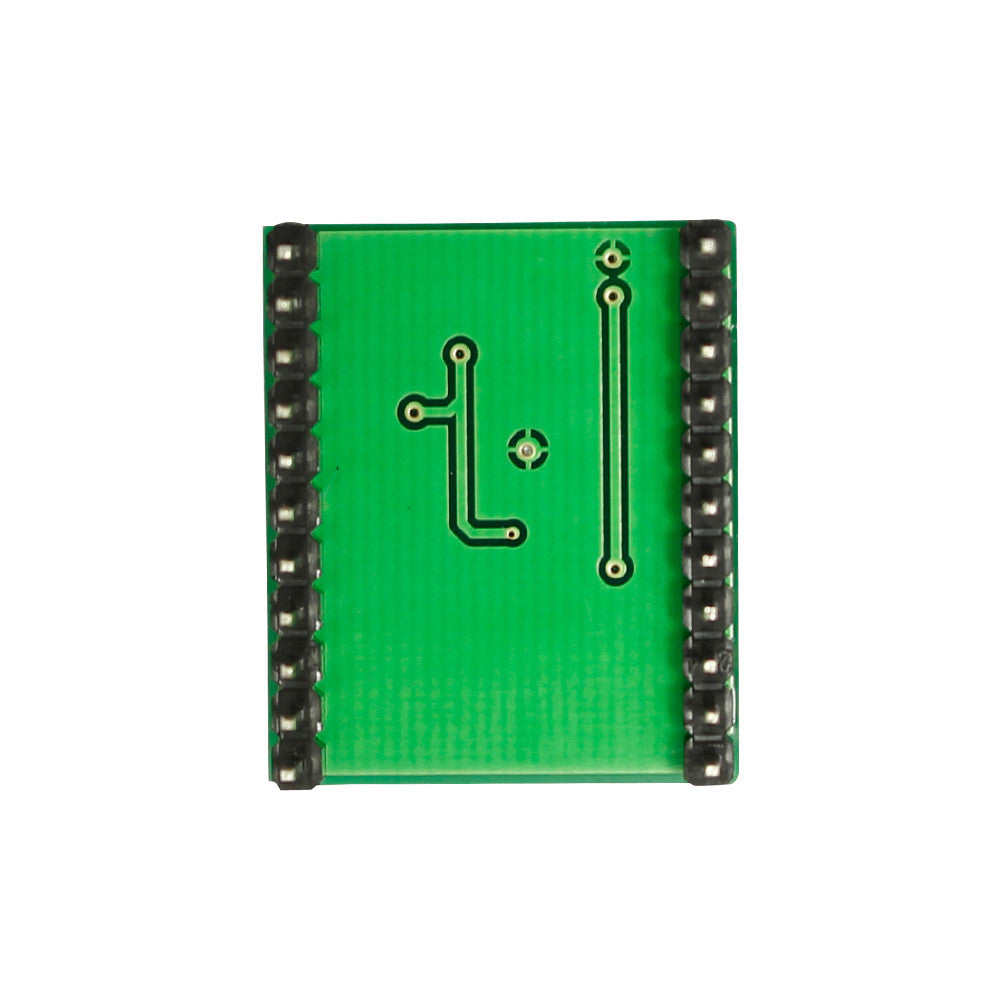

SC16IS750 I2C/SPI-to-UART IC Breakout Board

1x Breakout Board for SC16IS750 I2C/SPI-to-UART IC

Product Description

This is a breakout board for the SC16IS750, a handy chip used to convert I2C or SPI serial signals to a single-channel, high-performance UART.

This is a SC16IS750 adapter board with IIC bus / SPI interface, 64-byte sending and receiving FIFO and built-in IrDA single UART.

SC16IS750 I2C bus / SPI bus interface, single-channel high performance UART provides up to 5Mbit / s data rate, low operation and sleeping current; It also provided eight additional programmable I / O pins for the application. The device contains a tiny 24 foot HVQFN and TSSOP package, making it ideal for portable and battery-operated applications.

SC16IS750 internal register set is backward compatible with the widely used and widely popular 16C450. This makes the software easily written or ported from another platform.

SC16IS750 also offers other advanced features, such as automatic hardware and software flow control, automatic RS-485 support and software reset. This allows the software reset UART at any time, which has nothing to do with the hardware reset signal.

Application

Manufacturing automation and process control

Portable and battery-operated equipment

Cell data devices

Package

1x Breakout Board for SC16IS750 I2C/SPI-to-UART IC
