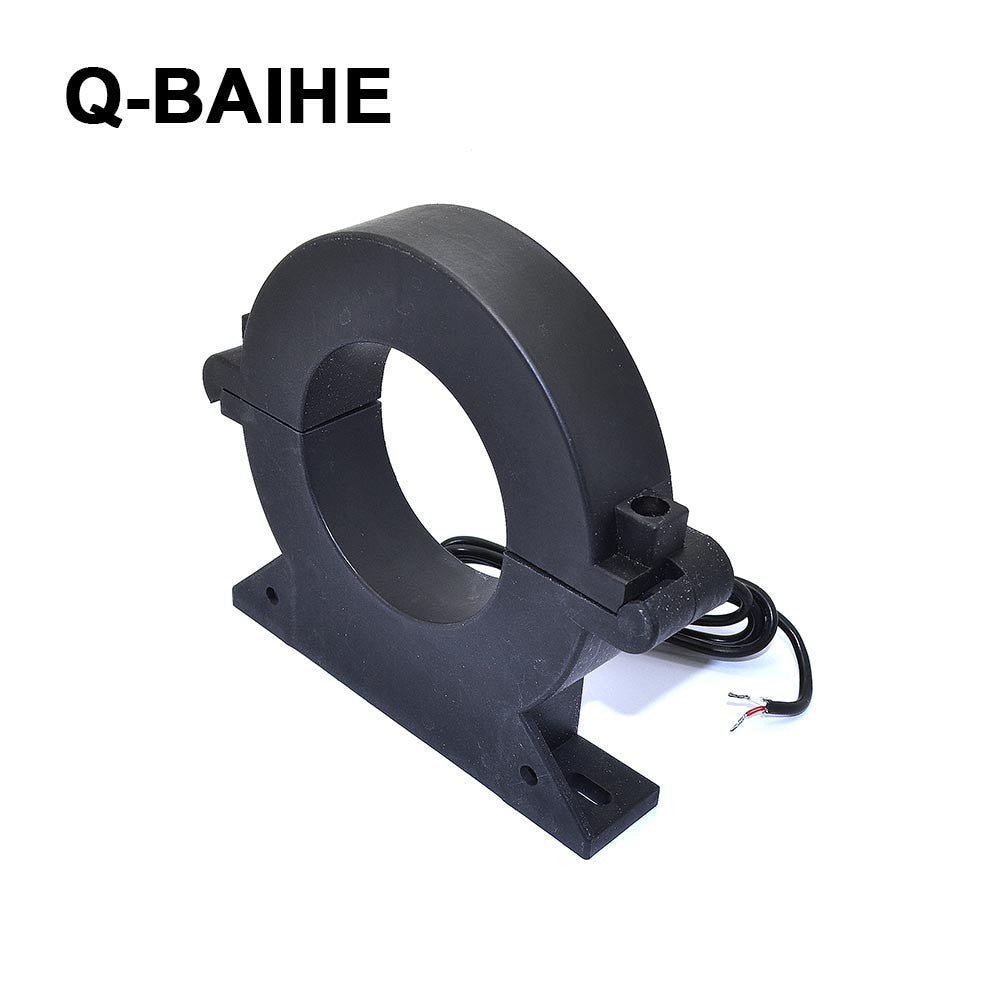

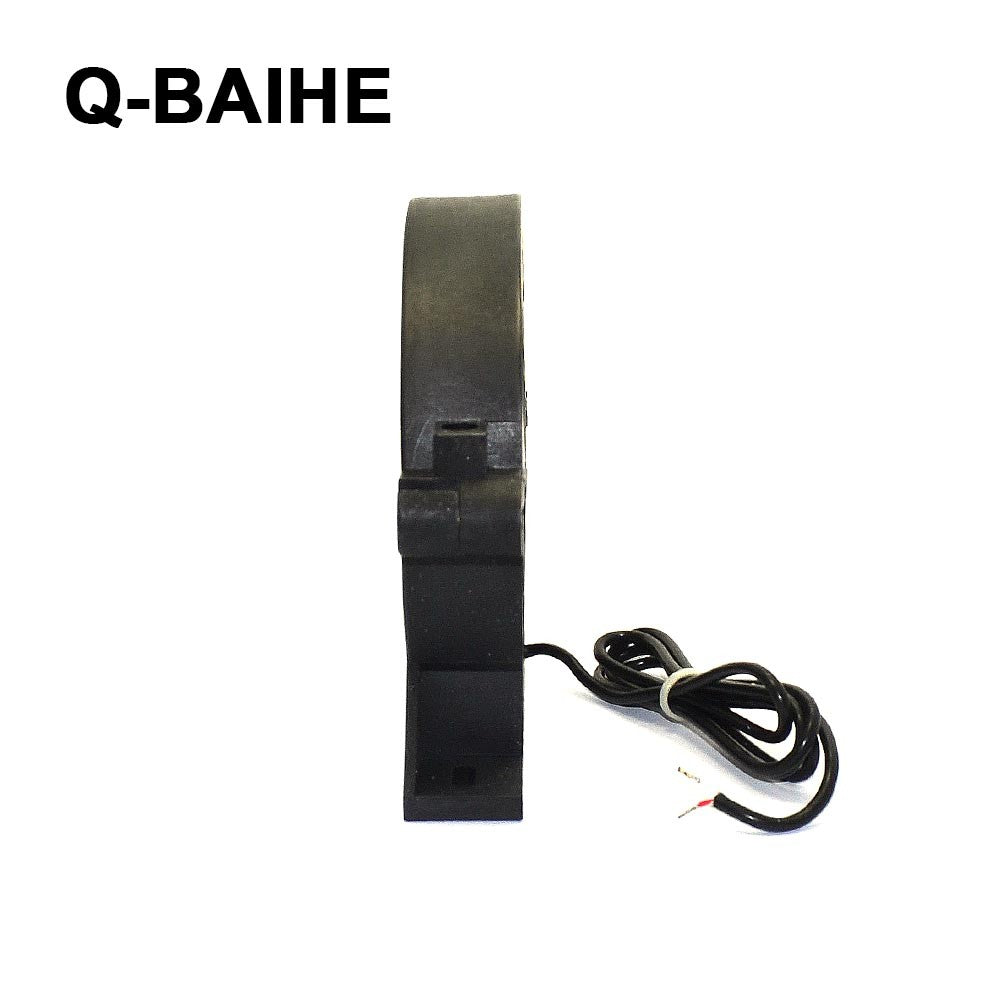

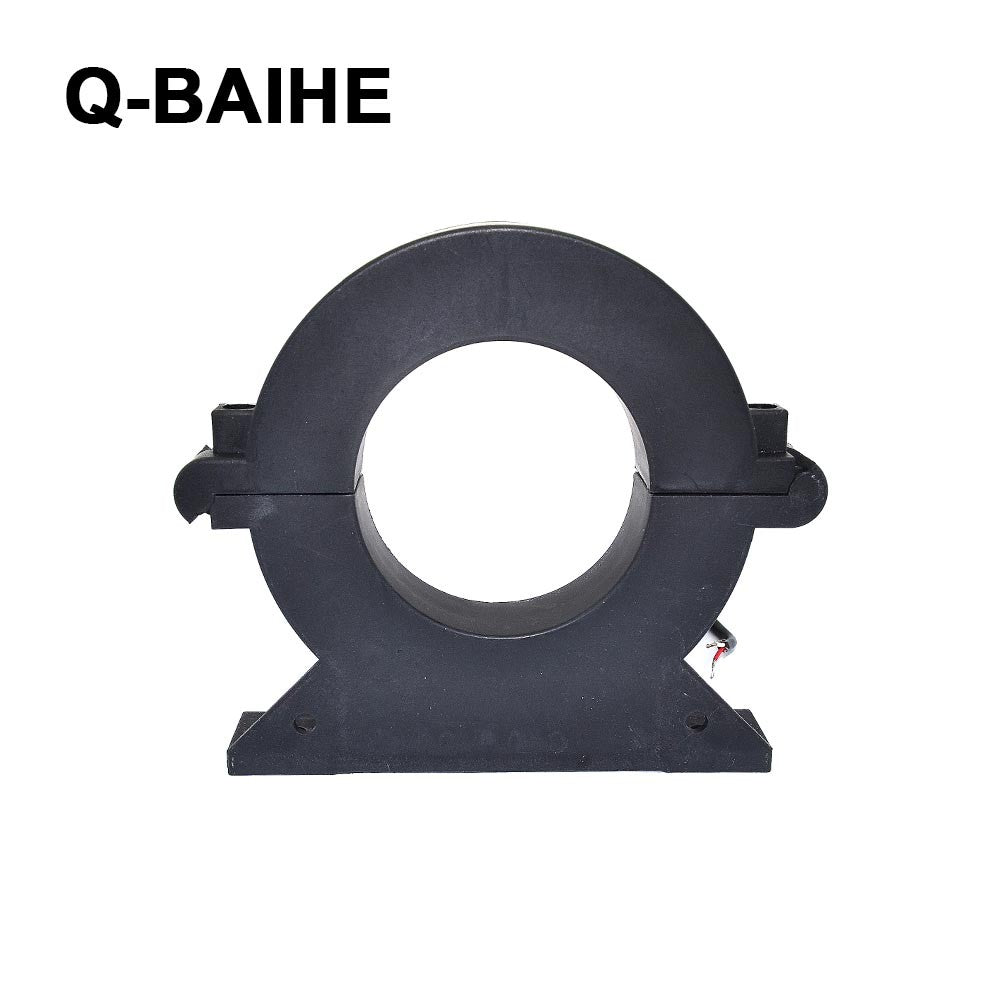

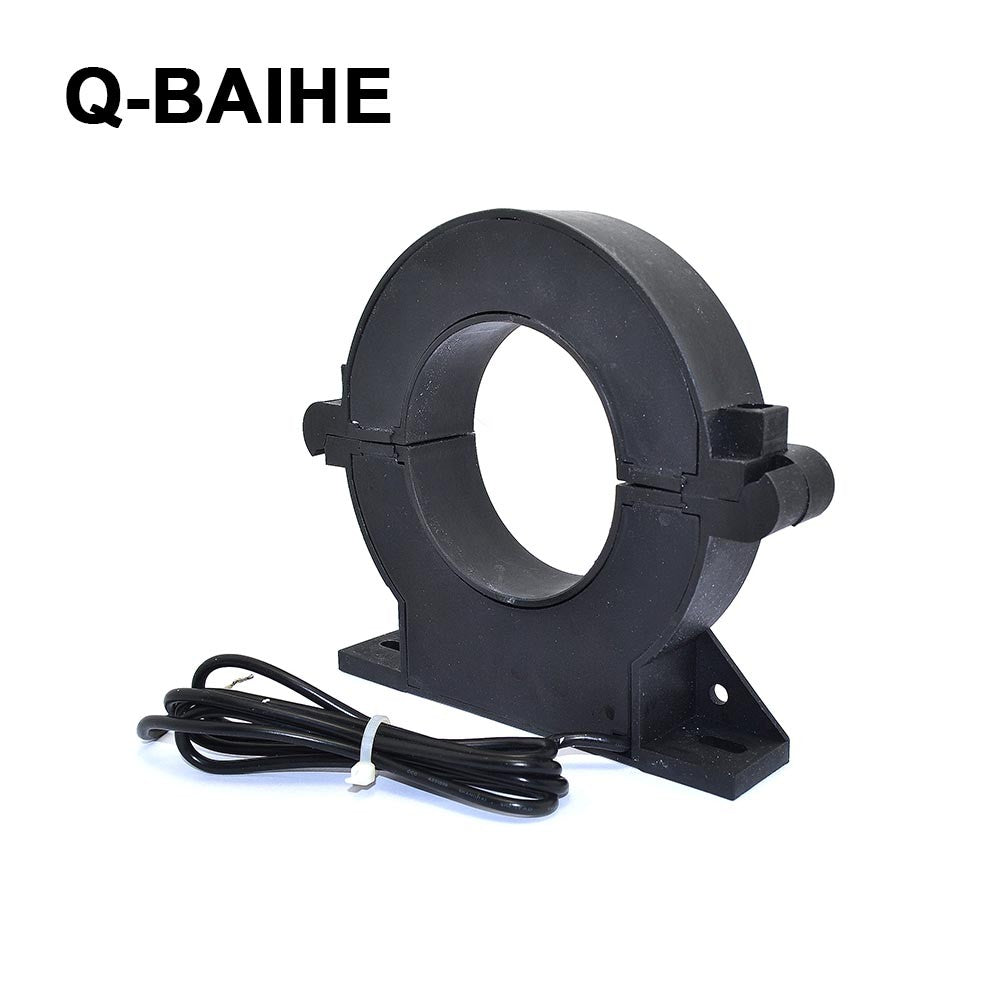

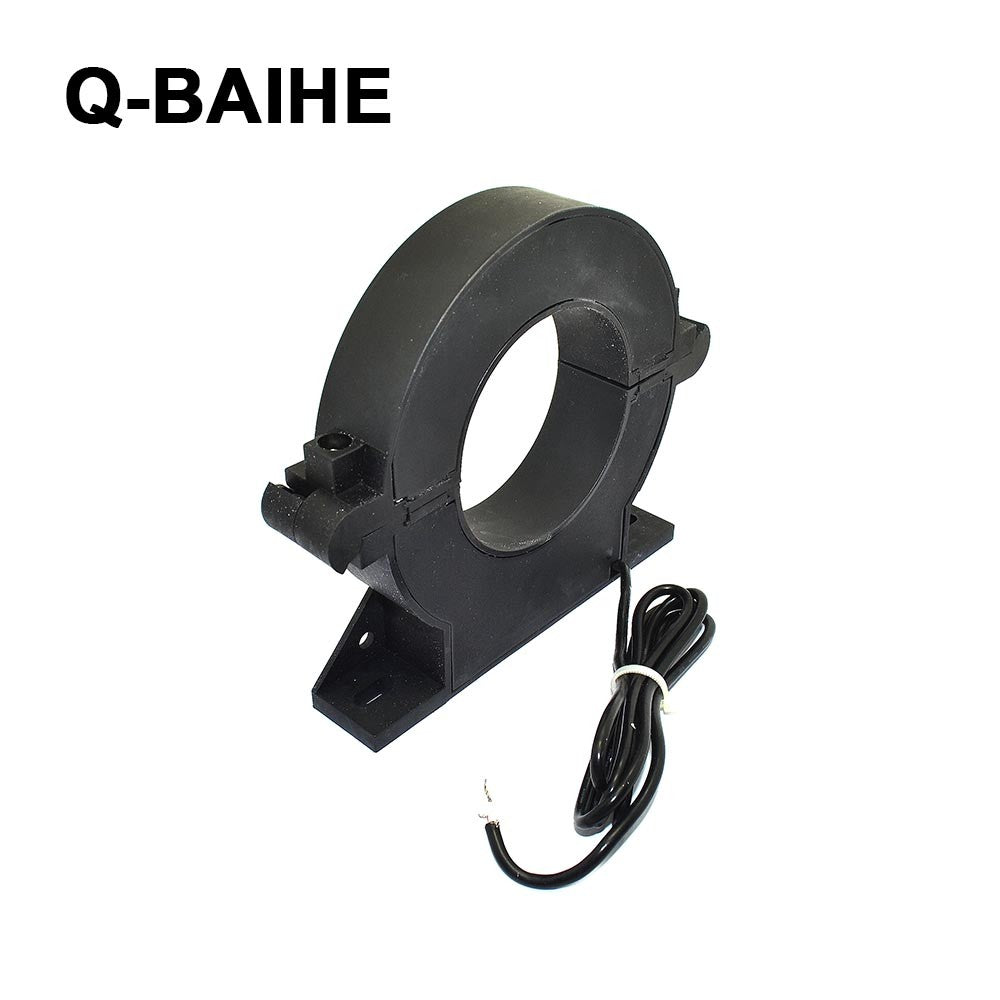

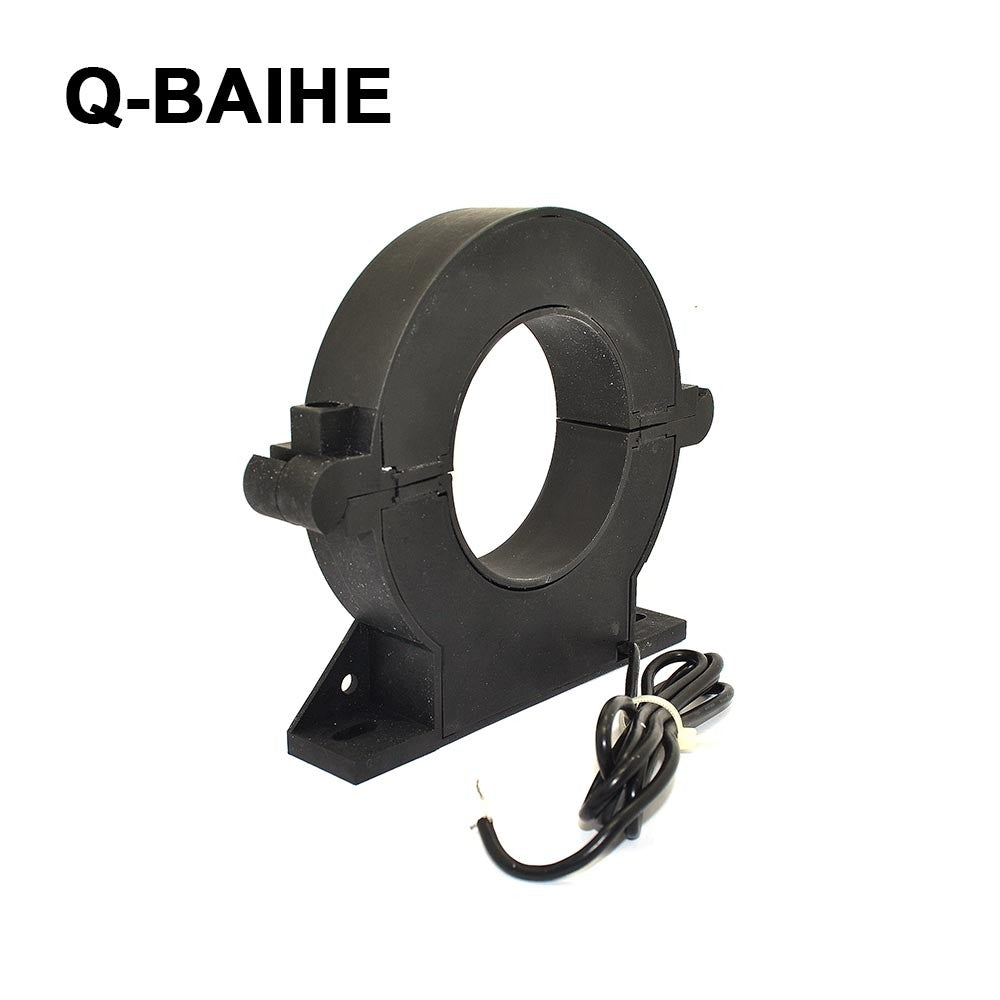

SCT065B Split Core Current Transformer AC 100A-1500A

$51.00

~~$63.00~~ $51.00

Sale Sold out

Shipping calculated at checkout.

Current Type 1200A-1A 500A-0.1A 1000A-0.1A 1500A-0.1A 500A-1A 1000A-1A 500A-5A 1000A-5A 1200A-5A

Quantity

Split Core Current Transformer AC 100A-1500A

Specification:

Open close mutual inductor has various shapes, high-quality core materials, open close structure, easy installation, and various output modes. It is used for AC motor, lighting equipment, air compressor, heating, ventilation and air conditioning device, building self-control system, industrial urban network, rural network transformation project, etc.

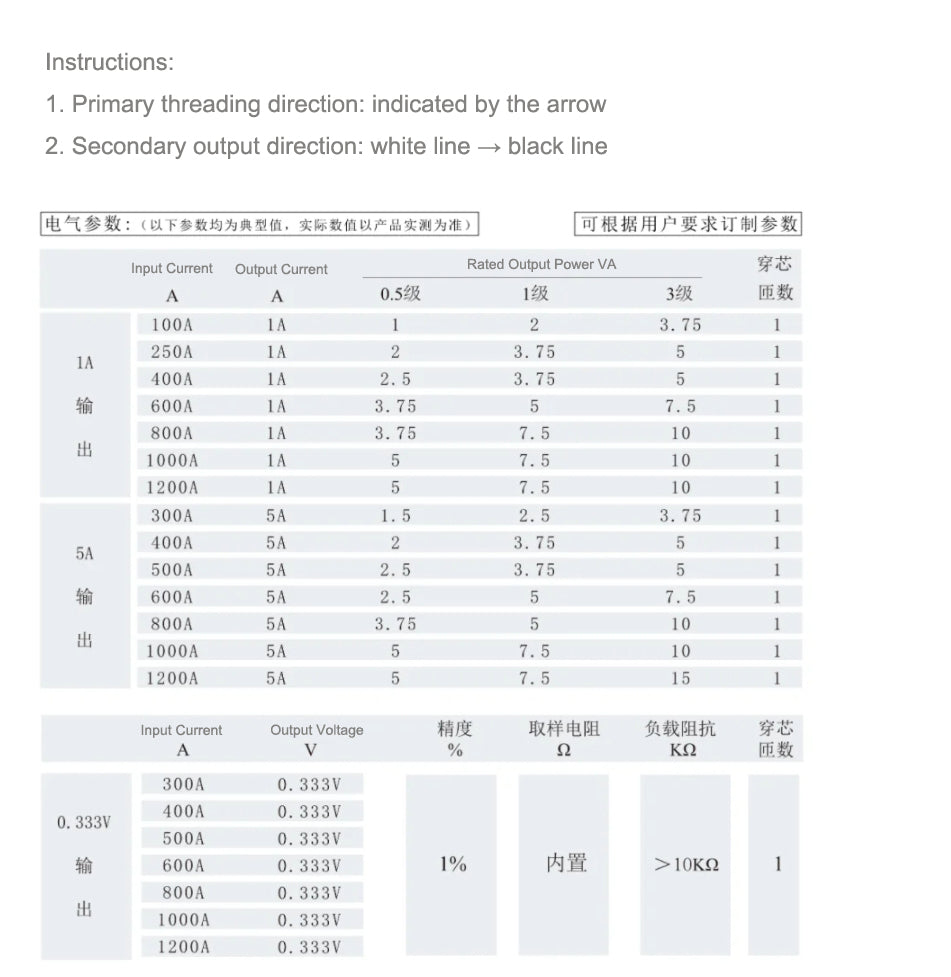

Rated detection current: 100a-1000a

Rated output current: 1A / 5A

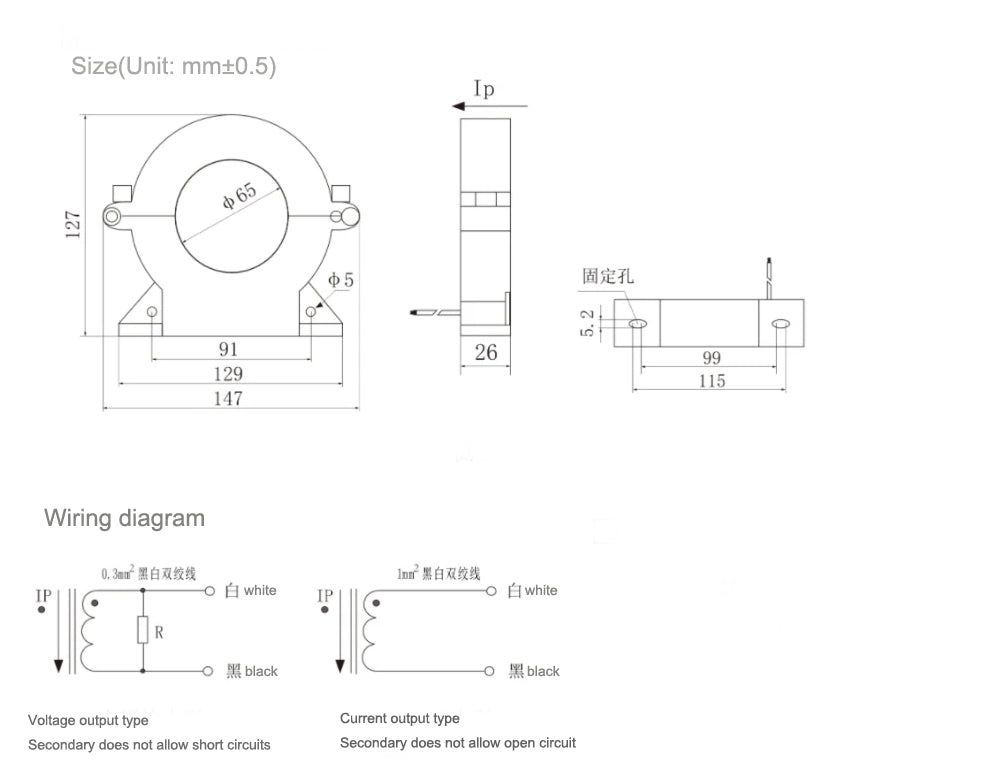

Aperture: 65mm

Core material: silicon steel sheet

Working voltage: one phase voltage < = 660V

Working temperature: 20-60 ℃

Storage temperature: 25-65 ℃

Frequency range: 50-60Hz

Electrical strength: output / shell AC 3.5kv/1min 5mA, 50Hz

Weight: 550G

Package:

1*Split Core Current Transformer 720V AC 5A-1500A
