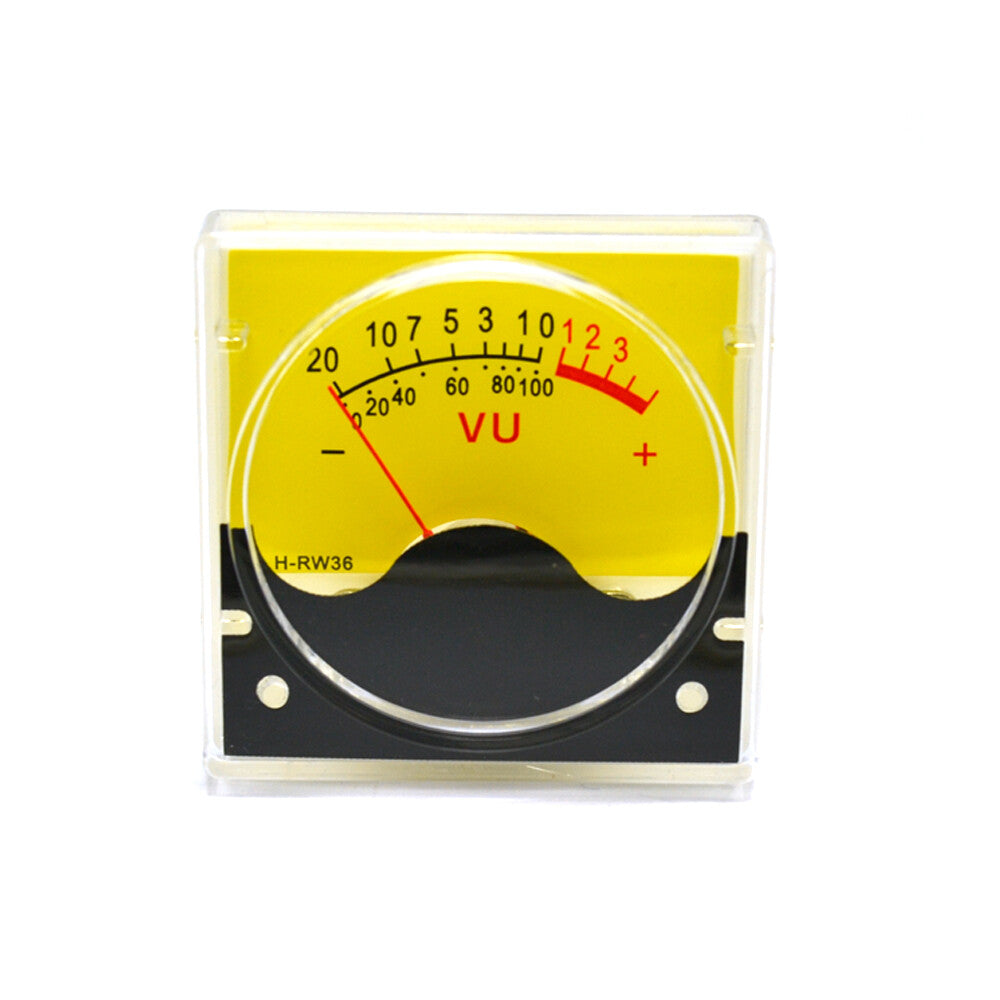

SD-H-RW36 Panel Meters Sound Measuring Instrument (DC 500uA) for Audio Equipment

SD-H-RW36 Panel Meters Sound Measuring Instrument (DC 500uA) for Audio Equipment

$22.00
$24.00 $22.00
Sale Sold out
Shipping calculated at checkout.
SD-H-RW36 Panel Meters Sound Measuring Instrument (DC 500uA) for Audio Equipment
Specifications:
Table core structure: magnetoelectric system (√)
Pointer material: nickel white copper
Color: Fluorescent Red

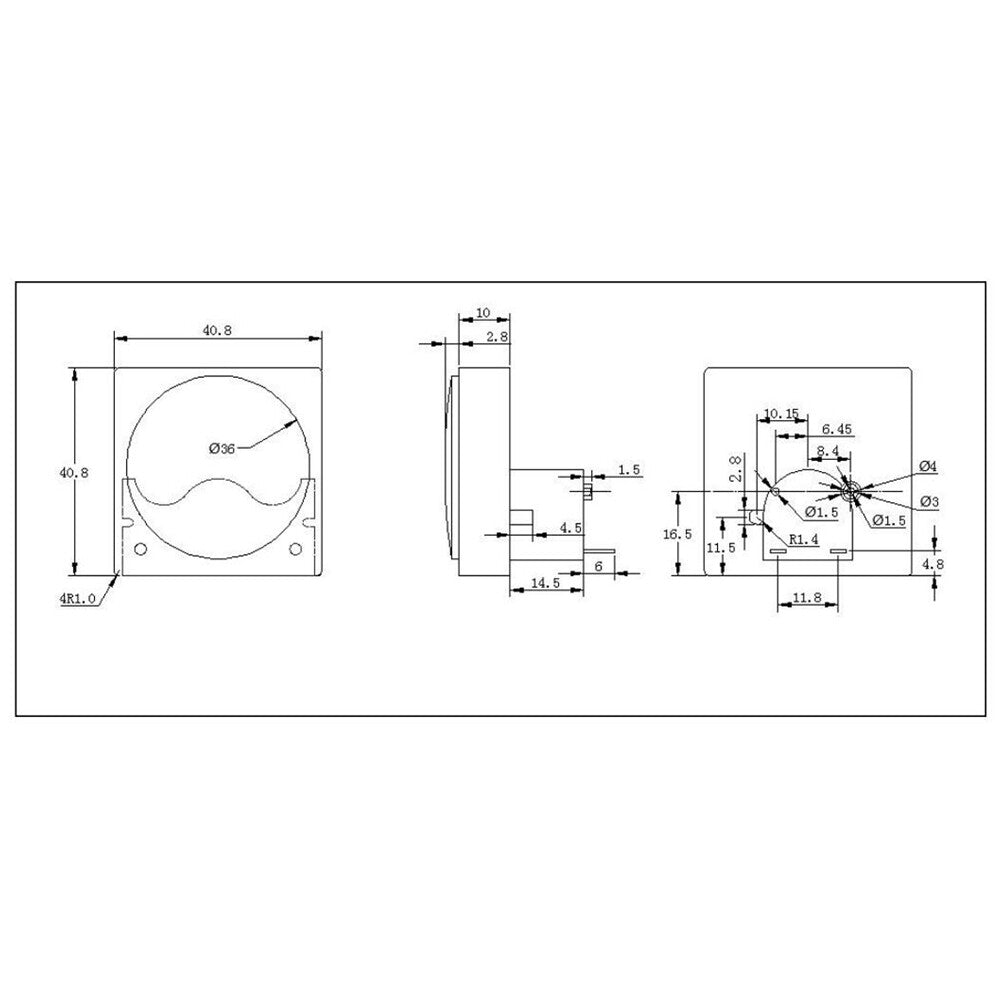

Length: 21.5(±1mm)
Width: 0.35(±1mm)
Pointer deflection direction: deflection clockwise from left to right.
Cover material: Acrylic (PMMA)
Lower cover material: ABS White
Nameplate material: PC
Meter use position: Vertical use
Internal DC impedance of the meter head: 650Ω±10%
Friction error: ±1mm
Balance error: ±1.5mm
Relative error: ±5%
Damping time: 2-3 seconds
Insulation strength: above 50MΩ
Bulb: No internal bulb


Package:
1*H-RW36 Sound Measuring Instrument
