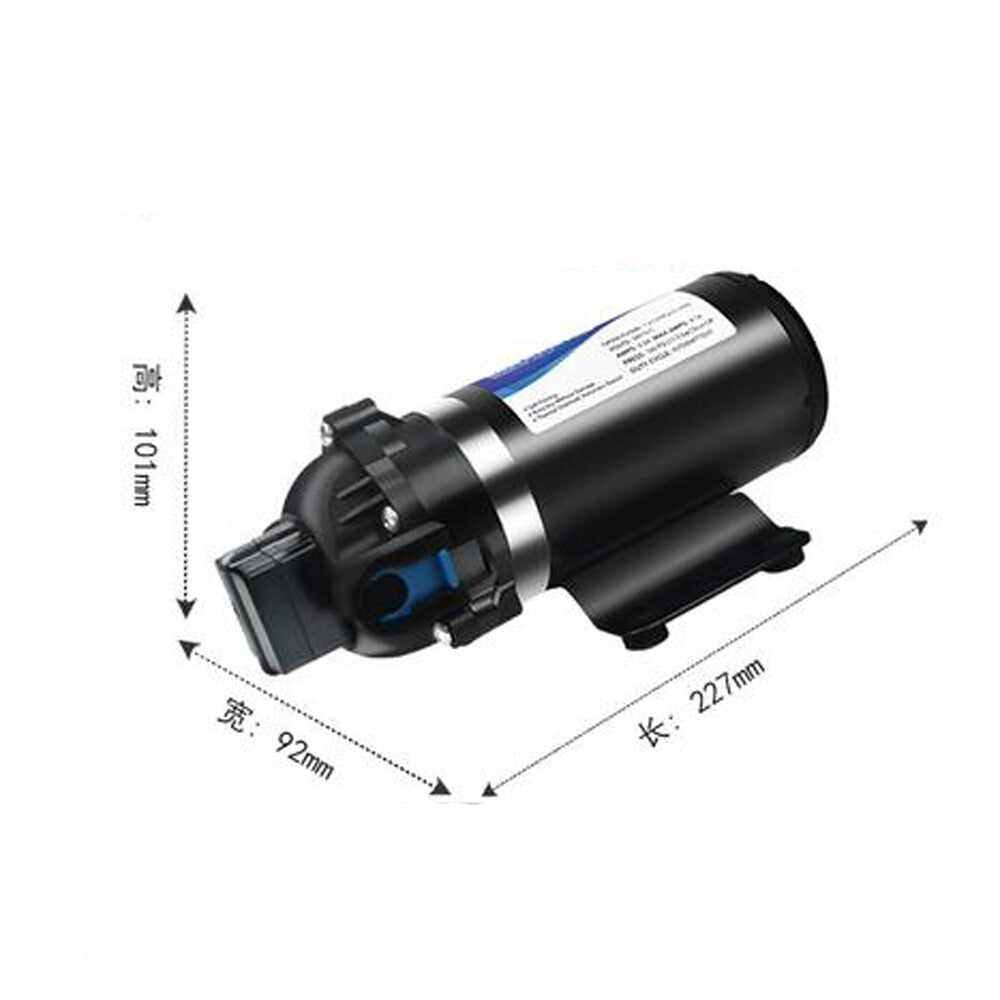

Small High Pressure Pump High Lift Spray Car Wash Floor Roller Diaphragm Pump

Small High Pressure Pump High Lift Spray Car Wash Water Pump Road Roller Washing Floor Heat Cleaning Machine Diaphragm Pump

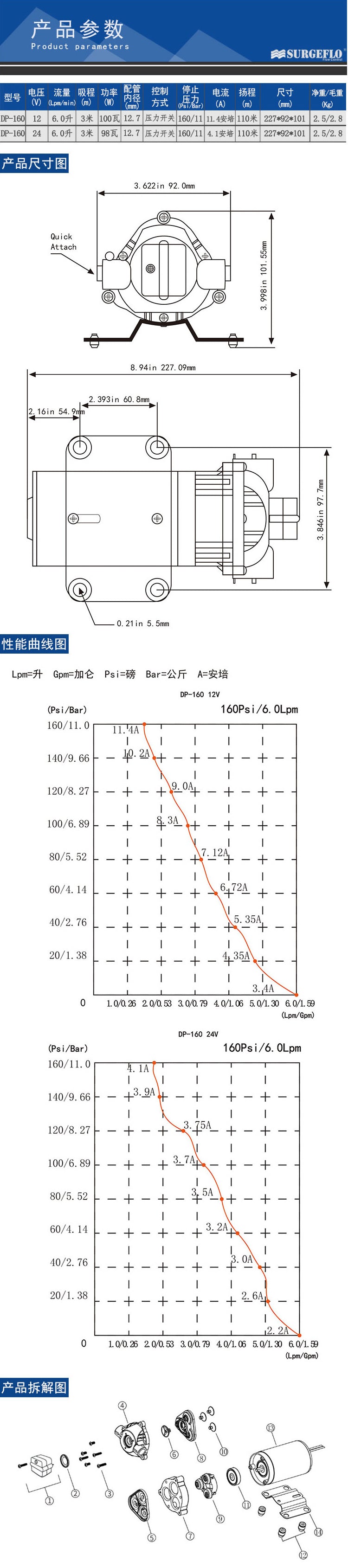

Specification:
Type: DC Electric Diaphragm Pump

Voltage: 12V-24V

Flow: 6.0Lpm/1.6Gpm

Pressure: 160Psi/11Bar

Current: 12V: 11.4A 24V: 4.1A

Head: 110m

Suction lift: 3m

Speed: 2900r/min

Frequency: 50HZ

Power: 12V: 100W 24V: 98W

Insulation class: E class

Product pumping medium use conditions:

Ambient temperature: ≤+50℃.

Medium temperature: 0~+65℃.

The PH of the value is between 5.0-7.5.

The volume of solid impurities in the medium is ≤0.1%, and the particles are not larger than 0.2mm.

The power frequency is 50Hz, the voltage is DC 12V/24V, and the voltage fluctuation range is ±10% of the rated value

Package:

1*DC Electric Diaphragm Pump
