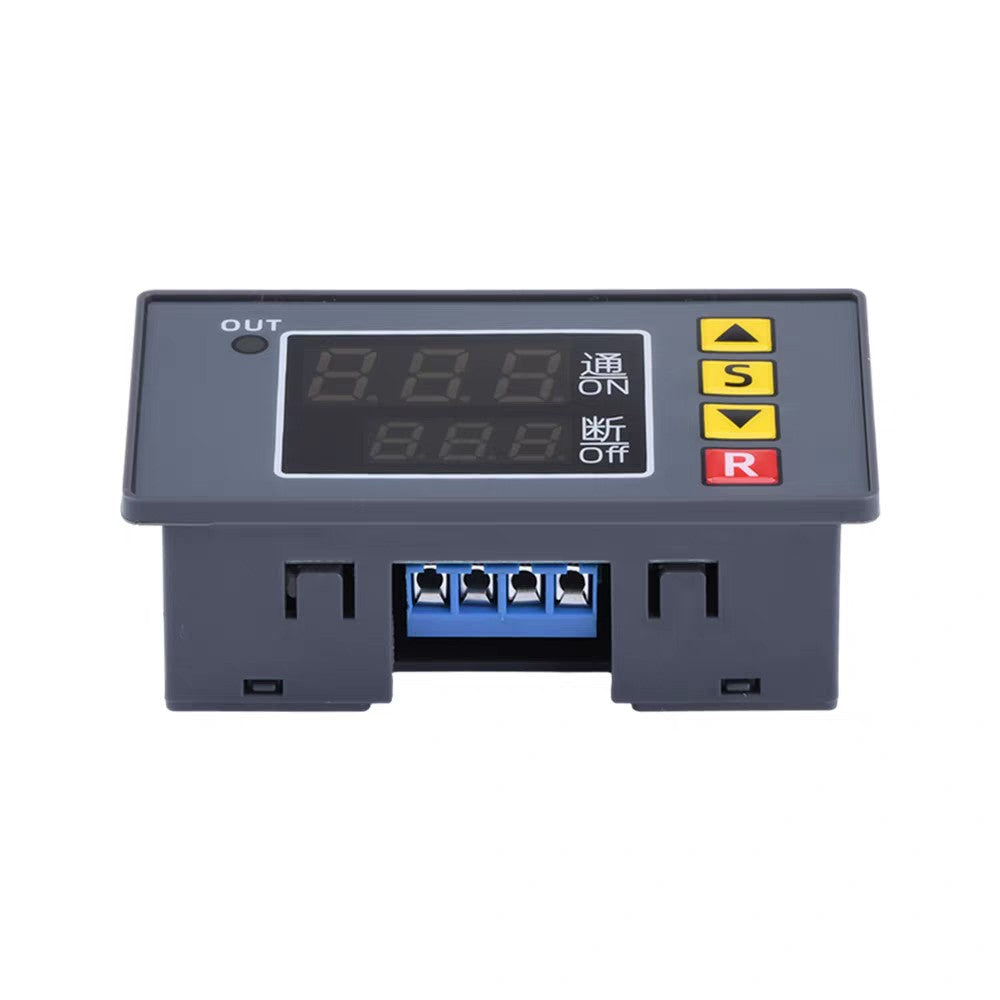

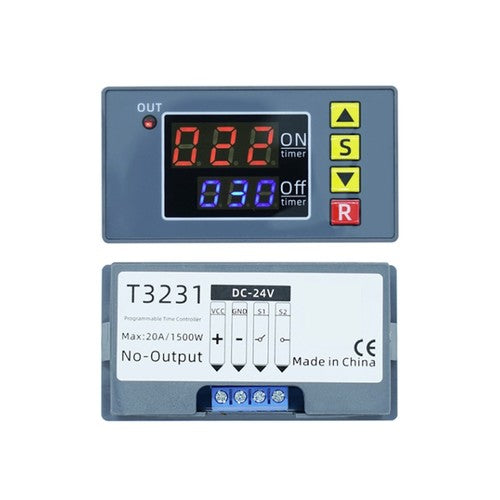

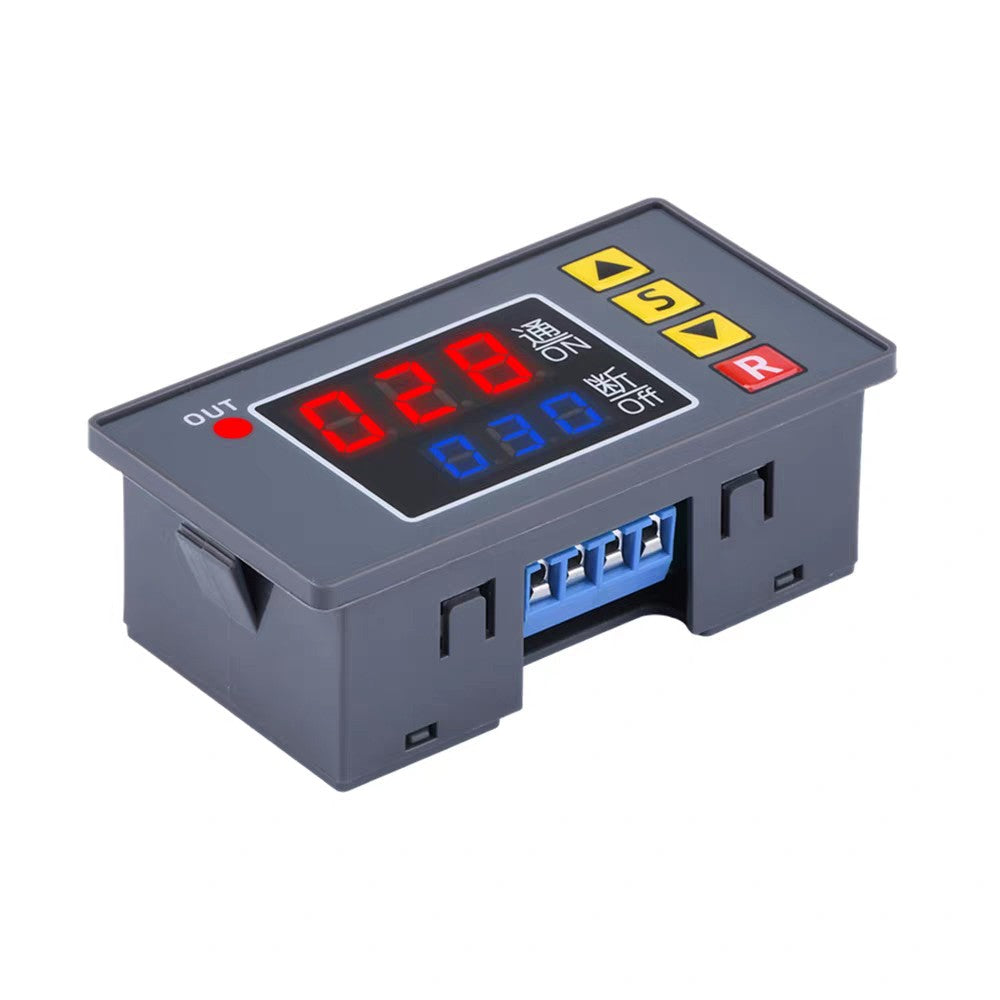

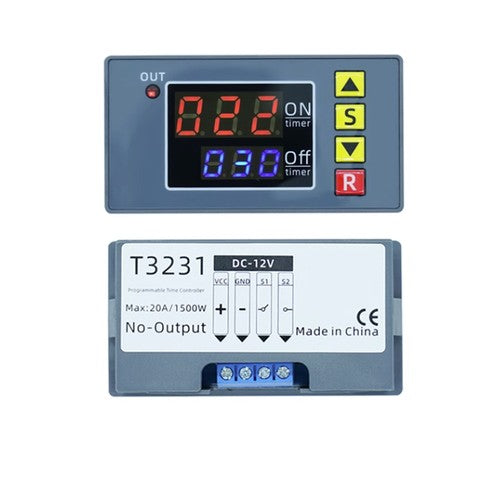

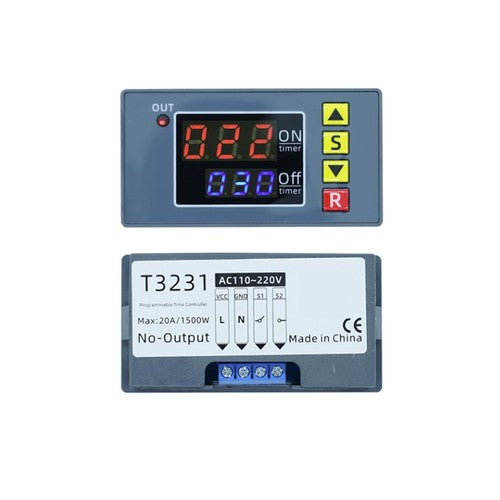

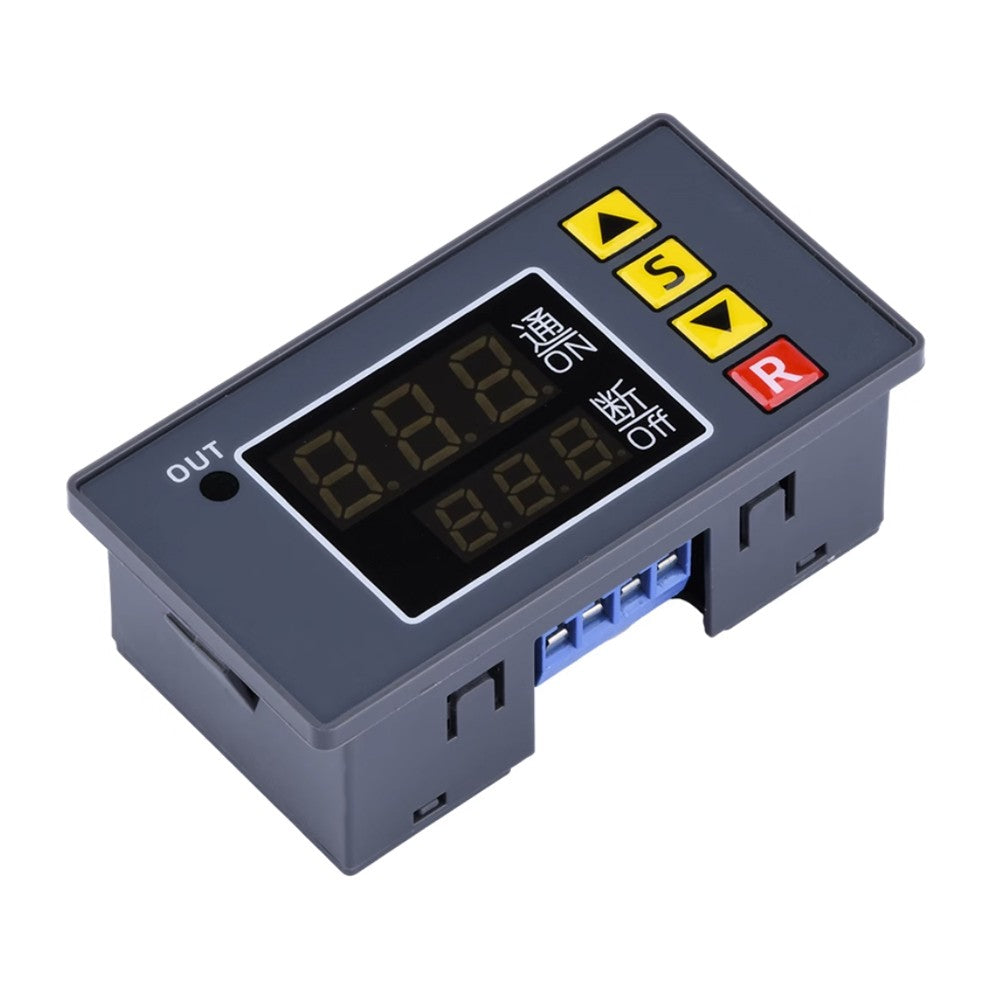

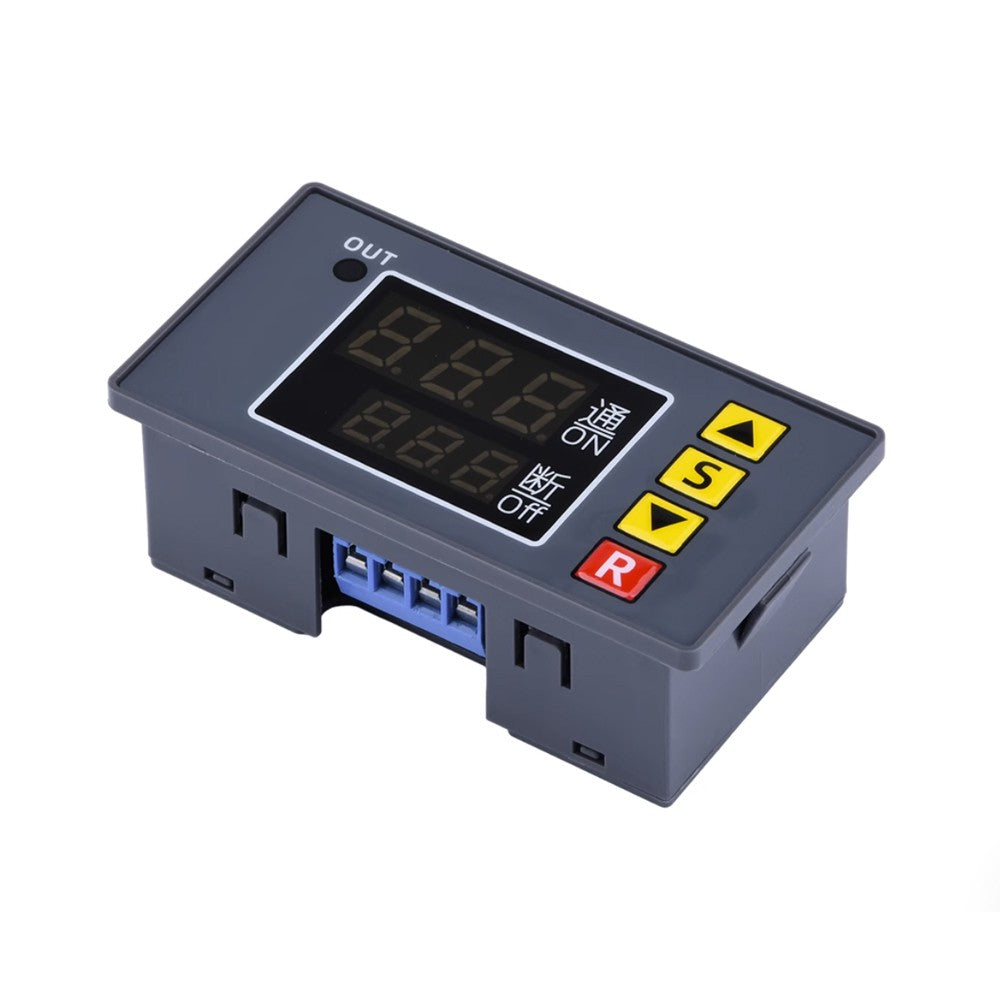

T3231 Adjustable Digital Delay Relay LED Display Cycle Timing Control Switch
Product Features:
1. Wide time range: Digital cycle timer relay module, with a time range from 1 second to 999 hours

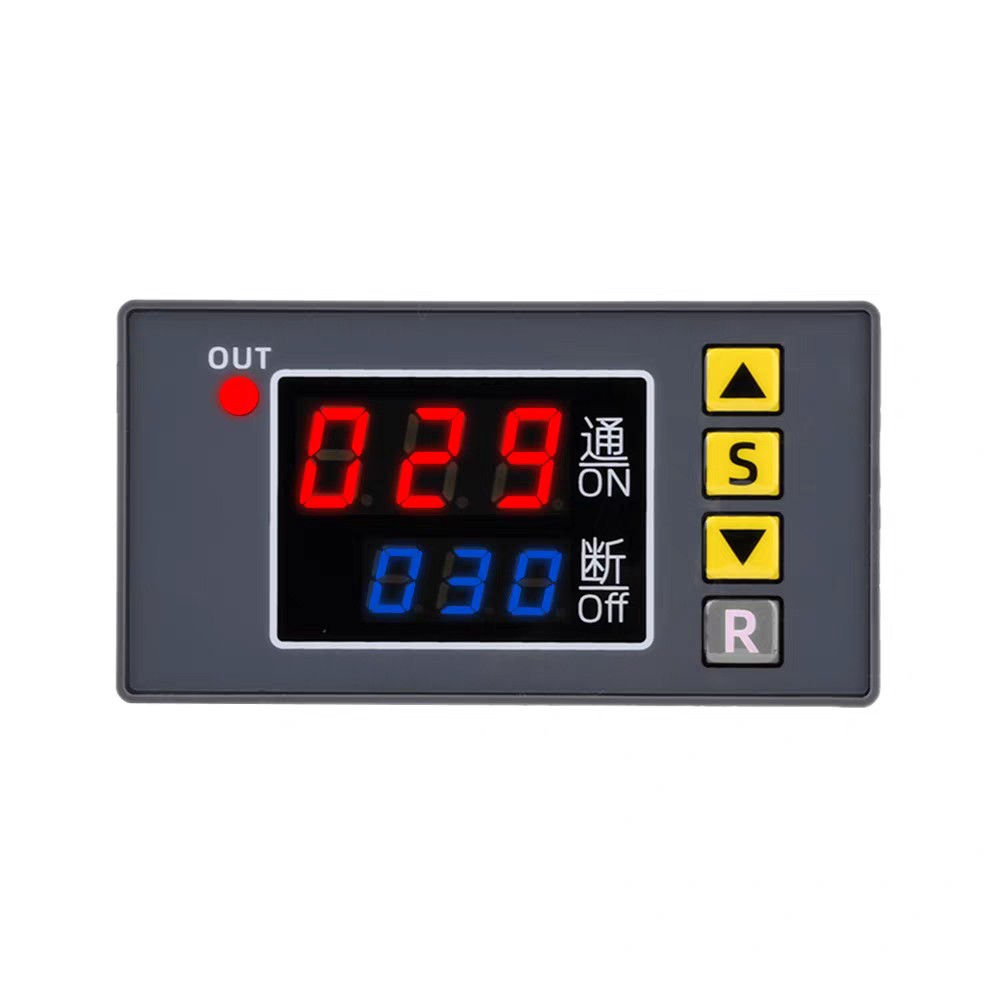

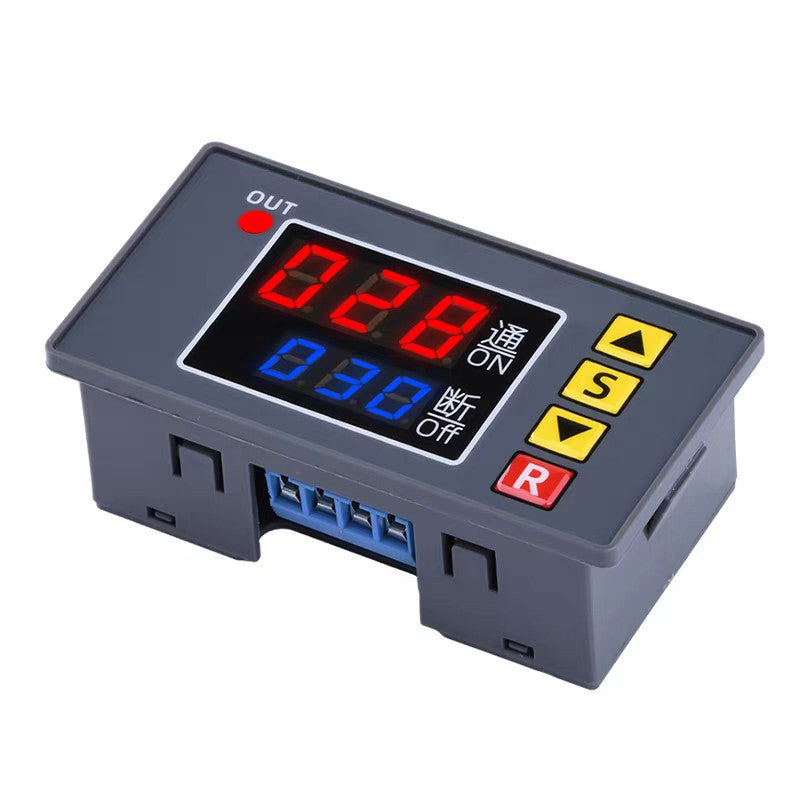

2. Dual LED display screen: red and green dual LED display modules and touch buttons for easy setting of delay time and working mode
3. Supports multiple working modes, including timed, cyclic, and periodic working modes, to meet most of your needs
4. Direct output, input=output, 9 combinations of timing units, supports manual triggering
5. Installation size: 77 × 39.3mm, embedded installation, suitable for various application scenarios
Specifications:
Product Name: T3231 Controller
Working voltage: DC12V/20A/240W AC110~220V/1500W (MAX) AC110~220V/2200W/10A (MAX)
Output type: active output, no short circuit, pay attention to safety
Relay type: 1-channel normally open relay
Timing unit: seconds/minutes/hours
Timing range: 0~999, minimum measurement unit 1 second
Loop switch: Supports
Delayed startup: supported
Delayed shutdown: supported
Infinite Loop: Supports
Power off saving: supported, only saves settings, power on reset and restart
Beep alarm: None
Limited cycle: 1~999 adjustable cycles
Trigger method: automatic trigger (default)/manual trigger
External trigger: Reserve an external trigger port and install a trigger device on your own
Product size: 79.5 × 42.1 × 27.8mm
Installation opening: 72 * × 39.3mm
Package：1*
T3231 Controller
