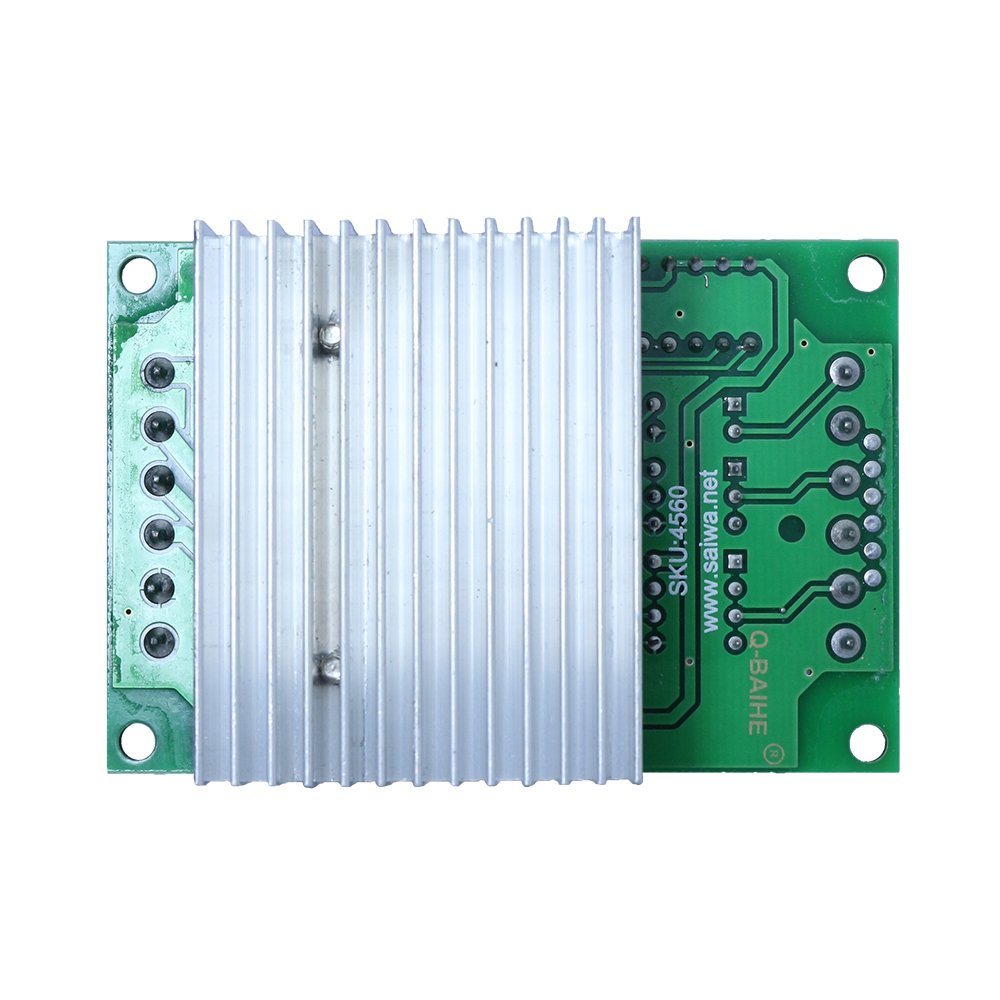

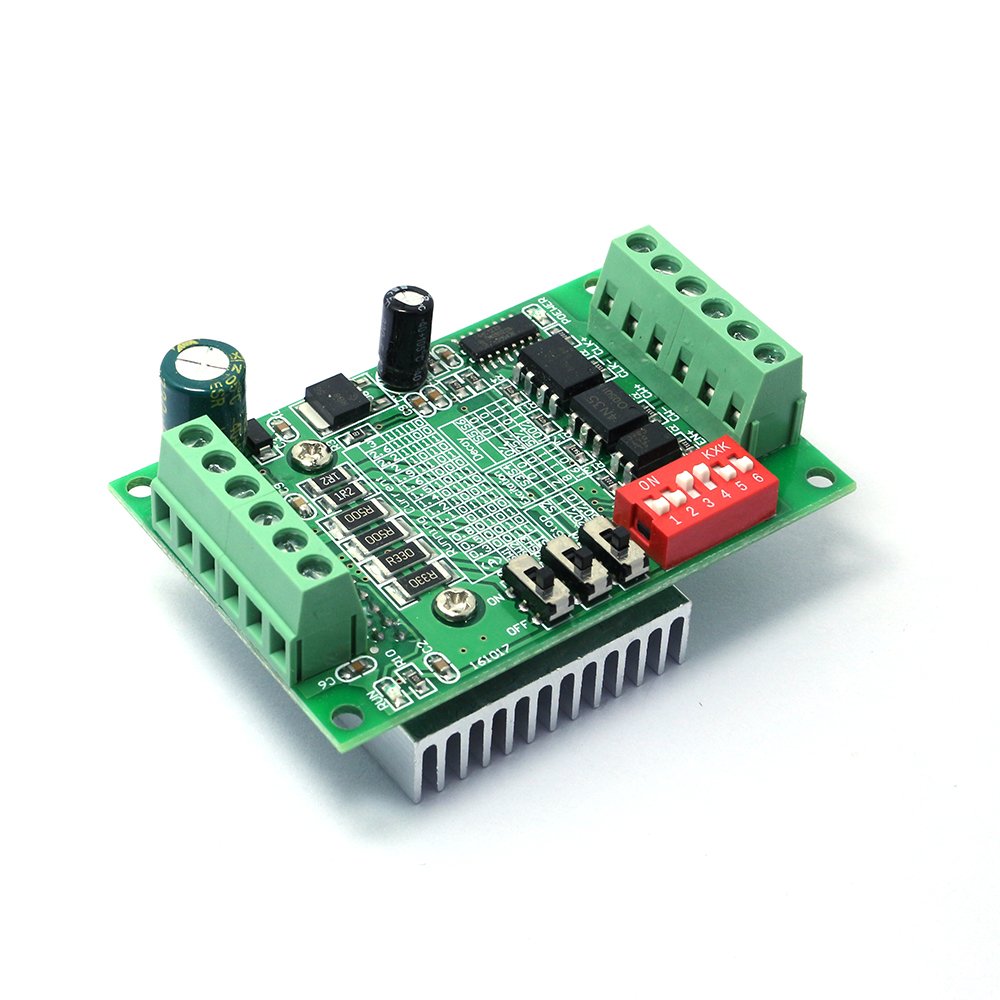

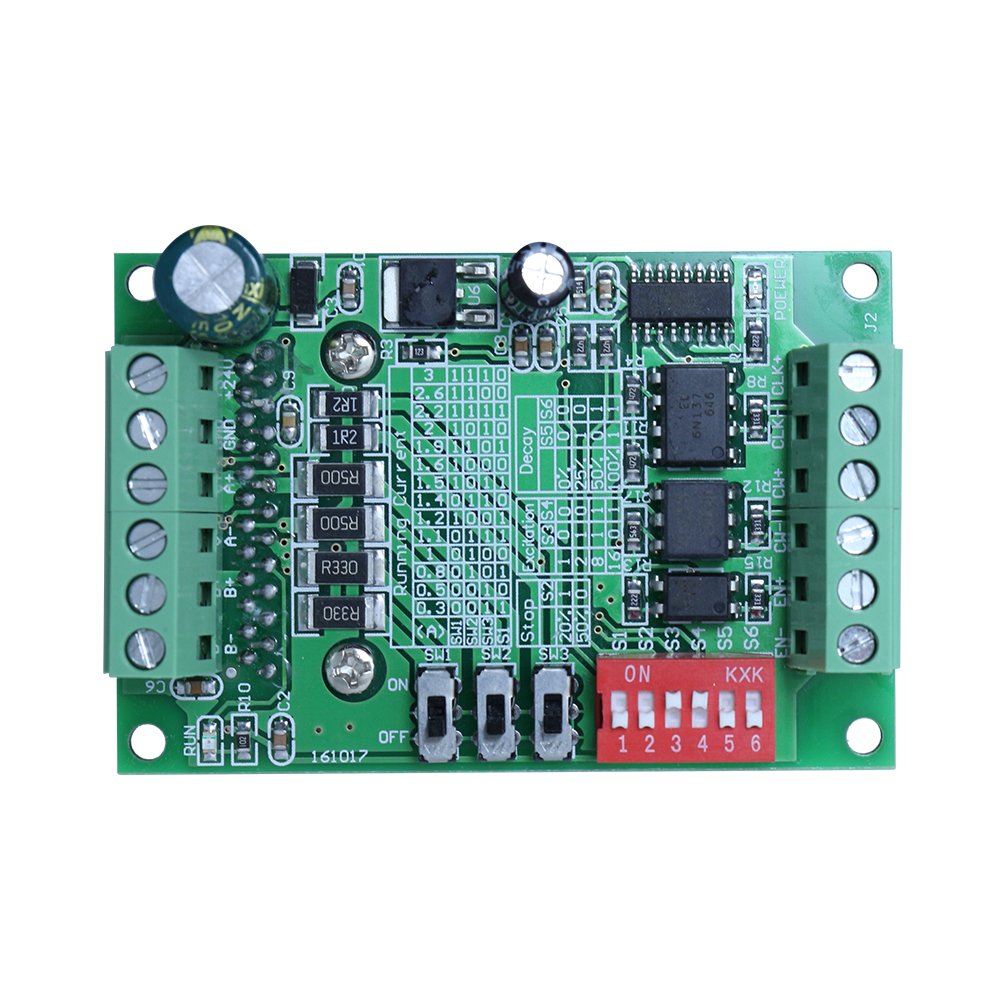

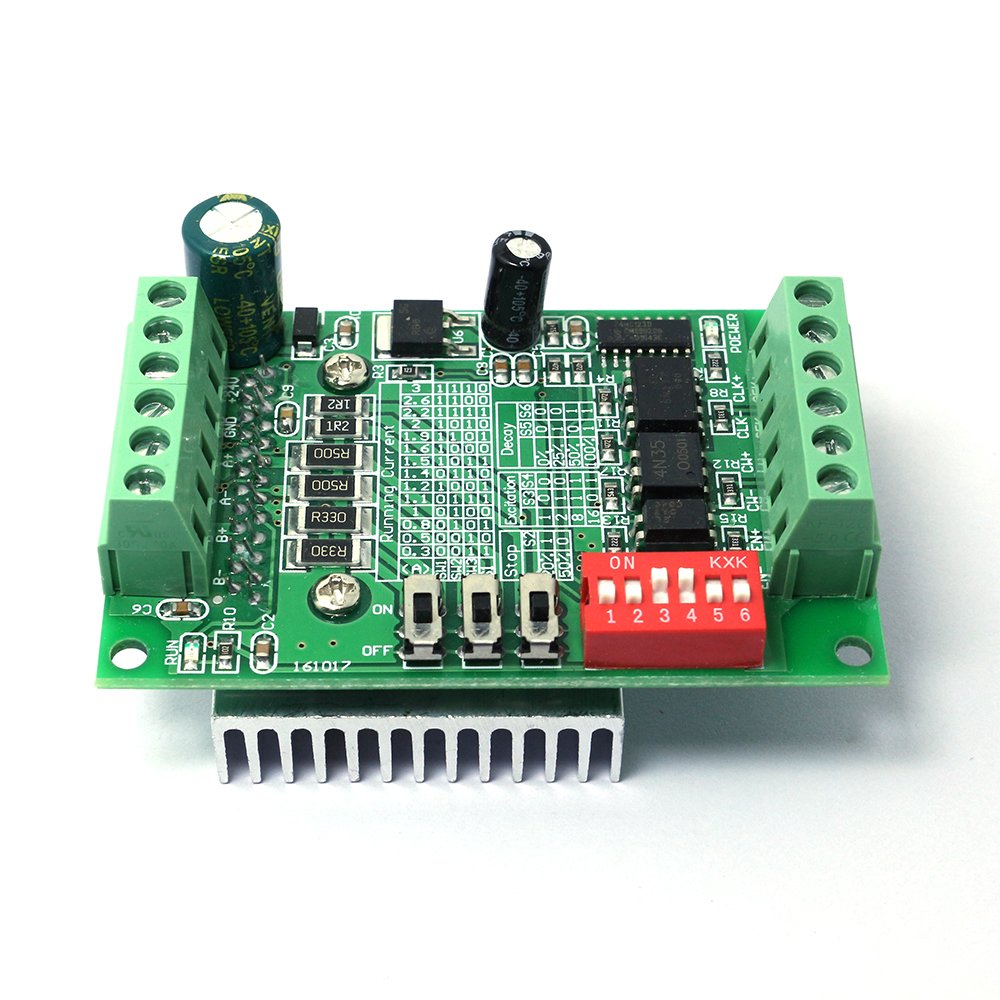

TB6560 3A Stappenmotor Driver/Driver Board Enkele As Controller 10 (C6A1)

Specifications:

This product has been fully tested and applied to the engraving machine, placement machine and other equipment, quality assurance, can be assured use.

1. Operating voltage DC 10V-35V. It is recommended to use DC24V switching power supply.

2. Using 6N137 high-speed light lotus, to guarantee high speed without losing pace.

3. Toshiba Toshiba TB6560AHQ new original chip, with low voltage shutdown, overheating and surge protection circuit to guarantee the best performance.

4. Rated maximum power: 3A, peak 3.5A.

5. Suitable for 42.57 steps 3A within the two-phase/four-phase/four-wire/six-wire stepper motor, not suitable for more than 3A stepper motor.

6. Automatic half-flow function.

7. Break: the whole step, half step, 1/8 steps, 1/16 steps, the largest 16 subdivision.

8. Volume: width 50*long 75*high 35(MM) Weight: 83G

Features in similar products:

1. Current level by adjustable, to meet your needs of different applications.

2. Using 6N137 high-speed light lotus, to guarantee high speed without losing pace.

3. Printset instructions, do not need to edit the instructions.

Remark:

This module has no protective circuit, use should be very careful, otherwise the chip is easy to burn. The chip is not covered by the warranty.

1. Check the wiring repeatedly, before the current, wiring can be burned chip

2. The current set must not exceed the rated current of the motor

3. If you need manual wiring diagram, please contact us and we will send to your email.

Package:

1x TB6560 3A Stepper Motor Driver /Driver Board Single Axis Controller 10 (C6A1)
