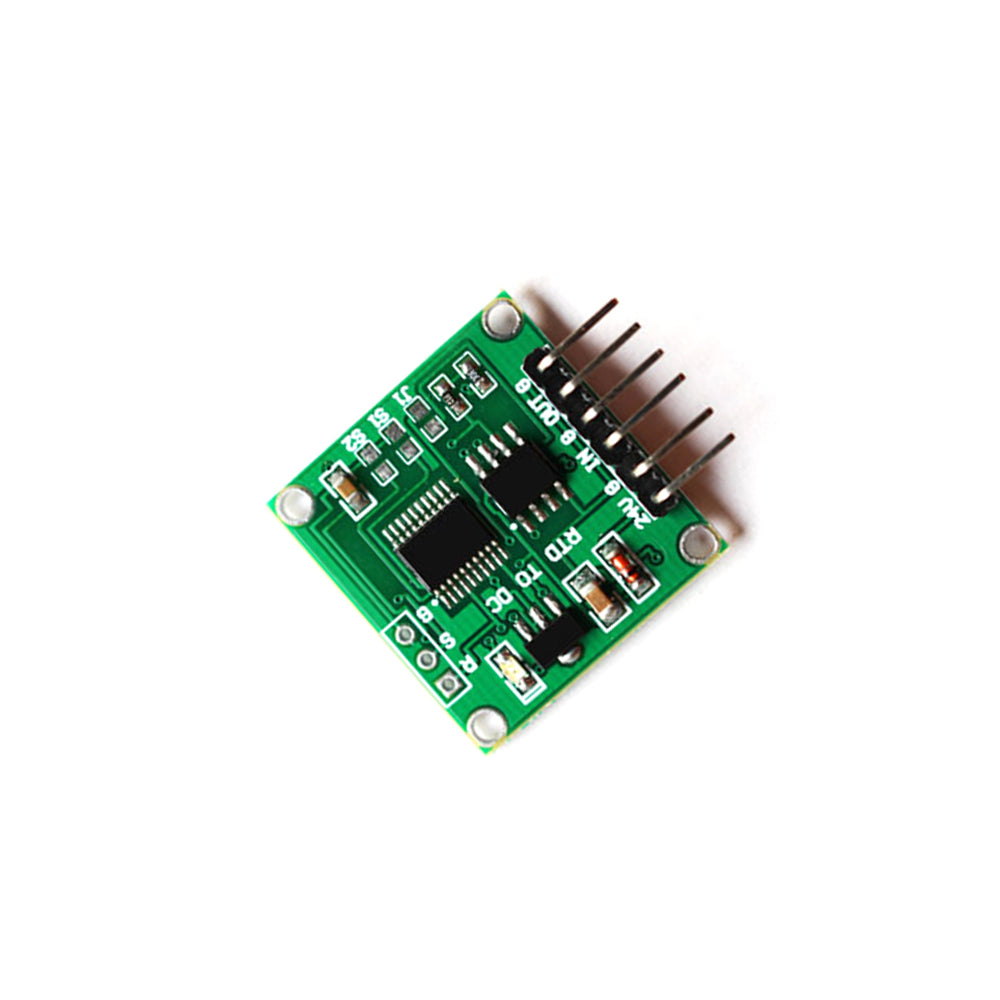

Thermal Resistance to Voltage PT100 to 0-5V 0-10V Temperature Transmitter

Name: Thermal Resistance to Voltage PT100 to 0-5V 0-10V Temperature Transmitter
Brand: lilly electronics
SKU: XDL-PT100-TO-VOLT
Price: 45.00 CAD
Availability: InStock

$45.00

Sale Sold out

Shipping calculated at checkout.

Quantity

Thermal Resistance to Voltage PT100 Turn 0-5V 0-10V Linear Conversion PT100 Temperature Transmitter Module

Specifications:

1. Working voltage: 9V to 24V

2. Input resistance: Pt100 thermal resistance

3. Output voltage: 0.00V ～ 5.00V / 0.00V ～ 10.00V

4. Temperature measurement range: -100 to +500 (degrees).

5. Output method: S2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit. The S1 and J1 pads are not used.

6. Application: remote data acquisition and control equipment;

7. Size: (length) 26mm * (width) 23mm * (height) 10mm

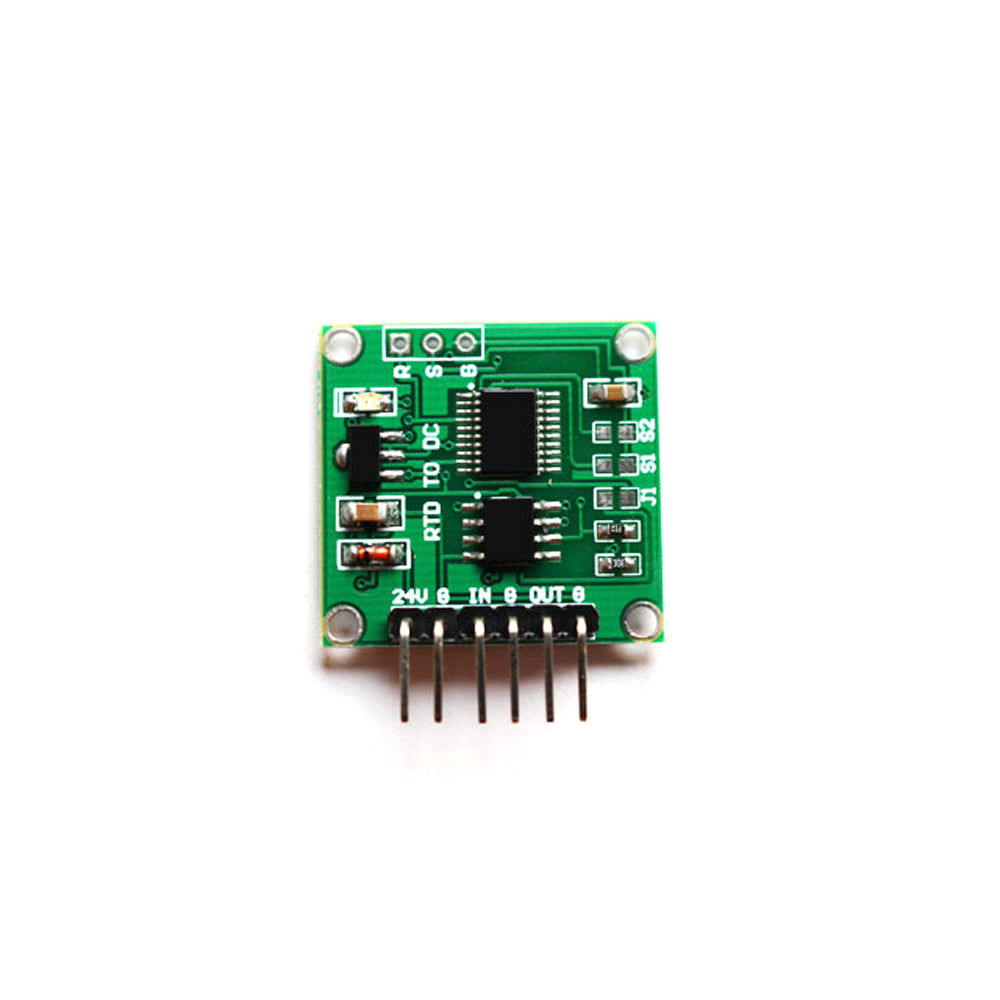

8. Module interface:

24V: Power positive connector (9V ~ 24V).

G: Power ground interface.

IN: Positive terminal of thermal resistance.

G: Thermal resistance negative terminal.

OUT: Signal output interface (0.00V to 5.00V / 0.00V to 10.00V).

G: Power ground interface.

Note: When outputting 0.00V ~ 10.00V, the power supply voltage should be 15V.

Output (0.00V ～ 5.00V) Resolution: 0.0083333V / ℃ (Voltage / Celsius)

Output (0.00V ～ 10.00V) Resolution: 0.0166666V / ℃ (Voltage / Celsius)
