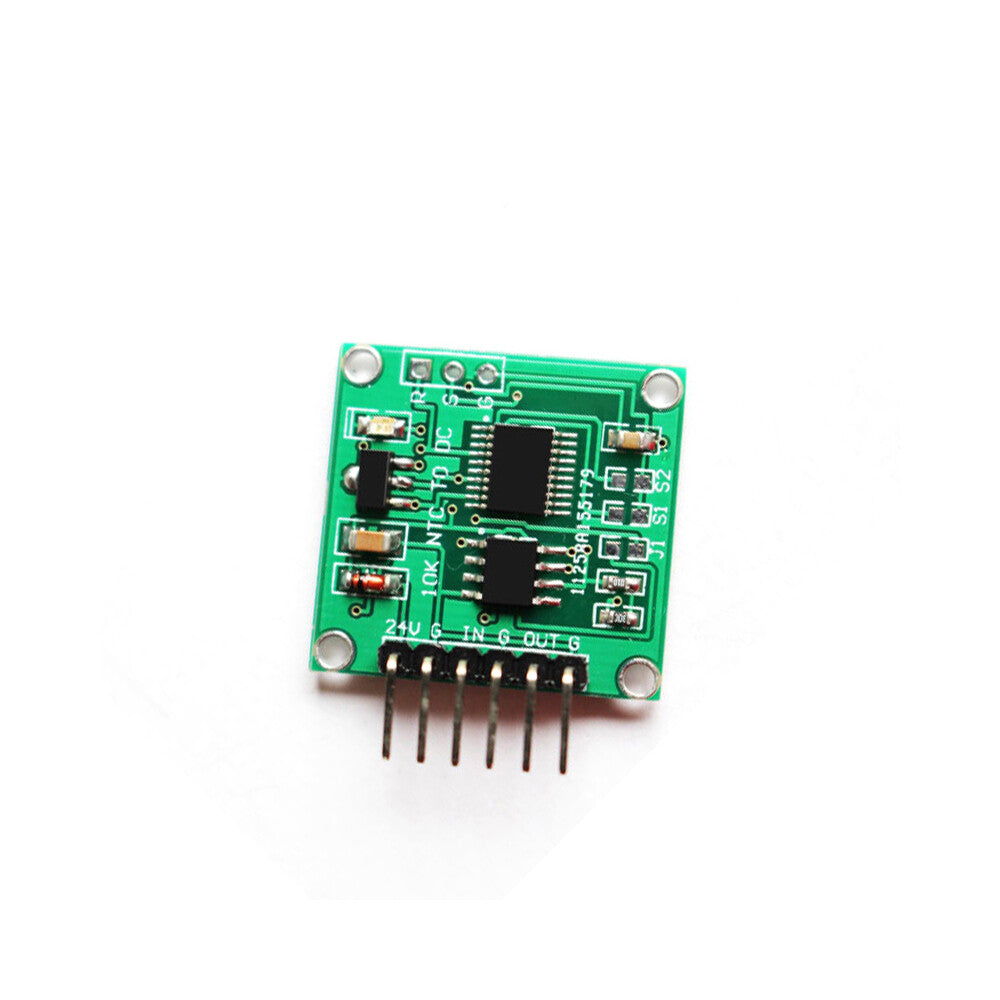

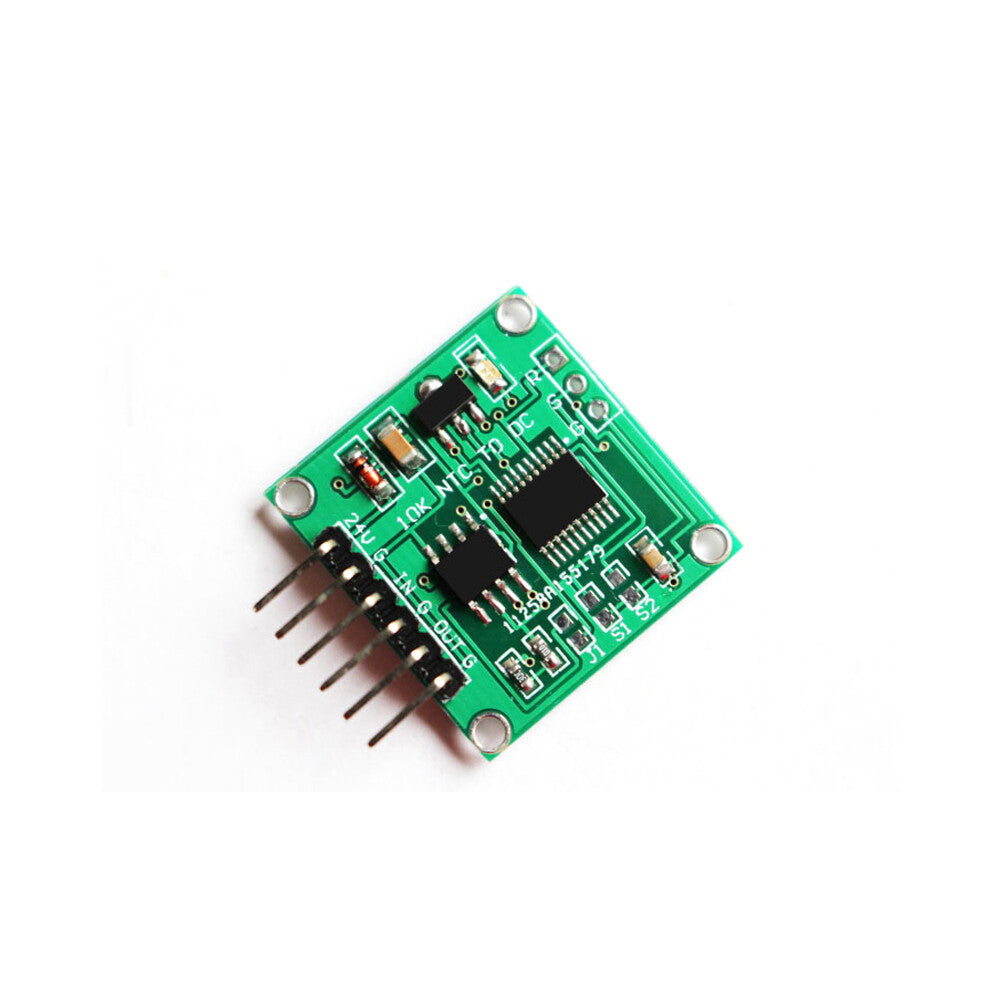

Thermistor To Voltage 10K NTC To 0-5V 0-10V Linear Conversion Temperature Module

Thermistor To Voltage 10K NTC To 0-5V 0-10V Linear Conversion Temperature Module

Specification:
Working voltage: 9V To 24V

Input resistance: NTC 10K thermal resistance (B value 3435K)

Output voltage: 0.00V ～ 5.00V / 0.00V ～ 10.00V

Temperature measurement range: -40 ~ + 150 (degrees).

Size: (length) 26mm x (width) 23mm x (height) 10mm

Output method: S2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.

Module interface:

24V: Power positive connector (9V ~ 24V).

G: Power ground interface.

IN: Positive terminal of thermal resistance.

G: Thermal resistance negative terminal.

OUT: Signal output interface (0.00V to 5.00V / 0.00V to 10.00V).

G: Power ground interface.

Note:

When outputting 0.00V ~ 10.00V, the power supply voltage should be 15V.

Output (0.00V ～ 5.00V) Resolution: 0.0263157V / ℃ (Voltage / Celsius)

Output (0.00V ～ 10.00V) Resolution: 0.0526315V / ℃ (Voltage / Celsius)

Calculate the measured temperature formula: (output voltage (V) / resolution) -40 ° C = measured temperature (° C).

Package:

1*NTC To 0-5V 0-10V Linear Conversion Temperature Module
