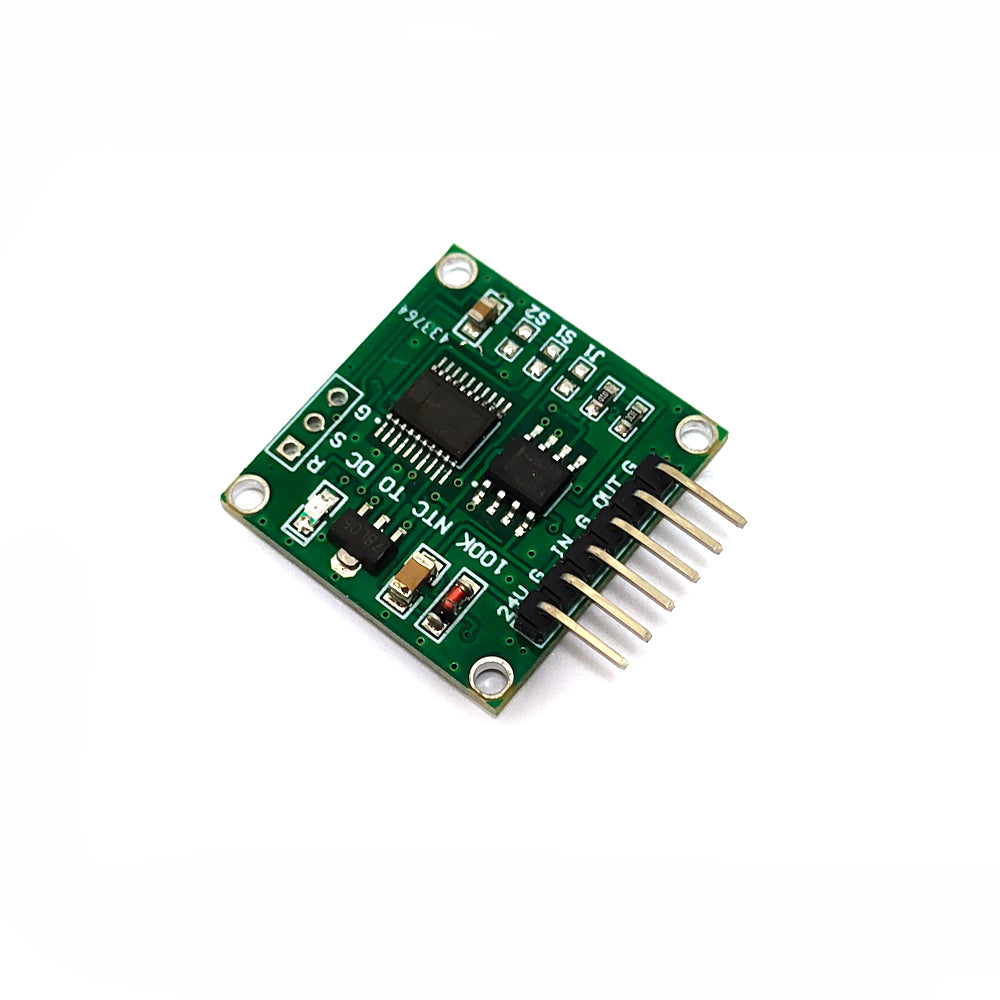

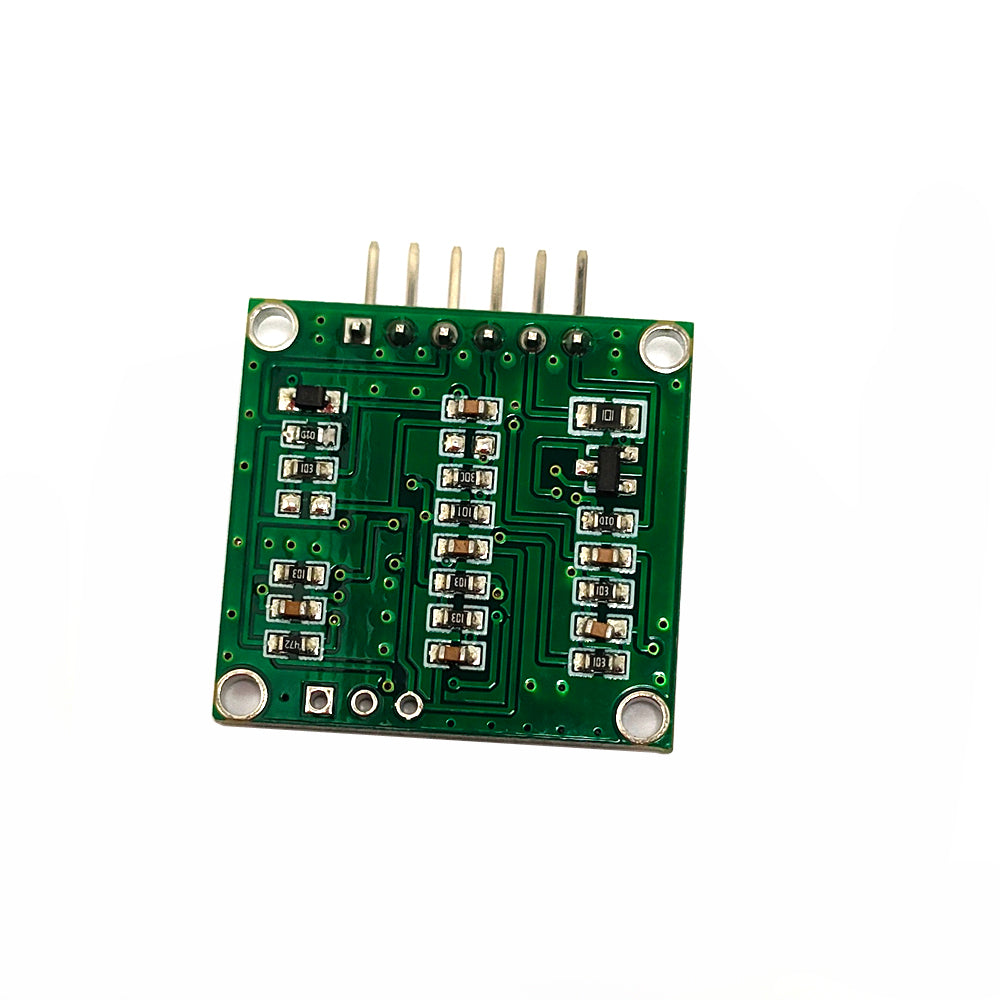

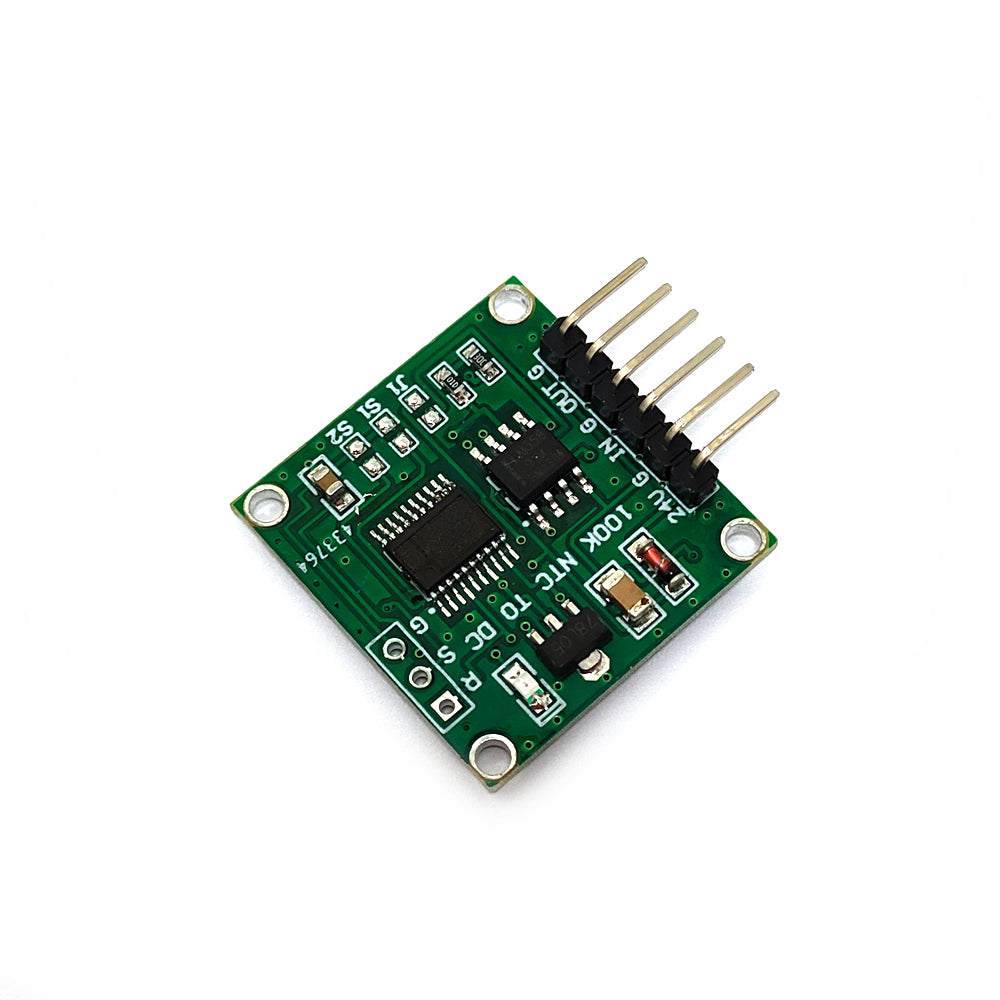

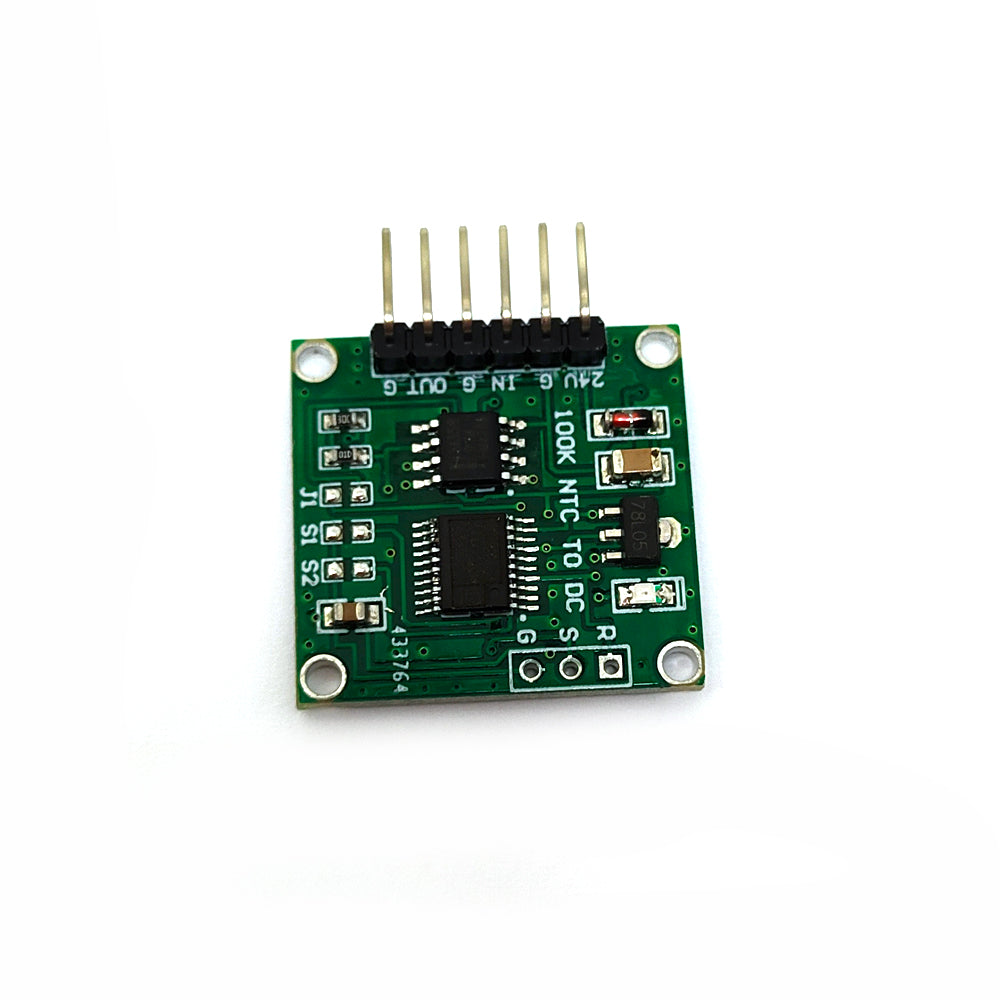

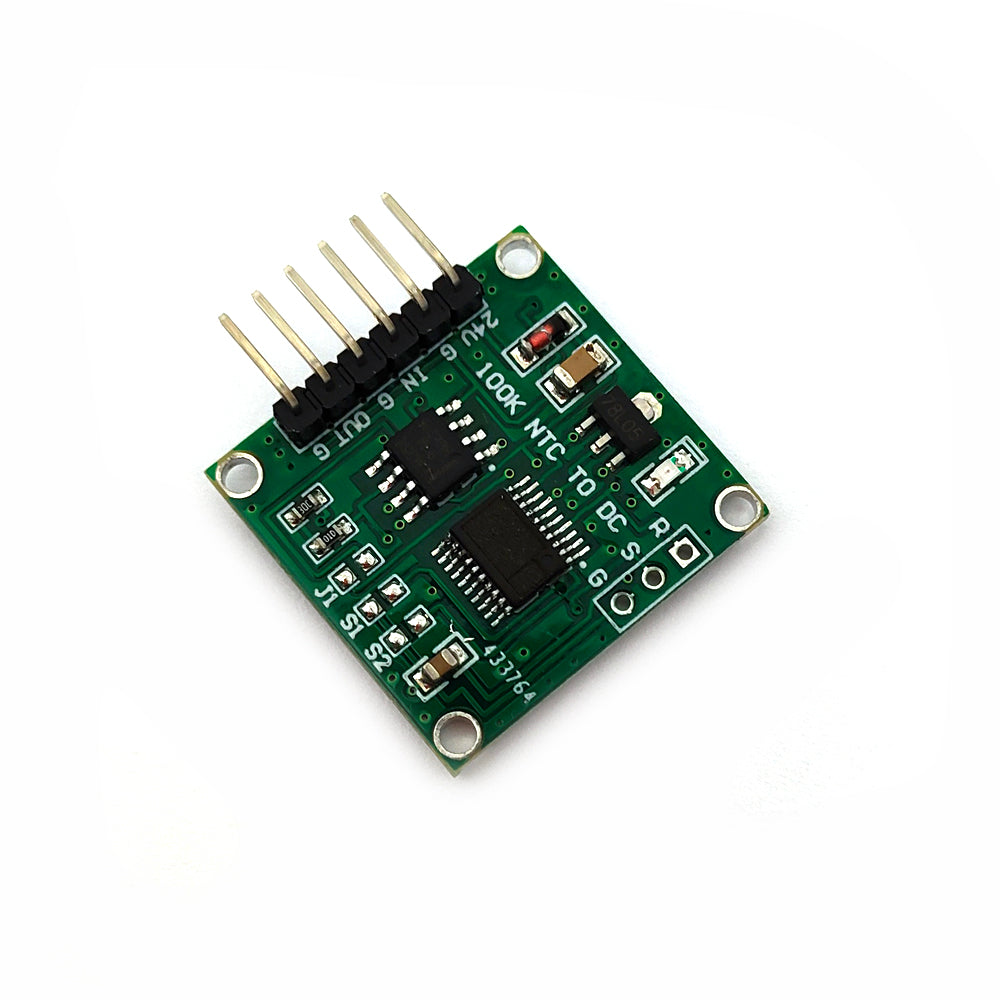

Thermistor Voltage 100K NTC To 0-5V 0-10V Linear To Temperature Transmitter

Thermistor Voltage 100K NTC To 0-5V 0-10V Linear To Temperature Transmitter

Working voltage: 9V To 24V
Input resistance: NTC 100K thermal resistance (B value: 3950)

Output voltage: 0.00V ～ 5.00V / 0.00V ～ 10.00V
Temperature measurement range: -40 ~ + 150 (degrees).

Size: (length) 26mm x (width) 23mm x (height) 10mm
Output method: S2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.

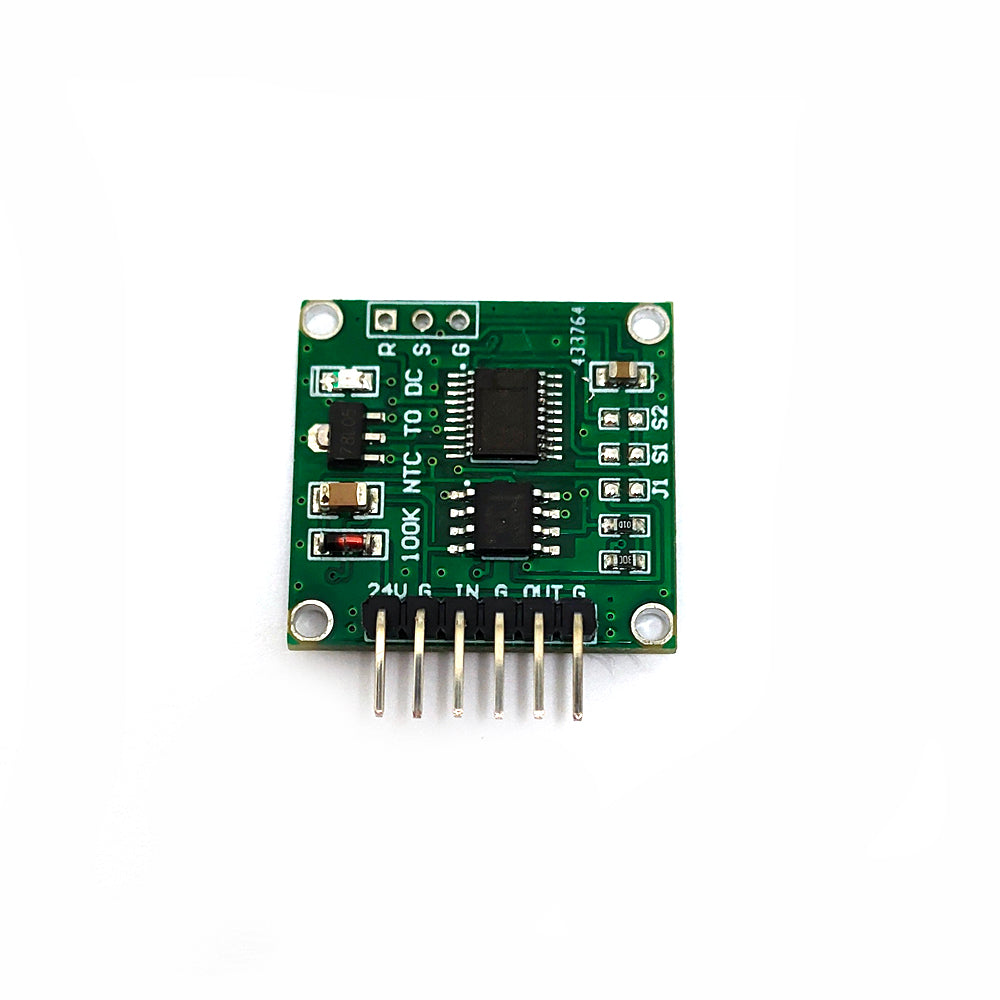

Module interface: 24V: Power positive connector (9V ~ 24V).

G: Power ground interface.

IN: Positive terminal of thermal resistance.

G: Thermal resistance negative terminal.

OUT: Signal output interface (0.00V to 5.00V / 0.00V to 10.00V).

G: Power ground interface.

Note: When outputting 0.00V ~ 10.00V, the power supply voltage should be 15V.Output (0.00V ～ 5.00V) Resolution: 0.0294117V / ℃ (Voltage / Celsius)

Output (0.00V ～ 10.00V) Resolution: 0.0588235V / ℃ (Voltage / Celsius)Calculate the measured temperature formula: (output voltage (V) / resolution) -20 ℃ = measured temperature (℃).

Package: 1* NTC to DC voltage module
