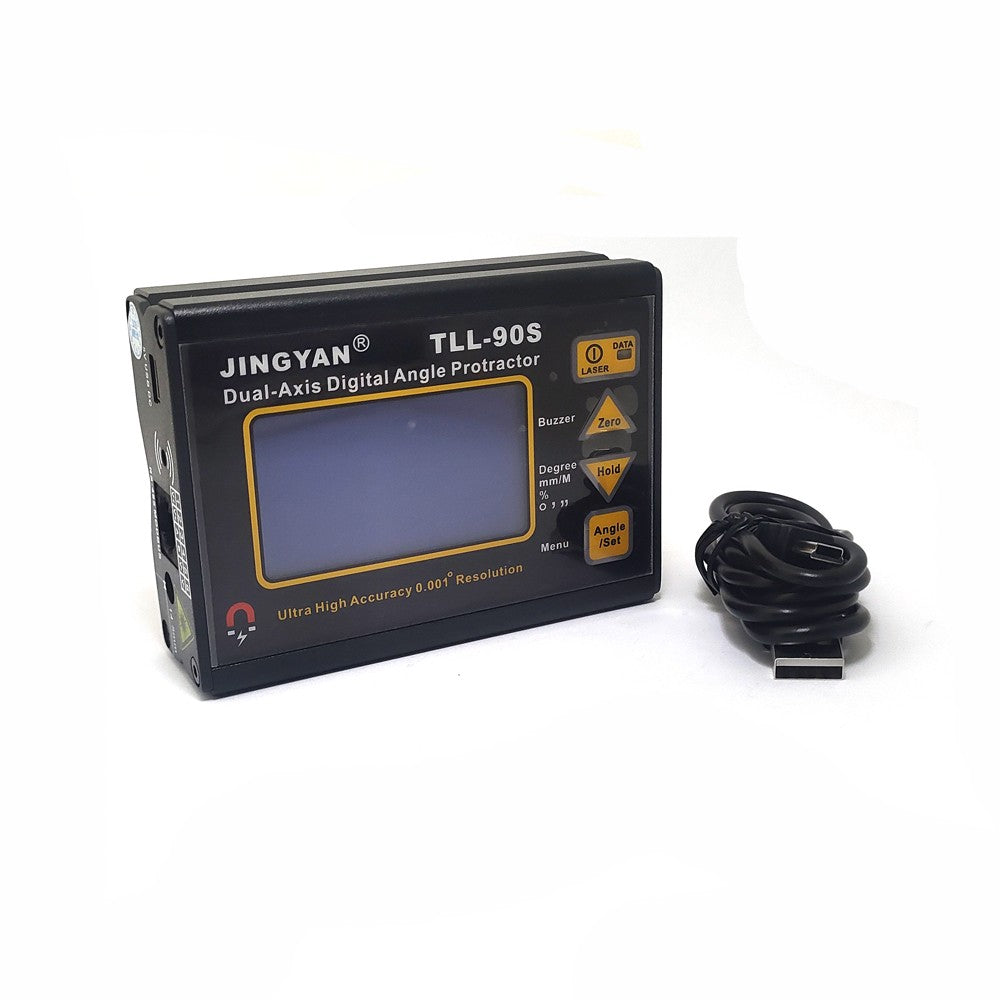

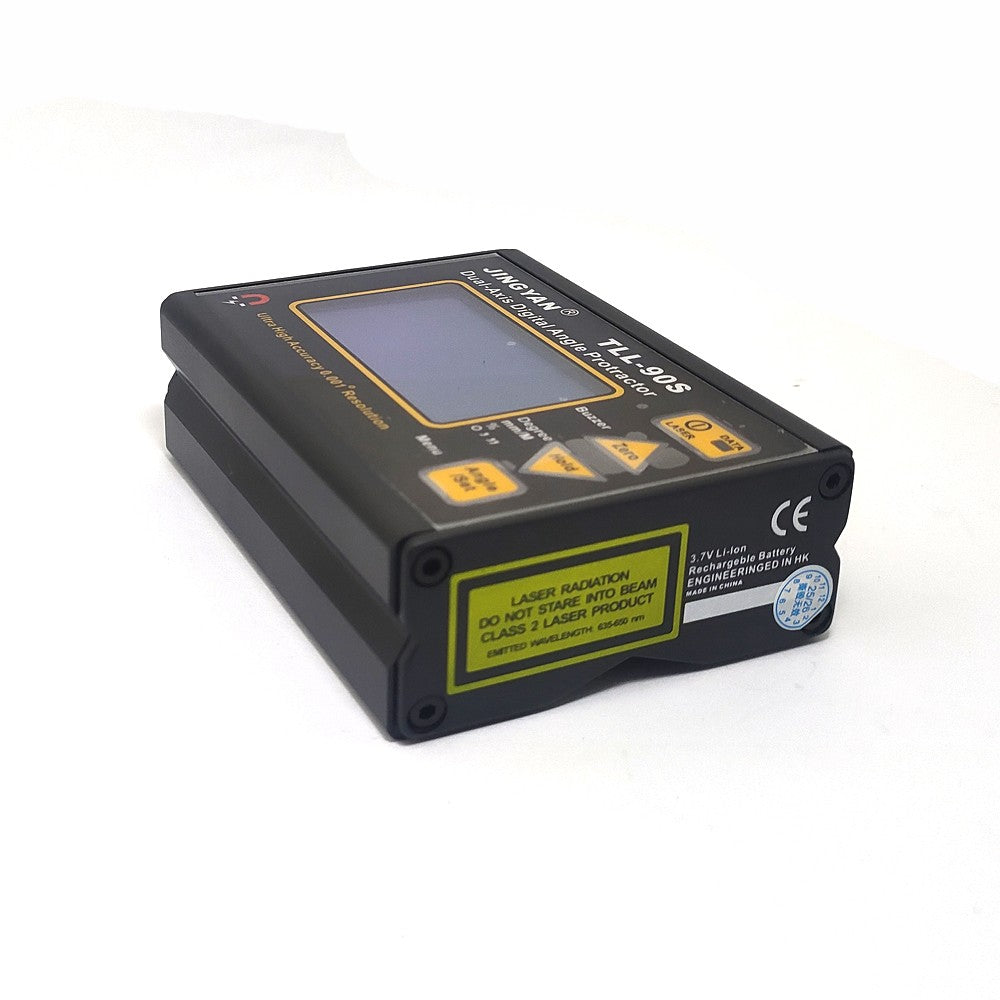

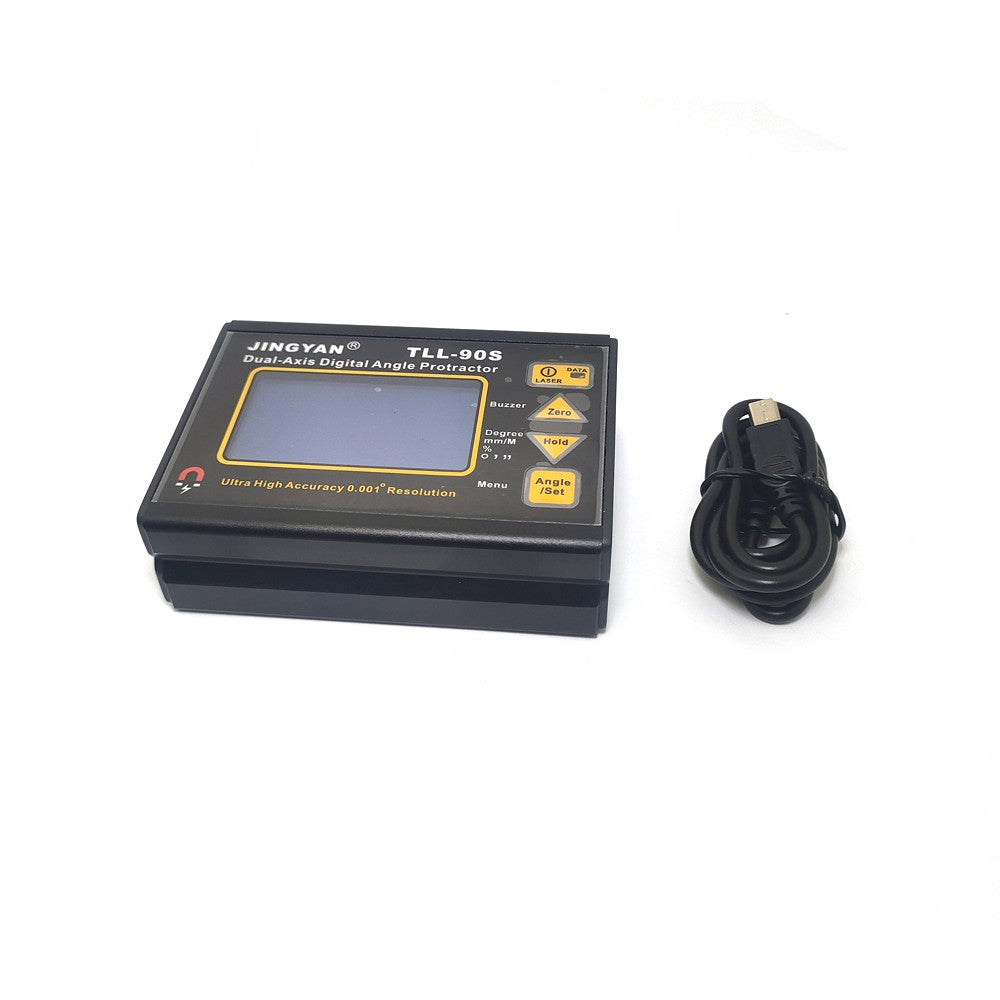

Tll-90s High Precision Laser Electronic Level Digital Biaxial Inclinometer Mini

Tll-90s High Precision Laser Electronic Level Digital Biaxial Inclinometer Mini Shop Meter

Specification:
Tll-90s is a standard ease-of-use, digital spirit level / inclinometer for measuring the inclination angle of the relative horizontal position and the flatness of the installation,
the verticality of the wall, based on the combination of micro-electromechanical systems (MEMS) revolutionary technology and software Technology to better accuracy than ± 0.005 achive degrees and high resolution of 0.001 degrees.

Tll-90s is a biaxial small-range digital inclinometer that has the highest accuracy up to 0.005 degrees.

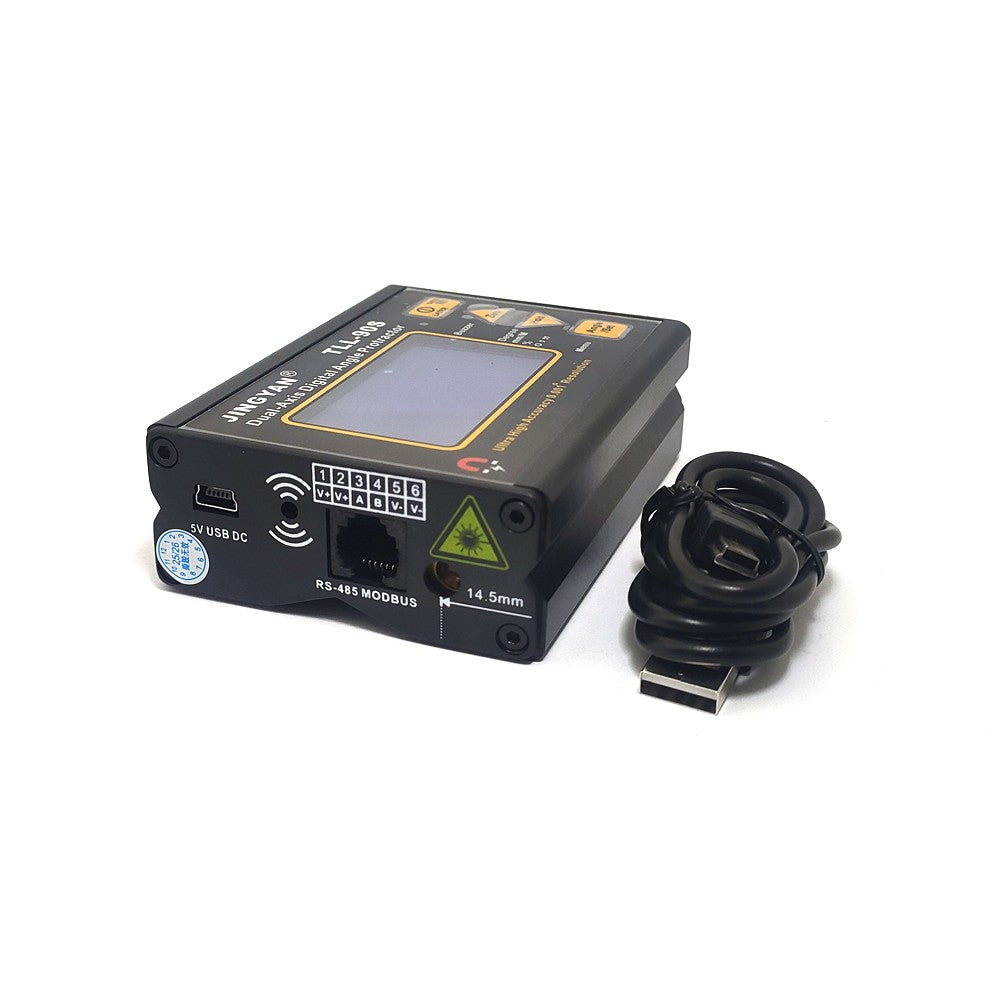

If necessary, also connecting to computer with usb / bluetooth adapter to detect data, remote control and remote transmission, it is convenient for some special fields in the industry to collect scene angle data.

Measuring range: Single mode: 0-360 °; Biaxial mode: ± 40 °

- Accuracy: 0-20 °: ± 0.005 ° 20-70 °: ± 0.01 °; 70-90 °: ± 0.005

Gyroscope speed: <50 ° / s

Resolution: 0.001 °

- Resolution: 0.1 °

Angle accuracy: 0.5 °

Reaction time: 0.7 seconds

Sound, volume: 60 dB @ 30 cm

Angular deviation: 0.002 ° (normal)

Operating temperature: 0-50 ℃

Storage temperature: -10 to 60 ℃

Product power consumption: standby time: 10uA; When used: 20 mA

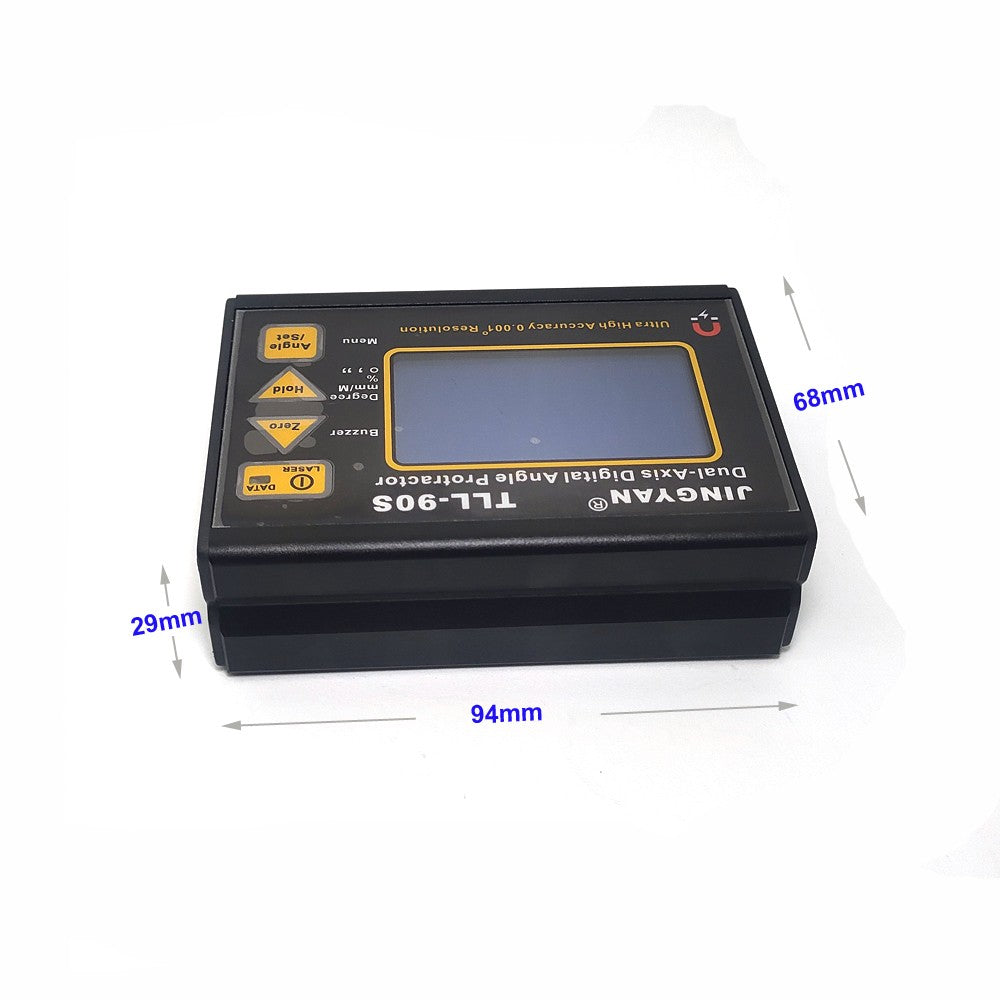

Size: 93mm * 66mm * 28mm

Package:

1* Tll-90s High Precision 0.005 ° Laser Electronic Level
