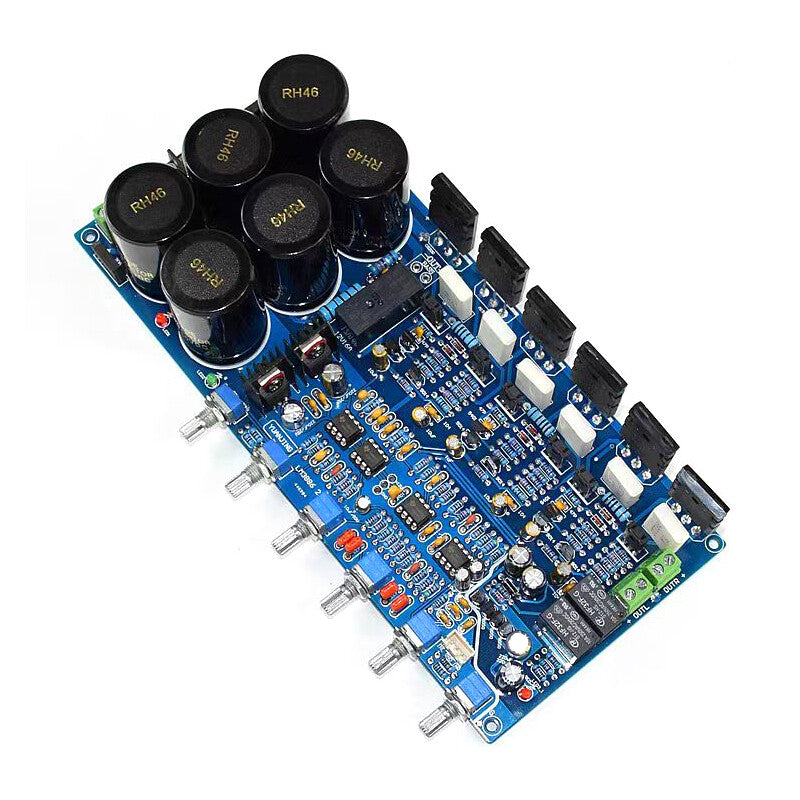

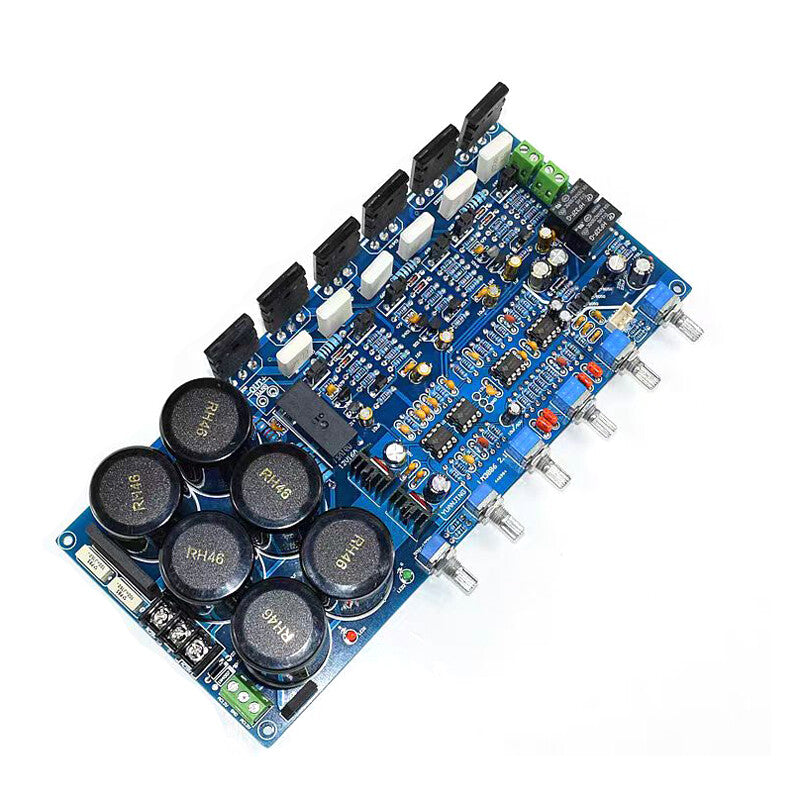

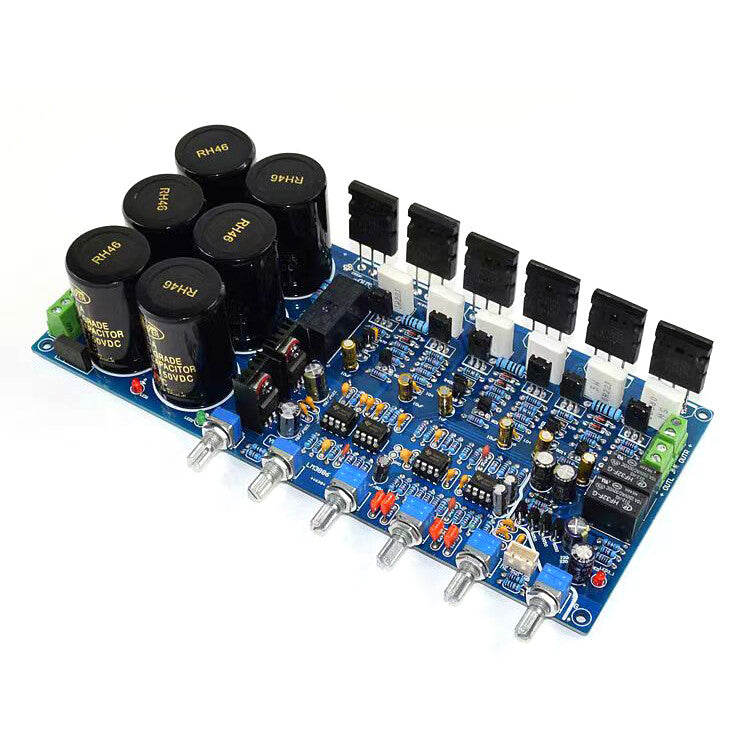

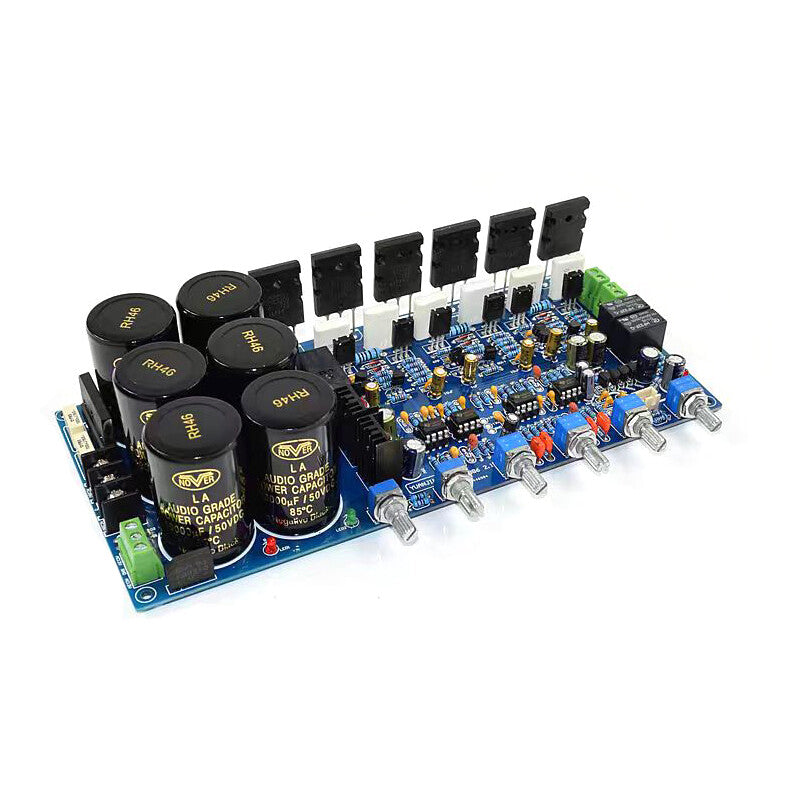

TT1943 TT5200 2.1 Power Amplifier Board 80W x 2 +100W

TT1943 TT5200 2.1 Power Amplifier Board 80W x 2 +100W

$114.00
$137.00 $114.00
Sale Sold out
Shipping calculated at checkout.

TT1943 TT5200 2.1 Power Amplifier Board 80W x 2 +100W



Description:


PCB Dimensions: 230 mm x 104 mm
Speaker Impedance: 4-8 Ohm
Output power: 80 W * 2 + 100 W

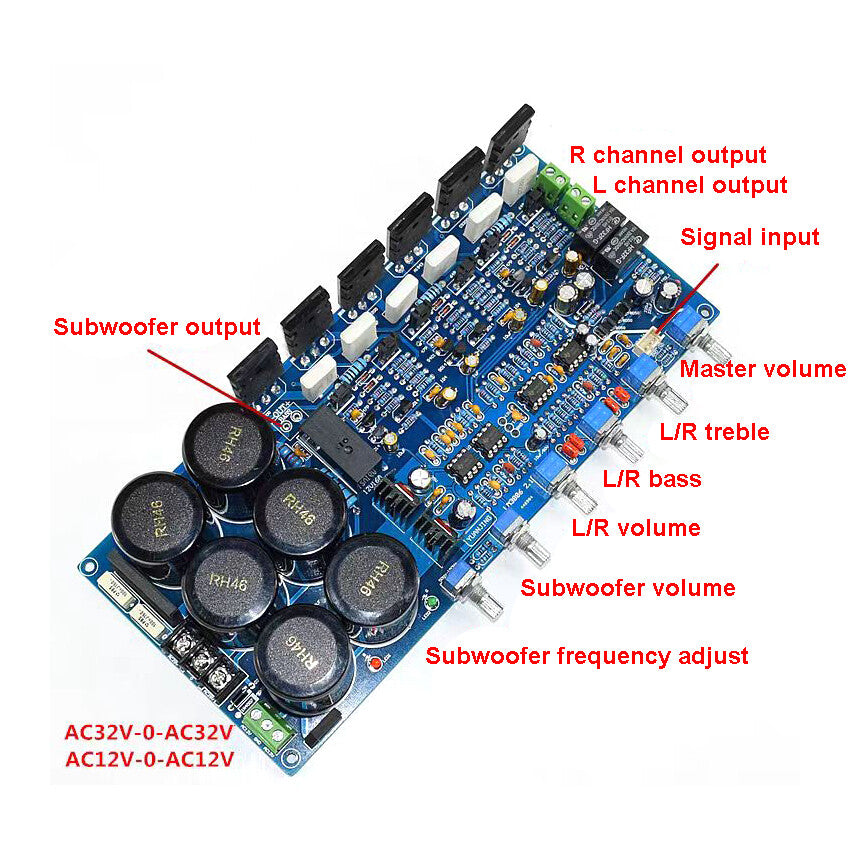

Supply voltage: AC dual 28V-32V/200W or above (power amplifier power supply), AC dual 12V or 15V (front-end power supply)
These boardshorts come with speaker protection circuit, effectively the boot impact sound insulation and protect your speakers.


Function:

All components of this product are original authentic, simple, pure use quality; High-quality parts that not only guarantees the safety and quality, also has a long life, more importantly, it is a strong guarantee that the actual performance can meet the design goals.
With original tt1943 / tt5200.
Electrolytic capacitor signal Main Circuit adopts Japanese chemical fire filter capacitor used in Japan, the chemical audio-specific capacitor, capacitor capacity is 6 x 10000uF, using bridge rectifier 25 and mainly to provide support for a steady current of power.
Resistance has five ring resistance, the circuit, which has an accuracy ± 1% rings metal film resistors, ensure that the machine has a good SNR.
PCB with 1.6mm thickness double-sided, 2.0oz copper thickness to ensure that the size of the current has a good performance.




Package:



1 x tt1943 / tt5200 2.1 Output stage board (80 W + 80 W + 100 W)
