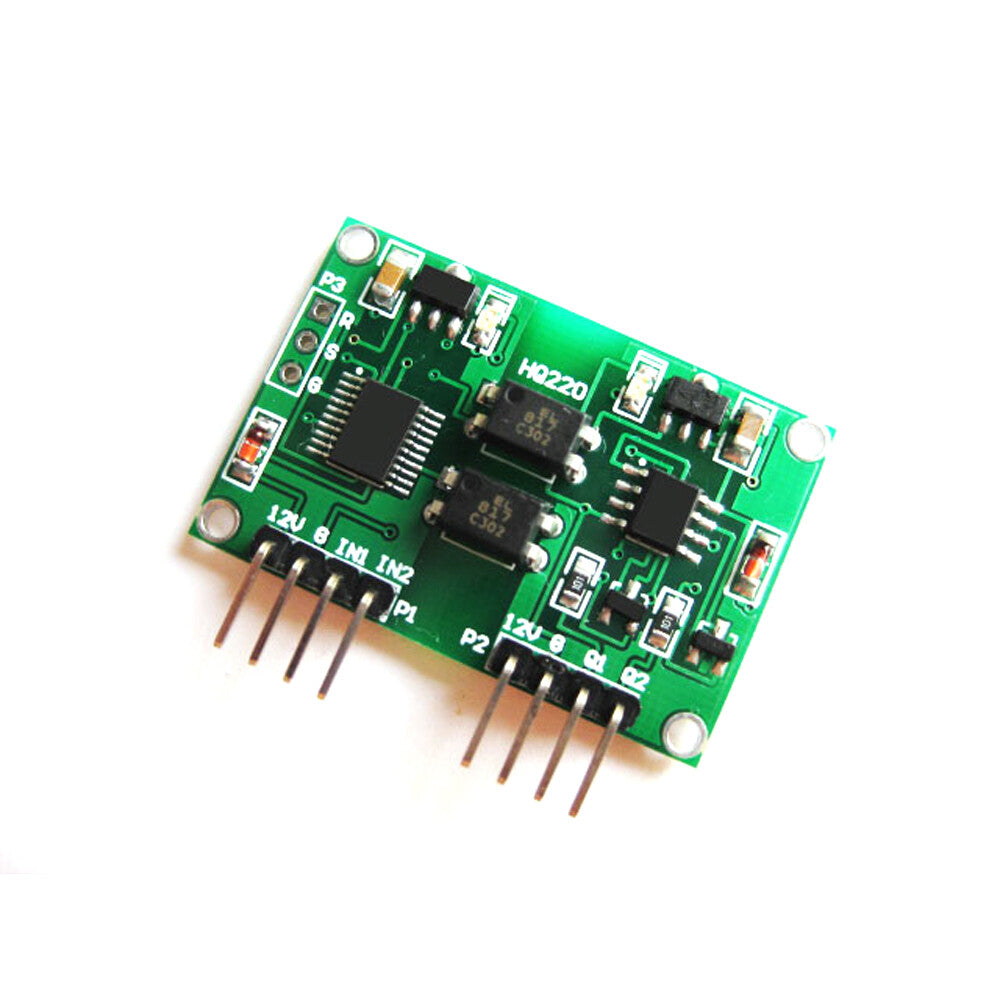

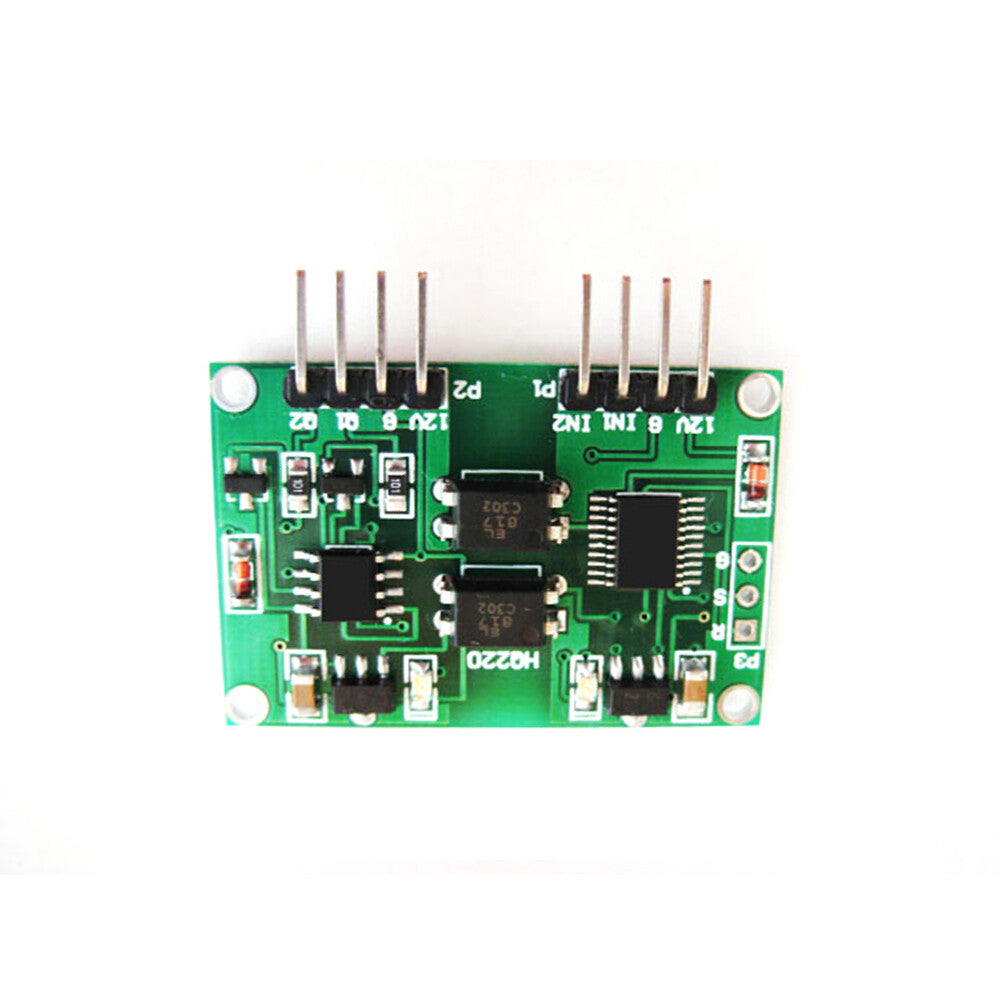

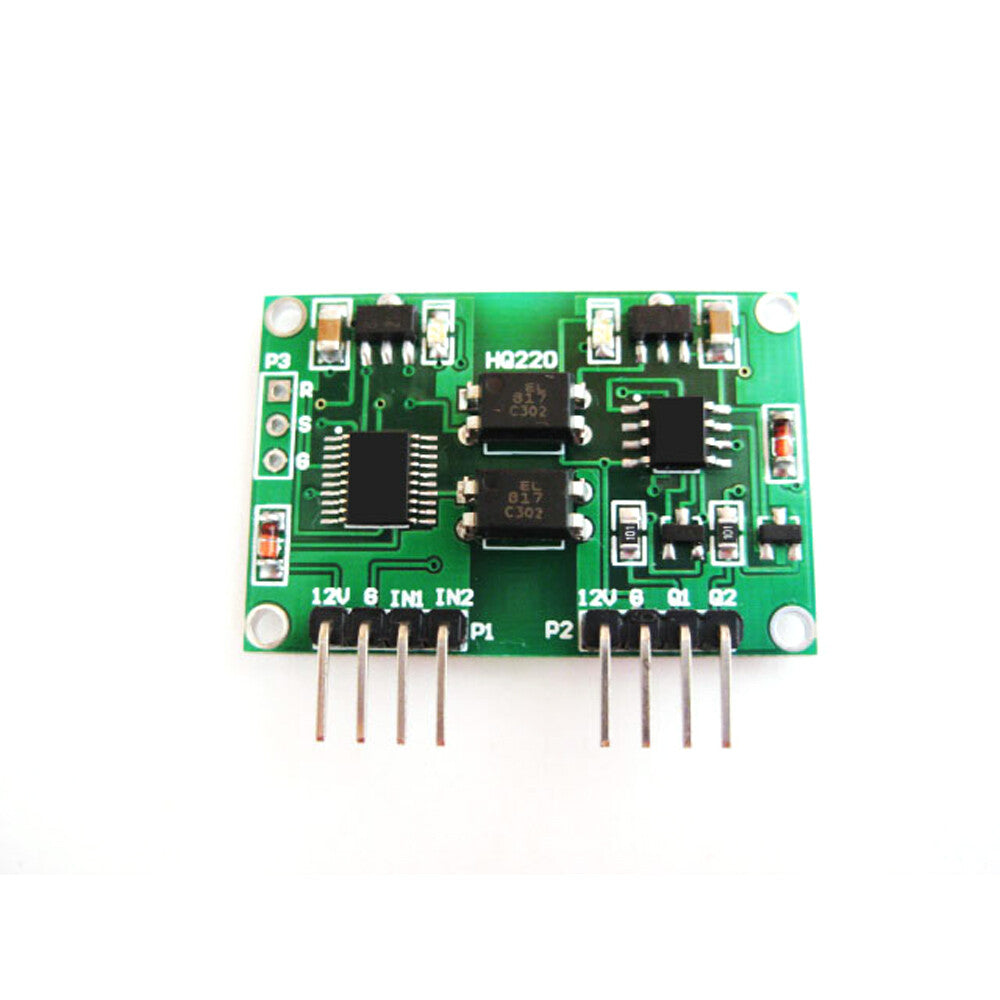

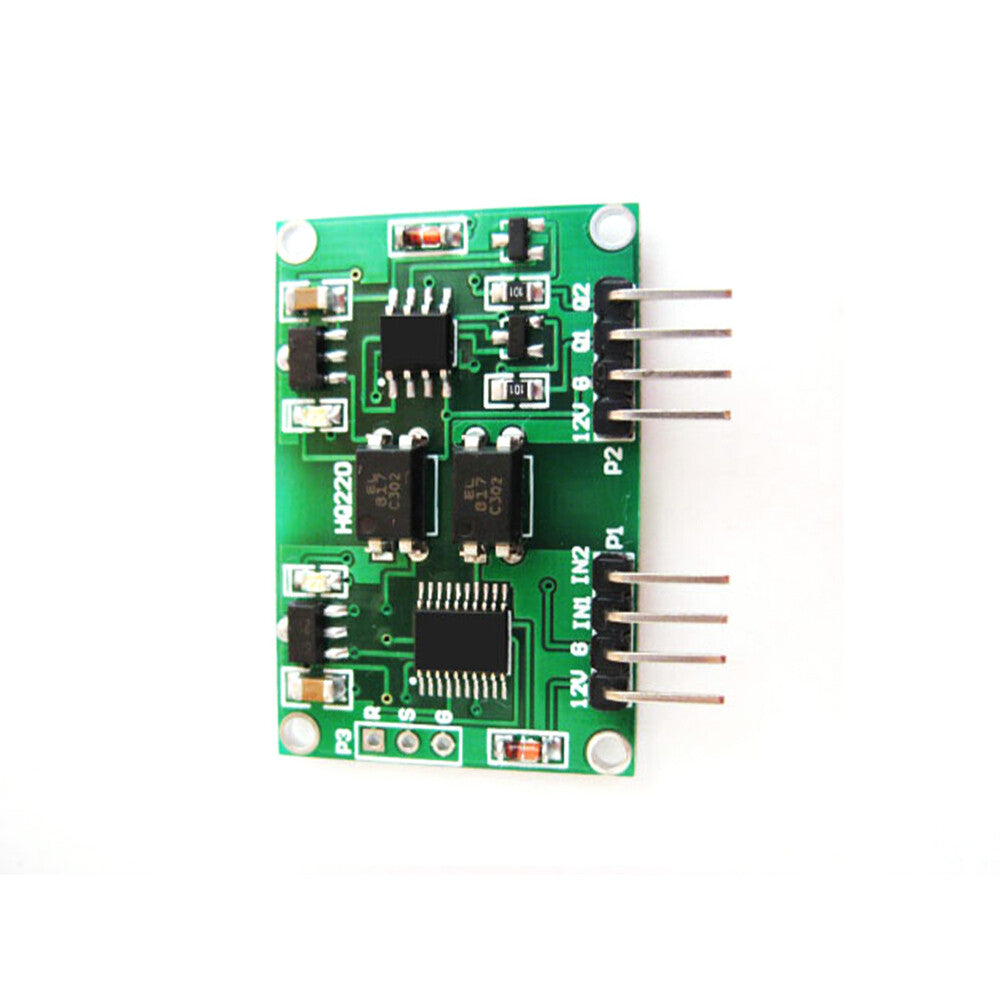

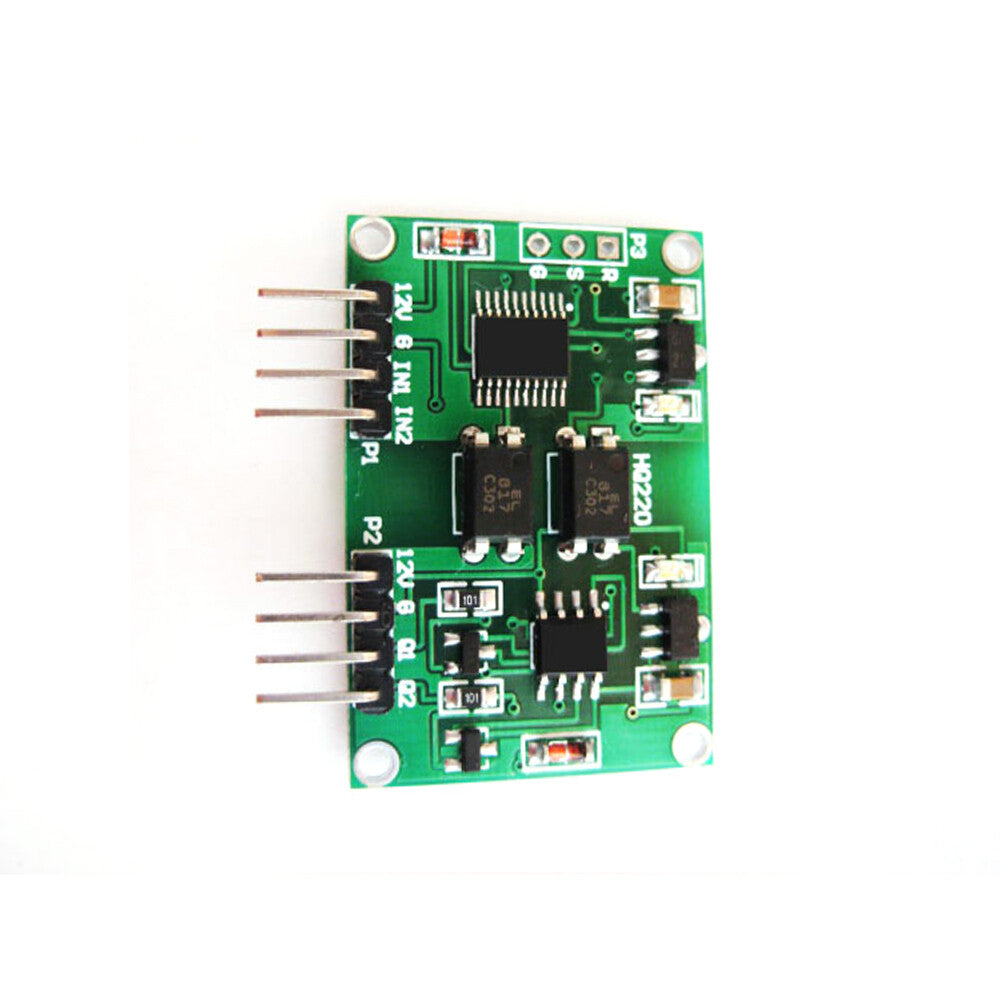

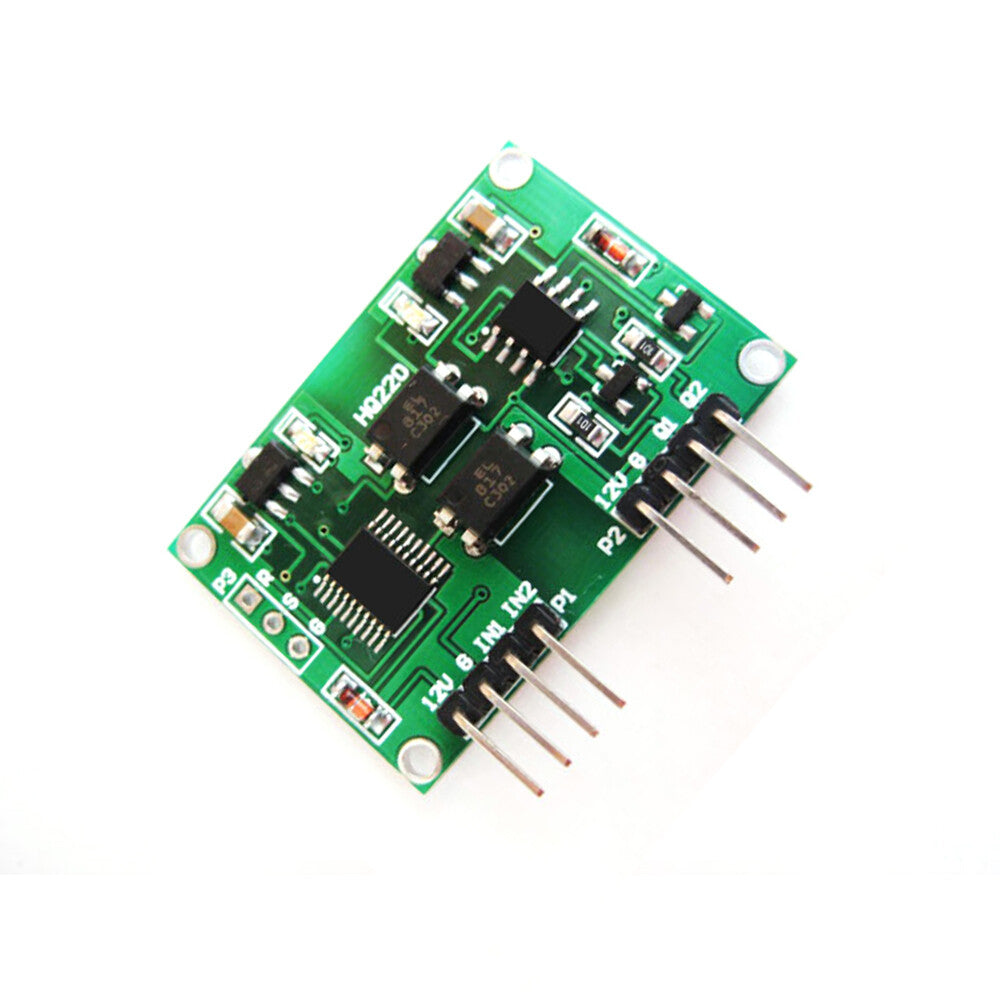

Two-channel Small Isolated Signal Voltage 0-5V Linear Conversion Transmitter Module
Specification:
1. Working voltage: 9V ~ 17V
2. Input voltage: 0.00V ~ 5.00V
3. Output voltage: 0.00V ~ 5.00V
4. Control method: signal isolation
5. Size: (length) 38mm * (width) 25mm * (height) 10mm
6. Drive mode: No need to drive.
7. Application range: voltage signal isolation;
Module interface P1:
12V: Power 1 positive port (9V ~ 17V).
GA: Power 1 ground interface.
IN1: Signal channel 1 input interface (0.00V ~ 5.00V).
IN2: Signal channel 2 input interface (0.00V ~ 5.00V).
Module interface P2:
12V: Power supply 2 positive port (9V ~ 17V).
GB: Power supply 2 ground interface.
Q1: Signal channel 1 output interface (0.00V ~ 5.00V)
Q2: Signal channel 2 output interface (0.00V ~ 5.00V).
Package:
1*2 way voltage signal isolation module
