Specification:
1.Support USB2.0 Support 24BIT-96K audio output
2.SA9023 + CS4398, OPA2132 op amp output.
3.With 3.5 headphone output can be used for 32 ohm headphones.
4.Using USB self-powered, no external power supply required.
Feature:
1. Coupling capacitor Using imported Si-emens capacitor 2.2UF, the main filter electrolytic capacitors using imported aluminum SMD electrolytic ,
2. Its quality better than ordinaryelectrolytic and has a longer life.
3. Resistance uses 0805 high-precision SMD resistor, ensure the machine has a good SNR. PCB use 1.6mm thick double-sided sheet, 2.0 oz copper thickness, ensuring a size of the current has good through performance.
Package:

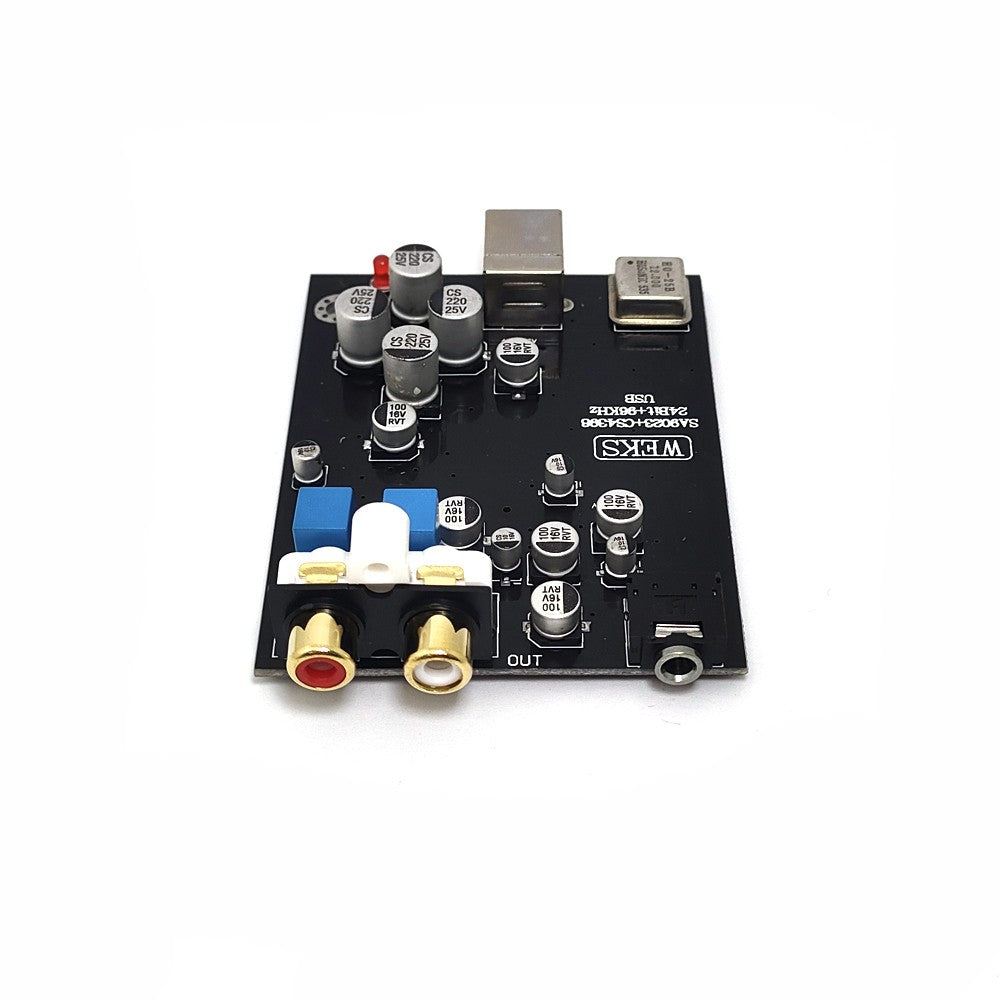

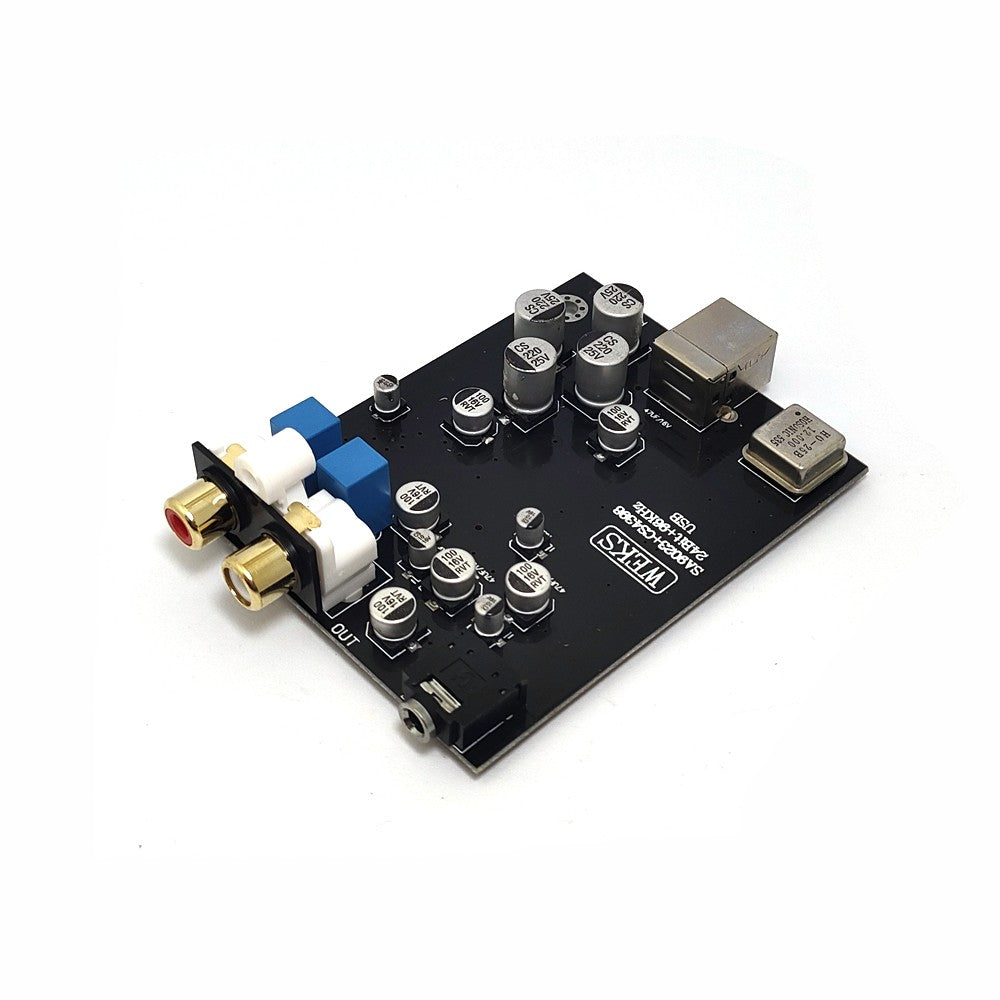

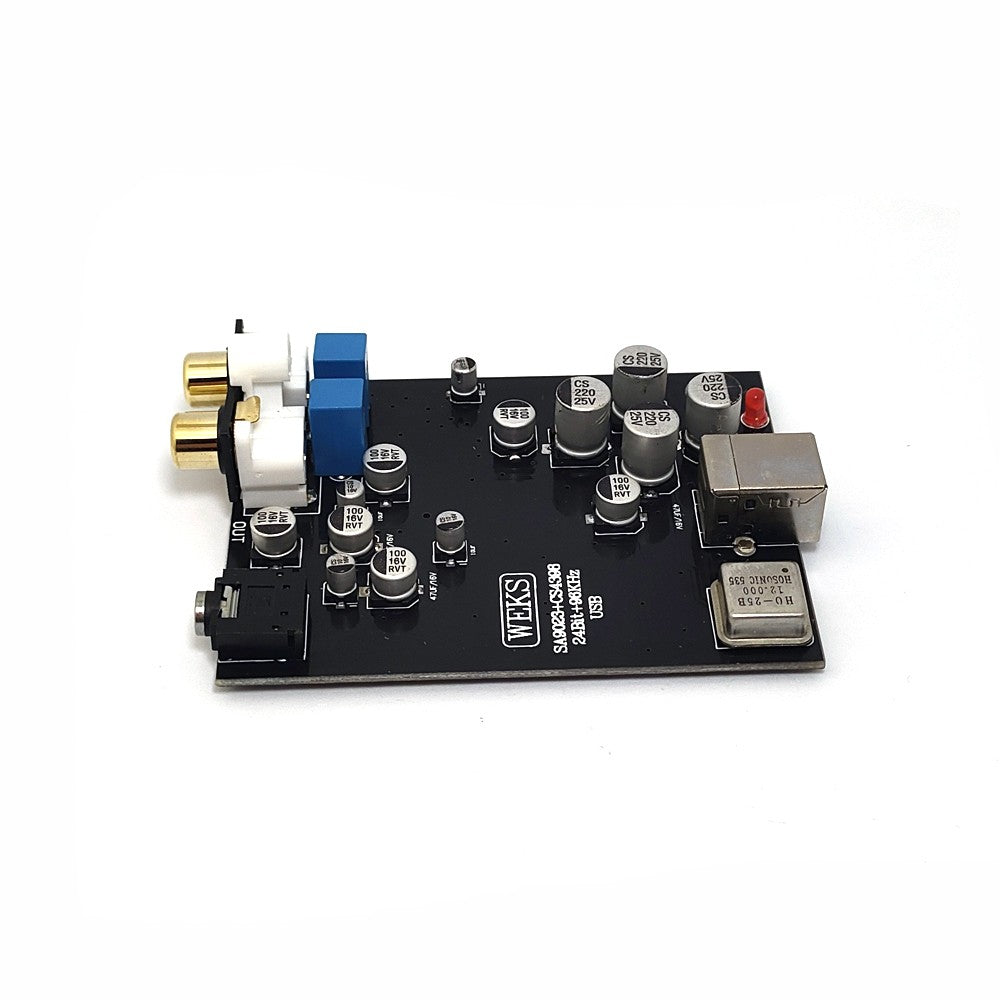

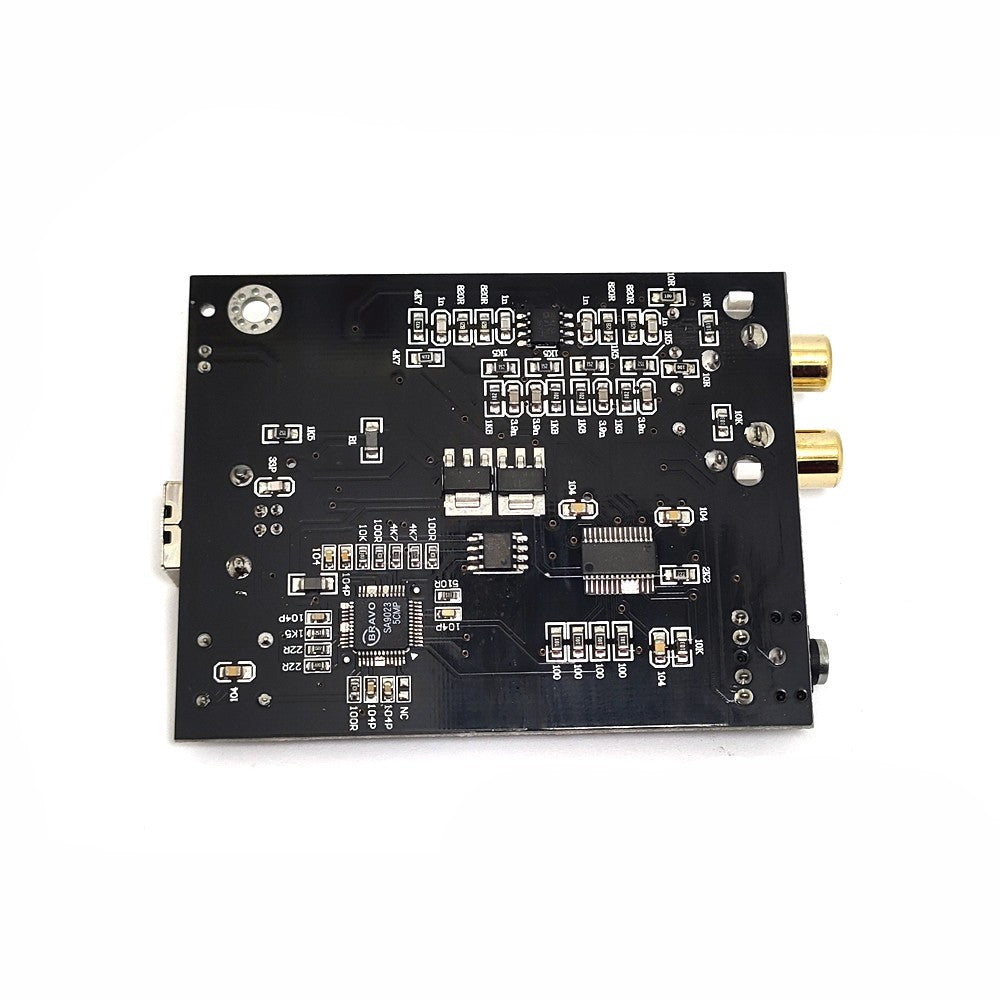

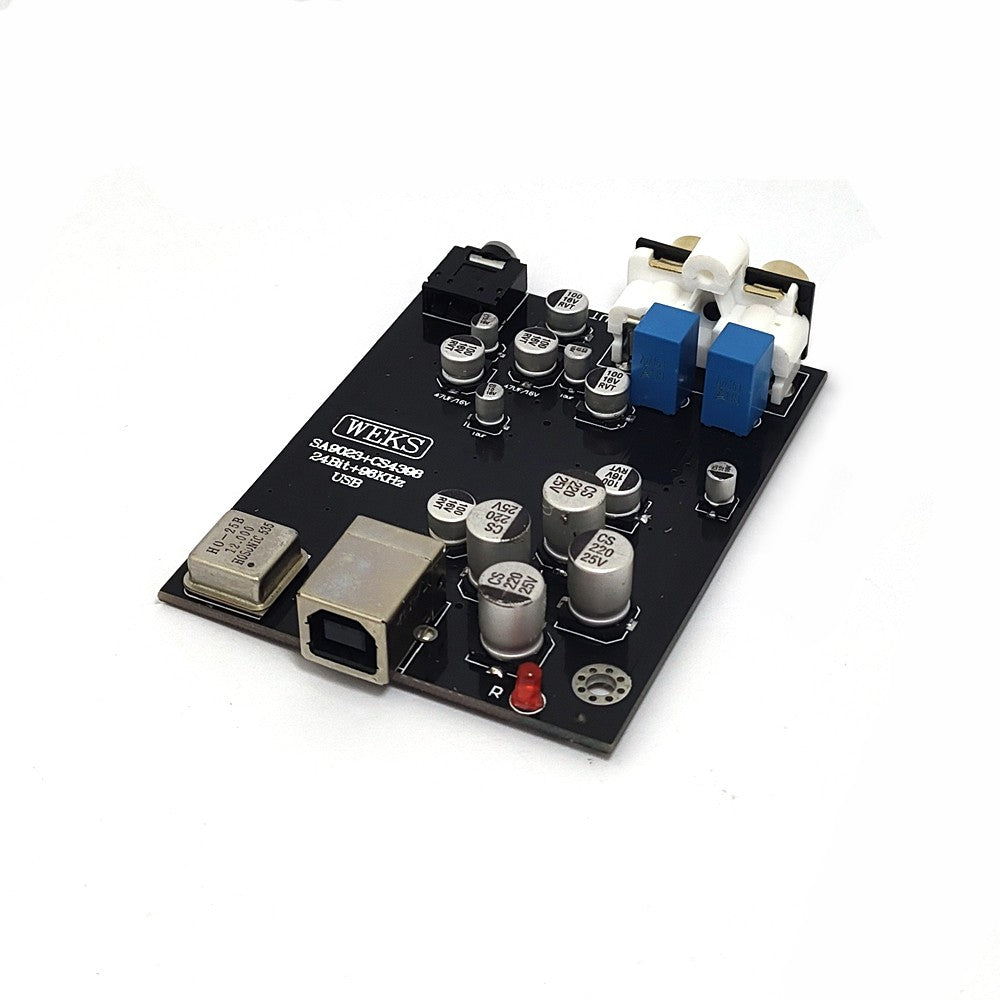

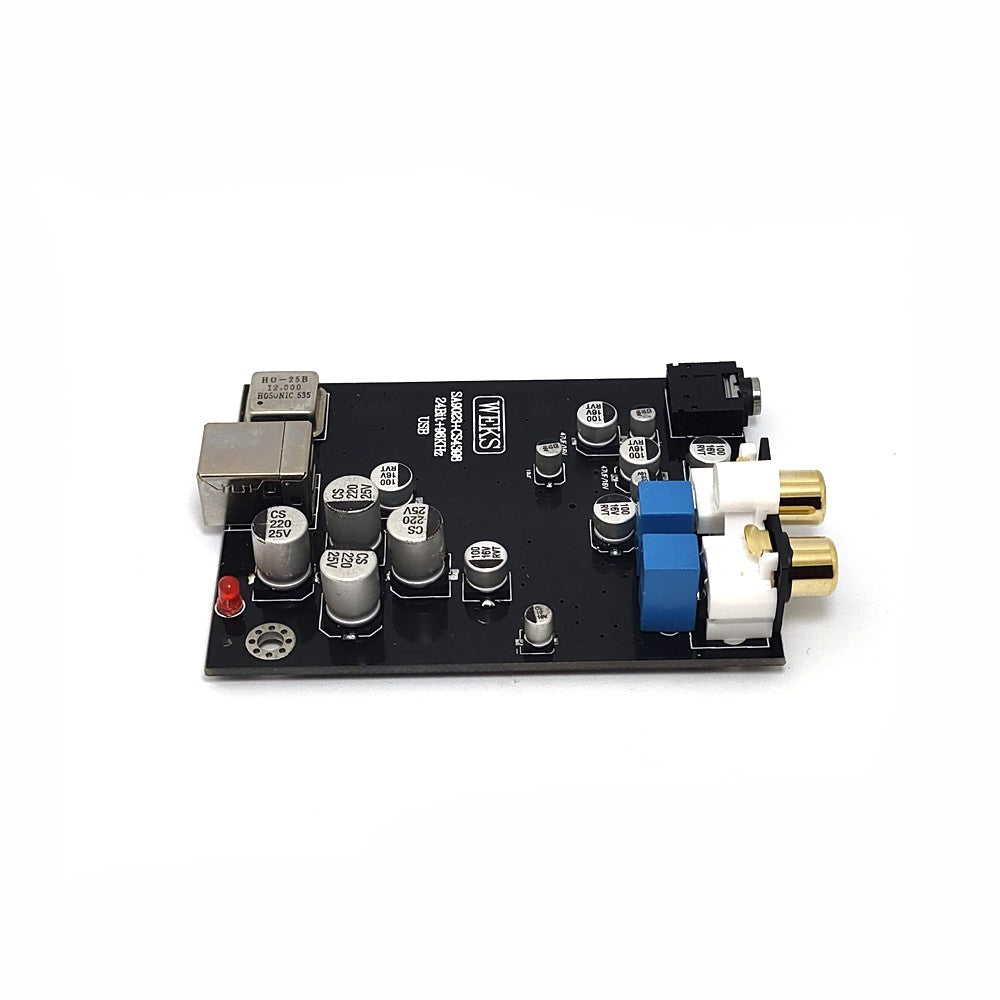

1* USB 2.0 SA9023+CS4398+OPA2132 USB Decoder Board 24BIT 96KHz
