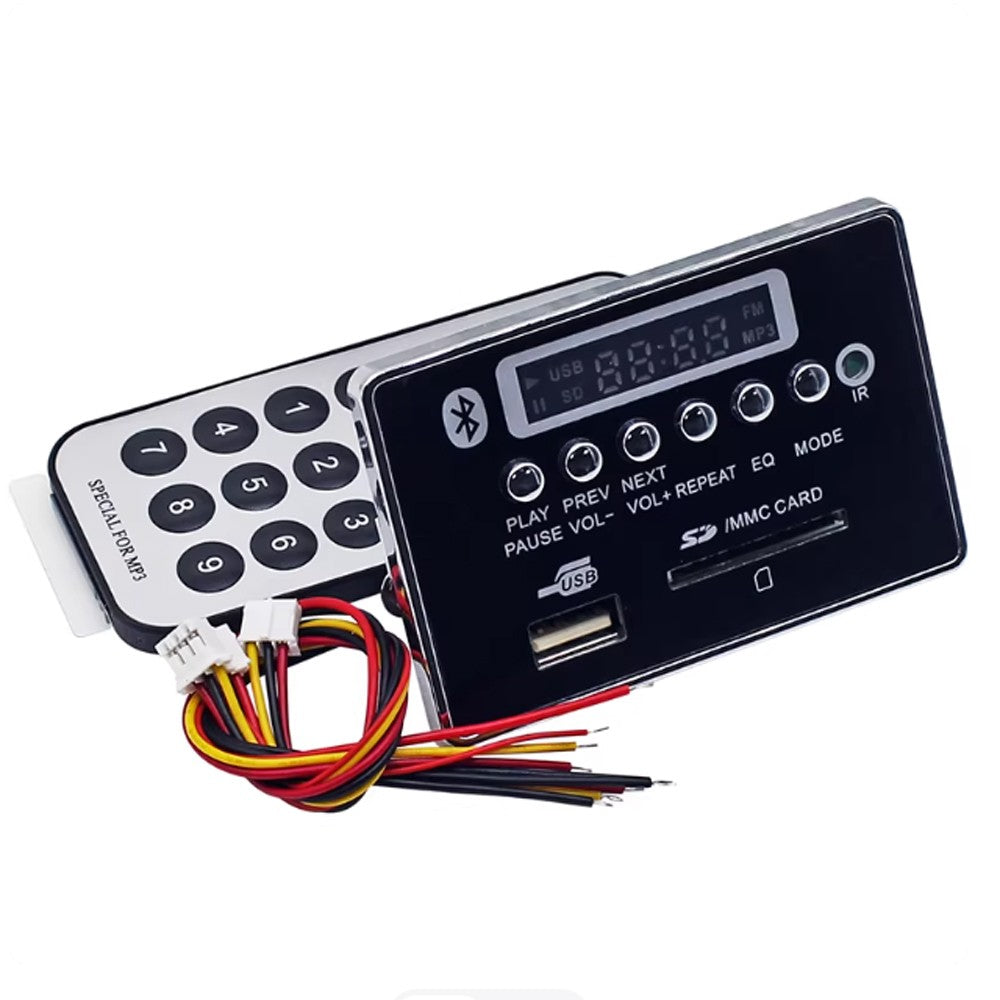

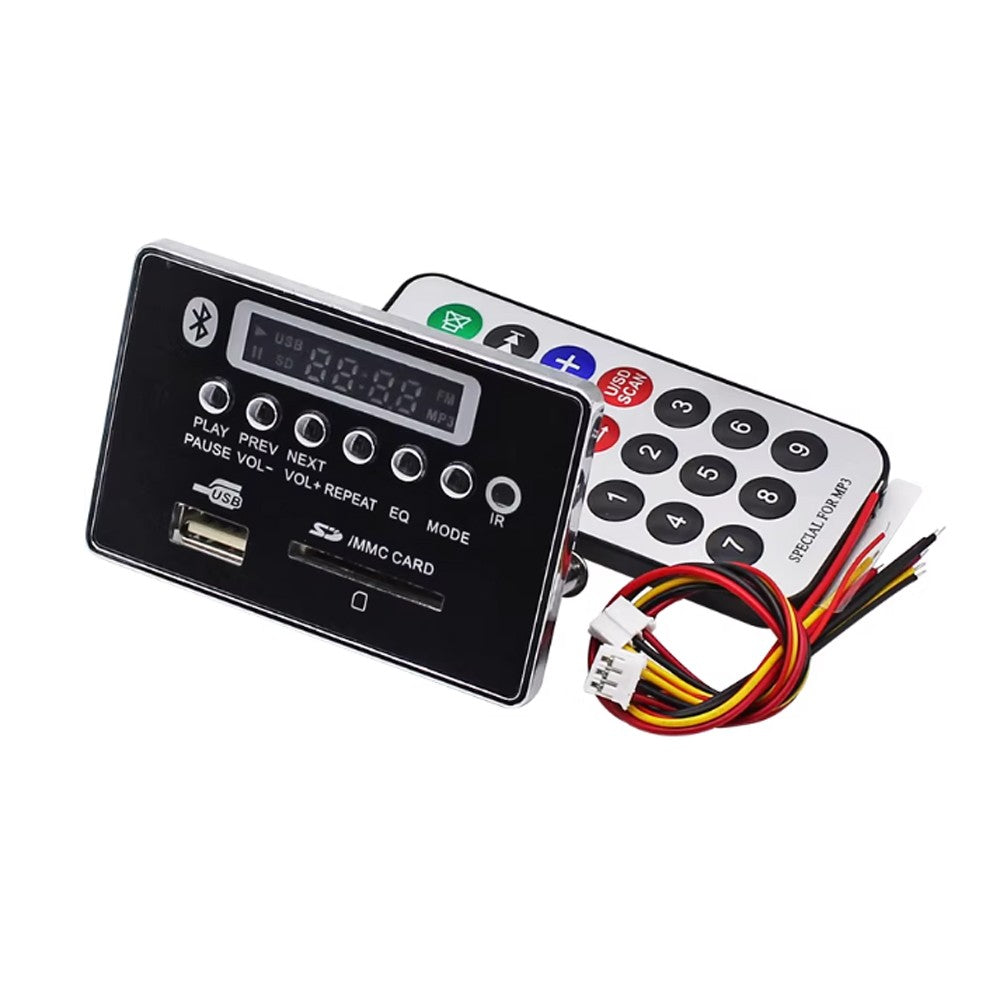

USB FM Radio MP3 Decoder Board Car MP3 Player Integrated Remote Control Board

$22.00

~~$27.00~~ $22.00

Sale Sold out

Shipping calculated at checkout.

Options 5V 12V

Quantity

USB FM Aux Radio MP3 Decoder Board Module USB Car MP3 Player Integrated Remote Control Board

Product Specifications:

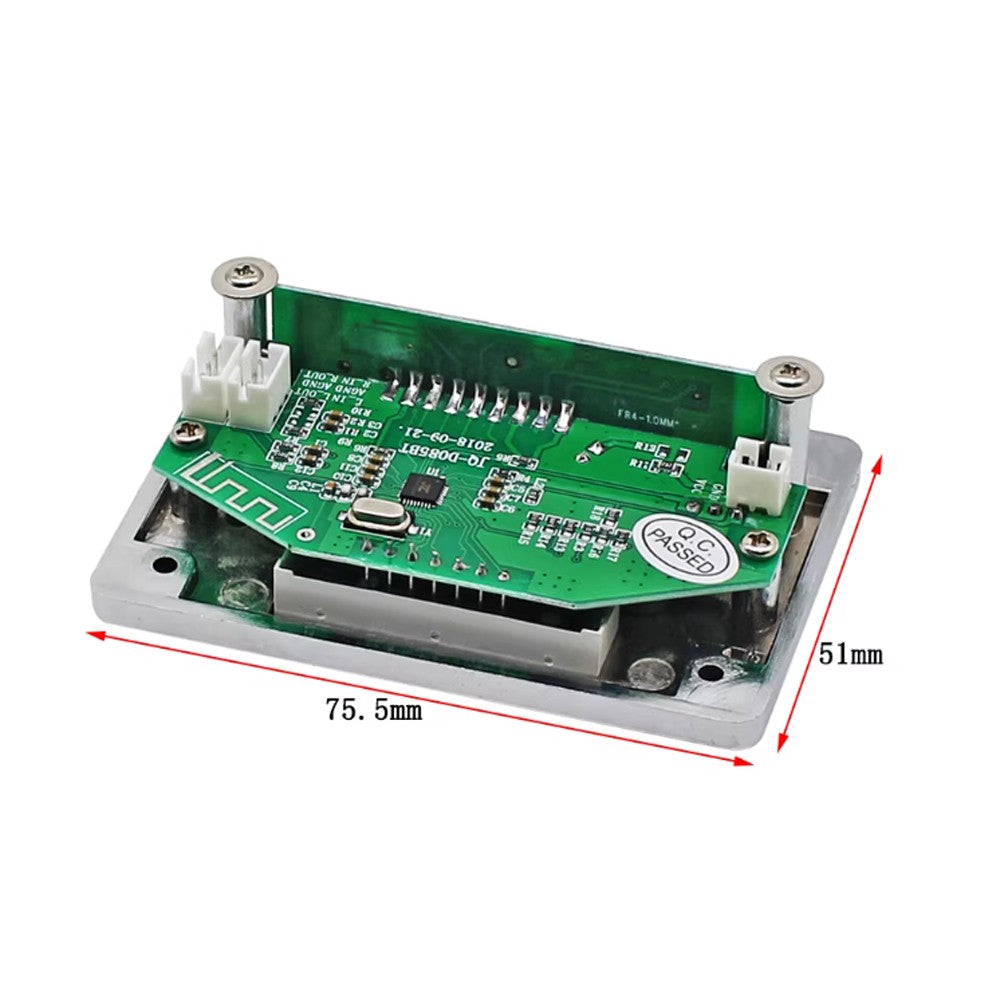

Shell size: 75.5 * 51mm

Function introduction: With Bluetooth function/decoding support MP3/WMA/WAV/APE lossless format music/USB/SD/FM/remote control/LINE audio input function, DC power supply 5V or 12V

Main functions:

1. Jelly scheme, dual decoding supports MP3/WMA/WAV/APE lossless format music;

2. Equipped with Bluetooth function

3. Equipped with digital display;

4. Supports MMC/SD/MMA and other cards, and supports USB interface (USB flash drive);

5. Support FM radio reception and frequency range (87.5MHZ-108.OMHZ)

6. Power off memory function;

7. Support infrared remote control operation at a distance of 5-10 meters;

8. Support external audio input LINE IN (AUX);

9. Button: Four button multi directional control, PLAY/PREV/NEXT/REPEA

/ EQ/ MODE;

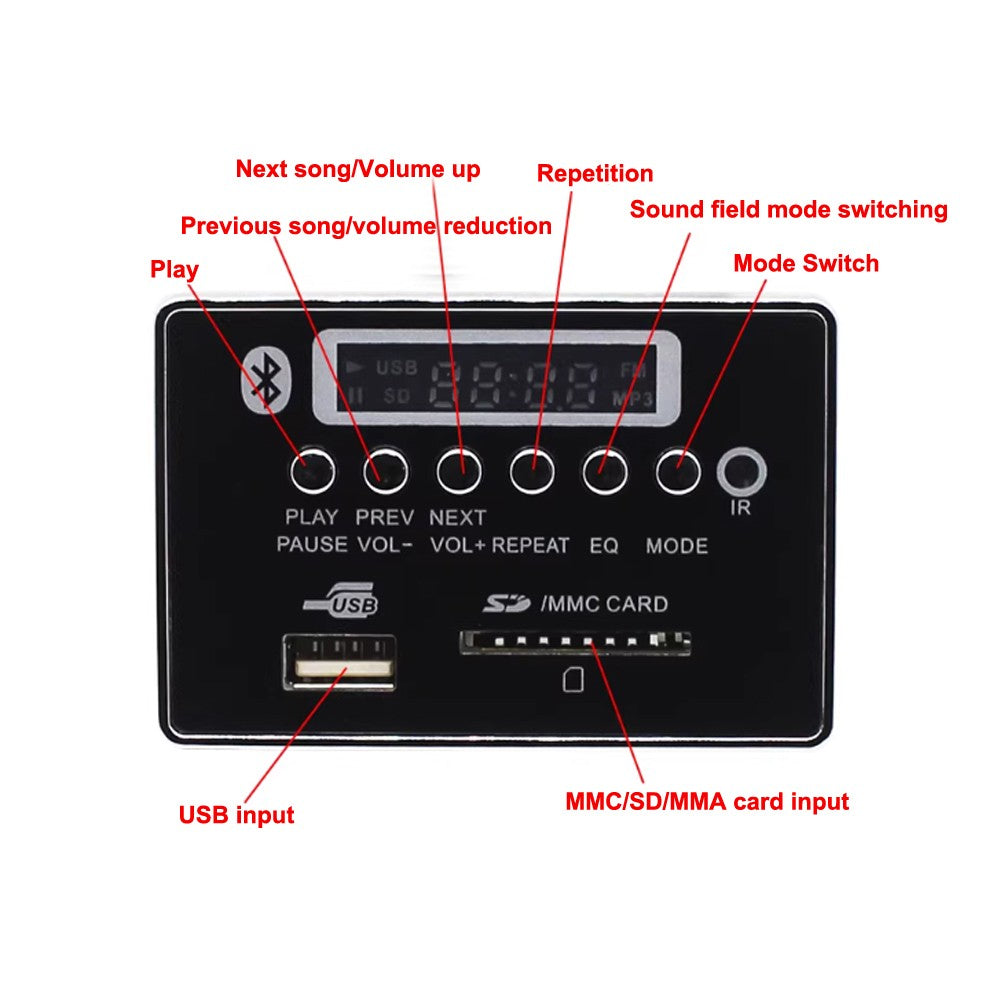

Detailed button operation:

1. PLAY button (play/pause): Short press PLAY button to play/pause in MP3 mode, short press button to play/pause in FM mode, long press button to automatically receive and coexist channels;

2. PREV button (previous track/volume down): Short press PREV in MP3 mode to switch to previous track, long press to decrease volume, short press in FM mode to switch up one channel number;

3. NEXT button (next track/speaker up): Short press NEXT in MP3 mode to switch to the next track, long press to increase volume, short press in FM mode to switch down one channel number;

4. REPEAT: Pressing once in MP3 mode will activate the single repeat function, and pressing once will activate the cancel repeat function;

5. EQ: Sound field mode, testing 6 types of sound quality; (Classical) (Jazz) (Rock) (Bass) (Pop) (Normal)

6. MODE button (analog): Switch between USB/SD/FM/AUX/Bluetooth in sequence;
