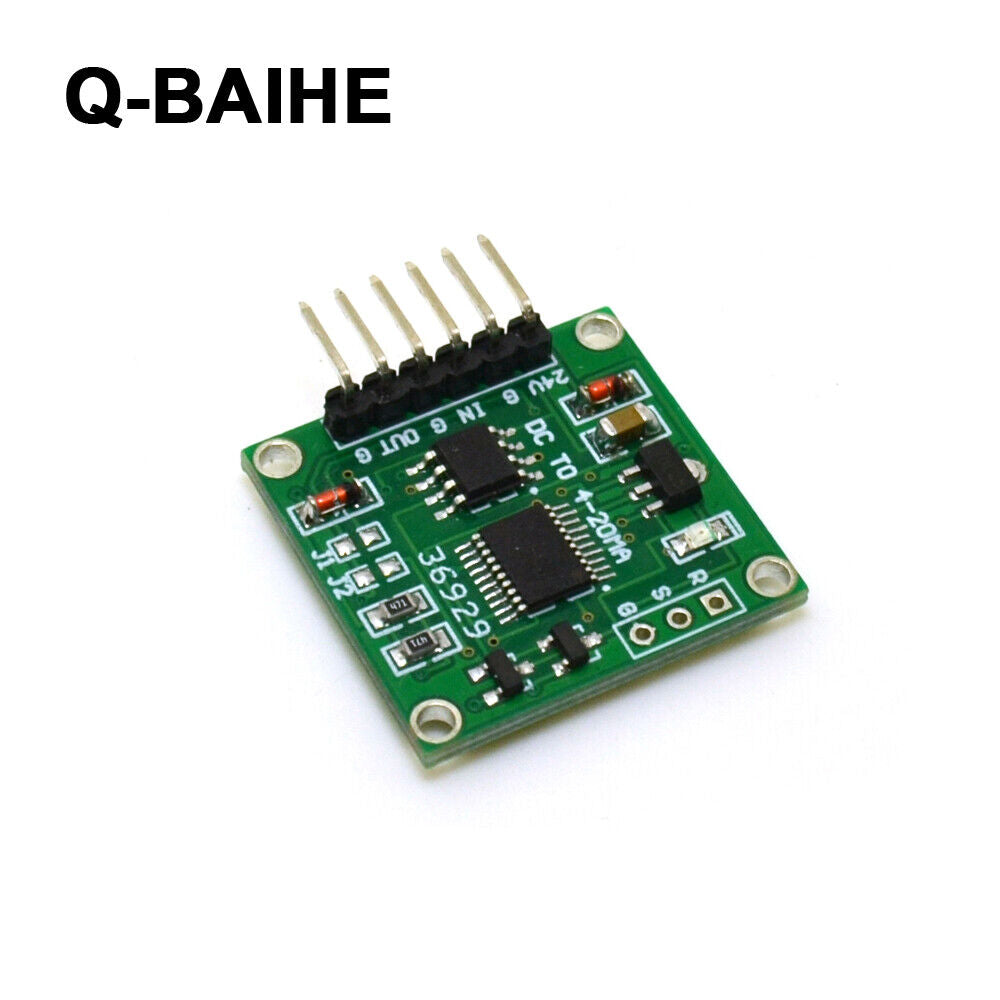

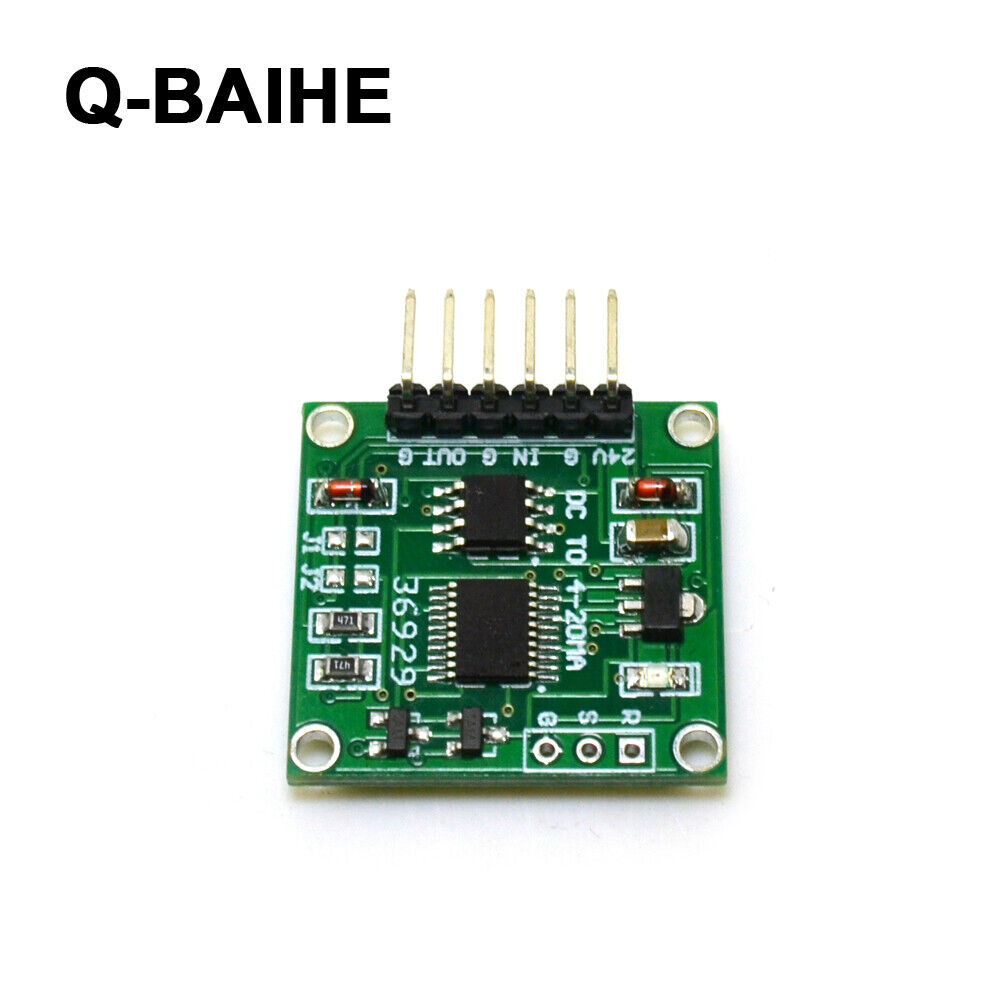

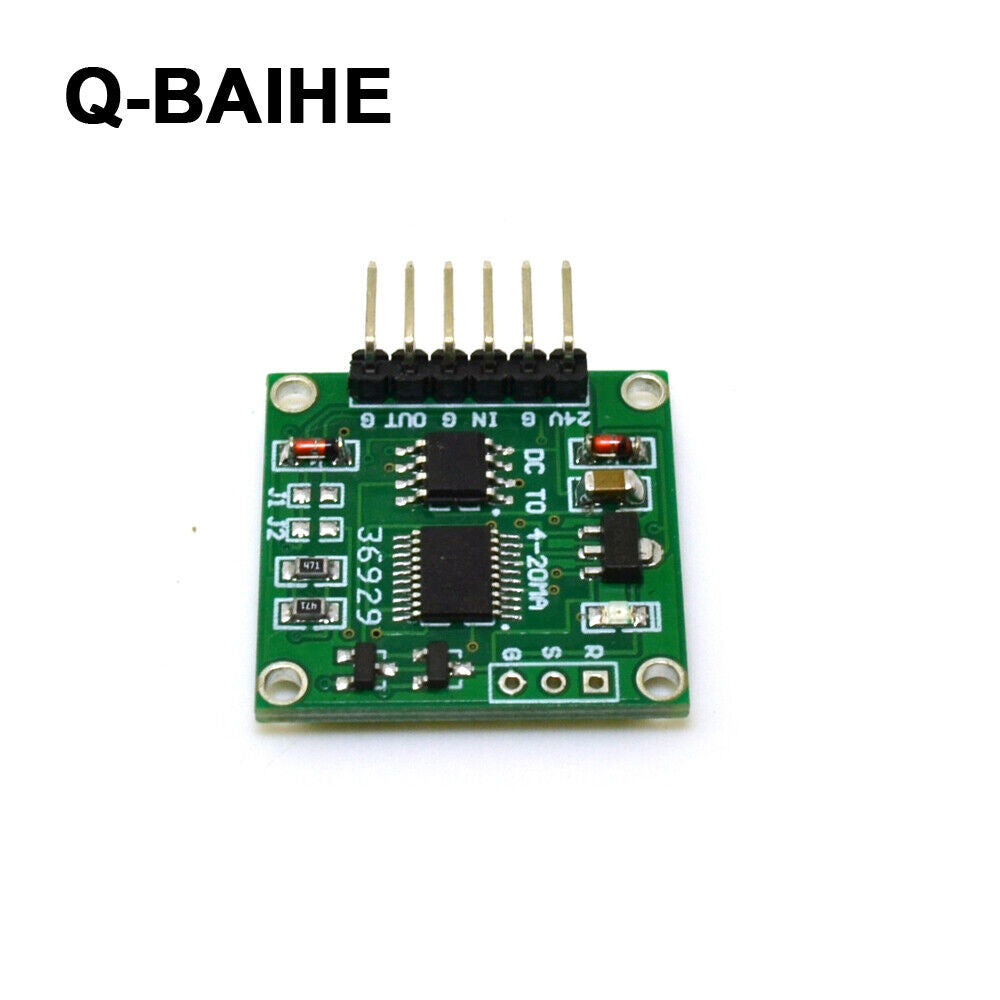

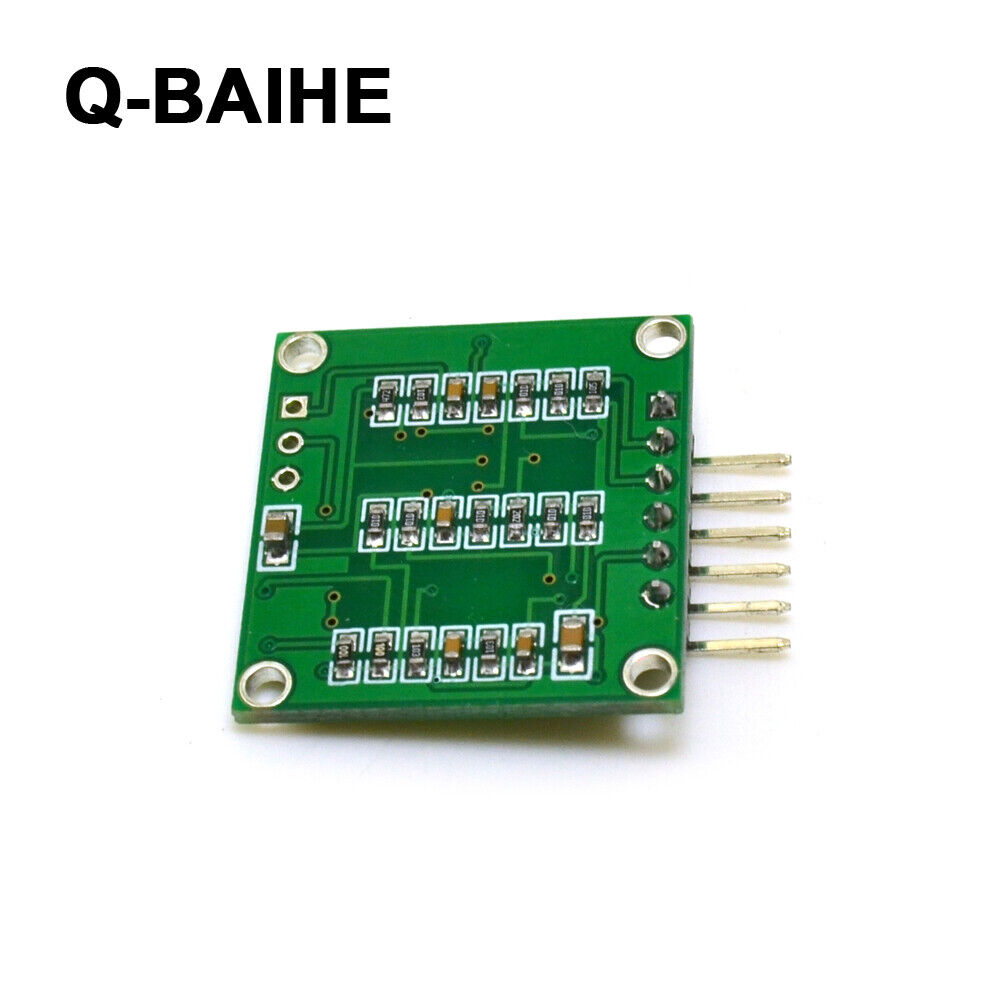

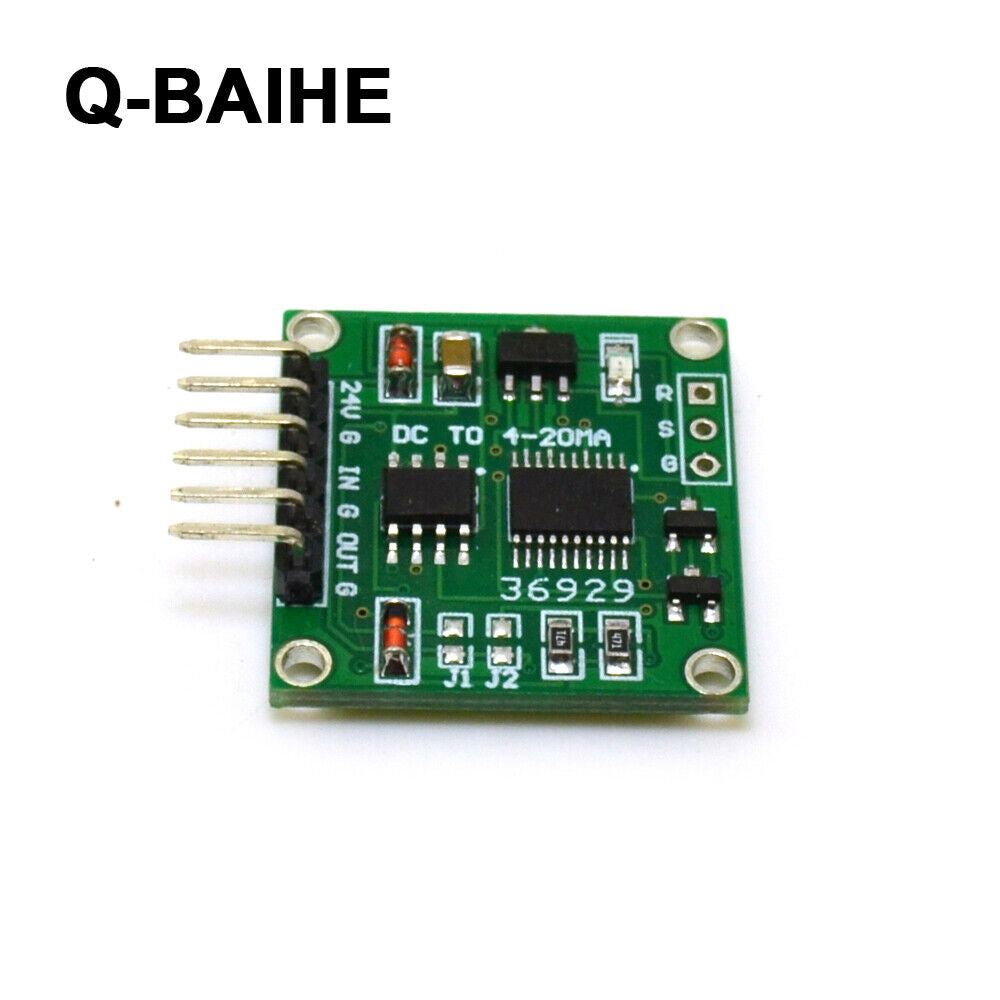

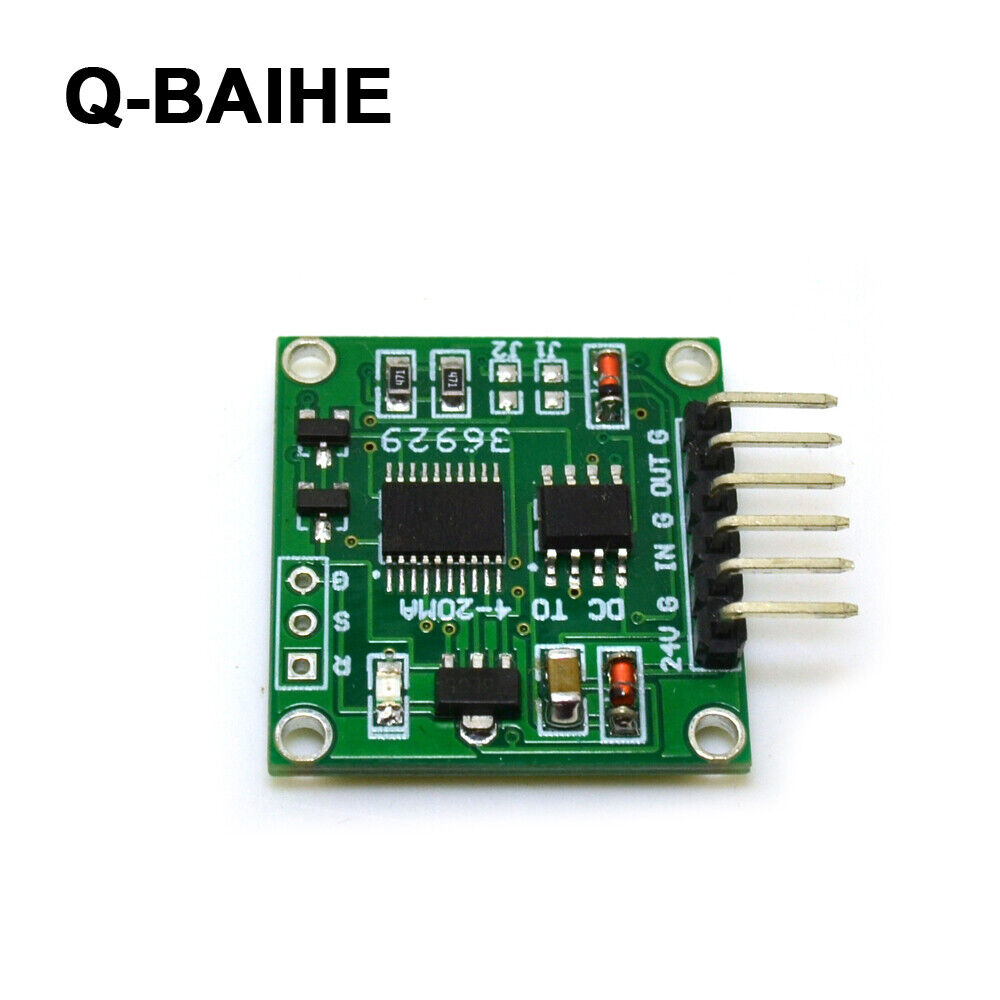

Voltage Convert Current Module 0-5V Turn 4-20MA Linear Transformation Transmitte

Voltage Convert Current Module 0-5V Turn 4-20MA Linear Transformation Transmitte

$24.00
$24.00
Sale Sold out
Shipping calculated at checkout.
Voltage Convert Current Module 0-5V Turn 4-20MA Linear Transformation Transmitte


Description:

1, working voltage: 9V ~ 24V

2. Input voltage: 0.00V ~ 5.00V / 0.00V ~ 10.00V

3, output current: 4.00MA ~ 20.00MA / 0.00mA ~ 20.00mA

4, the input mode: J1 pads on the circuit board: open (0 ~ 5V); Short (0 ~ 10V) default is open.

5, the output mode: J2 pads on the circuit board: open (output 4.00mA ~ 20.00mA); Short (output 0.00mA ~ 20.00mA), the default is open.

6, the control mode: input voltage is converted to the corresponding current

7. Applications: voltage signal convert to current signal; remote data acquisition and control equipment;

8, size :( length) 26mm * (width) 25mm * (high) 7mm

9, the module interface:

24V: positive power supply connector (9V ~ 24V).

G: Power ground to the interface.

IN: signal input interface  (0.00V ~ 5.00V / 0.00V ~ 10.00V)

G: Power ground to the interface.

OUT: signal output interface (4.00MA ~ 20.00MA / 0.00mA ~ 20.00mA)

G: Power ground to the interface.




Package:

1 x Voltage Convert Current Module 0-5V Turn 4-20MA Linear Transformation Transmitter Module
