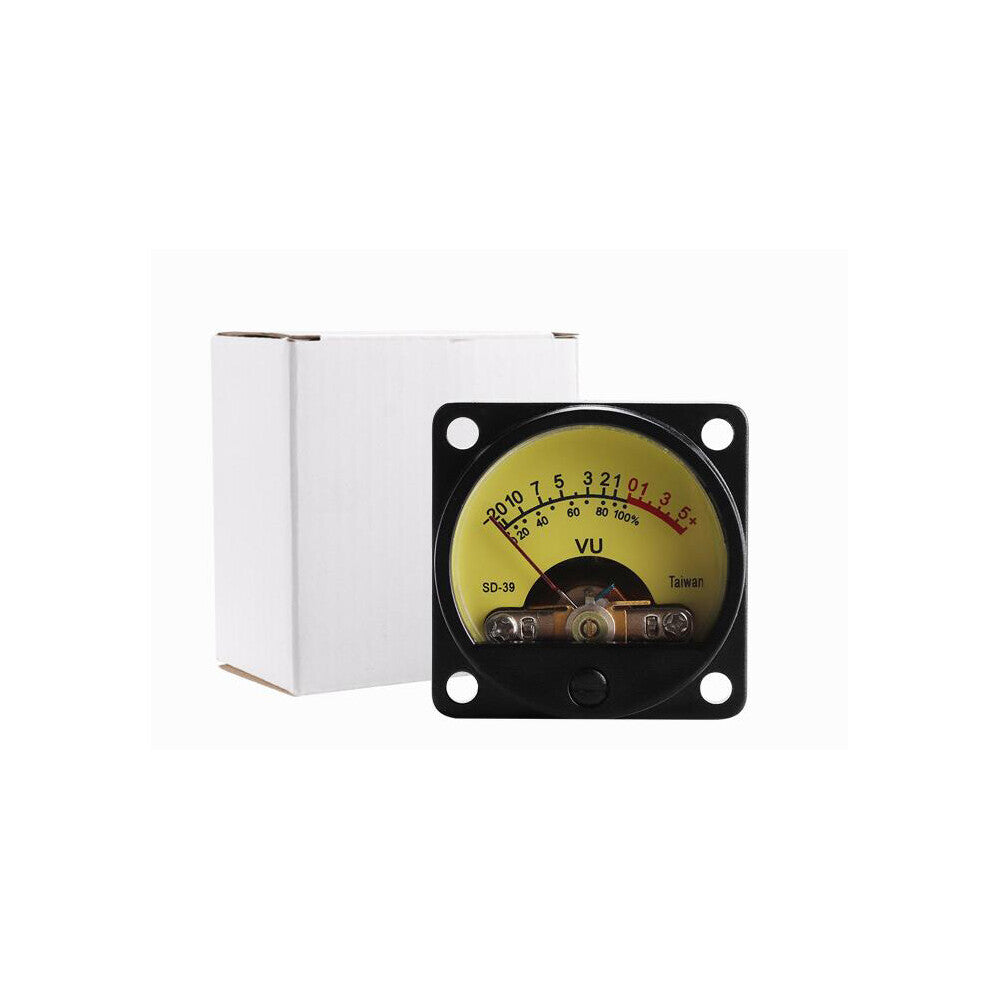

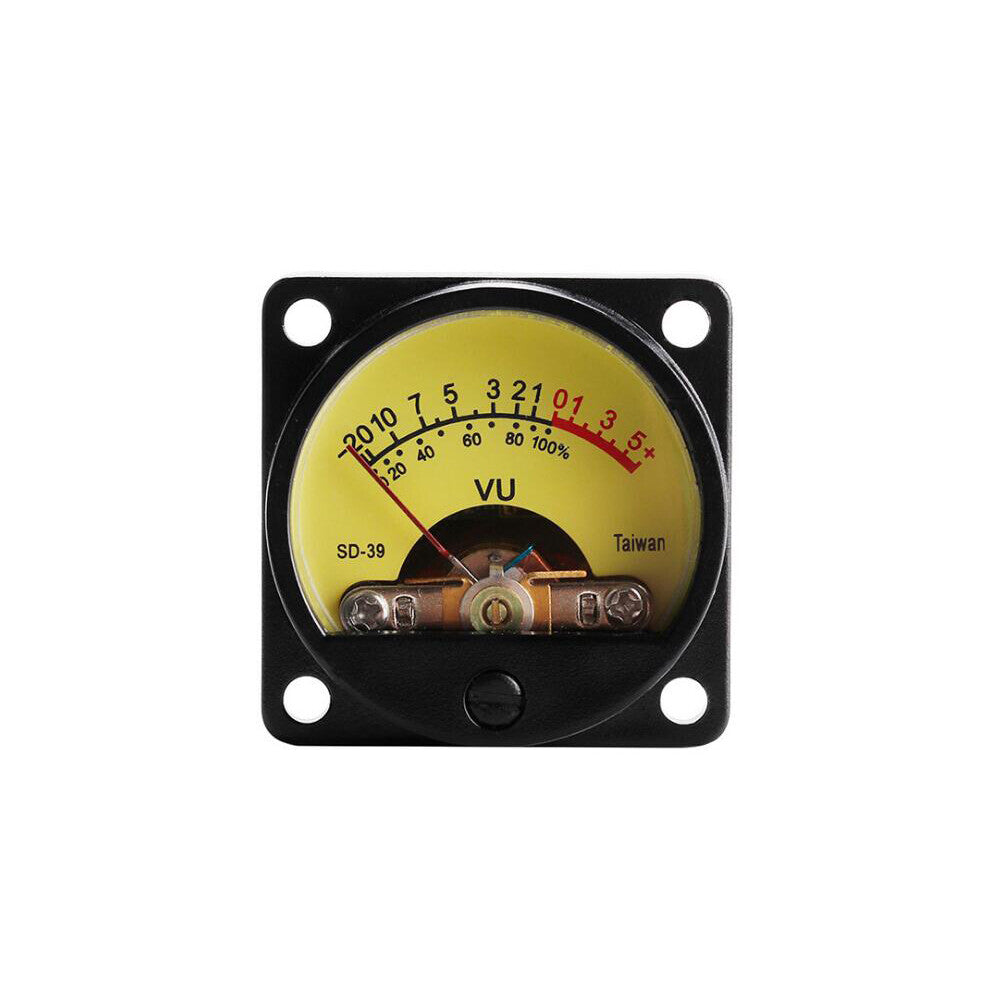

VU Level Meter SD-39 Car CD Power Amplifier Meter With Backlight And Drive Board

VU Level Meter SD-39 High-Precision With Backlight And Drive Car CD Conversion Tube Amplifier Meter Head

Table core structure: magnetoelectric system (√)
Pointer color: Tan

Pointer length: 18 (±1mm)
Pointer width: 0.35 (±1mm)

Pointer deflection direction: deflection clockwise from left to right
Upper cover material: ABS black

Lower cover material: ABS black
Nameplate material: PC

Electric meter use position: vertical use
Internal DC impedance: 300Ω±10%

Black frame material: ABS
Excitation coil material: UEW

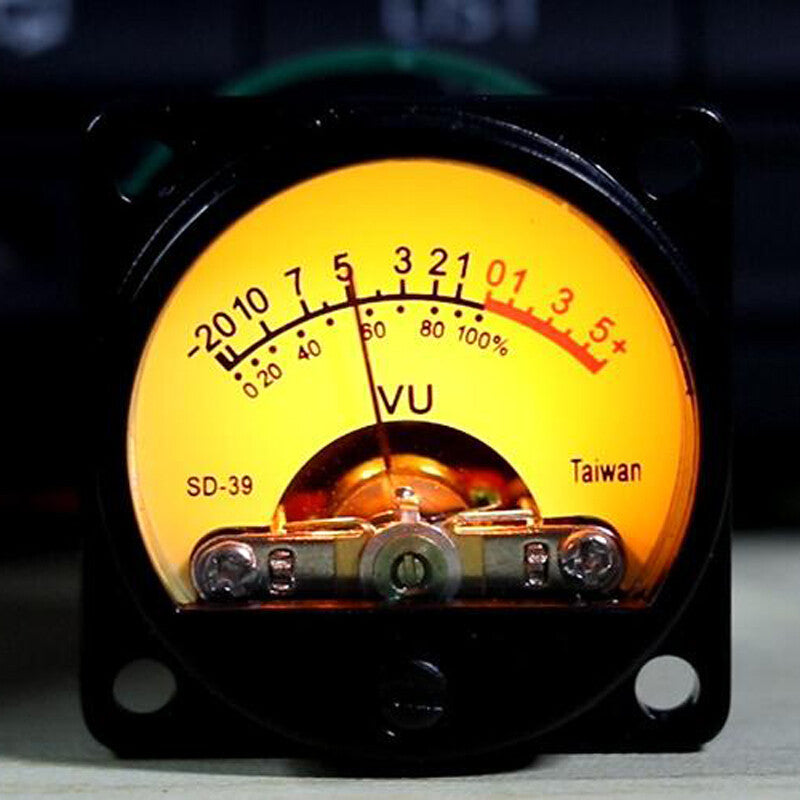

Bulb: 50mA 12V tungsten lamp
Meter calibration value: DC500uA±5%

Insulation strength: above 50MΩ
Friction error: ±1mm

Balance error: ±1.5mm

Packing:

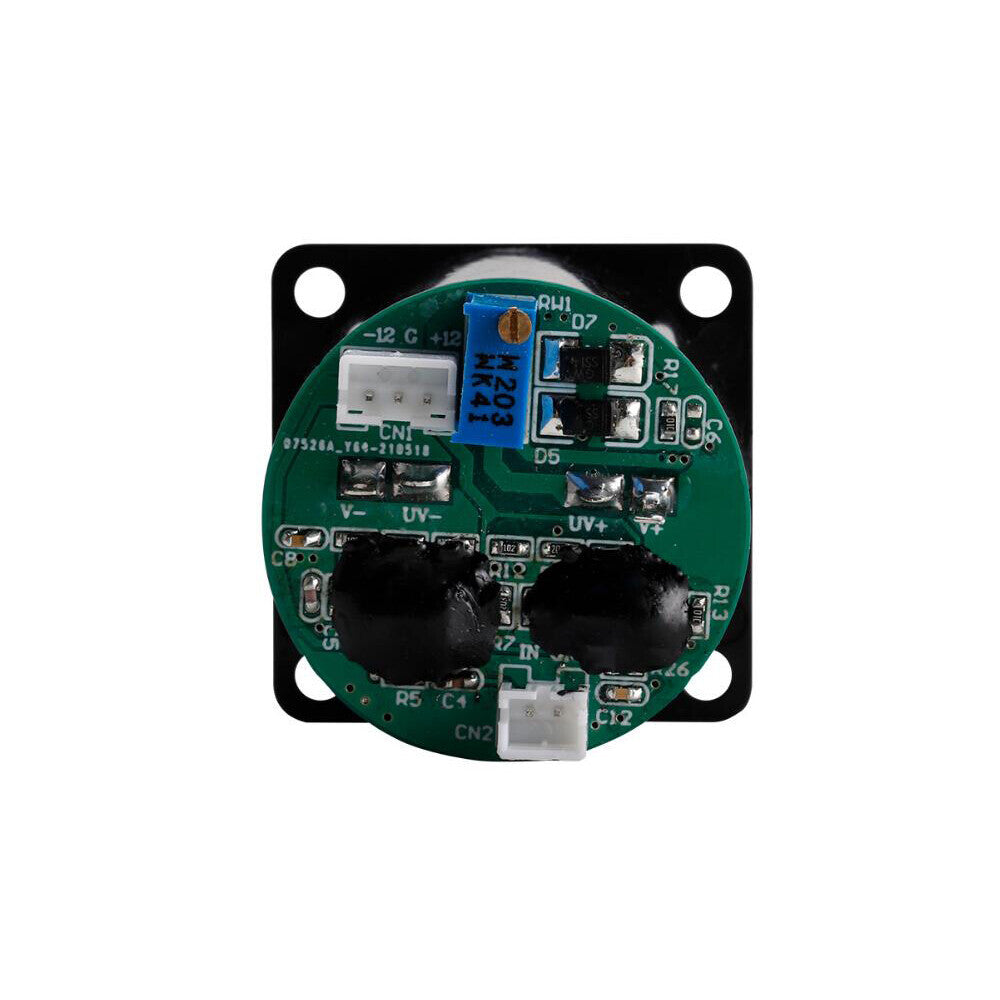

1*SD-39 Level Meter CD Dedicated Driver Board
