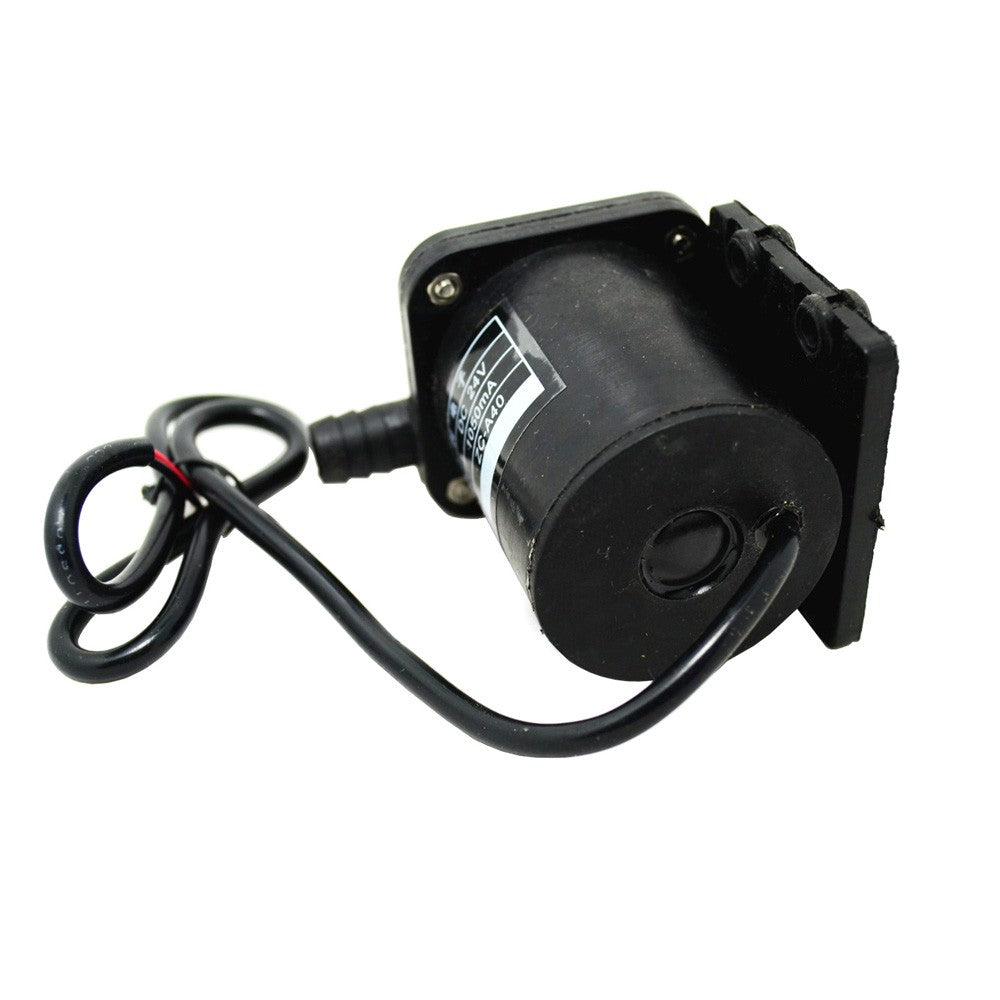

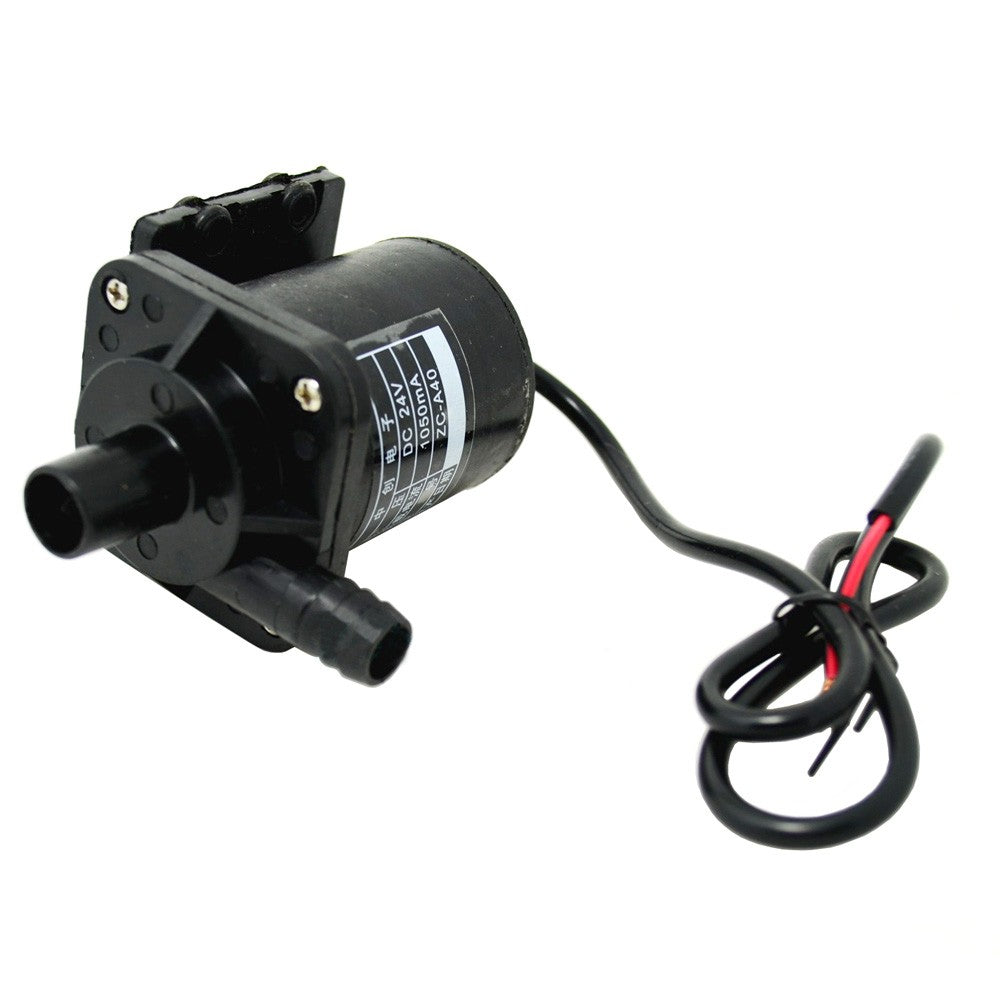

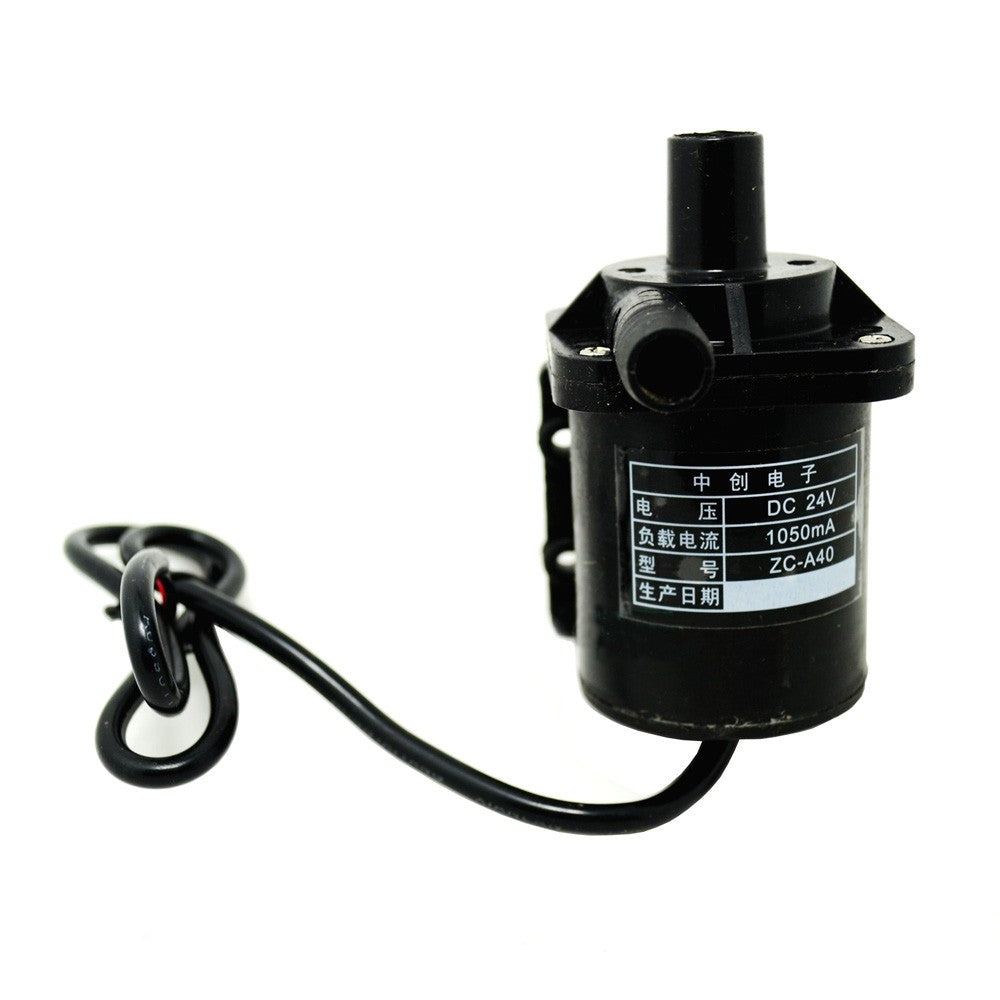

ZC-A40 Hot Water Pumps 12V/ 24V DC Mini Brushless Magnetic Pumps No Thread
ZC-A40 Hot Water Pumps 12V/ 24V DC Mini Brushless Magnetic Pumps No Thread
Regular price
$43.00
Regular price
$54.00
Sale price
$43.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Industrial Brushless Magnetic Hot Water Pump 0-80℃ - No Thread- ZC-A40 12V/24V DC
Description:
A40-12V:
1. Rated voltage: DC12V
Inlet: 13.5mm; Outlet: 11mm
2. Voltage: DC5V ~ DC12V
3. Working Current: 1050Ma
4. Head: 3.8m
5. Flow: 550L/H
A40-24V:
1. Rated voltage: DC24V
Inlet: 13.5mm; Outlet: 11mm
2. Voltage: DC12V ~ DC24V
3. Working Current: 1050Ma
4. Head: 7m
5. Flow: 720L/H
Features:
1. Noise: 45dB 0.5M or less
2. Fluid Temperature: 0 degrees C to 80 degrees C
3. Pump motor use DC brushless motor, no spark;
4. Small starting-up current, high efficiency, stable and reliable Operation, low power consumption, energy saving, environmental protection
5. Pump motor shaft uses highly wear-resistant ceramic shaft, continuous service life of 20,000 hours or more
6. The pump can work above or under water. Waterproof grade: IP68;
7. Pump head, flow, can be customized according to customer requirements;
8. Weight 220 grams
Notes:
1. Pump has no self-priming capability, so the installation location should be below the horizontal level.
2. Pmps can work under water at room temperature but can not do so at high temperature
3. Pumps cannot continuously work at high temperature
4. It is suggested to install preferably install filter at the pump pipe inlet
5. Head means the vertical distance from inlet surface to the outlet.
Package:
1x DC Mini Brushless Magnetic Hot Water Pump (0-80℃) -No Thread -ZC-A40
Description:
A40-12V:
1. Rated voltage: DC12V
Inlet: 13.5mm; Outlet: 11mm
2. Voltage: DC5V ~ DC12V
3. Working Current: 1050Ma
4. Head: 3.8m
5. Flow: 550L/H
A40-24V:
1. Rated voltage: DC24V
Inlet: 13.5mm; Outlet: 11mm
2. Voltage: DC12V ~ DC24V
3. Working Current: 1050Ma
4. Head: 7m
5. Flow: 720L/H
Features:
1. Noise: 45dB 0.5M or less
2. Fluid Temperature: 0 degrees C to 80 degrees C
3. Pump motor use DC brushless motor, no spark;
4. Small starting-up current, high efficiency, stable and reliable Operation, low power consumption, energy saving, environmental protection
5. Pump motor shaft uses highly wear-resistant ceramic shaft, continuous service life of 20,000 hours or more
6. The pump can work above or under water. Waterproof grade: IP68;
7. Pump head, flow, can be customized according to customer requirements;
8. Weight 220 grams
Notes:
1. Pump has no self-priming capability, so the installation location should be below the horizontal level.
2. Pmps can work under water at room temperature but can not do so at high temperature
3. Pumps cannot continuously work at high temperature
4. It is suggested to install preferably install filter at the pump pipe inlet
5. Head means the vertical distance from inlet surface to the outlet.
Package:
1x DC Mini Brushless Magnetic Hot Water Pump (0-80℃) -No Thread -ZC-A40
