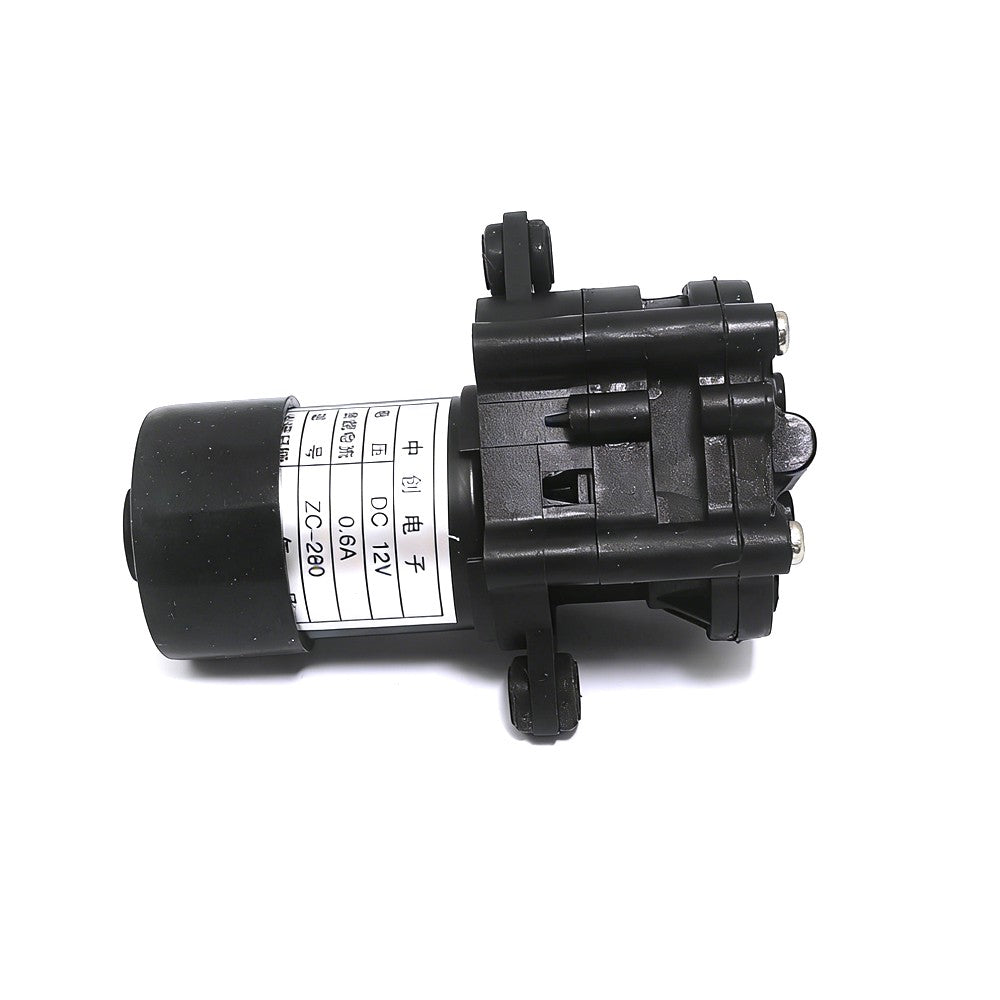

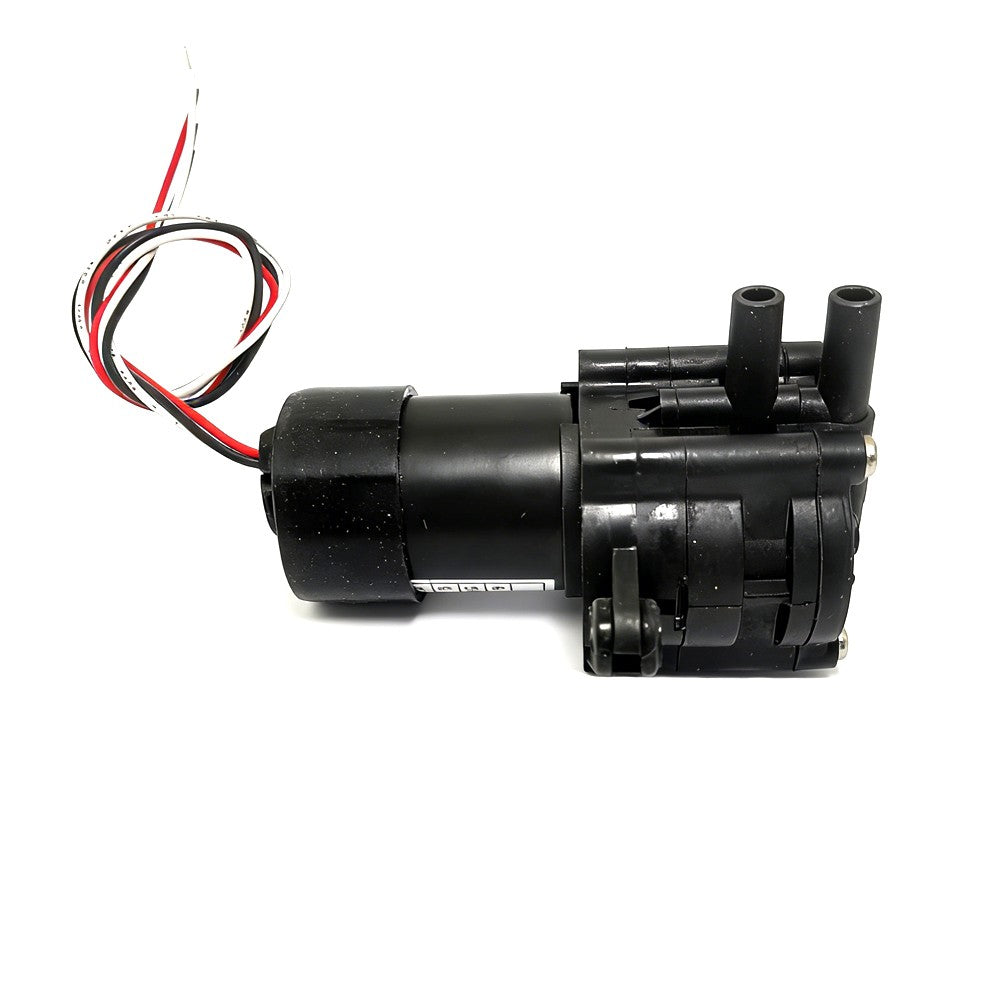

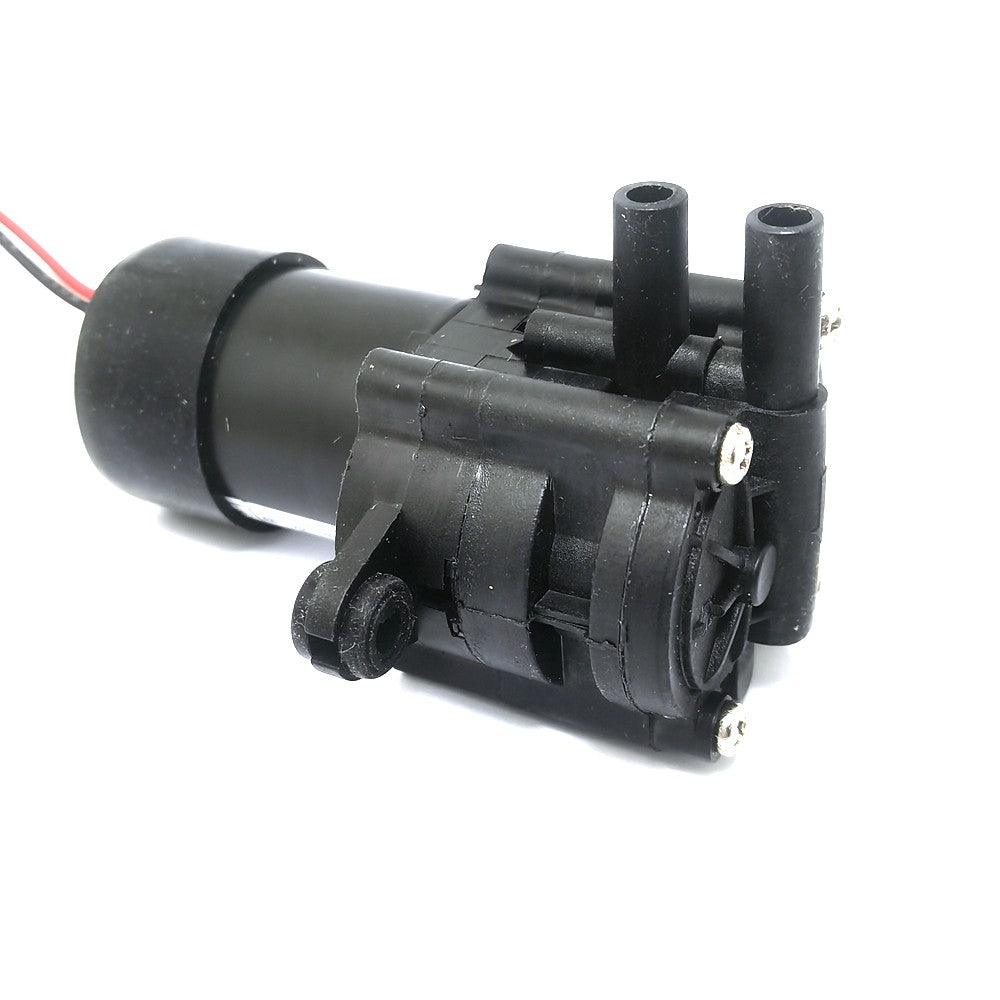

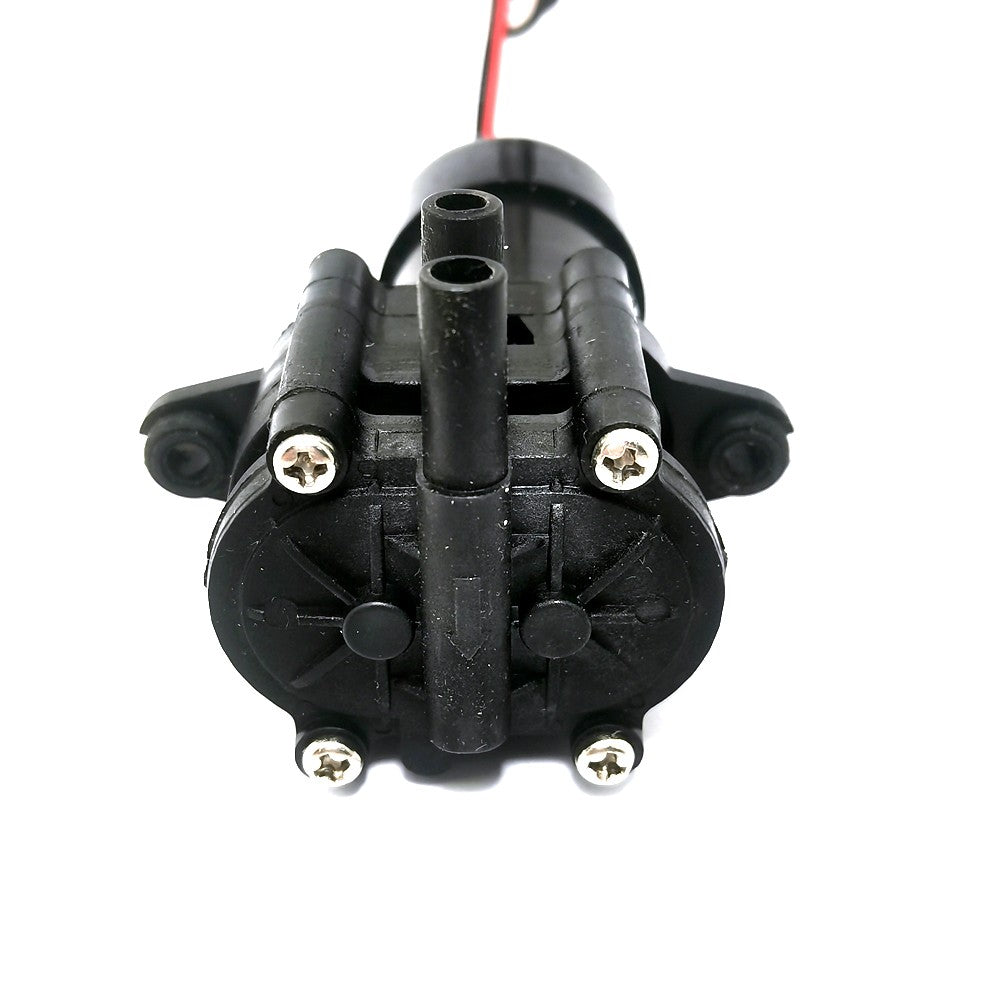

ZC280 12-24V Supercharged Brushless Water Pump/Oil Pump/DC Circulation Gear Pump

$85.00

~~$102.00~~ $85.00

Sale Sold out

Shipping calculated at checkout.

Options 12V 24V

Quantity

ZC-280 12V 24V Supercharged Brushless Water Pump /Oil Pump/Plastic Gear Hot Water Pump /DC Circulation Pump /Medical Equipment Gear Pump

Specification

A280-12V:

1. Rated voltage: 12V

2. Operating voltage: DC6V-12V

3. No-load rated current: within 0.75A

4. No-load water discharge: 1900cc±10%

5. Pressure: 3.5Kg±10%

6. Rated current under load: 0.8A~1.2A

7. Rated water discharge under 1KG load: 1200CC±10%/min

8. Suction range: within 1.0M

9. Noise: 50dB MAX (background noise 30dB, within 0.5M)

10. Use fluid: tap water, groundwater

、11. Water temperature: 0°C ~ 100°C

12. Ambient humidity: 45%~85%

13. Continuous working life of more than 5000 hours

14. Motor: brushless motor

A280-24V:

1. Rated voltage: 24V

2. Operating voltage: DC12V-24V

3. No-load rated current: within 0.35A

4. No-load water discharge: 1900cc±10%

5. Pressure: 3.5Kg±10%

6. Rated current under load: 0.5A~0.9A

7. Rated water discharge under 1KG load: 1200CC±10%/min

8. Suction range: within 1.0M

9. Noise: 50dBMAX (background noise 30dB, within 0.5M)

10. Fluid used: tap water, groundwater

11. Water temperature: 0°C~100°C

12. Ambient humidity: 45%~85%

13. Continuous working life of more than 5000 hours

14. Motor: brushless motor

Remarks:

Power cord length: according to user requirements

The water pump cannot be used continuously for a long time at high temperature

Can be customized according to user requirements and designed according to customer requirements

Purpose:
This product adopts a deceleration and torque increase structure, driven by a brushless motor, and has the characteristics of small volume and high pressure. This product adopts a deceleration and torque increase structure, driven by a brushless motor, and has the characteristics of small volume and high pressure. It is suitable for occasions where the medium is transported intermittently. It is widely used in chemical corrosion-resistant water pumps. Drinking fountains, medical equipment ozone-resistant self-priming pumps, food and other departments, pesticides, water treatment, sprayers, electrical appliances, experimental factories, etc.

Package

1pc ZC-A280 Gear Self-Sucking Pump
